- Manufacturer: DELTA
- Model / Part Number: DVP04TC-H2
- Power Supply: 24 VDC (±10%).
- Input Channels: 4 channels per module.
- Sensor Compatibility: Thermocouple types J, K, R, S, T, E, and N.
- Alternative Input: 0 ~ 150 mV voltage input.
- Digital Resolution: 14-bit digital signals.
- Temperature Scale Resolution: 0.1°C (or 0.18°F).
- Conversion Time: 200ms per channel.
- Overall Accuracy: ±0.6%.
- Built-in Comms: RS-485 interface.
- Data Storage: 49 built-in 16-bit Control Registers (CR) accessible via FROM / TO PLC ladder logic instructions.
- Hardware PID Function: Includes built-in PID capabilities for precise, closed-loop temperature control profiles directly from the module.
- Isolated Design: The main power unit and the processing modules are isolated to minimize signal distortion, electrical shocks, and electromagnetic noise.
- Status Indicators: Built-in LED lights map real-time diagnostics for POWER, ERROR, and A/D conversion states.
- Environment: Must be securely installed inside an enclosed control cabinet that is entirely free of airborne dust, heavy humidity, static shock, or high vibration.
- Grounding: The module and the shielded sensor cables must be properly grounded to maintain signal integrity and avoid erratic temperature fluctuations.
-
- Manufacturer: DANFOSS
- Model / Part Number: 067B3278
- Device Type: TE 5 Series Thermostatic Element
- Compatible Refrigerant: R407C
- Temperature Range: -40°F to +50°F (-40°C to +10°C) — "N" Range
- Pressure Equalization: External (1/4 inch Flare connection)
- Maximum Working Pressure (MWP): 400 psig (28 bar)
- Capillary Tube Length: 118 inches (3,000 mm)
- Body Material: Brass
- Element Material: Laser-welded stainless steel
-
- Manufacturer: DAIKIN
- Model / Part Number: KFD-280-40-8B
- Voltage: DC 280V
- Rated Power: 40W
- Rotational Speed: 1640 r/min
- Motor Type: Brushless DC Motor (BLDC)
-

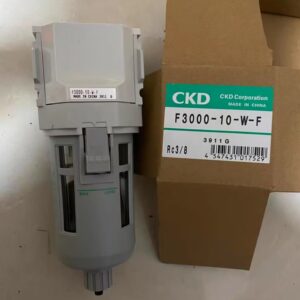

- Manufacturer: CKD
- Model / Part Number: F3000-10-W-F
- Filtration Rating: 5 μm (micrometer) element for effective dust and foreign matter removal.
- Port Size: 3/8 inch with standard Rc thread connection.
- Operating Pressure: Maximum working pressure of 1 MPa (approx. 145 PSI).
- Fluid Temperature: Safe operating range between 5°C to 60°C (11°F to 140°F).
- Bowl Material: Durable polycarbonate bowl.
- Flow Direction: Standard left-to-right direction.
- Filter Element: F3000-ELEMENT
- Mounting Bracket: B320 (C-type bracket)
-
- Manufacturer: CHIMEI
- Model / Part Number: AT070TN94
- Display & Resolution: 7.0-inch diagonal screen with a 16:9 widescreen aspect ratio.
- Brightness & Contrast: Delivers a typical brightness of 400 cd/m² and a typical contrast ratio of 500:1, maximizing indoor and outdoor field visibility.
- Color Capability: Supports up to 262K colors (6-bit) with an optimal viewing angle fixed at the 6 o'clock direction.
- Operating Temperature: Extreme wide industrial range certified for -30°C to +85°C (both operating and storage conditions).
- Physical Dimensions: Outer outline dimensions measure 164.9 mm (H) x 100.0 mm (V) with a slim profile thickness of 5.7 mm.
- Signal Interface: Utilizes a standard 50-pin TTL / Parallel RGB digital interface.
- VCC / VDD: 3.3V (Typical)
- AVDD (Analog Power): 10.4V (Typical)
- VGH (Gate High Voltage): 16.0V (Typical)
- VGL (Gate Low Voltage): -7.0V (Typical)
- Backlight Subsystem: Integrated White LED (WLED) system structured in a 3S9P arrangement.
-
- Manufacturer: CARLO GAVAZZI
- Model / Part Number: RAM1A23D50
- Operating Voltage: 24 to 265 VAC (Volts Alternating Current)
- Rated Current: 50 Aac (Amps Alternating Current) max load
- Control Voltage: 3 to 32 VDC (Volts Direct Current)
- Switching Mode: Zero-cross switching (turns ON when the AC voltage waveform crosses zero, minimizing electrical noise and electrical stress)
- Number of Poles: 1-pole (Single Phase)
- Status Indicator: Equipped with an LED light to visually show the status of the control input.
- Safety Design: Includes a clip-on cover providing IP20 touch protection to keep users safe from accidental electric shocks.
-
- Manufacturer: CAREL
- Model / Part Number: IR33C0HB00
- Power Supply: 115 to 230 V AC (50/60 Hz).
- Compressor: 1 x 16 A relay.
- Defrosting: 1 x 8 A relay.
- Evaporator Fans: 1 x 8 A relay.
- Auxiliary/Light: 1 x 8 A relay.
- Inputs: 2 NTC temperature probes (not included) and 2 configurable digital inputs.
- Temperature Range: Reads NTC sensors from -50°C to +150°C.
- Dimensions: Front face measures 76 x 34 mm, with a standard 71 x 29 mm panel cutting template.
-
- Manufacturer: BUSSMANN
- Model / Part Number: 170M1408
- Current Rating: 10 Amps
- Voltage Ratings: 690 Vac (IEC) / 700 Vac (UL) / 700 Vdc
- Interrupting Rating (Breaking Capacity): 200 kA RMS Symmetrical (AC) / 50 kA (DC)
- Operating Class: gR (full-range semiconductor protection)
- Power Loss: 3.0 Watts at rated current
- Body Size: Size 000 (Compact square body)
- Mounting Type: 80mm Bolted tags / Stud mount (DIN 43 653)
- Termination Style: Blade end to blade end (Bolt down)
- Status Indicator: Top visual "T" indicator (compatible with microswitches for remote signaling)
- Weight: 134 to 136.4 grams
- Standards & Certifications: CE Marked, UL Recognized, IEC Rated, and RoHS Compliant.
-

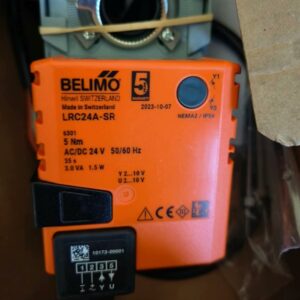

- Manufacturer: BELIMO
- Model / Part Number: LRC24A-SR
- Nominal Voltage: AC/DC 24 V (50/60 Hz) Operating range of 19.2 to 28.8 V.
- Torque: 5 Nm Minimum torque at nominal voltage.
- Running Time: 35 seconds Complete motor travel time.
- Power Consumption: 1.5 W (Operating) / 0.4 W (At Rest) Wire sizing capacity is rated at 2 to 3 VA.
- Protection Class: IP54 / NEMA 2 Protection against dust and splashing water.
- Parallel Operation: Multiple actuators can be wired together to work at the same time.
- Built-in Cable: Comes equipped with a 1-meter, 4-wire connection cable (4 × 0.75 mm²).
-
- Manufacturer: ALLEN-BRADLEY
- Model / Part Number: 25B-D2P3N104
- Rated Power: 1 Horsepower (HP) / 0.75 Kilowatts (kW)
- Input Power: 380 to 480 Volts AC, 3-Phase
- Output Current: 2.3 Amps
- Frame Size: Size A (a small, space-saving design)
- Enclosure Rating: IP20 / NEMA Open Type
- Networking: Built-in Ethernet/IP port for smart network tracking
- Functional Safety: Certified Safe Torque-Off (cuts motor power quickly without stopping the whole machine)
-
- Manufacturer: PULS
- Model / Part Number: QS10.121
- Nominal Output Voltage: 12 VDC, adjustable from 12 to 15 VDC
- Output Current: 15 A at 12 VDC; 13.5 A at 15 VDC
- Rated Output Power: 180 W
- AC Input Voltage: 100 to 240 VAC
- DC Input Voltage: 110 to 150 VDC
- Efficiency: Up to 91.8%
- Housing Width: 60 mm
- Power Reserve: 22.5 A for up to 4 seconds
- Terminals: Spring-clamp terminals
- Status Output: DC-OK indicator and relay contact
-
- Manufacturer: PANASONIC
- Model / Part Number: MDMF202L1G6M
- Rated Output: 2.0 kW
- Rated Speed: 2000 r/min
- Maximum Speed: 3000 r/min
- Rated Torque: 9.55 N·m
- Rated Voltage: 200/220 VAC, three-phase
- Rated Current: 9.9 A
- Encoder: 23-bit absolute encoder
- Inertia Class: Middle inertia
- Connection: Connector type
- Degree of Protection: IP67
- Weight: 6.9 kg
-
- Manufacturer: VICKERS
- Model / Part Number: DG4V-3-6C-M-U-H7-60
- Maximum Flow Rate: 80 L/min (21 US gal/min)
- Maximum Pressure at P, A and B Ports: 350 bar (5075 psi)
- Maximum Tank Port Pressure: 210 bar (3045 psi)
- Seal Material: Nitrile rubber
- Operating Temperature: -20 to 70 °C
-
- Manufacturer: TELEMECANIQUE
- Model / Part Number: XCSPA792
- Switch Type: Non-locking key-operated safety interlock switch
- Contact Configuration: 2 normally closed slow-break contacts
- Housing Material: Glass-fibre reinforced thermoplastic
- Degree of Protection: IP67
- Conduit Entry: M16 x 1.5 tapped entry
- Actuation Head: Multi-directional turret head
- Functional Safety: Up to Category 4, PL e and SIL 3 in a suitable safety system
-
- Manufacturer: IFM
- Model / Part Number: PK7522
- Measuring Range: 0 to 100 bar (0 to 1450 psi)
- Maximum Overload Pressure: 200 bar (2900 psi)
- Bursting Pressure: 1000 bar (14500 psi)
- Operating Voltage: 9.6 to 32 VDC
- Electrical Design: PNP
- Output Function: 2 normally open digital outputs
- Process Connection: G 1/4 external thread with M5 internal thread
- Electrical Connection: 4-pin M12 A-coded connector
- Degree of Protection: IP67
- Media Temperature: -25 to 80 °C
-
- Manufacturer: ABB
- Model / Part Number: ACS530-01-02A7-4
- Rated Power: 0.75 kW (1 hp)
- Output Current: 2.6 A
- Input Voltage: Three-phase 380–480 VAC
- Output Frequency: 0–500 Hz
- Enclosure: IP20
- Frame Size: R1
- Control Features: PID control and application macros
