REQUEST A QUOTE
- Fluid & Media: Compressed air (General quality / Dry air)
- Operating Pressure Range: 0.2 to 1.0 MPa (29 to 145 psi)
- Proof Pressure: 1.5 MPa
- Coil Rated Voltage: 24 VDC
- Allowable Voltage Fluctuation: -15% to +10% of rated voltage
- Manual Override: Non-locking push type (Flush style)
- Flow Direction: Left to right
- FRL Compatibility: Features modular connectivity, allowing it to hook directly into SMC combination air preparation units.
- Safety Exhaust: Quickly vents downstream pressure when electrical power to the solenoid is cut.
- Adjustable Start-up Speed: Equipped with a needle valve to adjust the initial low-speed air supply rate before fully switching over to line pressure.
SMC AV2000-N02-5DZ Soft Start Valve (AV2000).
-
- Manufacturer: SMC
- Model / Part Number: CXSM15-60
- Bore Diameter: 15 mm
- Stroke Length: 60 mm
- Action: Double-acting (uses air to push and pull)
- Bearing Type: Slide bearing
- Non-Rotating Accuracy: ±0.1°
- Port Size: M5 x 0.8
- Cushioning: Rubber bumper
-
REQUEST A QUOTE
- Model Type: Gateway (GW) Unit
- Protocol: DeviceNet®
- Power Supply: 24 VDC (Operating range: 11–25 VDC)
- I/O Capacity: 64 Inputs / 64 Outputs
- Branch Capacity: 4 Branches
- Branch Breakdown: 16 Inputs & 16 Outputs per branch
- Speed Support: 10/100 Mbps auto-negotiation
- Compatible Valves: SV1000/2000/3000/4000, VQC1000/2000/4000
- Alternative Configuration Files: Network configuration files (.EDS) can still be retrieved directly through the SMC Configuration File Download Portal.
SMC EX500-GDN1 DeviceNet Gateway (EX500).
-
REQUEST A QUOTE
- Detection Method: Non-contact pneumatic detection.
- Detection Distance: 0.01 to 0.5 mm.
- Repetition Accuracy: 0.01 mm or less.
- Port Size: 1/8" (Pt version).
- Operating Pressure Range: 30 to 200 kPa.
- Environmental Protection: IP66 rated, making it dustproof and drip-proof.
- Wiring/Connection: Configuration features a common wire / central terminal box design.
- Pressure Stability: Unaffected by fluctuations in the supply pressure due to its specific internal sensor construction.
SMC ISA2-GE21 Air Catch Sensor (ISA2 Series).
-
REQUEST A QUOTE
- Product Type: Digital pressure switch with 2-color display
- Pressure Type: Positive pressure, for air or non-corrosive gas
- Status: Discontinued (December 2020)
- Replacement Model: SMC ISE20-N-01-L
SMC ISE30A-01-N-L Digital Pressure Switch (ISE30A Series).
-
REQUEST A QUOTE
- Rated Pressure Range: -0.100 to 1.000 MPa
- Power Supply Voltage: 12 to 24 VDC
- Current Consumption: 40 mA or less
- Display: 4-digit, 7-segment dual-color LED (changes red/green based on settings)
- Key Features: Includes a unique copy function to clone parameter settings to up to 10 sensors simultaneously.
- Official Substitute: SMC lists the ISE20-P-01-L as the modern replacement series.
SMC ISE30A-01-P Digital Pressure Switch (ISE30A).
-
REQUEST A QUOTE
- Pressure Type: Positive Pressure
- Rated Pressure Range: -0.100 to 1.000 MPa (-14.5 to 145 psi)
- Supply Voltage: 12 to 24 VDC (±10% ripple)
- Switch Outputs: Dual NPN open collector outputs
- Analog Output: 1 to 5 VDC (Linearity: ±1% F.S. or less)
- Display Type: 3.5 digit, 7-segment LCD display
- Repeatability: ±0.2% F.S. ±1 digit or less
- Enclosure Rating: IP65 (Dust-tight and splash-proof)
- Brown: Power (+) 12-24 VDC
- Blue: Power (-) 0V / GND
SMC ISE40-01-22L Digital Pressure Switch (ISE40).
-
REQUEST A QUOTE
- Operating Pressure Range: 0 to +1.0 MPa (Approx. 0 to 150 PSI)
- Proof Pressure: Maximum +1.5 MPa
- Power Supply: 12 to 24 VDC
- Current Consumption: ~55 mA to 80 mA maximum
- Enclosure Rating: IP67 (dust-tight and water-resistant)
- Display: 2-color digital display with unit-switching functions
SMC ISE70-F02-65 Digital Pressure Switch (ISE70).
-
REQUEST A QUOTE
- Applicable Fluids: Air, non-corrosive gas, non-flammable gas
- Rated Pressure Range: 0.0 to 1.0 MPa (0 to 10 bar)
- Display Pressure Range: -0.1 to 1.0 MPa
- Proof / Withstand Pressure: 1.5 MPa
- Power Supply Voltage: 12 to 24 VDC ±10%
- Current Consumption: ≤ 55 mA
- Switch Output: 2 Outputs (Selectable NPN / PNP open collector)
- Enclosure Rating: IP67 (dust-tight and water-resistant protection)
- Display Accuracy: ±2% F.S. ±1 digit
- Repeatability: ±0.5% F.S.
SMC ISE70-F02-L2 Digital Pressure Switch (ISE70).
-
REQUEST A QUOTE
- Connection Type: 6mm One-touch push-in tube connection x M5 x 0.8 Male metric thread.
- Seal Method: Gasket seal.
- Operating Pressure: -100 kPa to 1 MPa (-1 bar to 10 bar), making it suitable for both vacuum and positive pressure applications.
- Temperature Range: -5°C to 60°C for compressed air (no freezing), and 0°C to 40°C for liquid water applications.
- Materials: Polybutylene Terephthalate (PBT) resin body, brass thread, and a Polyoxymethylene (POM) release button.
- Tubing Compatibility: Accepts nylon, soft nylon, and polyurethane tubes.
SMC KQ2L06-M5A One-Touch Fitting (KQ2 Series).
-
REQUEST A QUOTE
- Bore Size: 16 mm
- Stroke Length: 30 mm
- Gripping Width: 98 mm when fully open; 68 mm when closed
- Holding Force: 45 N (both internal and external) at 72 psi / 0.5 MPa
- Operating Pressure: 15 to 87 psi (0.1 to 0.6 MPa)
- Port Size: M5 x 0.8
- Temperature Rating: 14°F to 140°F (-10°C to 60°C)
- Double Piston Construction: Delivers a compact profile while maintaining a significantly large holding force.
- Synchronized Parallel Motion: A rack-and-pinion design ensures both fingers travel perfectly together.
- Versatile Mounting: Supports both axial (via tapped body or through-hole) and lateral mounting configurations.
SMC MHL2-16D Air Gripper (MHL2).
-

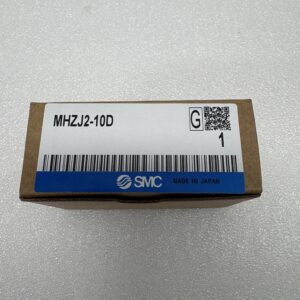

- Manufacturer: SMC
- Model / Part Number: MHZJ2-10D
- Gripping Force: Approximately 17 Newtons (N) when closing and 19.8 N when opening at 72 psi.
- Stroke Length: 4 mm of total finger movement.
- Operating Pressure: 29 psi to 102 psi (0.2 to 0.7 MPa).
- Repeatability: ±0.01 mm for highly precise, repetitive tasks.
- Port Size: M3 x 0.5 female threads for air line connections.
- Temperature Range: 14°F to 140°F (-10°C to 60°C).
- Linear Guide Rails: The finger mechanisms travel along a built-in guide rail. This prevents the fingers from twisting or shaking under heavy loads.
- Flexible Mounting: The square body has screw holes on three different sides. You can bolt it down in five different position styles depending on your machine layout.
- Auto-Switch Ready: The outer housing features specialized slots. You can slide magnetic sensors (like the SMC D-M9 series) into these slots to let your main computer know if the gripper is currently open or closed.
-

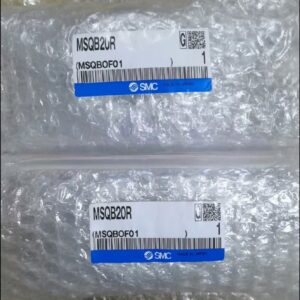

- Brand: SMC
- Model: MSQB20R
- Series: MSQ
- Mechanism: Rack and pinion
- Body type: MSQB basic type
- Size: 20
- Cushioning: Internal shock absorber
- Pneumatic ports: M5
- Auto switches: Not fitted
- Magnet: Built in
-

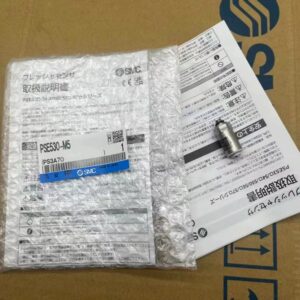

- Brand: SMC
- Model: PSE530-M5
- Series: PSE530
- Pressure type: Positive pressure
- Rated pressure range: 0 to 1 MPa
- Proof pressure: 1.5 MPa
- Pressure port: M5 × 0.8
- Output: Analog voltage, 1 to 5 V DC
- Supply voltage: 12 to 24 V DC
- Current consumption: 15 mA maximum
- Applicable fluids: Air, non-corrosive gas and non-flammable gas
- Accuracy: ±2% full scale or less at 25 °C
- Enclosure: IP40
- Operating temperature: 0 to +50 °C
- Body material: SUS303
- Weight without cable: 7 g
-
REQUEST A QUOTE
- Actuation Type: 3-Position Closed Center (Double Solenoid)
- Rated Voltage: 24V DC (designated by the "-5" code)
- Mounting Style: Base Mounted (without a sub-plate unless ordered via variant -02 or -03)
- Electrical Entry: DIN Terminal with connector (designated by the "Z" code)
- Indicator & Protection: Built-in LED light and surge voltage suppressor
- Fluid: Compressed Air
- Operating Pressure Range: 0.1 to 0.7 MPa (Internal Pilot)
- Max Fluid/Ambient Temp: 50°C (122°F)
- Manual Override: Non-locking push style
SMC SY7340-5DZ 5-Port Pneumatic Solenoid Valve (SY7000 Series).
