- Valve Series: 100 Series
- Valve Type / Function: 3/2-Way Single Direct Solenoid Poppet Valve (3 Ports, 2 Positions)
- Operation Mode: Universal (Can be configured as Normally Open or Normally Closed); Monostable
- Port Size: 1/8" NPTF (National Pipe Taper Fuel)
- Mounting / Installation: Individual Inline
- Operating Pressure Range: Vacuum to +150 PSI
- Electrical Rating: 110–120 V AC (50/60 Hz); Power consumption of roughly 6.8 Watts
- Manual Override: Non-locking recessed manual operator
- Electrical Connection: 1/2" NPS Conduit with 18-inch wire leads
- Physical Dimensions: 61mm H x 25mm W x 89mm D (2.4" × 0.98" × 3.5")
MAC 111B-111CAAA Solenoid Valve (MAC 100 Series).
-
REQUEST A QUOTE
- Valve Function: 3-Way, Universal Inline
- Port Size: 1/8 inch NPTF induction inline
- Operating Pressure Range: 0 to 150 PSI
- Voltage & Frequency: 120 VAC (50 Hz / 60 Hz)
- Power Consumption: 9.0 Watts
- Electrical Connection: 18-inch flying leads (wire length)
- Manual Override: Non-locking recessed manual operator
MAC 111B-421BAAA 3-Way Inline Solenoid Valve (100 Series).
-
- Manufacturer: MAC
- Model / Part Number: 111B-511JM
- Series: 100 Series
- Valve Function: 3/2-way universal inline
- Flow Coefficient: 0.18 Cv
- Port Size: 3 x 1/8-inch NPTF female
- Coil Voltage: 24 VDC
- Power Consumption: 4.0–4.5 W
- Pressure Range: Vacuum to 150 psi
- Operating Temperature: -18 to +60 °C
- Electrical Connection: DIN 43650 plug-in connector
-
- Manufacturer: MAC
- Model / Part Number: 111B-611JB
- Valve Type: 3-port, 2-position (3/2-way) universal design. It can be configured as Normally Open (NO) or Normally Closed (NC).
- Control Voltage: 24V DC with an 8.5-watt power consumption coil.
- Port Size: Three 1/8" NPTF threaded female pneumatic connection ports.
- Pressure Range: Capable of handling a wide envelope from vacuum up to 150 PSI.
- Flow Capacity: Flow coefficient rating of 0.18 Cv.
- Electrical Connection: Features a rectangular DIN 43650 plug-in connector.
- Actuation Mechanism: Single direct solenoid with a monostable steel mechanical spring reset.
-
- Manufacturer: MAC
- Model / Part Number: 111B-611JD
- Valve Type: 3-way, 2-position (3/2) poppet valve
- Function: Universal (can be used as Normally Open, Normally Closed, or for selector/diverter functions)
- Port Size: 1/8 inch NPTF (3 female threaded ports)
- Operating Voltage: 24V DC
- Power Consumption: 8.5 Watts
- Electrical Connection: Rectangular DIN 43650 plug-in connector with an indicator light
- Pressure Range: Vacuum to 150 PSI
- Flow Capacity: 0.18 Cv
-

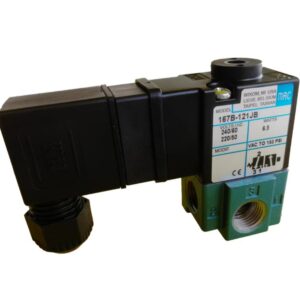

- Manufacturer: MAC
- Model / Part Number: 167B-121JB
- Valve Function: 3-Way Normally Closed (N.C.) inline operation.
- Port Size: Three 1/4" BSPP (British Standard Pipe Parallel) threaded female pneumatic ports.
- Electrical Connection: Rectangular DIN 43650 plug-in connector.
- Dimensions: 61mm Height x 25mm Width x 89mm Depth.
- Operating Temperature Range: -18 °C to +60 °C.
- MACSOLENOID Technology: Uses a patented design that prevents coil burnout on alternating current (AC) power supplies.
-

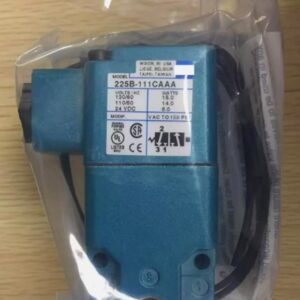

- Manufacturer: MAC
- Model / Part Number: 225B-111CAAA
- Valve Type: 3-way, 2-position single direct solenoid poppet valve (can be used as Normally Open or Normally Closed).
- Port Size: 1/4" NPTF female pneumatic ports.
- Flow Rate: 0.50 Cv (flow coefficient).
- Pressure Range: Vacuum up to 150 PSI.
- Reset Mechanism: High-force steel mechanical spring reset for consistent monostable operation.
- Lubrication: No lubrication is required during operation.
-
- Manufacturer: MAC
- Model / Part Number: 35A-AAA-DABA-1BA
- Voltage: 220V to 240V AC (50/60 Hz)
- Port Size: 1/8-inch NPTF
- Function: Universal 3-way valve (can be wired as normally open, normally closed, or as a selector/diverter)
- Electrical Connection: 18-inch flying leads (open wires)
- AAA: Standard direct solenoid operation with an inline body.
- DA: The specific high-voltage AC coil option (220/240V AC). Note: This is different from the popular "DD" model which uses 12V DC for car engine boost control.
- BA: Flying lead wires measuring 18 inches long.
-
- Manufacturer: MAC
- Model / Part Number: 411A-D0A-DM-DDAJ-1KJ
- Valve Function: 5-Port / 2-Position, Single Solenoid Monostable
- Port Size: 1/4" BSPPL Threaded Female
- Operating Voltage: 24V DC (5.4W power draw)
- Pressure Range: 20 to 120 PSI (Internal Pilot Air)
- Pilot Type: Internal Pilot Air with Muffled Pilot Exhaust
- Physical Dimensions: Height: 63mm × Width: 21mm × Depth: 96mm
-

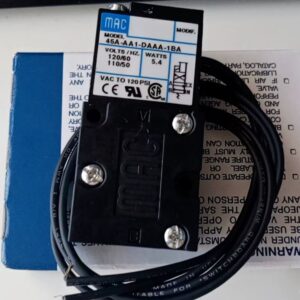

- Manufacturer: MAC
- Model / Part Number: 45A-AA1-DAAA-1BA
- Valve Function: 4-way, 2-position
- Actuation: Single direct solenoid with spring return
- Port Size: 1/8-inch NPTF female
- Coil Voltage: 110 VAC at 50 Hz or 120 VAC at 60 Hz
- Operating Pressure: Full vacuum to 120 psi
- Installation: Inline mounting
-

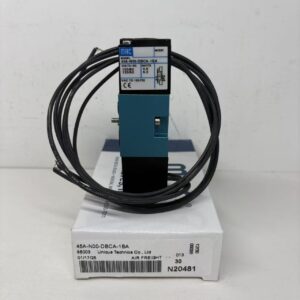

- Manufacturer: MAC
- Model / Part Number: 45A-N00-DBCA-1BA
- Valve Type: 4/2-way (4 ports, 2 positions).
- Actuation: Double direct solenoid (bistable operation, meaning it holds its position until the opposite coil is energized).
- Voltage: 110V AC to 120V AC (50/60 Hz).
- Pressure Range: Rated for vacuum up to 120 PSI.
- Mounting Style: Valve less base (body only, designed to plug into a separate manifold or base block).
- Electrical Connection: Grommet entry with an 18-inch (45 cm) cable terminated with bare-end flying leads.
-
REQUEST A QUOTE
- Manufacturer / Series: MAC Valves, Inc. — 800 Series
- Valve Type: 4-Way / 5-Port, 2-Position single solenoid piloted spool valve
- Operation Type: Monostable (Pneumatic / steel mechanical spring reset)
- Pilot Air Type: External Pilot with a muffled pilot exhaust
- Port Size: 1/4" NPTF threaded female pneumatic ports
- Operating Pressure: Vacuum up to +200 psi (13.8 bar)
- Solenoid Voltage: 24 VDC (6 W power consumption)
- Manual Operator: Non-locking recessed manual override button
- Electrical Connection: Flying leads (18" / 45.7 cm molded-in bare end wires)
- Body Style: Individual inline installation body
MAC 812C-PM-501BA-112 Solenoid Valve (800 Series).
