Showing 1–16 of 21 results
-
REQUEST A QUOTE
- Component Type: Replacement Ultraviolet (UV) Flame Sensing Power Tube.
- Temperature Rating: 0°F to 250°F (-18°C to 121°C).
- Primary Applications: Industrial burners, commercial boilers, central furnaces, public ovens, and intense combustion systems.
- Country of Origin: United States (USA).
HONEYWELL 129464M UV Flame Sensing Tube (129464).
-
REQUEST A QUOTE
- Component Type: Replacement UV Power Sensing Tube with Base
- Operating Temperature: -40°F to +250°F (-40°C to +121°C)
- Dimensions: Height: 69 mm
- Diameter: 19 mm
- Weight: 0.038 kg (0.08 lbs)
- Tariff Code: 85408900
- Flame Amplifiers: Compatible with Honeywell R7849A/B UV flame amplifiers used in standard 7800 SERIES Burner Management Systems.
- Fuel Profiles: Engineered to monitor ultraviolet radiation from gas-, oil-, and coal-fired burners.
- High-Temperature Environments: If installing the companion primary detector in areas exceeding the baseline temperature limit, utilize specialized Honeywell F leadwires (Specification No. 32004766-003). This specialized wiring is continuously rated up to 400°F (250°C).
- Wiring Considerations: For non-high-temperature sections, utilize moisture-resistant No. 14 AWG wire rated for the peak ambient temperatures expected inside the burner enclosure.
HONEYWELL 129464N UV Flame Sensing Tube (129464).
-
REQUEST A QUOTE
- Operating Voltage: 24V AC (Lower functional limit: 19.20V AC).
- Control Signal: 0–10V DC modulating or proportional control.
- Positioning Force: 1600 N to 1800 N nominal force.
- Stroke / Nominal Travel: 40 mm.
- Operating Ambient Temperature: -10°C to 55°C.
- Alternative: Honeywell 24V Transformers
HONEYWELL AC24V1800N Damper Actuator (AC24V Series).
-
REQUEST A QUOTE
- Operating Voltage: 115 / 230 VAC (±10%), dual voltage selection
- Frequency: 50 / 60 Hz
- Temperature Rating: -40°F to +175°F (-40°C to +79°C)
- Enclosure Rating: NEMA 4 / IP66 (Dust and moisture resistant)
- Wiring Interface: Terminal block / Screw terminals
- Self-Check Mechanism: Oscillating shutter; cycles 12 times per minute
- Pressure Rating: Viewing window rated up to 20 psi (138 kPa)
- Dynamic Self-Checking: Features an internal, oscillating shutter mechanism that mechanically interrupts the path of UV radiation 12 times every minute. This constant cycling allows the flame safeguard system to verify that the UV sensor tube is functioning properly and hasn't failed in a dangerous "always-on" state.
- Flexible Positioning: Supports mounting horizontally, vertically, or at any intermediate angle. Note that faceplate alignment with integral locating reference points is mandatory to guarantee correct mechanical shutter movement.
- Dual Detector Parallel Wiring: In demanding or irregular flame-sighting conditions, two C7061A scanners can be wired completely in parallel to a single terminal. This significantly mitigates nuisance system shutdowns.
HONEYWELL C7061A1020 Flame Detector (C7061).
-

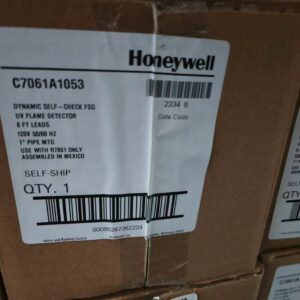

- Brand: Honeywell
- Model: C7061A1053
- Series: C7061A
- Detection method: Ultraviolet
- Self-checking: Yes
- Supply rating: 120 V AC, 50/60 Hz
- Pipe connection: 1 inch
- Lead length: 8 ft
- Ambient temperature: -40 to +175 °F
- Flame amplifier: R7861, as marked on detector
-
REQUEST A QUOTE
- Torque Rating: 5 Nm (44 lb-in), suitable for managing smooth, seal-less air damper applications up to approximately 10 sq. ft.
- Control Signal Types: Versatile triple-mode support including Modulating (analog signal), Floating (3-point), and ON/OFF (2-position).
- Nominal Voltage: 24 Vac/dc, 50/60 Hz.
- Rotation Stroke: 95° with a built-in rotation limiter and adjustable mechanical end limits.
- Runtime: 110 seconds at 50Hz or 90 seconds at 60Hz.
- Power Consumption: 5VA / 2W.
- Protection Class: IP54 rated for dust and splash protection.
- Shaft Mounting: Direct coupling for round shafts (8 to 16 mm) and square shafts (6 to 13 mm).
- Integrated Feedback: Provides a continuous voltage position feedback signal directly to the building automation system or PLC for real-time tracking of the exact damper angle.
- Auto-Calibration: Automatically runs an auto-calibration sequence upon power-cycling to map the mechanical limits before aligning to the control signal.
HONEYWELL CN7505A2001 Direct Coupled Damper Actuator (CN7505 Series).
-
REQUEST A QUOTE
- Manufacturer: Honeywell Sensing and Control
- Model / Series: GCP-33AN (GCP Series)
- Number of Poles: 3-Pole (Triple Pole)
- Amperage Rating: 10A
- Trip Mechanism: Electromagnetic Overcurrent Protection
- Form Factor: Subcompact (17.5 mm width per single pole)
- Mounting Standard: DIN Rail installation (IEC Standard compliance)
- Durability Ratings: Vibration: 15G | Mechanical Shock: 50G
- Secure Insulation Engineering: Terminal blocks are protected by structural walls to ensure that live electrical wiring is never exposed to external accidental contact.
- Intuitive Troubleshooting: Features highly visible, color-coded ON/OFF indicators paired with an integrated handle guard. These metrics allow floor technicians to rapidly identify operating trip states from a distance while preventing unintended manual flipping.
HONEYWELL GCP-33AN 10A Electromagnetic Circuit Protector (GCP Series).
-
REQUEST A QUOTE
- Feature / Attribute: Specification
- Manufacturer: Honeywell
- Model: GCP-33AN (where "3" designates the pole count)
- Number of Poles: 3-Pole (3P)
- Rated Voltage: AC 250V
- Available Amperage Tiers: 0.1A, 0.3A, 0.5A, 1A, 2A, 3A, 5A, 7A, 10A, 15A, 20A, 25A, 30A
- Rated Short-Circuit Capacity: 2.5 kA
- Device Weight: 220g (approx. 7.76 oz)
- Form Factor / Width: 17.5 mm width per pole
- Mounting Style: Standard 35mm DIN Rail (IEC Standard Compliant)
HONEYWELL GCP-33AN Electromagnetic Circuit Protector (GCP Series).
-
REQUEST A QUOTE
- Operating Range: 10 to 150 psi (69 to 1034 kPa)
- Maximum Sustained Pressure: 225 psi (1551 kPa)
- Differential Pressure Range: 10 to 22 psi (69 to 152 kPa) — Subtractive Adjustment
- Switch Type: SPDT (Single Pole Double Throw) Snap-Acting
- Switch Action: Make R-W / Break R-B on pressure rise
- Reset Type: Automatic Reset (Auto Recycle)
- Sensor Element: Stainless Steel Diaphragm
- Pipe Connection: 1/4" NPT Internal (Female) Thread to siphon loop
- Ambient Temperature Range: -35°F to +150°F (-37°C to +66°C)
- Broad Media Compatibility: Engineered primarily for steam boilers, but also widely approved for control systems utilizing air, non-combustible gases, or non-corrosive fluids.
HONEYWELL L404F1102 Pressure Controller (Pressuretrol).
-
REQUEST A QUOTE
- Operating Pressure Range: 10 to 150 psi (70 to 1035 kPa)
- Switching Action: SPST (Single Pole Single Strow), Breaks (opens) on pressure rise
- Reset Type: Manual Reset (Trip-free mechanism requires human intervention to restart)
- Sensing Element: Stainless Steel Diaphragm
- Media Compatibility: Steam, air, noncombustible gases, and fluids non-corrosive to stainless steel
- Maximum Pressure: 225 psi (1550 kPa) maximum sustained operating pressure
- Max Ambient Temperature: 150°F (66°C)
- Pipe Connection: 1/4 in. NPT internal thread (female) on diaphragm assembly
- Electrical Connections: Screw terminals inside the case
- Visible Micro Switch: Features a snap-acting switch layout that is clearly visible through a transparent cover wrapper, allowing quick assessment of the pressure setting adjustments.
HONEYWELL L4079B1041 Pressure Limit Control (Pressuretrol).
-
REQUEST A QUOTE
- Operating Voltage: 200–240 V AC (±10%), 50/60 Hz
- Opening / Stroke Time: 5 seconds for a 90° rotation
- Firing Angle / Range: 0° to 90°
- Torque: 1.5 Nm
- Rotation Direction: Anticlockwise (Counter-Clockwise)
- Duty Cycle: 70% ED (Intermittent operation)
- Gear Mechanism: Self-locking worm gear with manual disengagement lever
- Auxiliary Switch Capacity: 10 A / 250 V
- Protection Rating: IP 44
- Weight: 0.7 kg (1.54 lbs)
HONEYWELL LKS210-10 AC Servo Actuator (LKS Series).
-
REQUEST A QUOTE
- Series / Family: Modutrol IV (Series 62 Slaving Series)
- Control Signal: Floating control with position feedback
- Power Supply: 24 VAC, 50/60 Hz (15 VA driving power consumption)
- Torque Rating: 150 lb-in (17 Nm)
- Stroke Range: Adjustable from 90 to 160 degrees (Factory set to 160°)
- Timing: 30 to 60 seconds nominal
- Shaft Design: Dual-ended, square, slotted, and tapped on both ends (0.375 in)
- Auxiliary Switches: 2 internal SPDT auxiliary switches built-in
- Feedback Mechanism: Electrically isolated non-linear potentiometer for position indication
- Enclosure Rating: Integral junction box providing NEMA 3 weather protection (when upright)
HONEYWELL M6284F1013 Electric Actuator (Modutrol IV).
-
REQUEST A QUOTE
- Model Series: Series 72 Modutrol IV
- Actuation Type: Non-Spring Return
- Power Supply: 120V AC, 50/60 Hz
- Power Consumption: 15 VA
- Control Input Signal: Modulating, 4–20 mA current
- Operational Torque: 150 lb-in
- Stroke Range: Adjustable from 90° to 160° (Factory set at 90°)
- Timing / Speed: 30 to 60 seconds nominal travel time
- Crankshaft: 3/8-inch square, dual-ended shaft
- Enclosure Rating: NEMA 3 weather protection (when mounted in an upright position)
HONEYWELL M7284A1004 Electric Modulating Actuator Motor (Modutrol IV Series).
-

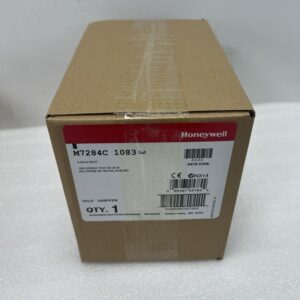

- Manufacturer: HONEYWELL
- Model / Part Number: M7284C1083
- Control Signal: 4–20 mA
- Torque: 150 lb-in
- Return Type: Non-spring return
- Supply Voltage: 24, 120 or 230 VAC
- Rotation: 90°
- Travel Time: 30 seconds
- Auxiliary Switches: 2
- Enclosure Rating: NEMA 3 when mounted upright
- Operating Temperature: -40 to +60 °C
-
REQUEST A QUOTE
- Stem Force / Close-off: 600 N (135 lbf)
- Supply Voltage: 24 V AC (50/60 Hz)
- Power Consumption: 4 VA
- Stroke Length: 20 mm (0.79 inches)
- Run Time: 60 seconds (1 minute) for full stroke
- Control Signal: 3-point floating (SPDT)
- Fail-Safe Operation: Non-spring return (fails in place upon power loss)
- Protection Rating: IP54
- Direct-Coupled Installation: Quick and easy installation directly onto the valve body without needing a separate linkage.
- Manual Override: Equipped with a manual control knob that allows mechanical valve adjustments during power outages.
HONEYWELL ML6420A3007 Linear Valve Actuator (ML6420 Series).
-
REQUEST A QUOTE
- Supply Voltage: 24 Vac
- Stem Force: 600 N (135 lbf)
- Stroke/Lift: 20 mm
- Run Time: 60 seconds (1 minute)
- Power Consumption: 4 VA
- Protection Rating: IP54
- Manual Override: Features an external manual control knob. If power fails, you can adjust the valve manually. Once power is restored, the knob automatically unlocks and hands control back to the system.
- No Calibrations Needed: It features a direct-coupled design with force-limiting microswitches. These switches turn off the actuator precisely when the specified force is hit, saving installation time and protecting the valve.
- Valve Compatibility: Seamlessly operates standard Resideo/Honeywell Home valve series including DE, XE, DF, XF, and V5329C lines.
- Features & Benefits: * Quick and easy installation, no separate linkage required. * Conduit connector is standard. * No adjustment…
HONEYWELL ML6420A3007-E Linear Valve Actuator (ML6420 Series).
