Showing 1–16 of 50 results
-
REQUEST A QUOTE
- Main Function: Communication bus expansion unit.
- Slot Configuration: Contains 1 x slot for a standard 32-bit PCI card.
- Card Compatibility: Specially designed to house PCI half-size expansion cards.
- Hardware System Compatibility: Exclusively compatible with the B&R Automation PC 910 (APC910) series industrial computer system.
- Standards and Certifications: Complies with CE, cULus, and maritime standards like DNV GL and Bureau Veritas.
B&R 5AC901.BX01-00 Bus Expansion Unit (APC910).
-
REQUEST A QUOTE
- Slot Configuration: 2 expansion slots total (1 PCI slot and 1 PCI Express slot).
- PCI Interface: 1 x 32-bit PCI slot supporting a 33 MHz clock and standard 2.2 half-size cards.
- PCI Express Interface: 1 x PCIe x8 slot (4 GB/s data transfer rate) supporting PCIe standard 2.0 half-size cards. It accepts x1, x4, and x8 physical PCIe devices.
- Architecture: Includes an integrated PCIe-to-PCI bridge feature to manage communication across both legacy and modern bus formats simultaneously.
B&R 5AC901.BX02-01 Bus Expansion Board (APC910).
-
REQUEST A QUOTE
- Capacity: 60 GB
- Flash Memory Type: Multi-Level Cell (MLC) technology, balancing performance and write endurance.
- Interface Compatibility: SATA 3.1 compliant (backwards compatible).
- Performance: Up to 510 MB/s continuous read speed and up to 430 MB/s continuous write speed.
- Industrial Hardening: Features S.M.A.R.T. support for health monitoring, cULus HazLoc approval for hazardous environments, and an extended operational temperature rating from -40°C to +85°C.
B&R 5AC901.CSSD-03 Solid-State Drive (SSD) (APC).
-
REQUEST A QUOTE
- Storage Capacity: 128 GB
- Flash Technology: Multi-level cell (MLC) flash memory
- Interface/Storage Type: SATA III / SATA 3.1 compatible
- Data Integrity & Diagnostics: Built-in Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T.) support
- Form Factor: Slide-in compact module
- System Compatibility: Designed for use in B&R Automation PC 910 (APC910) and Panel PC 900 (PPC900) system units.
- Continuous Read Speed: Max 510 MB/s to 520 MB/s
- Continuous Write Speed: Max 350 MB/s to 430 MB/s
- Shock Resistance: Rated for 1500 g for 0.5 ms
- Storage Temperature: -40°C to +85°C ambient air temperature
B&R 5AC901.CSSD-04 Solid-State Drive (SSD) (APC).
-
REQUEST A QUOTE
- Capacity: 256 GB
- Flash Memory Type: Multi-level cell (MLC) technology
- Interface: SATA 3.1 compatible (SATA III)
- Performance: Maximum continuous reading speed of 510 MB/s and writing speed of 460 MB/s
- Operating Temperature: Rated for extreme environments ranging from -40°C to +85°C
- Monitoring: Built-in S.M.A.R.T. support for health monitoring and predictive failure analysis
- Certifications: cULus HazLoc approved for hazardous locations
B&R 5AC901.CSSD-05 Solid-State Drive (SSD) (APC).
-
REQUEST A QUOTE
- Interface Types: 1x RS-232 / RS-422 / RS-485 interface.
- Automatic Switching: The operating mode adjusts automatically depending on the electrical connection.
- Connector Type: 9-pin D-Sub male connector.
- Operating Temperature: Rated for 0°C to +55°C ambient environments.
- Approvals: cULus HazLoc approved for hazardous locations.
- Automation Studio: Requires minimum version V3.0.90 or V4.0.16 to operate.
- Hypervisor Support: Fully supports the B&R Hypervisor starting with Automation Studio V4.4.
B&R 5AC901.I485-00 Communication Interface Card (APC).
-
REQUEST A QUOTE
- Model Number: 5AC901.IHDA-00
- Primary Function: Audio Interface Option Card
- Sound Chip: High Definition Audio (HDA) chip
- Power Consumption: 0.4 W
- Audio Interfaces: • 1x Microphone Input (MIC)
- Connection Accessibility: Externally accessible audio channels
- Automation PC Series: Compatible with APC910, APC3x00, and APC4100.
- Panel PC Series: Compatible with PPC900, PPC3x00, Panel PC 3100, and Panel PC 3200.
B&R 5AC901.IHDA-00 Audio Interface Card (APC).
-
REQUEST A QUOTE
- Product Type: Interface Option Card / Communication Module
- Interfaces: 1x Ethernet POWERLINK interface (RJ45 connector)
- Network Speed: 100 Mbit/s
- Onboard Memory: 2 MB SRAM (Memory Capacity)
- Power Consumption: 1.5 W
- Operating Temperature: 0 to +55 °C
- Storage Temperature: -20 to +60 °C
- Hardware ID / Code: 0xE025 (57381)
- Certifications: CE, cULus (E115267), cULus HazLoc (E180196), DNV GL
- Automation PC Series: APC910, APC3100, APC3200, and APC4100
B&R 5AC901.IPLK-00 Communication Interface Card (APC).
-
REQUEST A QUOTE
- Primary Function: Memory interface option card
- Memory Capacity: 2 MB (2,032 kB available for user data; 16 kB reserved for Automation Runtime management)
- Memory Type: SRAM (Static Random-Access Memory)
- Power Consumption: 2 W
- Manufacturing Origin: Austria
- Official Data: View technical parameters on the official B&R 5AC901.ISRM-00 Product Page.
B&R 5AC901.ISRM-00 SRAM Memory Expansion Card (APC Series).
-
REQUEST A QUOTE
- Function: Serves as a UPS interface card for industrial computers, specifically the Automation PC 910 as well as compatible APC3100, APC3200, and APC4100 series.
- Battery Pairing: Used in conjunction with the external maintenance-free lead-acid battery unit 5AC901.BUPS-01 (24 VDC, 2.2 Ah capacity).
- Power Ratings: Draws a maximum power consumption of 25 W with a rated DC input current of 0.9 A.
- Operating Temperature: Rated for ambient environments spanning 0 to +55 °C.
- Certifications: Holds cULus HazLoc (Hazardous Locations), CE, and cULus E115267 safety standards.
B&R 5AC901.IUPS-01 UPS Interface Card (APC).
-

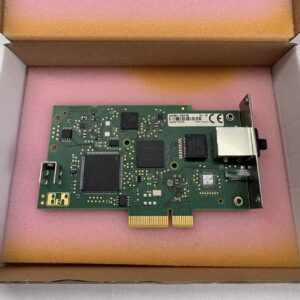

- Manufacturer: B&R
- Model / Part Number: 5AC901.LSD3-00
- Device Type: Industrial monitor and panel interface card
- Power Consumption: 4 W
- Data Capacity: 2 MB
- Operating Temperature: 0 to 55 °C
- Certifications: CE and cULus
-
REQUEST A QUOTE
- Primary Function: Link module / Graphic transmitter option
- Interfaces: 1 x DVI-D port / SDL interface
- B&R ID Code: 0xD853
- Power Consumption: 1 W
- Weight: Approx. 45 g
- Operating Temperature: 0 to +55 °C
- Storage Temperature: -20 to +60 °C
- Industrial Safety: CE, UKCA, cULus E115267 Industrial Control Equipment
- Marine Certifications: DNV GL, LR (ENV3), KR, ABS, BV (EC31B)
- Marine Environmental Ratings: Temperature Class B, Humidity Class B (up to 100%), Vibration Class A (0.7 g), EMC Class B (bridge and open deck)
B&R 5AC901.LSDL-00 Display Link Module (APC).
-
REQUEST A QUOTE
- Onboard Memory: Equipped with 512 kB nvSRAM (non-volatile SRAM) used for storing permanent or variables data.
- Hardware Compatibility: Fully compatible with B&R APC2100 / PPC2100 and APC2200 / PPC2200 series industrial PCs.
- Software Requirements: Supported starting with Automation Studio 4.1.4.x (with Automation Runtime J4.10) or Automation Studio 4.2.5.x (with Automation Runtime A4.25).
- Physical Connections: Typically features RJ45 network connectors and 10-pin terminal blocks.
- Environmental Ratings: Approved for ambient operating temperatures ranging from -20°C to +55°C and carries cULus HazLoc safety approvals.
B&R 5ACCIF01.FPCC-000 Communication Interface Card (APC).
-
REQUEST A QUOTE
- Primary Function: 1x SDL/DVI transmitter interface
- Compatibility: Specifically designed for B&R Automation PC 2100 (APC2100) and Automation PC 2200 (APC2200) systems.
- Interface Standards: Supports Smart Display Link (SDL) or standard DVI connections for linking an Automation Panel HMI.
- Power Consumption: Ultra-efficient 1 W.
- Operating Temperature: Storage and operational capabilities range across a stable -20…+60 °C environment.
- Certifications: CE, cULus HazLoc approved for hazardous environments, and DNV GL marine certified.
B&R 5ACCLI01.SDL0-000 Monitor Transmitter Card (APC).
-
REQUEST A QUOTE
- Quantity of Ports: 4
- Ethernet Controller: Intel I350
- Variant/Connector Type: RJ45, shielded
- Transfer Rate: 10/100/1000 Mbit/s (Gigabit Ethernet)
- Line Length: Max. 100 meters between two stations
- B&R ID Code: 0xEC3B
- Power Consumption: 4 W
- Diagnostics: Data transfer status via integrated LED status indicators
- CE / UKCA: Yes
- UL Listing: cULus E115267 Industrial control equipment
B&R 5ACPCE.ETH4-00 Ethernet Expansion Card (APC).
-
REQUEST A QUOTE
- Manufacturer: B&R Industrial Automation (ABB)
- Part Number: 5ACPCI.ETH1-01
- Product Type: PCI Network Interface Card (Add-on Board)
- Interfaces: 1x Ethernet Port
- Transmission Rate: 10/100 Mbit/s
- Connection Type: Shielded RJ45
- Form Factor: Half-size PCI card
- Slot Compatibility: Standard 16-bit PCI slot
- Voltage Compatibility: Universal (Supports both 3.3 V and 5 V signaling)
- Power Consumption: Rated at 1.1 A to 1.6 A (depending on system load/revision)
B&R 5ACPCI.ETH1-01 Ethernet Interface Card (APC).
