- Processor: Intel Core i7-3517UE dual-core processor running at 1.7 GHz (with a 4MB cache).
- Chipset: Intel QM77 chipset.
- Memory Capacity: 2x DDR3 memory slots supporting up to 16 GB of RAM.
- Graphics: Integrated Intel HD Graphics 4000 supporting resolutions up to WUXGA (1920×1200).
- Storage Interfaces: 4x SATA mass memory interfaces.
- Firmware: AMI BIOS (UEFI).
- Power & I/O: 17W thermal design power (TDP), featuring 4x USB 3.0 ports and 1x USB 2.0 port.
B&R 5PC900.TS77-03 CPU Board (APC910).
-
REQUEST A QUOTE
- Network Connections: 1 Ethernet port
- Transmission Rate: 10/100/1000 Mbit/s (Gigabit Ethernet)
- Integrated Memory: 512 kB SRAM
B&R 5PP5IF.FETH-00 Ethernet Interface Board (APC).
-
- Manufacturer: B&R
- Model / Part Number: 7IF787.9
- Module Type: aPCI industrial interface module
- Host Interface: aPCI slot
- Electrical Isolation: Galvanically isolated interface
- Required Terminal Block: TB704
-
REQUEST A QUOTE
- Manufacturer: B&R Industrial Automation (ABB)
- Module Type: ACOPOS plug-in communication module
- Protocol: Ethernet POWERLINK V2 (Deterministic Real-Time Ethernet)
- Hub Integration: Integrated 2-port hub (enables switchless daisy-chain wiring)
- Node Addressing: Configurable via onboard rotary/dip switches
- Voltage Supply: Via the ACOPOS backplane system
- Protection Rating: IP20 (once properly seated inside the drive)
- Physical Weight: Approx. 0.08 kg to 0.1 kg (0.18 lbs)
- Switchless Topology: The built-in 2-port hub allows machine builders to daisy-chain lines from one servo drive to the next. This significantly eliminates the cost and space required for external industrial Ethernet switches inside the electrical cabinet.
- High Determinism: Designed for complex, time-critical multi-axis applications where synchronized sub-millisecond precision is required between the PLC controller and the servo axes.
B&R 8AC114.60-2 Servo Drive Interface Module (ACOPOS).
-
REQUEST A QUOTE
- Encoder Compatibility: Dual-purpose support for Incremental encoders and SSI (Synchronous Serial Interface) / BiSS-C absolute encoders.
- Physical Connector: 15-pin female D-Sub interface.
- Operating Voltage & Supply: Configurable encoder supply voltage of 5 V (at 250 mA) or 15 V.
- Voltage Drop Compensation: Features an integrated auto-compensation mechanism for 5 V setups to negate transmission losses over long cable distances.
- Signal Monitoring: Actively monitors encoder input signals for failures, ensuring system safety by executing line-break and short-circuit diagnostics.
- Counter Depth & Frequency: 32-bit resolution tracking with an operating limit up to 200 kHz.
- Physical Metrics: Ultra-compact footprint weighing approximately 0.08 kg – 0.1 kg with an IP20 protection enclosure rating once securely slotted.
- Standout Feature: Available in brand-new factory condition.
B&R 8AC123.60-1 Encoder Interface Module (ACOPOS).
-
REQUEST A QUOTE
- Number of Axes: 2 axes (drives two motors independently)
- Rated Output Current: 1.9 A per axis
- Output Voltage: 3 x 0 to 480 V AC
- Output Frequency: 0 to 500 Hz (up to 598 Hz maximum)
- Control Supply: 24 VDC control voltage
- Safety Functions: Integrated safe stop and uncontrolled stop capabilities
- Expansion Slots: 2 plug-in slots for ACOPOSmulti modules (e.g., encoder or communication interfaces)
- Physical Mounting: Wall-mounted design with an IP20 protection rating
- Weight: Approximately 2.8 kg (6.17 lbs)
B&R 8BVI0014HWD0.000-1 ACOPOSmulti Inverter Module (ACOPOSmulti Series).
-
REQUEST A QUOTE
- Manufacturer: B&R Automation (by ABB)
- Part Number: 8BVI0440HCS0.000-1 (also listed as 8BVI0440HCS0000-1)
- Product Series: ACOPOSmulti (Single-Axis Inverter Module)
- Current Rating: 44 A max continuous output
- Voltage Supply: 3 × 400–480 Vac (Three-phase AC power input)
- Cooling / Mounting: Cold plate or pass-through/feed-through mounting
- Expansion Capability: 2 slots integrated for ACOPOSmulti plug-in modules
- Safety Functions: Integrated uncontrolled standstill and Safe Stop (STO)
- Built-in Interfaces: Dedicated connections for motor holding brake & temperature sensor
- Modular Multi-Axis Sync: Designed to attach to standard ACOPOSmulti backplane rails, sharing a common DC bus with power supply modules to regenerate and optimize energy efficiency.
B&R 8BVI0440HCS0.000-1 Inverter Module (ACOPOSmulti).
-

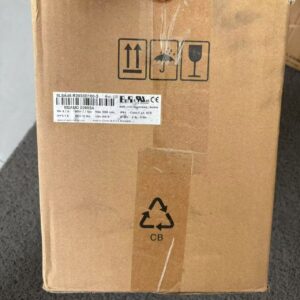

- Manufacturer: B&R
- Model / Part Number: 8LSA46.R2030D100-3
- Flange Size: 100 mm square dimension with a 95 mm centering diameter.
- Shaft Design: Keyed shaft (d=19 mm, k6 × 40 mm) without an oil seal.
- Cooling: Self-cooling (free air circulation).
- Brake: This exact model features no holding brake (0.00 Nm brake torque).
- Nominal Speed: 3,000 rpm (can reach a maximum peak speed of 12,000 rpm).
- Torque: 7.7 Nm nominal torque, 10.0 Nm stall torque, and up to 38 Nm peak maximum torque.
- Rated Power: 2,419 Watts (approx. 2.4 kW).
- Rated Voltage and Pole Count: Built for a 400 VAC supply and operates with 5 pole pairs.
- Feedback System: Equipped with an LTN RE-15-1-V05 resolver for heat, vibration, and electrical noise-resistant position feedback.
-
REQUEST A QUOTE
- Specification Pillar: Attribute
- Electrical Power: Continuous Current
- Peak Current: 80 A
- Continuous Power: 16 kW
- Mains Input Voltage: 3x 400 VAC to 480 VAC ±10%
- Frequency: 50 / 60 Hz
- Hardware Features: PCB Coating
- Line Filter: Integrated
- Braking Resistor: Integrated (Peak: 14 kW / Continuous: 0.4 kW)
- DC Bus Capacitance: 1645 µF
B&R 8V1320.001-2 Servo Drive (ACOPOS 1320).
-
The B&R X20AI1744 is a single-channel full-bridge strain gauge input module for the B&R X20 distributed I/O system. It is designed to connect industrial strain gauge load cells and force or torque transducers using 4-wire or 6-wire bridge configurations and evaluates the differential bridge signal with a 24-bit sigma-d
-
- Manufacturer: B&R
- Model / Part Number: X20AI4622
- Inputs: 4 analog inputs
- Input signals: ±10 V or 0 to 20 mA / 4 to 20 mA, via different terminal connections
- Input type: Differential input
- Conversion time: 400 µs for all inputs
- Conversion procedure: SAR (successive approximation)
- Input filter: Third-order low-pass filter, cutoff frequency 1 kHz
-
The B&R X20BC1083 is an expandable bus controller for the B&R X20 System that connects X2X Link I/O nodes to a POWERLINK (V1/V2) network as a controlled node. It integrates a two-port shielded RJ45 hub interface based on 100BASE-TX Fast Ethernet with a transfer rate of 100 Mbit/s and a maximum segment length of 100 m b
-
- Manufacturer: B&R
- Model / Part Number: X20BM31
- Function: X20 bus module for double-width X20 modules, 24 VDC keyed, internal I/O power supply connected through
- Nominal I/O supply voltage: 24 VDC
- Permissible contact load: 10 A
- Power consumption: 0.13 W (bus)
- Certifications: CE, UKCA, ATEX Zone 2 (II 3G Ex nA nC IIA T5 Gc), cULus, HazLoc Class I Div 2, DNV, CCS, LR, KR, ABS, BV, KC
- Operating temperature: -25 to +60 C (horizontal), -25 to +50 C (vertical)
-
REQUEST A QUOTE
- Ambient Temperature: Integrated internal sensor to measure module and surrounding panel temperature.
- Relative Humidity: Onboard moisture sensor for environmental evaluation inside the enclosure.
- Inertial Features: Built-in accelerometer to detect vibration, mechanical shock, and mounting position.
- Temperature Inputs: 2 channels configured for external PT1000 temperature sensors.
- Digital Inputs: 2 channels, 24 VDC.
- Digital Output: 1 channel, 24 VDC, rated at 0.5 A.
- User Storage: 512 kB flash memory designated for storing persistent user data directly on the module.
- Data Recording: Tracks total operating hours and cumulative power-on cycles.
- Technology Guarding: Functions as a physical dongle platform directly on the module to handle software license validation.
- Blackout Mode: Supported feature allowing operation during brief system power drops.
B&R X20CMR111 Cabinet Monitoring Module (X20 System).
-
REQUEST A QUOTE
- Channels: 10 digital inputs configured for space-saving 1-wire connections.
- Circuit Type: Sink (NPN) connection profile.
- Voltage Range: Rated for flexible application across 5 to 48 VDC nominal voltage.
- Input Filters: Built-in hardware filtering combined with a software-configurable filter (adjustable from 0 to 25 ms) across the whole module to mitigate signal bounce.
- Power Requirements: Low power footprint totaling 1.84 W combined consumption.
- Diagnostics: Integrated LED status indicators for immediate visual diagnostic and troubleshooting metrics per input.
- Mounting: Supports standard DIN rail infrastructure. Safe horizontal mounting range spans -25 to 60°C, while vertical setups support -25 to 50°C.
- Protection Rating: Rated at IP20 protection with permissible operational altitudes extending up to 2000 meters.
B&R X20DI0471 Digital Input Module (X20 System).
-
- Manufacturer: B&R
- Model / Part Number: X20DI6371
- Number of inputs: 6 digital inputs, 24 VDC, for 1- or 2-wire connections
- Input characteristics: IEC 61131-2 Type 1, sink input circuit
- Input voltage range: 24 VDC -15% / +20% (nominal 24 VDC)
- Switching thresholds: Low <5 VDC, High >15 VDC
- Input current / resistance: Typ. 3.75 mA at 24 VDC; typ. 6.4 kohm
- Input filter: Hardware <=100 us; software default 1 ms, configurable 0 to 25 ms
