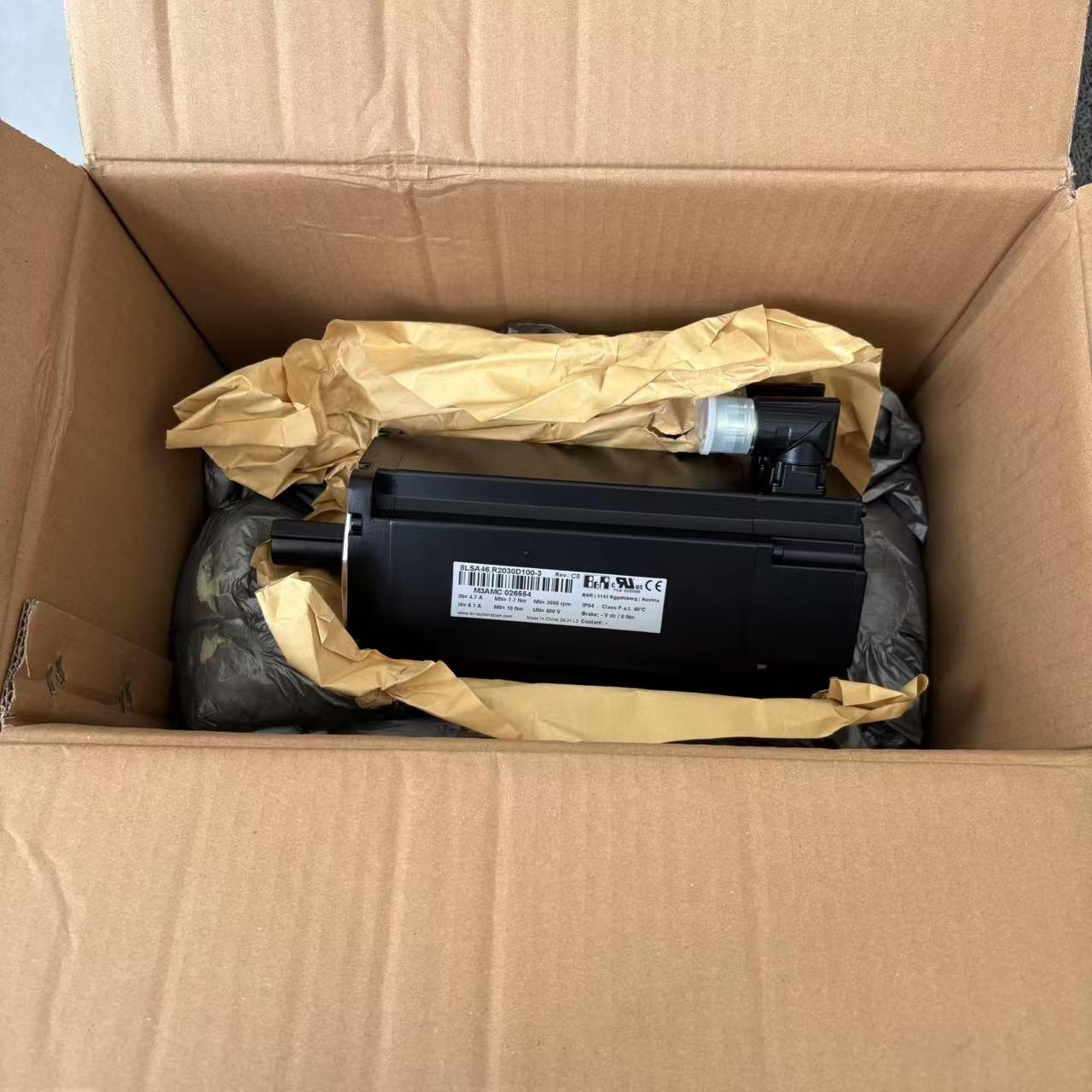

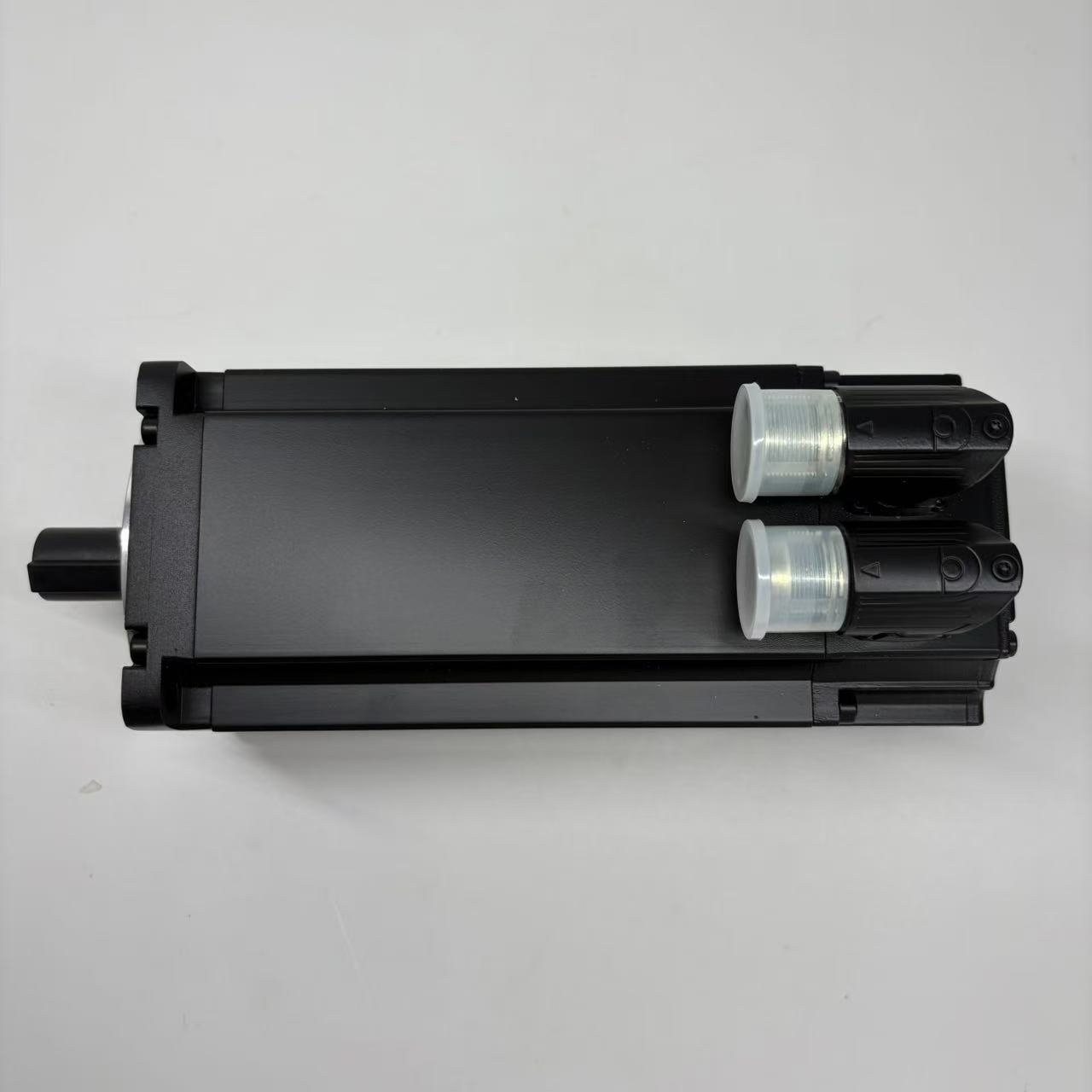

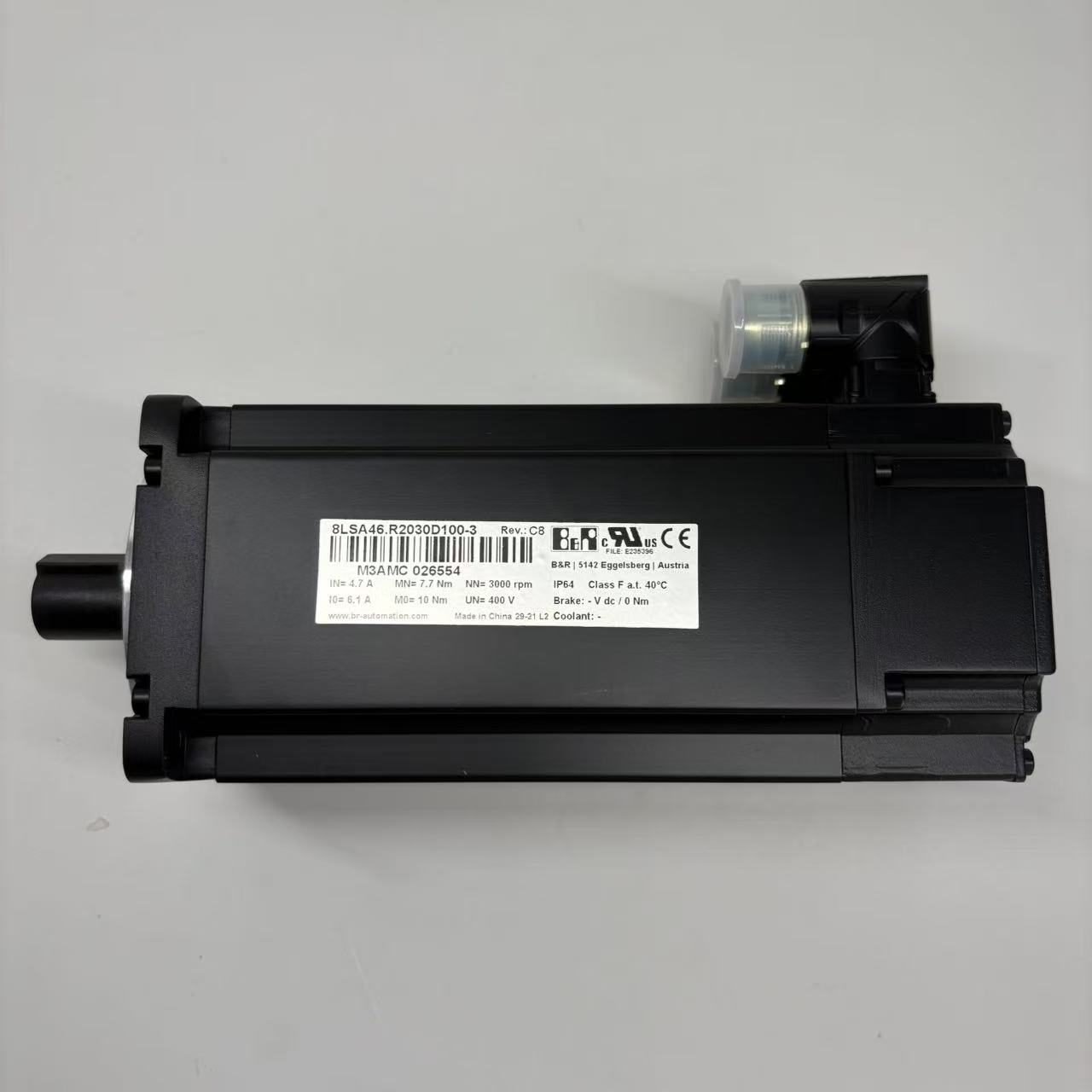

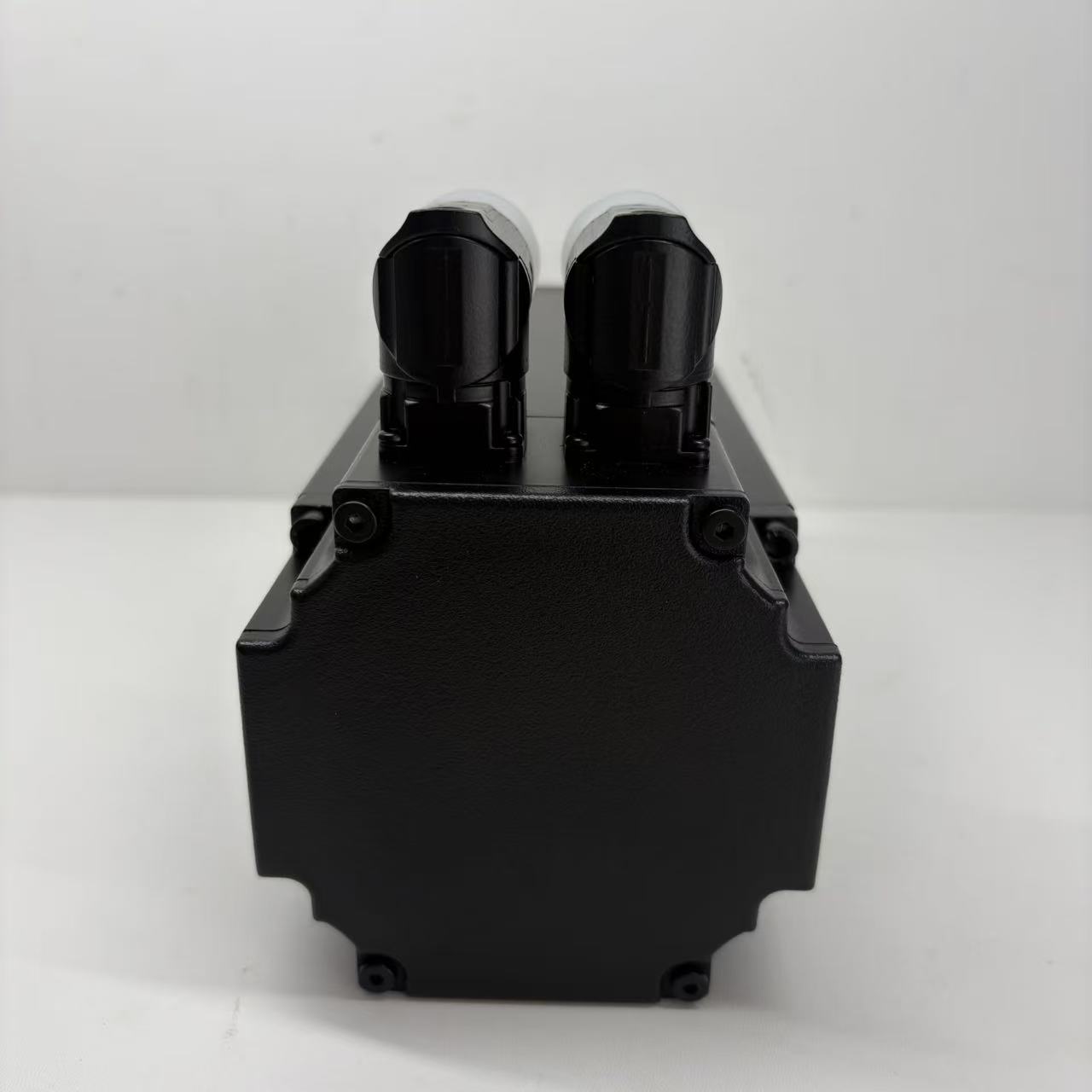

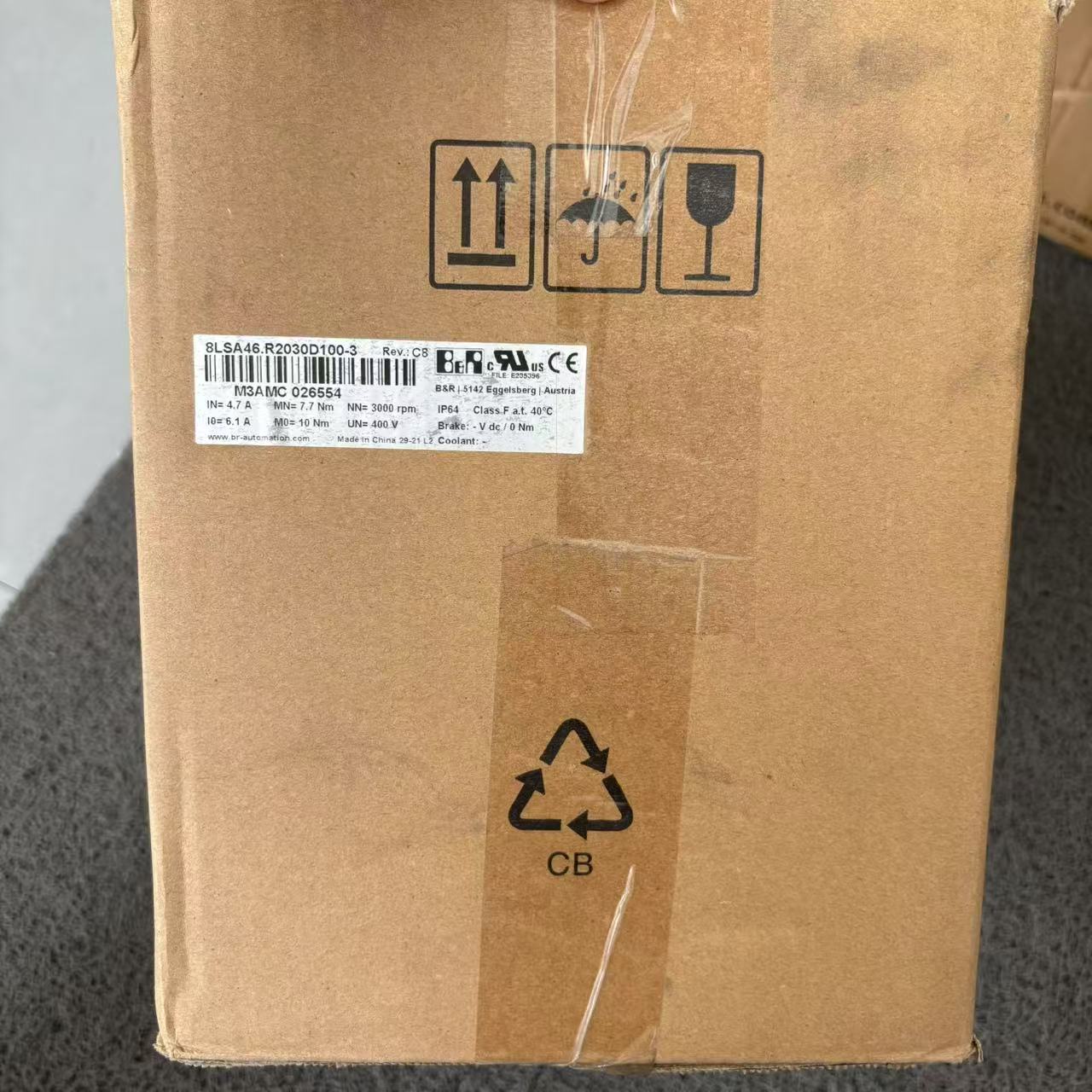

B&R 8LSA46.R2030D100-3 AC Servo Motor
- Manufacturer: B&R
- Model / Part Number: 8LSA46.R2030D100-3
- Flange Size: 100 mm square dimension with a 95 mm centering diameter.

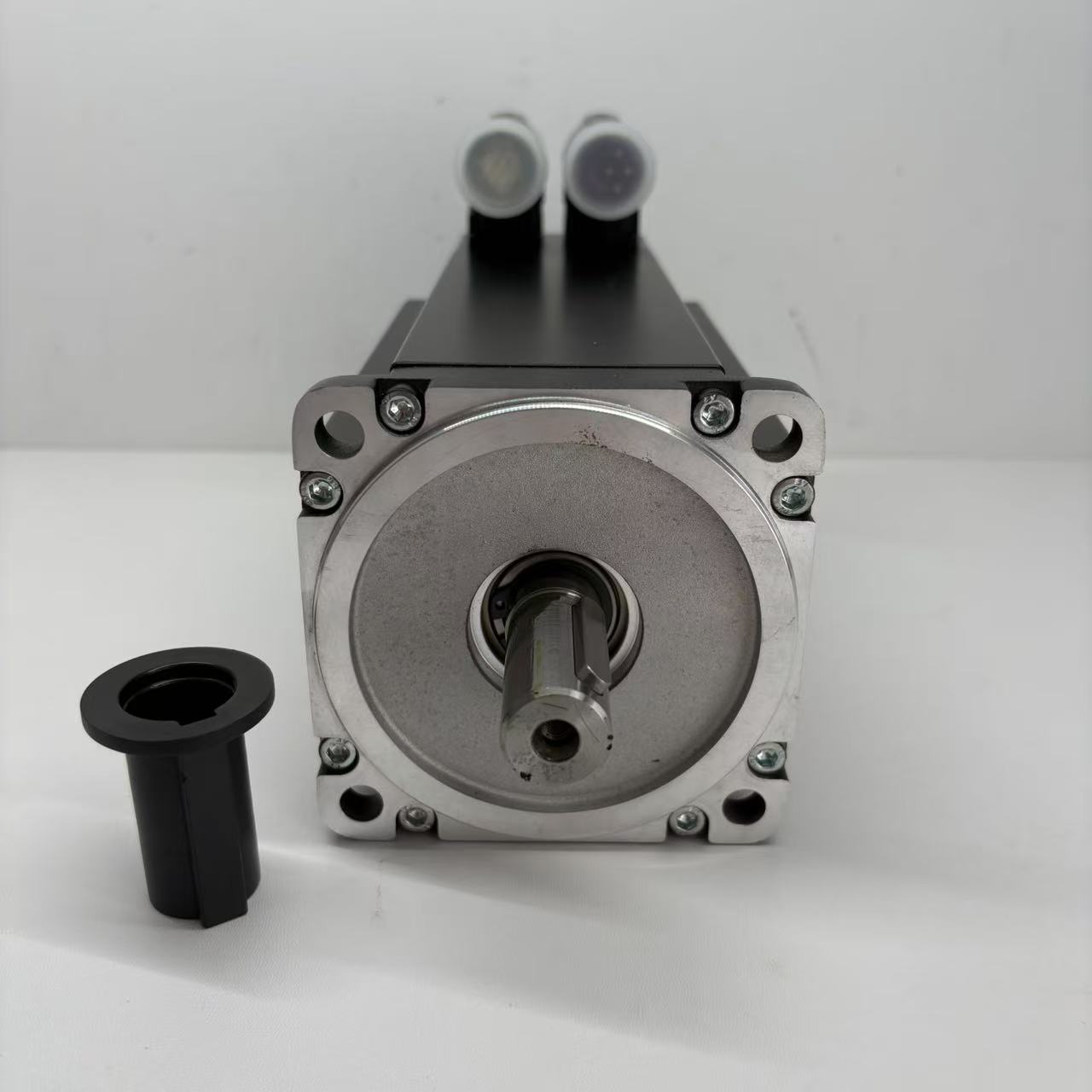

- Shaft Design: Keyed shaft (d=19 mm, k6 × 40 mm) without an oil seal.
- Cooling: Self-cooling (free air circulation).
- Brake: This exact model features no holding brake (0.00 Nm brake torque).
- Nominal Speed: 3,000 rpm (can reach a maximum peak speed of 12,000 rpm).
- Torque: 7.7 Nm nominal torque, 10.0 Nm stall torque, and up to 38 Nm peak maximum torque.
- Rated Power: 2,419 Watts (approx. 2.4 kW).
- Rated Voltage and Pole Count: Built for a 400 VAC supply and operates with 5 pole pairs.
- Feedback System: Equipped with an LTN RE-15-1-V05 resolver for heat, vibration, and electrical noise-resistant position feedback.
- SKU: 8LSA46.R2030D100-3
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
