Showing 1–16 of 86 results
-
REQUEST A QUOTE
- Resolution: 800 × 480 pixels (WVGA) with an aspect ratio of 15:9.
- Interface: TTL (1-ch, 8-bit) + SPI via a 60-pin FPC connection.
- Display Technology: TN mode, normally white, transmissive.
- Brightness: 250 cd/m² typical (Note: The V2 variant increases this to 500 cd/m² for sunlight readability).
- Contrast Ratio: 500:1 (Typical).
- Surface Treatment: Anti-glare coating with a hard coating (3H) rating.
- Physical Outline Dimensions: 164.0 (W) × 103.0 (H) × 5.3 (D) mm.
- Operating Temperature: -10°C to 60°C (Storage: -20°C to 70°C).
- Datasheet Reference: Detailed physical line drawings and individual pin assignments can be reviewed via the Beyondinfinite LCD Database.
Brand New AUO A070VW08 V0 TFT-LCD Display Panel (A070VW08 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE

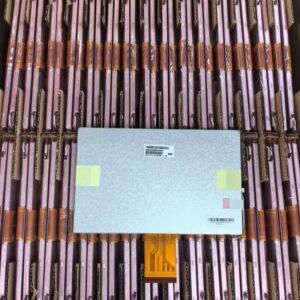

- Screen Size: 7.0 inches diagonal
- Resolution: 800 × 480 pixels (WVGA) with a 15:9 widescreen aspect ratio
- Display Mode: TN, Normally White, Transmissive
- Brightness: 500 nits (cd/m²) typical
- Contrast Ratio: 500:1
- Signal Interface: TTL (1-channel, 8-bit) + SPI via a 60-pin FPC (Flexible Printed Circuit) connector
- Backlight System: WLED array (3S11P) with an approximate 10,000-hour operational lifespan
- Surface Treatment: Anti-glare matte finish with a 3H hard coating
- Operating Temperature: Range of -20°C to 70°C (Storage: -30°C to 80°C)
- Input Voltage requirements: 3.3V / 5V / -5V / 14V / -14V (VCC / VDPA / VDNA / VGH / VGL)
- Touchscreen: This module does not include an integrated touch panel.
Brand New AUO A070VW08 V2 Rugged TFT-LCD Display Panel (A070VW08 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE

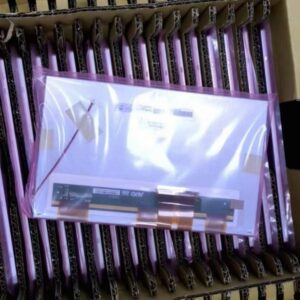

- Panel Brand: AU Optronics (AUO)
- Panel Model: A101VW01 V0 (V.0)
- Panel Size & Type: 10.1" Diagonal, a-Si TFT-LCD
- Display Resolution: 800 (RGB) × 480 pixels (WVGA)
- Aspect Ratio: 15:9
- Active Area: 219.6 (W) × 131.76 (H) mm
- Outline Dimensions: 235.0 (W) × 145.9 (H) × 5.9 (D) mm
- Weight: 315 g
- Surface Treatment: Anti-Glare (Matte)
- Display Mode: TN, Normally White, Transmissive
Brand New AUO A101VW01 V.0 TFT-LCD Display Module (A101VW01 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Screen Size: 10.1 inches (Diagonal) AccuView
- Native Resolution: 800 × 480 (WVGA) Panelook
- Aspect Ratio: 16:9 Wide Aspect AccuView
- Display Mode: TN, Normally White, Transmissive ElecOK
- Contrast Ratio: 500:1 (Typical) ElecOK
Brand New AUO A101VW01 V.3 TFT-LCD Display Panel (A101VW01 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Manufacturer: ABB (ASEA Brown Boveri)
- Product Type: FlexPendant Robot Teach Pendant
- Model Designation: DSQC679 (DSQC-679)
- ABB Part Number: 3HAC028357-001 (also indexed as E3HAC028357-001)
- Core Controller Compatibility: ABB IRC5 Controller
- Software Requirement: RobotWare (RW) 5.07.02 or higher
- Interface Elements: High-resolution color touchscreen, 3D Joystick, Keypad membrane, E-Stop switch
- Connection Interface: Wired via 17-Pin Connector
- Compatible Cable: 3HAC031683-001
- HS Code / Commodity Code: 852852
Brand New ABB 3HAC028357-001 DSQC679 Teach Pendant. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Model Numbers: 3HAC028357-026 / JC2000-0049
- Compatible Platform: ABB DSQC679 / 3HAC028357-001 FlexPendant (IRC5 System)
- Control Orientation: 4-way directional control
- Electrical Rating: 5V DC, 10mA
- Actuation Force: 200 gf
- Switching Lifespan: Up to 1 million operational cycles
- Ingress Protection: IP65 rated (dust-tight and water-jet resistant)
- Material Construction: Reinforced Polycarbonate
- Operating Temperature: -20°C to 70°C (-4°F to 158°F)
- Mounting Application: Panel Mount inside the handheld enclosure
Brand New ABB 3HAC028357-026 DSQC679 Teach Pendant Joystick. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE

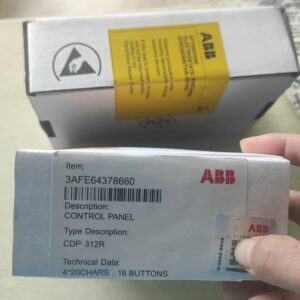

- Manufacturer: ABB
- Part Numbers / ID: CDP312R, 68281059, 64378660G
- Legacy Replacements: Replaces 61085301, 64378660, and 3BHB015055R0001
- Display Type: Alphanumeric 4-line × 20-character LCD screen
- Keypad Layout: 16-button flat tactile keypad (includes Start/Stop, Reset, Mode Selection)
- Operating Voltage: 24V DC
- Operating Temperature: -20°C to 60°C (-4°F to 140°F)
- Storage Temperature: -40°C to 85°C (-40°F to 185°F)
- Net Weight: 0.234 kg (Panel alone) to 0.5 kg (Assembly kit)
- Communication Interface: Detachable serial interface via an RJ-45 connection
Brand New ABB CDP312R Control Panel. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE

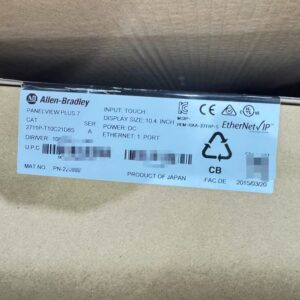

- Feature / Attribute: Specification Details
- Product Line: PanelView Plus 7 Standard (1000 Series)
- Display Size & Type: 10.4-inch TFT Color LCD (4:3 Aspect Ratio)
- Resolution: 800 x 600 SVGA (18-bit color graphics)
- Operator Input: Analog Resistive Touchscreen (1 million presses life)
- Operating System: Windows CE 6.0 (with runtime OS license)
- Communication: Single Ethernet Port (10/100 Base-T), (2) USB Ports
- Internal Memory: 512 MB RAM / 512 MB Storage (80 MB free user application memory)
- Input Voltage: 24V DC nominal (Operational range: 18 to 30V DC)
- Power Consumption: 50 Watts maximum (2.1 Amps at 24V DC)
Brand New ALLEN-BRADLEY 2711P-T10C21D8S SER.A Touch Screen. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Product Family: PanelView 800
- Display Size: 7-inch Wide TFT Active-Matrix Color LCD
- Resolution: 800 × 480 WVGA pixels
- Color Depth: 65,536 colors (65K)
- Backlight: LED (40,000-hour minimum lifespan)
- Input Type: Analog resistive touchscreen
- Processor & OS: Windows CE 6.0
- Memory: 256 MB RAM / 256 MB Internal Storage
- Input Voltage: 24V DC (0 – 24 VDC operating range)
- Environmental Protection: IP65, NEMA 4X, NEMA 12, NEMA 13 (Front of panel)
Brand New ALLEN-BRADLEY 2711R-T7T Touch Screen. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Screen Size: 7.0 inches (diagonal)
- Resolution: 800 × 480 pixels (WVGA) at approximately 133 PPI
- Display Type: a-Si TFT-LCD, LCM module
- Backlight: Integrated WLED system with an included LED driver
- Contrast Ratio: 500:1 (Typical)
- Touchscreen: None (This is the display panel only; it does not include a touch digitizer layer)
- Operating Temperature: -20°C to 70°C
- Storage Temperature: -30°C to 80°C
Brand New AUO A070VW05 V0 TFT-LCD Display Panel (A070VW05 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE

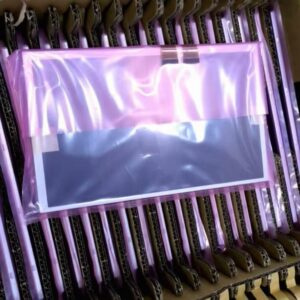

- Screen Size: 10.1 inches (Diagonal)
- Native Resolution: 800 × 480 pixels (WVGA)
- Pixel Arrangement: RGB Vertical Stripe
- Display Mode: TN, Normally White, Transmissive
- Interface Type: Parallel RGB (1-channel, 6-bit)
- Color Support: 262K colors
- Luminance (Brightness): 180 cd/m² (Typical)
- Contrast Ratio: 400:1 (Typical)
- Response Time: 12 ms / 18 ms (Rising/Falling)
- Viewing Angles: 65° / 65° / 45° / 65° (L / R / U / D)
Brand New AUO A101VW01 V.1 LCD Screens. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Screen Size: 15.0 inches (Diagonal)
- Native Resolution: 1024 × 768 (XGA, 4:3 aspect ratio)
- Pixel Configuration: RGB Vertical Stripe
- Display Mode: TN, Normally White, Transmissive
- Surface Treatment: Anti-glare, Hard coating (3H)
- Luminance / Brightness: 350 cd/m² (Nits) typical
- Contrast Ratio: 700:1 typical
- Viewing Angle: 80°/80° (Horizontal) | 80°/60° (Vertical) at CR ≥ 10
- Response Time: 5.7 ms (Rising) / 2.3 ms (Falling)
- Color Support: 262K (6-bit) or 16.2M (6-bit + FRC), 65% CIE1931
Brand New AUO G150XG01 V.2 LCD Screens. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Display Resolution: SVGA 800 x 600 pixels (4:3 standard landscape aspect ratio) with a pixel density of 96 PPI.
- Display Technology: TN (Twisted Nematic), Normally White, Transmissive mode.
- Physical Dimensions: 236.0 mm (W) × 176.9 mm (H) × 5.9 mm (D) with an active screen area of 211.2 mm × 158.4 mm.
- Signal Interface: Typically driven via a 1-channel LVDS interface (20-pin configuration supporting 6-bit or 8-bit gray scale, 262K/16.2M colors). Note: Some generic replacement variations or interface modules list Parallel RGB configurations.
- Luminance (Brightness): 300 cd/m² typical constant backlight.
- Contrast Ratio: 800:1 to 1000:1 typical.
- Backlight System: Built-in White LED (WLED) lighting system designed for a 30,000-hour operating lifespan (requires an external backlight driver).
- Touch Screen: Not included natively; it is a display-only module. However, manufacturers like Miqidisplay offer custom upgrades to add capacitive or resistive touch panels.
- Environmental Tolerances: Built to withstand harsh settings, operating reliably from -20°C to 70°C and storable from -30°C to 80°C.
- Surface Treatment: Anti-glare coating (Haze 25%) to combat reflections in bright environments.
Brand New BOE BA104S01-200 TFT-LCD Display Module (BA104 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Panel Size: 12.1 inches diagonally
- Native Resolution: 800 × 600 pixels (SVGA) with a 4:3 aspect ratio
- Pixel Density: 82 PPI
- Display Mode: TN (Twisted Nematic), Normally White, Transmissive
- Color Depth: Supports 262K or 16.7M colors (55% NTSC color gamut coverage)
- Refresh Rate: 60 Hz
- Response Time: 30 ms (Typical)
- Luminance (Brightness): Generally rated between 350 to 430 cd/m² (Typical value is 400 nits)
- Contrast Ratio: 800:1 (Typical)
- Viewing Angles: 80° left, 80° right, 65° up, and 75° down (with a contrast ratio ≥ 10)
- Backlight Type: White LED (WLED arranged in a 6S4P configuration) with a minimal lifetime of 30,000 hours
- Input Voltage: 3.3V (Typical)
- Signal Interface: 1-channel LVDS (supporting 6-bit or 8-bit data input selection)
- Pin Configuration: 20-pin connector interface
- Physical Outline: 279.0(H) × 209.0(V) × 9.3(D) mm
- Active Display Area: 246.0(H) × 184.5(V) mm
- Environmental Limits: Operating temperature range of -20°C to 70°C; storage temperature range of -30°C to 80°C
Brand New BOE BA121S01-200 TFT-LCD Display Module (BA121 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Display Type: 7.0-inch TFT LCD touchscreen with a resistive touch overlay.
- Resolution: 800 x 480 pixels (16:9 widescreen format).
- Operating System & Runtime: Powered by Windows Embedded CE 6.0 running the iX runtime environment.
- Memory Capacity: 80 MB of dedicated application storage.
- Power Requirements: +24 VDC input voltage (operating range of 18–32 VDC) with a maximum consumption of 6.0 W.
- Physical Build: Powder-coated aluminum housing measuring 204 x 143 x 52.2 mm and weighing approximately 0.7 kg.
- Runtime Backups: You can backup the compiled project runtime directly from the HMI's hardware service menu without needing the original developer source code. To access this, reboot the HMI and press and hold anywhere on the screen when the hourglass icon appears. This allows you to export the runtime to a USB drive or SD card to facilitate direct replacement on an identical T7A terminal.
Brand New Beijer 630000202 Operator Panel HMI (iX T7A Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Display Technology: TN, Normally White, Transmissive screen.
- Brightness & Contrast: Offers a high luminance ranging between 350 to 500 cd/m² (nits) depending on the sub-variant, paired with an excellent 800:1 contrast ratio for clean readability.
- Interface Options: Primarily designed with a 20-pin LVDS interface (supporting 6-bit/8-bit grayscale), though standard parallel RGB variants also exist for legacy boards.
- Thermal Endurance: Operates reliably in extreme temperatures ranging from -20°C to 70°C.
- Surface Treatment: Finished with an anti-glare hard coating to drastically reduce reflection in brightly lit environments.
- Touch Capability: Shipped as a display-only module without a built-in touch panel, though aftermarket resistive or PCAP digitizers are often overlaid by system integrators.
Brand New BOE BA104S01-100 TFT-LCD Display Module (BA104S01 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
