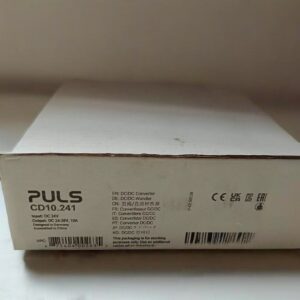

- Manufacturer: PULS
- Model / Part Number: CD10.241
- Rated Power: 240 W
- Input Voltage: 18 to 35 VDC, 24 VDC nominal
- Output Voltage: 24 to 28 VDC adjustable
- Output Current: 10 A at 24 VDC; 8.6 A at 28 VDC
- Galvanic Isolation: Input-to-output isolation
- Efficiency: Up to 94.2%
- Dimensions: 42 x 124 x 117 mm
- Operating Temperature: -25 to 70 °C
-
REQUEST A QUOTE
- Input Voltage Range: 18 – 32.4V DC (24V DC nominal)
- Output Voltage: 12 – 15V DC (Adjustable)
- Output Current: 8A (at 12V) to 6.4A (at 15V)
- Output Power: 96W nominal
- Efficiency: Up to 88.2%
- Dimensions: 32mm Width x 124mm Depth x 102mm Height
- Power Reserves: Includes a 20% PowerBoost feature, allowing it to continuously deliver up to 115W at ambient temperatures up to +45°C.
- Electrical Isolation: Features safe galvanic isolation between the input and the output circuits.
- Circuit Protection: Built-in soft-start function to minimize inrush current spikes, paired with reverse input polarity protection.
PULS CD5.121 DC/DC Converter (DIMENSION CD).
-
- Manufacturer: PULS
- Model / Part Number: CP20.241
- Input Voltage: Wide-range input accepting AC 100–240V or DC 110–150V.
- Output Voltage: 24V DC, adjustable up to 28V DC via the front dial.
- Output Current: 20A at 24V (or 17.1A at 28V).
- Rated Power: 480 Watts.
- Physical Size: Extremely slim design at just 48mm wide, saving valuable space on your panel.
- Power Reserves (PowerBoost): Includes a 20% continuous power reserve.
-
REQUEST A QUOTE
- Output Voltage: 24V DC (manually adjustable from 24–28V DC via front potentiometer)
- Output Current: 10A at 24V (continuous output)
- Power Reserve: 20% PowerBoost (delivers up to 12A / 288W continuously at ambient temperatures up to +45°C)
- Input Voltage: Single-phase 115/230V AC with auto-select input, preventing mis-wiring damage
- Efficiency: Reaches up to 91.6% efficiency with low heat generation
- Physical Profile: Only 60mm wide, maximizing control panel space
- Connections: Heavy-duty screw clamp terminals
Puls CS10.241 Single-Phase DIN-Rail Power Supply (DIMENSION C-Line Series).
-

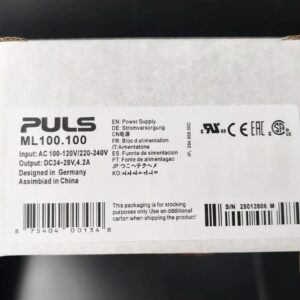

- Brand: PULS
- Model: ML100.100
- Series: MiniLine
- Rated output power: 100 W
- Nominal output: 24 V DC, 4.2 A
- Output adjustment: 24–28 V DC
- Output current at 28 V: 3.6 A
- AC input: 100–120 / 220–240 V AC, automatic range selection
- Typical efficiency: 90%
- Full-load ambient range: -10 to +60 °C
- Derating above +60 °C: 2.5 W per °C
- Mounting: DIN rail
- Connections: Spring-cage terminals
- Weight: 360 g
-
REQUEST A QUOTE
- Output Power: 30 Watts
- Output Voltage: 24V DC (adjustable from 24–28V DC)
- Output Current: 1.3A at 24V; 1.1A at 28V
- Input Voltage Range: 85–264V AC (Single-phase) or 88–375V DC
- Efficiency: Up to 87.5%
- Form Factor: Compact 45mm width rugged plastic housing
- Termination Type: Toolless, quick-connect spring-clamp terminals
- Operating Temperature: Full output power performance between -10°C and +60°C (derating up to +70°C)
- Certifications: UL508 Listed for industrial control equipment, NEC Class 2 compliance, and CE.
- Automation Distribution: Stocked for industrial applications via Automation Distribution.
PULS ML30.100 DIN Rail Power Supply (MiniLine).
-

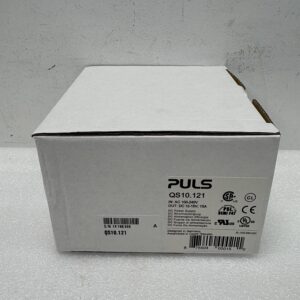

- Manufacturer: PULS
- Model / Part Number: QS10.121
- Nominal Output Voltage: 12 VDC, adjustable from 12 to 15 VDC
- Output Current: 15 A at 12 VDC; 13.5 A at 15 VDC
- Rated Output Power: 180 W
- AC Input Voltage: 100 to 240 VAC
- DC Input Voltage: 110 to 150 VDC
- Efficiency: Up to 91.8%
- Housing Width: 60 mm
- Power Reserve: 22.5 A for up to 4 seconds
- Terminals: Spring-clamp terminals
- Status Output: DC-OK indicator and relay contact
-

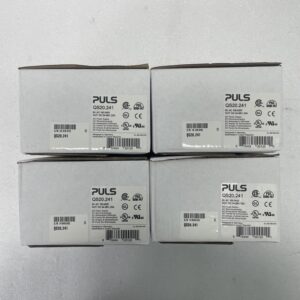

- Manufacturer: Puls
- Model / Part Number: QS20.241
- Output Voltage: 24 VDC (Adjustable from 24 to 28 VDC via a front potentiometer)
- Output Current: 20 A at 24 V or 17.5 A at 28 V
- Total Output Power: 480 W continuous
- Input Voltage: Single-phase AC 100–240 V (±15%) or DC 110–150 V
- Efficiency: Up to 93.9%
- Dimensions: 82 mm width x 124 mm height x 127 mm depth
- Termination: Quick-connect, vibration-safe spring-clamp terminals
- HiccupPLUS Overload Protection: Safely manages short circuits and continuous overloads by cycling power on and off to protect your wiring and equipment.
- Negligible Inrush Current: Features active inrush current limitation, meaning it won't trip input fuses or main breakers when you first turn it on.
- DC-OK Relay Contact: Built-in floating relay contact that monitors the output voltage and lets you send status signals to a PLC (Programmable Logic Controller).
- Active PFC: Active power factor correction reduces electrical noise and ensures compliance with global harmonic standards.
-

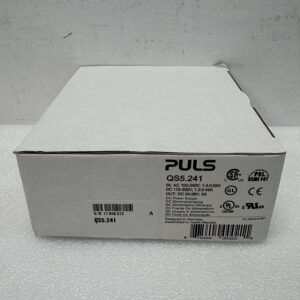

- Manufacturer: Puls
- Model / Part Number: QS5.241
- Power Output: 24V DC (adjustable between 24–28V) at a continuous 5 Amps (120 Watts).
- Bonus Power (BonusPower): It provides 150% peak load capacity (up to 180W for 4 seconds) to safely start heavy industrial loads.
- Reliable Connections: Equipped with quick-connect spring-clamp terminals for fast, vibration-proof wiring.
- Status Monitoring: Features an integrated DC-OK relay contact to easily signal status to control systems like a PLC.
