Showing 1–16 of 27 results
-
- Manufacturer: Beckhoff Automation
- Model / Part Number: EL2622
- Output channels: 2 relay outputs, make contacts
- Nominal voltage: 230 VAC / 30 VDC
- Switching current: 5 A per channel, ohmic load
- Inductive load: 2 A per channel
- Electrical isolation: 500 V
- E-bus current consumption: Typically 170 mA
- Dimensions: 12 x 100 x 68 mm
- Operating temperature: -25 to 55 °C
- Protection rating: IP20
-
- Manufacturer: Beckhoff Automation
- Model / Part Number: EL2889
- Output channels: 16 digital outputs, ground switching
- Nominal voltage: 24 VDC (-15% / +20%)
- Rated output current: 0.5 A per channel
- Connection technology: 1-wire
- Switch-on time: Typically 50 µs
- Switch-off time: Typically 200 µs
- Electrical isolation: 500 V
- E-bus current consumption: Typically 140 mA
- Operating temperature: -25 to 60 °C
-
- Manufacturer: Beckhoff Automation
- Model / Part Number: EL3048
- Number of inputs: 8 (single-ended), 0-20 mA current
- Resolution: 12 bit (16 bit presentation incl. sign)
- Internal resistance: typ. 85 ohm; input filter cut-off frequency 1 kHz; dielectric strength max. 30 V
- Conversion time: 1.25 ms default setting, configurable, multiplex
- Electrical isolation: 500 V (E-bus/signal voltage)
- Power supply / consumption: via the E-bus; current consumption E-bus typ. 130 mA
- Bit width in process image: inputs: 32 byte; no address or configuration setting required
- Weight / dimensions: approx. 60 g; 12 mm x 100 mm x 68 mm (W x H x D)
- Environment: -25…+60 deg C operating, -40…+85 deg C storage, 95% RH no condensation; IP20
- Approvals: CE, CCC, UL, ATEX (II 3G Ex ec IIC T4 Gc), IECEx, cFMus
- Product status: regular delivery
-
- Manufacturer: Beckhoff Automation
- Model / Part Number: EL3064
- Number of inputs: 4 (single-ended), 0-10 V signal voltage, 2-wire connection with common internal ground
- Resolution: 12 bit (16 bit presentation incl. sign)
- Internal resistance: > 130 kOhm; input filter cut-off frequency 1 kHz; dielectric strength max. 30 V
- Conversion time: 0.625 ms default setting, configurable, multiplex
- Electrical isolation: 500 V (E-bus/signal voltage)
- Power supply / consumption: via the E-bus; current consumption E-bus typ. 130 mA
- Bit width in process image: inputs: 16 byte; no address or configuration setting required
- Weight / dimensions: approx. 60 g; 12 mm x 100 mm x 68 mm (W x H x D)
- Environment: -25…+60 deg C operating, -40…+85 deg C storage, 95% RH no condensation; IP20
- Approvals: CE, CCC, UL, ATEX (II 3G Ex ec IIC T4 Gc), IECEx, cFMus
- Product status: regular delivery
-
- Manufacturer: Beckhoff
- Model / Part Number: BK3120
- Product type: PROFIBUS Economy plus Bus Coupler (BK3120)
- Number of Bus Terminals: 64 (255 with K-bus extension)
- Max. number of bytes fieldbus: 128 byte input and 128 byte output
- Transmission rate: Automatic detection up to 12 Mbaud
- Bus interface: 1 x D-sub 9-pin socket with shielding
- Transmission medium: Shielded copper cable, 2 x 0.25 mm²
-
REQUEST A QUOTE
- Data Transfer Rates: 10 / 100 Mbit/s (Automatic recognition)
- Supported Protocols: TwinCAT ADS, Modbus TCP, Beckhoff Real-Time Ethernet
- Bus Interface: 2 x RJ45 (Internal 2-channel switch)
- I/O Capacity: 64 standard Bus Terminals (Up to 255 via K-bus extension)
- Process Image Size: 512 bytes input / 512 bytes output
- Max Peripheral Signals: 512 Digital I/O or 128 Analog I/O
- Power Supply: 24 V DC (-15% / +20%)
- K-Bus Current Supply: 1750 mA
- Configuration Tool: Via Beckhoff KS2000 software
- Operating Temp: -25 °C to +60 °C (-13 °F to +140 °F)
BECKHOFF BK9100 Ethernet Bus Coupler (BK Series).
-
REQUEST A QUOTE
- Input Voltage: 24 V DC (-15 % / +20 %)
- Integrated Interface: K-Bus (Standard Bus Terminals / KLxxxx series)
- K-Bus Current Supply: Up to max. 1.75 A
- E-Bus Connection: Not supported (No EtherCAT terminal adapter)
- Non-Volatile Memory: 8 kbytes NOVRAM (fail-safe process data storage)
- Dual-Port RAM (DPRAM): 4 kbytes I/O-DPRAM
- Integrated Display: Backlit FSTN LC Display (2 lines x 16 characters)
- Diagnostics Layout: 3 x Status LEDs (1 x PWR, 1 x I/O Run, 1 x I/O Err)
- Connection Method: Spring-loaded technique (adapter terminal)
- Weight: Approx. 250 g (0.55 lbs)
BECKHOFF CX1100-0002 Power Supply System Interface Module (CX1100 Series).
-
REQUEST A QUOTE
- Processor: Intel Atom Z530 running at 1.6 GHz with single-core hyperthreading technology.
- Memory & Storage: Equipped with 512 MB DDR2 RAM (expandable) and an exchangeable 128 MB Compact Flash card slot for OS and application storage.
- System Connectivity: Automatically recognizes and supports E-bus (EtherCAT) or K-bus (Standard Bus Terminals) for direct local I/O connection.
- Interfaces: Onboard connectivity features 2 x RJ45 Gigabit Ethernet ports, 1 x DVI-D/I port, 4 x USB 2.0 ports, and 1 x slot for an optional communication interface (e.g., Profibus, CANopen).
- Software Support: Configured for TwinCAT 2 runtime (PLC and NC PTP) or TwinCAT 3 (Platform Level 40 – Performance) execution environment.
- Power Supply: Standard 24 V DC with an integrated 1-second hardware UPS to save persistent memory data during sudden power failures.
BECKHOFF CX5020-0112 Embedded PC Controller (CX5000 Series).
-

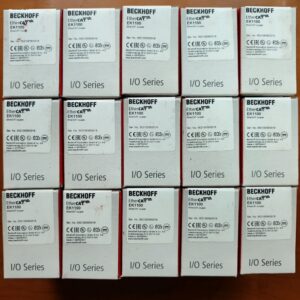

- Manufacturer: Beckhoff
- Model / Part Number: EK1100
- Task in System: Coupling of EtherCAT Terminals to 100BASE-TX EtherCAT networks
- Connection Technology: 2 x RJ45 sockets (Upper: Network In, Lower: Optional downstream extension)
- Data Transfer Rate: 100 Mbit/s (Ethernet 100BASE-TX)
- Max Cable Length: Up to 100 m between stations (CAT5 or higher)
- Max Number of Terminals: Up to 65,535 in the overall system
- System Power Supply: 24 V DC (-15% / +20%)
-
- Manufacturer: BECKHOFF
- Model / Part Number: EK1100-0000
- Function: Converts EtherCAT telegrams from 100BASE-TX to E-bus signals
- Data Rate: 100 Mbit/s full duplex
- Bus Interfaces: 2 x RJ45
- Supply Voltage: 24 VDC, -15%/+20%
- E-Bus Supply: 5 V, 2 A maximum
- Supported Topologies: Line, star and tree
- Dimensions: 44 x 100 x 68 mm
- Operating Temperature: -25 to +60 °C
- Degree of Protection: IP20
-
REQUEST A QUOTE
- Manufacturer: BECKHOFF
- Model / Part Number: EK1110
- Function: Conversion of E-bus signals to 100BASE-TX Ethernet NEX Instrument Inc
- Data Transfer Rate: 100 Mbps PLC Parts Solution
- Bus Interface: 1 × RJ45 socket Beckhoff USA
- Power Supply: Directly from the E-bus (No external power needed) Beckhoff USA
- Current Consumption: Approx. 130 mA from E-bus PLC Parts Solution
- Electrical Isolation: 500 V (supply voltage / Ethernet) NEX Instrument Inc
- Configuration: None required (No parameterization necessary) Beckhoff USA
- Protection Rating: IP20 PLC Parts Solution
- Mounting: 35 mm DIN rail (conforming to EN 60715) NEX Instrument Inc
- Approvals / Markings: CE, UL, ATEX (Ex marking: II 3 G Ex nA IIC T4 Gc) NEX Instrument Inc
-
REQUEST A QUOTE
- Manufacturer: BECKHOFF
- Model / Part Number: EK1122
- Task within System: Coupling of EtherCAT junctions
- Data Transfer Rate: 100 Mbit/s (100BASE-TX)
- Connection Technology: 2 x RJ45 sockets
- Data Transfer Medium: Ethernet/EtherCAT cable (min. Cat. 5), shielded
- Distance Between Stations: Up to 100 meters
- Network Latency / Delay: Approx. 1 microsecond (µs)
- Topology Support: Star topology, modular star hubs (by combining multiple units)
- Hot Connect Support: Yes (coupling/uncoupling segments during system operation)
- Protocol: EtherCAT
- Status Indicators: Run LED, Link/Activity LEDs on RJ45 ports
- Approvals: CE, UL
-
REQUEST A QUOTE
- Manufacturer: BECKHOFF
- Model / Part Number: EK1501
- Data Transfer Rate: 100 Mbit/s (Full Duplex)
- Delay (Latency): Approx. 1 µs
- Power Supply: 24 V DC (-15 % / +20 %)
- E-Bus Current Supply: Max. 5 V DC / 2,000 mA
- Power Contacts: Max. 24 V DC / Max. 10 A
- Electrical Isolation: 500 V (power contact / supply voltage / Ethernet)
- Operating Temperature: -25 °C to +60 °C
- Protection Rating: IP20
-
REQUEST A QUOTE
- Manufacturer: BECKHOFF
- Model / Part Number: EK1828
- Integrated Inputs: 4 x 24 V DC, Filter 3.0 ms, Type 1/3
- Integrated Outputs: 8 x 24 V DC, 0.5 A max per channel (short-circuit proof)
- Bus Interface: 2 x RJ45 sockets (100 Mbit/s Fast Ethernet)
- E-Bus Current Supply: 1000 mA (5 V DC max)
- Wiring Technology: 1-wire system using direct plug-in push-in technique
- E-Bus Power Budget: The coupler provides up to 1000 mA to downstream EtherCAT modules. If your connected slice terminals exceed this limit, an external power feed terminal like the Beckhoff EL9410 must be added.
-
- Manufacturer: BECKHOFF
- Model / Part Number: EL1809
- Input Channels: 16 digital inputs
- Nominal Input Voltage: 24 VDC
- Bus System: EtherCAT E-bus
- Mounting: DIN rail terminal assembly
-
- Manufacturer: BECKHOFF
- Model / Part Number: EL1904
- Safe Input Channels: 4
- Nominal Input Voltage: 24 VDC
- Bus System: EtherCAT / TwinSAFE
- Safety Level: Up to SIL 3 and PL e
- Mounting: DIN rail terminal assembly
