Showing 1–16 of 40 results
-
REQUEST A QUOTE
- Series: MX2 Series (V1 Type)
- Input Voltage: 3-phase 380 to 480 VAC
- Output Voltage: 3-phase 380 to 480 VAC (Output cannot exceed incoming voltage)
- Load Wattage: 4.0 kW (5 HP)
- Rated Input Current: 11.0 A (CT) / 13.3 A (VT)
- Dimensions: 140 mm Width × 128 mm Height × 170.5 mm Depth
- Operating Temperature: -10°C to 50°C
- Mounting Type: Chassis Mount
- Control Modes: Current vector control and sensorless vector control.
- High Torque: Provides up to 200% starting torque at 0.5 Hz.
OMRON 3G3MX2-A4040-V1 Variable Frequency Drive (3G3MX2).
-
REQUEST A QUOTE
- Voltage Class: 3-Phase 400 V AC (400V Class)
- Max Applicable Motor Capacity: 11 kW (Constant Torque rating)
- Enclosure Rating: Panel-mounting (IP10 minimum) or closed wall-mounting
- Control Methods: Current vector control, open-loop V/f control, and open-loop vector control
- High Starting Torque: Delivers reliable power control and strong torque even at low speeds, which is highly beneficial for heavy-duty startup loads.
- Advanced Automation Logic: Built with advanced algorithms to seamlessly handle engine control, simple positioning tasks, pulse inputs, and specialized operating profiles like a safety-driven "fire mode" for building automation environments.
OMRON 3G3MX2-A4110-ZV1 Variable Frequency Drive (3G3MX2).
-
REQUEST A QUOTE
- Module Type: CJ-Series PLC Expansion/Rack Module
- Control Loops: 2 Independent Loops (with Heater Burnout Detection)
- Input Channels: 4 Inputs (Resistance Thermometer / RTD: Pt100 / JPt100)
- Output Channels: 4 Outputs (Solid State Relay / SSR Drive / PNP Open Collector Voltage Pulse)
- Indication Accuracy: ± 0.3% of Process Value (PV) ± 0.8°C to 1°C
- Operating Voltages: 5 VDC (via CJ1 Backplane Bus) | 24 VDC external output drive
- Current Consumption: 0.25 A max at 5 VDC
- Connection Style: Industrial Screw Terminal Block (Removable for easy maintenance)
- Mounting: DIN Rail / CJ-Series Backplane Rack
- Autonomous Architecture: The module executes localized temperature adjustments utilizing internal PID loops independent of the main PLC CPU execution cycle. This minimizes the processor overhead of the host controller.
OMRON CJ1W-TC104 Temperature Control Unit (CJ Series).
-

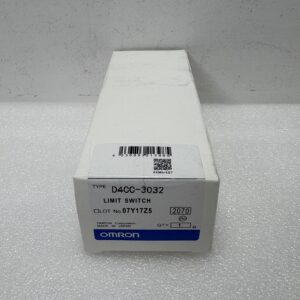

- Manufacturer: OMRON
- Model / Part Number: D4CC-3032
- Actuator Type: Sealed roller plunger (stainless sintered roller).
- Electrical Rating: 1 Amp at 30V DC.
- Contact Form: SPDT (Single Pole Double Throw / 1NO + 1NC).
- Connection Type: 4-pin male M12 connector.
- Degree of Protection: IEC IP67 rated (completely dust-tight and waterproof against short periods of immersion).
- Operating Temperature: -10°C to +70°C (+14°F to +158°F) with no icing.
- Operating Force: 17.65 Newtons (N).
-

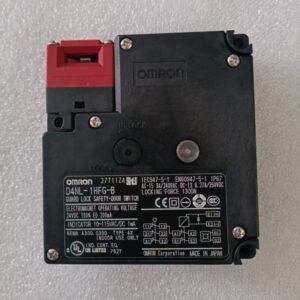

- Brand: Omron
- Model: D4NL-1HFG-B
- Series: D4NL
- Lock mechanism: Solenoid lock / mechanical release
- Contact configuration: 3NC + 2NC
- Solenoid voltage: 24 V DC
- Solenoid current: 200 mA
- Conduit entry: Pg13.5
- Holding force: 1300 N
- Protection: IP67
- AC-15 contact rating: 3 A at 240 V AC
- DC-13 contact rating: 0.27 A at 250 V DC
-
REQUEST A QUOTE
- Sensor Type: Optical Fiber Amplifier (Photoelectric)
- Supply Voltage: 12 to 24 VDC ±10% (Ripple 10% max)
- Control Output: PNP Open Collector (50 mA max load current)
- Operation Mode: Light-ON / Dark-ON (Switchable via onboard toggle)
- Light Source: Red 4-element LED (λ = 624 nm / 625 nm)
- Response Time: 200 μs max (Fast detection speed)
- Switching Frequency: 2500 Hz
- Connection Method: Pre-leaded 2-meter, 3-wire PVC cable
- Mounting Type: DIN Rail mountable
- Ingress Protection: IP50
OMRON E3X-NA41 Fiber Amplifier Unit (E3X Series).
-
REQUEST A QUOTE
- Form Factor: 1/32 DIN panel mount (48 x 24 mm)
- Control Output: Voltage output (12 VDC) designed specifically for driving an external Solid State Relay (SSR)
- Sensor Input: Thermocouple multi-range (supports standard types like K, J, T, R, S)
- Auxiliary Outputs: Features one alarm relay output
- Direct Historical Replacement: Omron originally succeeded this unit with the E5GN-Q1T.
- Modern Alternative: In contemporary automated systems, Omron recommends transitioning to the newer E5CC Series (1/16 DIN) or the ultra-compact E5GC Series, such as the E5GC-QX1A6M-000 or E5GC-QX1D6M-000.
- KOEED: 1PCS Omron Thermostat E5GN-Q1TC
- MRO Global Solutions: OMRON E5GN-Q1TC NSNP
- Well Gain Electronics: OMRON E5GN-Q1TC-AC100/240V
OMRON E5GN-Q1TC Temperature Controller (E5GN).
-
REQUEST A QUOTE
- Resolution: 2,000 pulses per revolution (P/R).
- Control Output: Line driver (RS-422A interface) providing differential outputs (A, Ā, B, B̄, Z, Z̄) for high noise immunity.
- Power Supply: 5 VDC (±5% ripple max).
- Mechanical Design: 40mm casing diameter with a 6mm solid shaft.
- Rotational Speed: Rated up to 6,000 rpm.
- Protection Rating: IP50 dust resistance.
OMRON E6B2-CWZ1X 2000P R Rotary Encoder (E6B2).
-
REQUEST A QUOTE
- Resolution: 1024 Pulses per Revolution (P/R), delivering highly accurate granular feedback.
- Power Supply Voltage: 5 to 24 VDC, making it widely compatible with different PLCs and control systems.
- Output Type: NPN Open Collector.
- Output Phases: A, B, and Z (reversible), allowing direction sensing via phase difference and origin alignment via the Z-phase index.
- Mechanical Dimensions: 40 mm casing diameter with a 6 mm solid flatted (D-shape) shaft.
- Max Speed: Up to 6000 RPM permissible rotation.
- Environmental Protection: IP50 rating with operating tolerances from -10 to 70 °C.
- Brown: Power Supply (5 to 24 VDC)
- Blue: 0V / Common (GND)
- Black: Phase A output
OMRON E6B2-CWZ6C 1024P-R Rotary Encoder (E6B2).
-
REQUEST A QUOTE
- Resolution: 500 Pulses per Revolution (P/R).
- Output Type: NPN open-collector output.
- Supply Voltage: 5 to 24 VDC.
- Output Phases: A, B, and Z (Quadrature output with index pulse).
- Physical Dimensions: 40 mm outer diameter housing with a 6 mm solid shaft (D-type flatted end).
- Maximum Speed: 6,000 RPM.
- Protection Rating: IP50 (dust protection).
- Connection: Standard models come pre-wired with a 2-meter cable.
- Brown: Power Supply
- Blue: Common / Ground (0V)
OMRON E6B2-CWZ6C 500P R Rotary Encoder (E6B2).
-

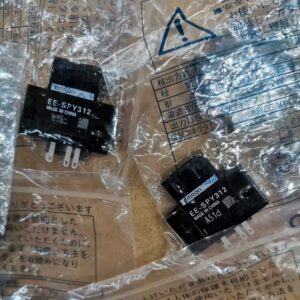

- Brand: Omron
- Model: EE-SPY312
- Series: EE-SPY31/41
- Sensing method: Limited / convergent reflective
- Sensing distance: 2 to 5 mm
- Mounting shape: Vertical cuboid
- Output type: NPN voltage output
- Operation mode: Dark-ON
- Light source: 940 nm infrared LED
- Supply voltage: 5 to 24 V DC ±10%
- Response time: 5 ms
- Load current: 80 mA maximum
- Housing material: Polycarbonate
- Protection rating: IP50
- Approximate mass: 2.6 g
-
REQUEST A QUOTE
- Series Type: EASY Type (Non-cascadable, simplified on/off functions)
- Protective Height: 185 mm (7.28 inches)
- Detection Capability: 25 mm diameter (Optimized for Hand Protection)
- Number of Beams: 8 beams
- Beam Gap / Pitch: 20 mm
- Operating Range: 0.2 m to 7.0 m (0.65 ft to 23 ft)
- Safety Outputs: 2 x PNP outputs (200 mA max at 24 VDC)
- Supply Voltage: 24 VDC ±20% (SELV/PELV)
- Cable Type: 3-meter pre-wired discrete cable
- Enclosure Rating: IP65 (Dust-tight and protected against water jets)
OMRON F3SJ-E0185P25 Safety Light Curtain (F3SJ-E).
-

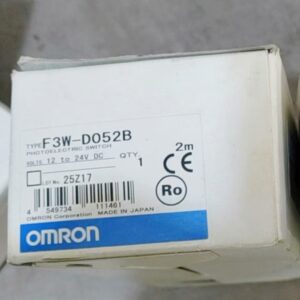

- Manufacturer: OMRON
- Model / Part Number: F3W-D052B
- Sensing Method: Through-beam (it uses a separate emitter and receiver pair).
- Number of Beams: 5 optical axes.
- Beam Gap: 25 mm between each beam.
- Sensing Width: 100 mm height coverage.
- Sensing Distance: Up to 3 meters (adjustable between short and long ranges).
- Output Type: NPN open collector.
- Connection: Pre-wired pigtail cable with an M12 connector.
- Voltage: 12 to 24 VDC.
-
REQUEST A QUOTE
- Display Device: 3.5-inch TFT color LCD screen
- Resolution: 320 × 240 pixels
- Display Colors: 16.7 million colors
- Menu Languages: English, German, French, Italian, Spanish, Traditional Chinese, Simplified Chinese, Korean, Japanese
- Sensor Capacity: Can recognize and switch between up to 32 sensors max; displays up to 8 sensors simultaneously on the monitor.
- Storage Slot: Micro SD card slot for data logging (measurement results and images).
- Communication Interface: RJ45 (10BASE-T) connector.
- Supply Voltage: 24VDC nominal (Acceptable range: 21.6 Vdc to 26.4 Vdc)
- Housing Material: ABS resin, rectangular shape
- Operating Temperature: 0 to +50°C ambient
OMRON FQ2-D30 Touch Finder Monitor (FQ2 Smart Camera).
-

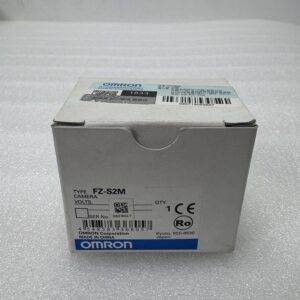

- Manufacturer: Omron
- Model / Part Number: FZ-S2M
- Resolution: 2.0 Megapixels (1600 x 1200 pixels UXGA)
- Image Sensor: 1/1.8" CCD Monochrome (greyscale)
- Frame Rate: 30 frames per second (fps)
- Shutter Type: Global electronic shutter (1/10 to 1/50,000 second speeds)
- Lens Mount: Standard C-mount
- Pixel Size: 4.4 µm
-
REQUEST A QUOTE
- Power Supply Voltage: 24 VAC/VDC (50/60 Hz)
- Operating Voltage Range: 85% to 110% of rated voltage
- Power Consumption: 1.7 W max. (at 24 VDC) / 5.7 VA max. (at 24 VAC)
- Safety Outputs (Instantaneous): 3PST-NO (3 Normally Open poles)
- Auxiliary Output: SPST-NC (1 Normally Closed pole)
- Rated Switching Voltage: 250 VAC, 30 VDC
- Operating / Response Time: Operating: 30 ms max. / Response: 10 ms max.
- Safety Category: PLe / Category 4 (conforming to EN ISO 13849-1)
- Housing Width: 45 mm (DIN rail or screw mounting)
- PE: Protective Earth / Ground terminal.
OMRON G9SA-30124V Safety Relay Unit (G9SA).
