REQUEST A QUOTE
- Product Line: ClassicLine 4DI-Y
- Digital Inputs: 4 x PNP
- Network Address: Extended Addressing Mode
- Connection Type: 4 x M12 Connectors
- Ingress Protection: IP67
- Mean Time to Failure: 405 Years
- Quick Mounting Technology: Features toolless, rapid insulation-piercing contacts designed specifically for standard AS-i flat yellow cables. The lower mounting section holds the cable firmly without screws.
- Flexible Orientation: The internal routing allows the flat bus cable to exit or enter from three different selectable directions, eliminating tight bend radius issues in compact control boxes or machine profiles.
- On-board Diagnostics: Outfitted with high-visibility, powerful status LEDs:
IFM AC5215 AS-i Input Module (AS-Interface).
-
- Manufacturer: IFM

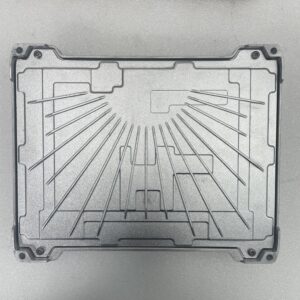

- Model / Part Number: CR721S
- Processor: Powerful 32-bit triple-core controller.
- Software: Programmable using CODESYS 3.5, which follows the standard IEC 61131-3 rules for industrial programming.
- Digital Inputs: 68
- Analog Inputs: 24
- Frequency Inputs: 16
- Resistor Inputs: 4
- Digital Outputs: 54
- Analog Outputs: 2
- Safety Rating: Fully certified safety controller supporting CANopen Safety protocol.
- Network Interfaces: Includes high-performance CAN interfaces (4 ports) and Ethernet (1 port) to talk to other machine components.
- Dimensions: 219 mm x 271 mm x 47 mm
- Protection Rating: IP67 (completely sealed against dust and water splashes, perfect for harsh outdoor environments).
-
REQUEST A QUOTE
- Primary Function: Reliable monitoring of rotational and linear movement to detect underspeed or component blocking (e.g., on conveyors, fans, or pumps).
- Setting Range: Adjustable between 3 to 300 pulses per minute via a built-in potentiometer.
- Sensing Range: 10 mm flush mountable.
- Electrical Design: 3-wire DC PNP with a normally open (NO) output function designed for direct PLC connection.
- Operating Voltage: 10 to 36 V DC.
- Housing & Protection: M30 x 1.5 threaded brass housing (special coating) with an IP67 environmental protection rating.
- Connection Type: Integrated 2-meter PVC cable.
- Standout Feature: Official, modern replacement recommended by the manufacturer.
- Key Upgrade: Features an expanded setting range of 5 to 3000 pulses per minute compared to the old model's 300 limit. Available directly from the ifm Shop.
- Consideration: Legacy stock or open-box units for drop-in replacements without rewiring or changing system design.
IFM DI5001 Inductive Speed Monitoring Unit (DIA Series).
-
- Manufacturer: IFM

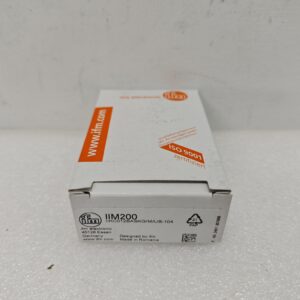

- Model / Part Number: IIM200
- Sensing Range: 12 mm (increased distance).
- Housing Size: M30 x 1.5 threaded cylindrical barrel (70 mm long).
- Mounting: Flush mountable (can sit flat inside metal surroundings).
- Output Type: Normally Open (NO); configures as 3-wire DC PNP or 2-wire DC PNP/NPN.
- Operating Voltage: 10 to 36 Volts DC.
- Connection Type: Quick-disconnect M12 connector.
- Harsh Environment Defense: Features a high-grade stainless steel body with gold-plated contacts. It features IP67 and IP69K ratings, meaning it survives high-pressure hot water blasting and temporary water submersion.
- Extreme Temperatures: Functions reliably in extreme climates ranging from -40°F to 185°F (-40°C to 85°C).
-
- Brand: ifm

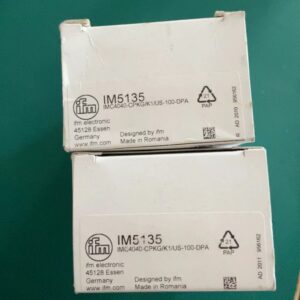

- Model: IM5135
- Series: IMC4040
- Electrical design: PNP
- Output function: Complementary
- Sensing range: 40 mm
- Mounting: Non-flush
- Switching frequency: 200 Hz
- Operating voltage: 10 to 36 V DC
- Current consumption: < 20 mA
- Housing: Rectangular
- Dimensions: 40 × 40 × 54 mm
- Connection: M12 connector
- Special feature: Correction factor K=1; magnetic-field immune
- Magnetic-field immunity: Up to 300 mT
- Operating temperature: -25 to +70 °C
- Protection rating: IP67
-
REQUEST A QUOTE
- Electrical Design: DC PNP
- Output Function: Normally Open (NO)
- Operating Voltage: 10…30 V DC (cULus Class 2 source required)
- Switching Frequency: 10,000 Hz (10 kHz)
- Sensing Range: Magnetic sensitivity: 2.8 mT
- Current Rating: 100 mA (Permanent current rating)
- Current Consumption: < 10 mA
- Connection Type: 0.3 m PUR Cable with M8 Connector (A-coded, 3-wire)
- IP Rating: IP 65 / IP 67
- Operating Temperature: -25°C to 75°C (Max ambient up to 85°C)
IFM MK5101 Cylinder Sensor (MK Series).
-
- Manufacturer: IFM

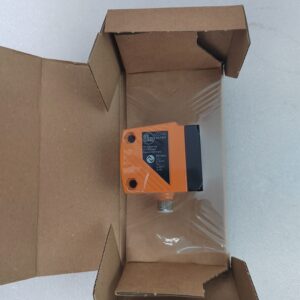

- Model / Part Number: O1D100
- Measuring Range: 0.2 meters to 10 meters (on white objects)
- Laser Class: Class 2 red laser (650 nm wavelength)
- Operating Voltage: 18 to 30 V DC
- Current Consumption: Less than 150 mA
- Outputs: 2 digital outputs (or 1 digital + 1 analog 4-20mA / 0-10V)
- Communication: IO-Link 1.1 (COM2, 38.4 kBaud)
- Protection Rating: IP67 (dust tight and water resistant)
- Operating Temperature: -10°C to 60°C (14°F to 140°F)
- Housing Material: Diecast zinc body with glass lens
- Built-in Screen: Features a 4-digit alphanumeric display with programming buttons on top for quick setups.
- Smart Filtering: Built-in background suppression ensures the laser does not get confused by shiny walls or objects behind your target.
- Flexible Windows: You can customize the scale of the analog output window to match the exact distance range your project needs.
-
- Manufacturer: IFM

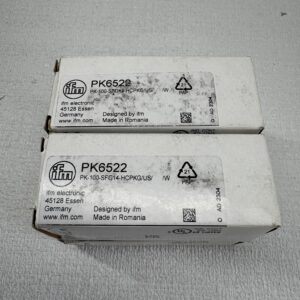

- Model / Part Number: PK6522
- Measuring Range: 0 to 100 bar (0 to 1450 psi).
- Pressure Type: Relative pressure.
- Maximum Pressure Rating: 200 bar (2900 psi).
- Bursting Pressure Minimum: 1000 bar (14500 psi).
- Operating Voltage: 9.6 to 32 V DC.
- Electrical Design: DC PNP.
- Current Consumption: Less than 25 mA.
- Outputs: 2 digital switching outputs (normally open / normally closed complementary).
- Switching Frequency: 100 Hz.
- Housing Materials: PBT, PC, FKM, and Stainless Steel (1.4404 / 316L).
- Wetted Parts: Stainless Steel (1.4404 / 316L) and FKM.
- Process Connection: Threaded connection G 1/4 external thread (with an M5 internal thread).
- Electrical Connection: M12 connector (A-coded).
- Medium Temperature Range: -25°C to 80°C (-13°F to 176°F).
- Protection Rating: IP67.
- Lifespan: More than 50 million pressure cycles.
- Safety Features: Reverse polarity, short-circuit, and overload protection.
- Intuitive Adjustments: Uses two rotatable radial setting rings so you can manually dial in the switch and reset points without needing system pressure applied.
- Mechanical Locking: Prevents accidental or unauthorized changes to your settings.
- Status LEDs: Features a green LED for power/readiness and a yellow LED to show the switching status.
-
- Manufacturer: IFM

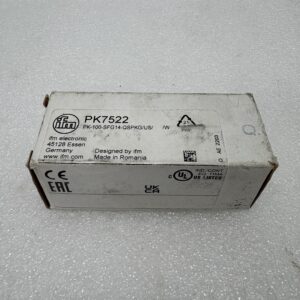

- Model / Part Number: PK7522
- Measuring Range: 0 to 100 bar (0 to 1450 psi)
- Maximum Overload Pressure: 200 bar (2900 psi)
- Bursting Pressure: 1000 bar (14500 psi)
- Operating Voltage: 9.6 to 32 VDC
- Electrical Design: PNP
- Output Function: 2 normally open digital outputs
- Process Connection: G 1/4 external thread with M5 internal thread
- Electrical Connection: 4-pin M12 A-coded connector
- Degree of Protection: IP67
- Media Temperature: -25 to 80 °C
-
- Manufacturer: IFM

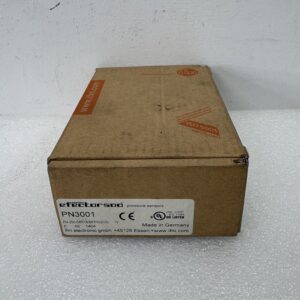

- Model / Part Number: PN3001
- Measuring Range: 0 to 250 bar (0 to 3,625 psi).
- Overload Protection: Handles pressure spikes up to 400 bar (5,800 psi) without breaking.
- Outputs: Features programmable switching outputs and one analog output (gives flexibility for control systems).
- Connection Size: G ¼ internal thread process connection.
- Electrical Connection: Standard M12 connector.
- Operating Voltage: 18 to 36 V DC.
