Showing 1–16 of 28 results
-
REQUEST A QUOTE
- Component Type: MDI Unit / CNC Keyboard Panel
- Keyboard Layout: QWERTY Type
- Orientation: Vertical
- Dimensions: Height 160 mm × Width 290 mm
- System Compatibility: FANUC Series 30i / 31i / 32i, 0i-F CNCs
- Verify Dimensions: Use a caliper or tape measure to confirm your existing panel cut-out matches the 160mm x 290mm sizing precisely.
- Match Cable Connectors: Inspect the ribbon cables or rear-facing pin connectors on your old unit to ensure they align perfectly with the standard internal bus of the A02B-0323 product series.
- Double-Check Layout Requirements: Confirm your operator crew requires the standard alphanumeric layout (QWERTY) rather than a localized matrix style layout.
- Best Value Option: Available in new condition at Eisen Machinery. Note that items through this channel are typically non-refundable and non-returnable.
FANUC A02B-0323-C128 MDI Operation Panel (CNC Series).
-
REQUEST A QUOTE
- Specification Attribute: Details & Ratings
- Manufacturer: FANUC (Country of Origin: Japan)
- Module Type: I/O Expansion Module B (Type-2 Connector Board Style)
- I/O Capacity: 24 Digital Inputs / 16 Digital Outputs
- MPG Interface: None (Explicitly omitted on C003)
- Signaling Logic: Standard 24 Vdc Industrial Logic
- CNC Compatibility: FANUC Series 16i / 18i / 21i (and related automation devices)
- Scalability: Daisy-chainable up to 16 units (Max 1024 / 1024 points as CNC slaves)
- Operating Temp: 0°C to 55°C (32°F to 131°F)
FANUC A03B-0815-C003 CNC I/O Expansion Module (Series 0i).
-

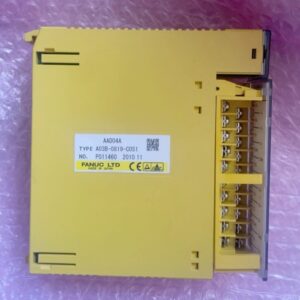

- Manufacturer: FANUC
- Model / Part Number: A03B-0819-C051
- Module Code: AAD04A
- Input Points: 4 channels (or points)
- Resolution: 12-bit precision
- Compatibility: Frequently paired with FANUC Series 16i, 18i, and 21i control units
- Internal Boards: Built with an A20B-8000-0450 mainboard and an A350-8000-T452/05 connection board
- Weight: 0.79 lbs (about 0.36 kg)
-
REQUEST A QUOTE
- Connector Type: 12-Pin End-Effector (EE) Cable Connector
- Form Factor: Right-Angle / 90-Degree Elbow (Ideal for minimizing cable stress and ensuring streamlined wiring layout in dense configurations)
- Termination Type: Solder-type pins
- Weight: Approximately 0.1 kg to 0.15 lbs (approx. 45-68 grams)
- Component Composition: Includes integrated cable clamp for heavy-duty industrial strain relief.
- Pin Signal: Description
FANUC A05B-1137-J058 End-Effector Connector (LR Mate).
-
REQUEST A QUOTE
- Model Designation: Alpha iF 12/3000 (α iF12/4000 series platform configured for 3000 RPM)
- Power Rating: 2.5 kW to 3.0 kW
- Rated Speed: 3000 RPM
- Stall Torque: 12 Nm
- Current Rating: 14 A
- Input Voltage: 3-Phase, 200–240 VAC (50/60 Hz)
- Shaft Type: Straight shaft (no key, no brake)
- Feedback Device: α1000iA absolute encoder / PulseCoder (Part Number: A860-2000-T301)
- Environmental Protection: IP65 standard seals
- Physical Weight: Approx. 20 kg (42.6 lbs)
FANUC A06B-0243-B100 Precision AC Servo Motor (Alpha i Series).
-
- Manufacturer: FANUC
- Model / Part Number: A06B-2116-B203
- Model Series: βiS 1/6000 (Beta iS series)
- Max Speed: 6,000 RPM
- Shaft Type: Straight shaft (ST) with a KEY way
- Feedback System: Equipped with a βiA 1000 absolute pulsecoder
- Insulation Class: Class F
-
REQUEST A QUOTE
- Model / Type: Beta Series Servo Unit, Type SVU-20
- Interface Type: Fanuc I/O Link Interface
- Single-Phase Input: 220–240 VAC @ 10.1 A, 50/60 Hz
- Three-Phase Input: 200–240 VAC @ 6.3 A, 50/60 Hz
- Rated Output: 240 VAC, 5.9 A
- Control Method: Digital servo control with Incremental Encoder (INC) support
- Compatible Motors: Fanuc βM0.5/4000 (20A), βM1/4000 (20A), β3/3000, β6/2000
- Related Manuals: Functional descriptions in B-65232EN; Maintenance instructions in B-65245EN
- PMC Axis Control: Unlike standard centralized servo drives, the I/O Link drive handles item sequencing internally. The CNC sends a target position/index amount and feed rate, and the amplifier handles zero returns, overtravels, axis clamping/unclamping, and e-stop processing independently before passing a "finish" signal back.
- Indexer Configuration: It features dedicated internal parameters that allow it to act as an indexer (e.g., managing tool magazine positions automatically).
FANUC A06B-6093-H152 Servo Amplifier (Beta Series).
-
REQUEST A QUOTE
- Model Number: Alpha Servo Module SVM1-130
- Interface Type: FSSB (Fanuc Serial Servo Bus)
- Rated Input Power: 283–325 VDC, 9.1 kW
- Rated Output Voltage: 230 VAC
- Rated Output Current: 52.2 A (L-Axis)
- Physical Dimensions: 14.0" H x 3.3" W x 11.9" D (380 x 90 x 307 mm)
- Weight: 13.5 lbs (6.12 kg)
- Environmental Tolerances: 0 to 40°C/55°C operating range; 5G vibration resistance
- Official Documentation: Fanuc Maintenance Manual B-65162
- Safety Preparation: If diagnosing a vertical axis, physically prop up or secure the axis. When the motor brake is released during testing, the axis will drop under gravity if unsupported.
FANUC A06B-6096-H106 Servo Amplifier Module (Alpha Series).
-
REQUEST A QUOTE
- Model Type: SVM2-80/80 (Alpha Series)
- Interface Type: FSSB Optical Fiber Interface
- Number of Axes: 2 (Dual Axis / Twin Axis)
- Rated Output Current: 18.7 A (per axis)
- Output Voltage: 230 V AC
- Power Rating: 9.5 kW
- Input Voltage Range: 283 – 339 V DC (Power Link)
- Feedback Support: Incremental Encoders (INC)
- Approximate Weight: ~15 lbs (6.8 kg) to 25 lbs (11.3 kg) depending on packaging
- Target Machinery: Primarily integrated into industrial automation setups such as CNC Lathes and CNC Machining Centers.
FANUC A06B-6096-H208 Servo Amplifier Module (Alpha Series).
-
- Manufacturer: FANUC
- Model / Part Number: A06B-6110-H026
- Power Output: 26 kW
- Input Rating: 106 Amps
- Input Voltage: 200–240 Volts AC (3-Phase)
- Output Voltage: 283–325 Volts DC
-

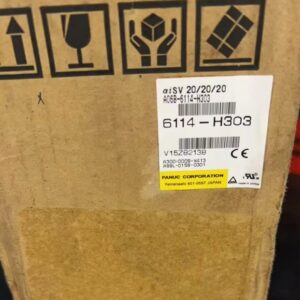

- Manufacturer: FANUC
- Model / Part Number: A06B-6114-H303
- Manufacturer: FANUC (Japan)
- Part Number: A06B-6114-H303
- Model Code: SVM3-20/20/20i
- Number of Controlled Axes: 3 Axes (Labeled L, M, and N)
- Total Input Power Rating: 7.5 kW
- Rated Input DC Link Voltage: 283 V to 339 V DC (supplied by a PSM power supply module)
- Maximum Output Voltage: 240 V AC
- Rated Output Current: 6.5 A continuous per axis (20 Amp peak current class)
- Interface Communication Type: FSSB (Fanuc Servo Serial Bus) over high-speed fiber optic cables
- Cooling Method: Integrated internal fan cooling
- Mounting Type: Standard electrical cabinet panel mount
- Paired Motors: This specific 20 Amp class amplifier is typically paired with FANUC Alpha i Model 4i or 8i AC servo motors.
- Compatible CNC Controls: It integrates natively with FANUC 15i, 16i, 18i, and 21i generation CNC platforms, as well as modern iB and iC controls.
- Robotics: Frequently found managing synchronized motion in multi-axis FANUC industrial robot controllers.
-
- Manufacturer: FANUC
- Model / Part Number: A06B-6117-H205
- Model Line: Alpha i Series (aiSV-20/20)
- Axis Configuration: Dual-axis (Controls 2 axes, labeled L-axis and M-axis)
- Rated Input Power: 5 kW
- Input Voltage: 283V to 325V DC (Supplied via a matching Alpha i power supply module)
- Maximum Output Voltage: 240V AC
- Output Current: 6.5A rated per axis (20 Amp peak current class capacity)
- Interface Type: FSSB (Fanuc Servo Serial Bus) Optical Fiber interface
- Cooling System: Internal cooling fan
- Height: 2.6 inches (approx. 66 mm)
- Width: 7.3 inches (approx. 185 mm)
- Length/Depth: 16 inches (approx. 406 mm)
- Weight: 12 lbs (approx. 5.4 kg)
- Compatible Controls: FANUC 0i-D, 0i-F, 16i/18i/21i Model B, and 30i / 31i / 32i series.
- Compatible Servo Motors: Typically paired with FANUC Alpha i series motors, specifically sizes like the αi2, αi4, or αi12/3000.
- Base Board: A16B-2203-0695
- Control Board: A20B-2101-0041
- Interface Card: A20B-1007-0880
- Internal Fan Part: A90L-0001-0510 (Note: A failure here triggers a "Fanuc Alarm 1" on the drive).
-
REQUEST A QUOTE
- Model Type: Servo Amplifier Module / Alpha i Servo Drive (αiSVM 3-20/20/20i)
- Number of Axes: 3-Axis (Triple Axis management labeled as L, M, and N axes)
- Interface Technology: FSSB (Fanuc Servo Serial Bus) Optical Fiber interface for high-speed CNC communication
- Rated Input Power: 7.5 kW (Note: Core control circuit consumes ~1.5 kW energy)
- Input DC Voltage Range: 283 V DC to 339 V DC
- Output AC Voltage Range: 200 V AC to 240 V AC (Max 240V)
- Rated Output Current: 3A to 6.5A continuous per axis (L, M, N) depending on specific HRV control mode
- Output Frequency Range: 0.1 Hz to 800 Hz
- Position Feedback: INC (Incremental Encoder) support
- Environmental Limits: 0°C to 55°C operating ambient temperature; up to 90% non-condensing humidity
FANUC A06B-6117-H303 Servo Amplifier Module (Alpha Series).
-

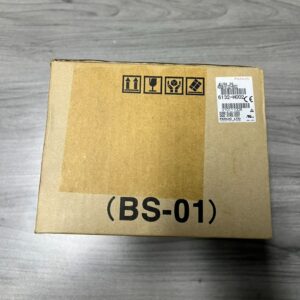

- Manufacturer: FANUC
- Model / Part Number: A06B-6132-H002
- Interface Type: Uses the standard I/O Link communication protocol to talk to the main CNC controller.
- Input Voltage: Runs on 200–240 VAC power. It supports both single-phase and three-phase industrial electrical lines.
- Current Capacity: Features an input rating of 8.0 Amps and supplies a regulated output current of 6.8 Amps directly to the servo motor.
- Frequency: Standard 50/60 Hz operation.
-

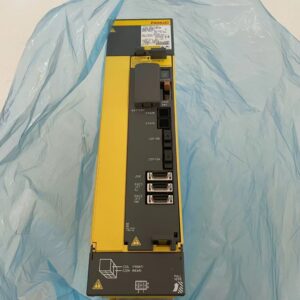

- Manufacturer: FANUC
- Model / Part Number: A06B-6240-H211
- Part Number: A06B-6240-H211
- Series: α i-B Series (α iSV 160/160-B)
- Number of Axes: 2-axis control
- Module Width: 90 mm
- Weight: 5.44 kg (approx. 12 lbs)
- Input Voltage (DC Link): 283 V to 339 V DC
- Control Input Voltage: 24 V DC
- Maximum Draw Current: 67 A
- Output Voltage: 240 V AC (3-Phase)
- Output Current: 45 A per axis
- Operating Frequency Range: 0 Hz to 550 Hz
- Cooling Method: Integrated fan cooling
- Compatible Controllers: Works with FANUC R-30iB, R-30iB Plus robotic controllers, and FS 3xi-B / 0iF Plus CNC systems.
-
REQUEST A QUOTE
- Component Type: Power Control PCB (PSM Side Board)
- Series Compatibility: FANUC α i Series / α HV i Series
- Input Voltage: 400–480 V AC (High Voltage compatibility)
- Integrated Components: Onboard Noise Filter, 7-Segment Diagnostic LED, Fan Motor (A90L-0001-0441)
- Dimensions: 230 mm × 100 mm × 40 mm (9.05" × 3.93" × 1.57")
- Weight: 0.47 kg (1.26 lbs)
- Environmental Limits: Operating: 0°C to 45°C (32°F to 113°F) | Humidity: 20% to 95% RH
- De-energize the Cabinet: Ensure the main breaker to the CNC machine is fully powered off and locked out. Wait at least 10–15 minutes for the internal high-voltage capacitors on the DC bus to discharge completely.
- Verify Voltage Discharge: Use a calibrated multimeter to check the DC link terminal points (L+ and L-) to verify that residual voltage has dropped below safety thresholds (<50V) before removing the module cover.
- Inspect the Fan Assembly: This board depends on the attached A90L-0001-0441 fan to prevent thermal cutoff. Ensure the fan moves freely and is clear of machining grease/debris during installation.
FANUC A20B-2101-0390 Power Control Board (αi Series).
