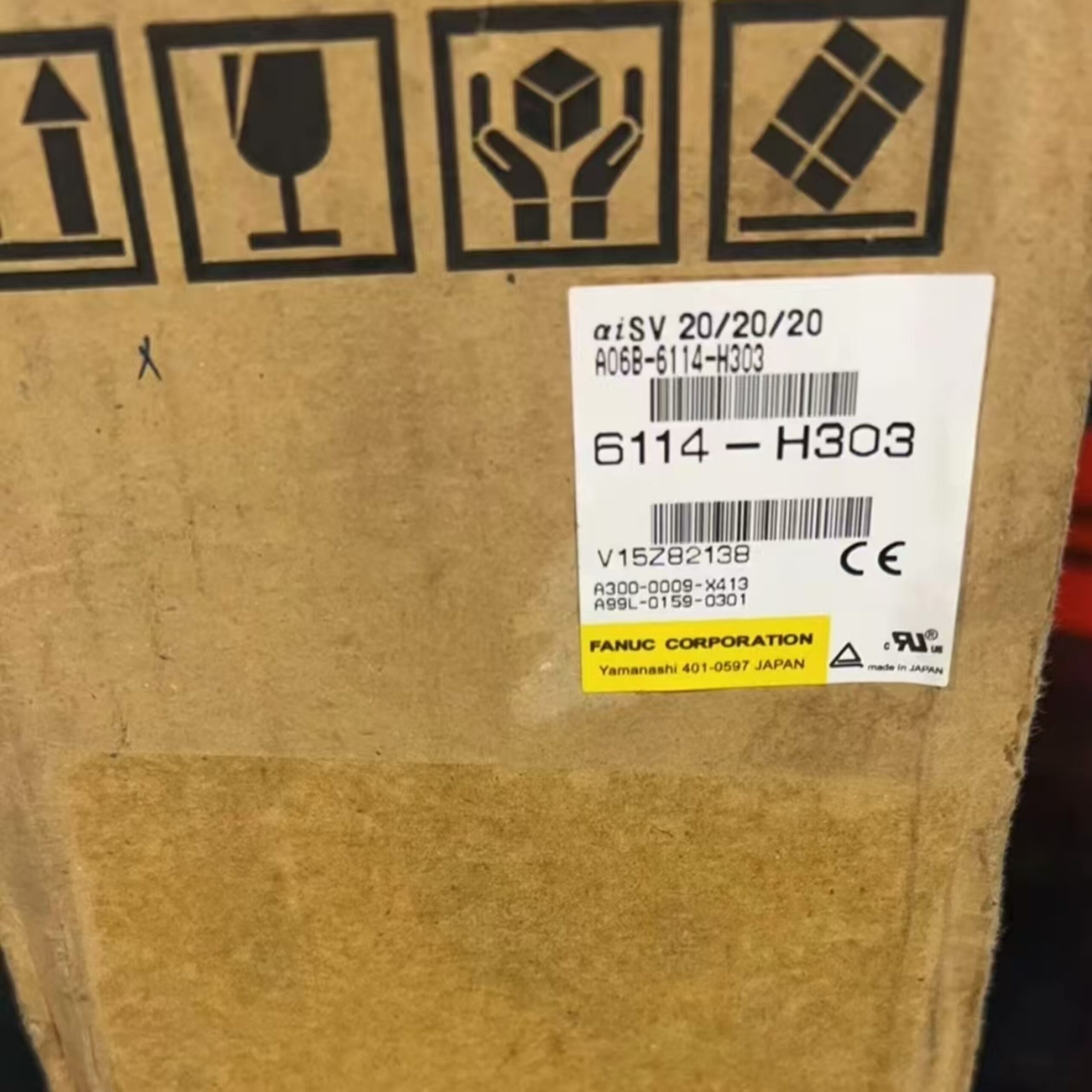

FANUC A06B-6114-H303 Servo System Component

Manufacturer: FANUC
Model / Part Number: A06B-6114-H303
Manufacturer: FANUC (Japan)
Part Number: A06B-6114-H303
Model Code: SVM3-20/20/20i
Number of Controlled Axes: 3 Axes (Labeled L, M, and N)
Total Input Power Rating: 7.5 kW
Rated Input DC Link Voltage: 283 V to 339 V DC (supplied by a PSM power supply module)
Maximum Output Voltage: 240 V AC
Rated Output Current: 6.5 A continuous per axis (20 Amp peak current class)
Interface Communication Type: FSSB (Fanuc Servo Serial Bus) over high-speed fiber optic cables
Cooling Method: Integrated internal fan cooling
Mounting Type: Standard electrical cabinet panel mount
Paired Motors: This specific 20 Amp class amplifier is typically paired with FANUC Alpha i Model 4i or 8i AC servo motors.
Compatible CNC Controls: It integrates natively with FANUC 15i, 16i, 18i, and 21i generation CNC platforms, as well as modern iB and iC controls.
Robotics: Frequently found managing synchronized motion in multi-axis FANUC industrial robot controllers.
