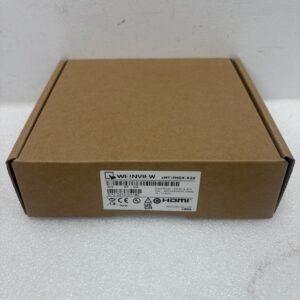

- Manufacturer: Weintek
- Model / Part Number: CMT-FHDX-920
- Display Output: Full HD 1080p (Up to 1920 x 1080) via HDMI. It supports both 16:9 widescreen and 4:3 traditional monitor layouts.
- Processor: Quad-core Cortex-A17 RISC processor with a dedicated, high-performance 3D graphics engine.
- Memory: 4 GB Flash storage and 1 GB RAM.
- Video Decoding: Supports smooth playback of high-resolution 1080p H.264 industrial video clips.
- Cooling: Completely fan-less design using a rear aluminum sheet heat sink to reject heat quietly and reliably.
- USB: 1 x USB 2.0 Host port for external mice, keyboards, or storage drives.
- Audio: Embedded digital audio output via the HDMI line.
- Mounting: Designed for standard 35mm DIN-rail installation.
- Input Power: 24V DC (±20% tolerance range) with built-in power isolation.
- Operating Temperature: Safe operation between 0°C and 50°C.
-

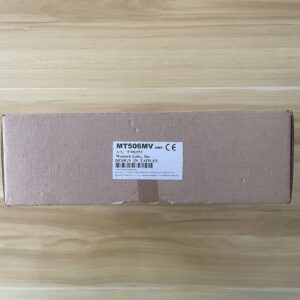

- Manufacturer: WEINTEK
- Model / Part Number: MT506MV
- Display: A 5.6-inch color display with 320×234 pixel resolution.
- Processor and Memory: It runs on a 32-bit RISC processor (200MHz) and has 2 megabytes of flash memory to hold your machine's custom screens and buttons.
- Communication Ports: It has two serial communication ports.
- Supply Voltage: Runs on standard industrial 24V DC power.
- Front Protection: The front panel is IP65 rated.
- Dimensions and Panel Cutout: The physical box is 204 x 150 mm, but the hole you need to cut out in your panel is 192 x 138 mm.
-
REQUEST A QUOTE
- Display: 7" TFT LCD screen with an 800 x 480 resolution and LED backlight.
- Processor & Memory: Dual-Core RISC ARM CPU with 128 MB RAM and 256 MB onboard flash memory.
- Power Supply: Wide input voltage range of 10.5 to 28 VDC with built-in power isolation.
- Software: Configured using the free EasyBuilder Pro programming software.
Weintek MT8072iP HMI Touch Panel (iP Series).
