Showing 1–16 of 42 results
-

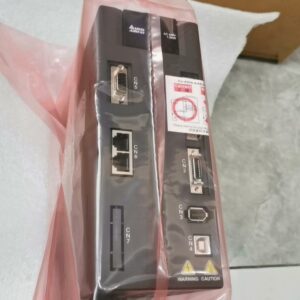

- Manufacturer: Delta
- Model / Part Number: ASD-A2-1543-M
- Series: ASDA-A2 Series
- Rated Output Power: 1.5 kW (1500 W)
- Input Voltage / Phase: 3-Phase 380V to 480VAC (± 10%), 50/60Hz
- Continuous Output Current: 5.02 Arms
- Instantaneous Max Current: 10.04 Arms
- Control Configurations: Features built-in electronic cam (E-CAM) functionalities and Full-Closed Loop control capabilities to compensate for mechanical backlash.
-
REQUEST A QUOTE
- Series: ASDA-A2 Series (High-performance, closed-loop)
- Model Code: ASD-A2-3023-L
- Rated Output Power: 3.0 kW (3000 Watts)
- Input Voltage / Phase: 3-phase (supports 1-phase operation with derating) 200V ~ 230VAC, -15% to +10%
- Continuous Output Current: 19.4 Arms
- Encoder Resolution Support: 20-bit Incremental encoder / 17-bit Absolute encoder
- Control Modes: Position Control (Pulse + Direction), Speed Control, and Torque Control (via ±10 VDC voltage range)
- Communication Interface: 1x RS-232, 1x RS-485, and 1x USB built-in communication ports
- Enclosure Rating: IP20
- ASD: AC Servo Drive
DELTA ASD-A2-3023-L AC Servo Drive (ASDA-A2).
-
REQUEST A QUOTE
- Series: ASDA-B3 High Performance Platform
- Rated Output Power: 1.0 kW (1000 Watts)
- Input Power Phase / Voltage: 1-Phase / 3-Phase, 220 VAC
- Continuous Output Current: 7.3 Arms
- Instantaneous Max Current: 21.21 Arms
- Encoder Resolution Support: 24-bit (16,777,216 pulses/rev)
- Response Bandwidth: 3.1 kHz
- ASD: AC Servo Drive
- Advanced Suppression Tuning: Integrates robust auto-tuning algorithms alongside automated notch filters for mechanical vibration suppression, eliminating system resonance during sharp acceleration transitions.
- High Motor Speed Support: Fully compatible with high-speed servo motors reaching operational profiles up to 6,000 r/min.
DELTA ASD-B3-1021-L AC Servo Drive (ASDA-B3).
-
REQUEST A QUOTE
- Manufacturer: Delta Electronics / Industrial Automation
- Model Number: ASD-BM-50A
- Component Type: CN1 I/O Signal Breakout Board / Terminal Board with Cable
- Interface Connector: 50-Pin CN1 Connector (SCSI-style high-density plug)
- Terminal Type: Standard Screw Terminal Block
- Environmental Status: RoHS3 Compliant, REACH Unaffected
- Export Classifications: ECCN: EAR99 | HTSUS: 8536.90.4000
- Part Number Aliases: 2039-ASD-BM-50A, ASD-BM-50A-ND
- Compatible Servo Drive Series: Delta ASDA-A, ASDA-A+, ASDA-AB, ASDA-B, and ASDA-A2 Series.
- Associated Drive Example: Commonly paired with drives such as the ASD-A2-0221-M (Servo AC 220VAC Supply modules).
DELTA ASD-BM-50A Breakout Terminal Block (ASDA).
-
REQUEST A QUOTE
- Series: Delta CTA Series
- Primary Functions: Timer, Counter, Tachometer (including mixed timer + counter mode)
- Display: Double-line, 6-digit negative transmissive LCD display
- Dimensions: 48 × 48 mm (1/16 DIN panel mount)
- Power Supply: 100 to 240 VAC universal (50/60 Hz)
- Power Consumption: Less than 10 VA
- Sensor Power Output: +12 VDC (± 10%), 100 mA for auxiliary encoder or sensor power
- Communication: None (No RS-485 interface on this specific model; see variations)
- Protection Rating: IP65 dust and waterproof front panel protection
- Certifications: UL, cUL, CE
DELTA CTA4000A Timer / Counter / Tachometer (CTA Series).
-
REQUEST A QUOTE
- Display Size: 7.0 Inch (Diagonal)
- Display Type: TFT Color LCD (65,536 colors / 24-bit)
- Resolution: 800 x 480 Pixels
- Processor (MCU): ARM Cortex-A8 (800MHz)
- Memory: 256 MB Flash ROM / 256 MB RAM
- Operating Voltage: 24V DC (Built-in power isolation)
- Waterproof Rating: IP65 / NEMA4 / UL Type 4X (Front panel, indoor use only)
- Physical Dimensions: 21.5 cm × 16.1 cm × 3.35 cm
- Weight: 0.7 kg (1.54 lbs)
- COM Ports: Features built-in serial communication (RS-232 / RS-485 / RS-422 via DB9 connector) supporting standard industrial protocols like Modbus (Master/Slave configurations).
DELTA DOP-107BV HMI Touch Panel (DOP-100).
-
REQUEST A QUOTE
- Maximum Output Power: 75W
- AC Input Range: 100–240 V AC ~ 4 A at 50–60 Hz (Global compatibility)
- Form Factor: Small Form Factor (SFX / Internal open-frame variant depending on enclosure chassis)
- Main Motherboard Connector: 20-pin configuration
- Peripheral Connectivity: Typically equipped with up to 4 SATA power connectors to sufficiently back a 4-bay storage array.
- Delta Variants: DPS-75VB B, DPS-75VB C, and DPS-75VB E.
- Alternative Interchanges: CWT PUI108-2Z and Haikang PUI108E-2Z.
- Target Hardware: Frequently found inside 4-SATA slot corporate desktop PCs, security VCRs, and surveillance Dahua/Hikvision standalone video recorders.
- Industrial Automation Outlets: Brand new factory-fresh units featuring product certification are available directly via Okmarts Delta Supply Catalog.
DELTA DPS-75VB A Switching Power Supply (DPS Series).
-
REQUEST A QUOTE
- Manufacturer: Delta Electronics
- Model Number: DTE20R
- Operating Voltage: 24 V-DC
- Output Type: Relay Output Module (4 Channels)
- Mounting Format: Standard DIN Rail installation
- Communication: Built-in 2-wire RS-485 (Baud rate up to 115,200 bps)
- Multi-Channel Independence: The base platform supports up to 8 groups of thermocouple or platinum resistance (RTD) inputs. Each channel operates independently to monitor different sectors of a system at the same time.
- Modular Scalability: The system is easily expandable. You can scale your operations by connecting up to 7 DTC2000 expansion controllers directly to the DTE host. It features a practical auto-ID setup function and synchronous communication protocols to simplify multi-zone expansion.
- Programmable Controls: For complex thermal profiling, the module allows users to configure up to 64 distinct sets of targeted temperatures and operational time durations.
- High-Density Wiring Savings: Because the unit mounts straight onto a standard DIN rail, it eliminates extensive panel wiring, dramatically shrinking overall control cabinet footprints.
DELTA DTE20R Temperature Controller (DTE Series).
-
REQUEST A QUOTE
- Model Type: Special Function Extension Card (Internal Plug-in slot)
- Output Channels: 2 Independent Channels (CH0, CH1)
- Analog Voltage Range: 0 to +10 V DC (Digital Resolution: 0 to +4,000)
- Analog Current Range: 0 to +20 mA / 4 to +20 mA (Digital Resolution: 0 to +4,000)
- Resolution: 12-bit
- Terminal Connection: 5-pin European-style (G-type) terminal block
- System Compatibility: Delta DVP-EH2, DVP-EH3, DVP-SV, DVP-SV2, and DVP-PM host MPUs
- AC Motor Drive Speed Control: It converts digital commands from the PLC into a varying 0–10V or 4–20mA signal sent to the input terminals (like the ACI or AVI inputs) of Variable Frequency Drives (VFDs) to dynamically alter motor rotation speeds.
- Proportional Valve Control: It regulates modulating valves, fluid actuators, and dampers in chemical processing or HVAC applications.
- System Registers: When installed, the status and configuration parameters correspond directly to Delta system registers like D1149 (detecting card type index 9 for analog output).
DELTA DVP-F2DA Analog Output Card (DVP Series).
-
REQUEST A QUOTE
- Control Axes: 1 axis (Single-axis servo or stepper control).
- Pulse Output Channels: 2 channels per module.
- Maximum Output Frequency: 200 kHz for high-precision motor movement.
- Positioning Modes: Supports Pulse/Direction (P/D), Clockwise/Counterclockwise (CW/CCW), and A/B phase output signals.
- Communication: Built-in RS-485 communication port.
- Power Supply Requirement: 24VDC operational voltage.
- High-Speed Motion Control: Ideal for machinery requiring fast and accurate positioning, such as labeling machines, packaging systems, cut-to-length applications, and feeder systems.
- System Expansion: Plugs directly into the extension bus of Delta DVP-EH3 series PLCs to offload high-frequency pulse generation from the main CPU, ensuring overall system stability.
DELTA DVP01PU-H2 Position Control Module (DVP-EH3).
-
REQUEST A QUOTE
- Control Axis: 1 Axis (Single-axis)
- Max Output Pulse: 200 kPPS (Kilo-pulses per second)
- Output Modes: FP/RP, Pulse/Dir, A/B Phase
- Control Registers: 49 CR (16-bit each)
- Communication: Built-in RS-485
- Form Factor: Slim Open-Type (DIN Rail Mount)
- LSP / LSN: Limit Switch Positive / Negative (prevents over-travel).
- DOG: Near-point home sensor input used during homing routines.
- Wiring Gauge: Use 22–16 AWG (1.5 mm) single-core or multi-core copper wire rated for 60/75°C.
- Terminal Torque: Tighten all terminal screws strictly to 1.90 kg-cm (1.65 lb-in).
DELTA DVP01PU-S Positioning Module (DVP-S Series).
-
REQUEST A QUOTE
- Output Range: -10V ~ +10V
- Digital Conversion Range: -32,000 ~ +32,000
- Resolution: 14 bits (20V / 64,000)
- Load Impedance / Current: Max output current: 20mA (1kΩ ~ 2MΩ)
- Hardware Protection: Short-circuit protection
- Power Supply: 24V DC (20.4V DC ~ 28.8V DC) powered via an external source.
- Power Consumption: Max rated 1.5W.
- Response Time: 3 ms for all channels combined.
- Overall Accuracy: ±0.5% at full scale (25°C / 77°F); ±1% within full operating range (0 ~ 55°C).
- Connector Type: 5mm pin-pitch European standard fixed/removable terminal block.
DELTA DVP02DA-E2 Analog Output Module (DVP-ES2).
-
REQUEST A QUOTE
- Compatible CPU Series: Delta DVP-ES2 / DVP-EX2 Series
- Analog Input Channels: 4 distinct points (Channels 1 through 4)
- Voltage Input Range: ± 10V (converts to digital values -32,000 to +32,000)
- Current Input Range: ± 20mA / 0 ~ 20mA (converts to digital values -32,000 to +32,000)
- Digital Conversion Resolution: 16-bit digital signal processing
- Data Access Registers: Control Registers (CR) read/written via FROM / TO instructions or mapped directly via D9900~D9999
- Enclosure Rating: Open-type device (requires a clean, dry, protected control cabinet)
- Signal Customization: Selection between voltage or current modes is achieved via physical wiring configurations at the terminal block and setting the appropriate input mode registers in software.
- Safety Isolation: Never connect AC power to the I/O terminal block as it will permanently destroy the low-voltage electronics.
- Discharge Hazard: Always wait at least one full minute after completely disconnecting power from the system before touching or rewiring any module terminals.
DELTA DVP04AD-E2 Analog Input Module (DVP-ES2).
-
REQUEST A QUOTE
- Channels: 4 independent analog input channels.
- Power Supply: 24V DC (20.4V DC to 28.8V DC), consuming 2W.
- Signal Range: Supports both voltage and current modes via physical wiring configurations.
- Voltage Input: ±10V (Digital conversion range: -8,000 to +8,000; Resolution: 1.25mV).
- Current Input: ±20mA / 4-20mA (Digital conversion range: -4,000 to +4,000; Resolution: 5μA).
- Resolution: 14-bit A/D conversion.
- Communication: Built-in RS-485 port supporting Modbus ASCII/RTU protocols (disabled when snapped directly onto the PLC MPU).
- Isolation: Isolation exists between the digital and analog circuits, but there is no electrical isolation between the individual channels.
DELTA DVP04AD-S 4-Channel Analog Input Module (DVP-S Series).
-
REQUEST A QUOTE
- Manufacturer: DELTA
- Model / Part Number: DVP04AD-SL
- Channels: 4 independent input channels (voltage or current selectable per channel).
- Resolution: 16-bit A/D conversion.
- Conversion Time: 250 μs per point / channel.
- Power Supply: +24VDC (-15% ~ +20%), 3.5W maximum power consumption.
- Digital Range: Standardized to values of -8,000 ~ +8,000 (or up to 16-bit equivalents depending on the software application setup).
- Device Type: Open-type device meant for installation inside a protected control cabinet.
- Input Type: Configuration Ranges Resolution
- Voltage Input: -10V to +10V, -5V to +5V, 0V to 10V, 1V to 5V 312.5 µV
- Current Input: -20mA to +20mA, 0mA to 20mA, 4mA to 20mA 625 nA
- Left-Side (SL) High-Speed Bus: Connects directly to the left side of compatible master PLCs to bypass slower standard extension channels.
- Control Registers (CR): Configuration and measurement tracking are achieved by mapping the module's internal Control Registers.
- Instructions: Data transfer is programmed using the standard FROM and TO instructions in Delta's ISPSoft or WPLSoft environment.
- Key features: * Conversion time: 250 ¼ / point. * Output: 0-10V, -10-10V, 4-20mA, 0-20mA. * Analog I/O extension modules (left sid…
-

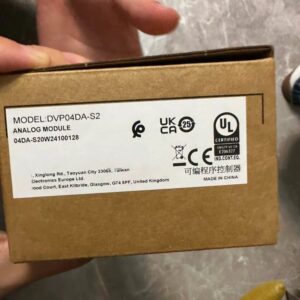

- Manufacturer: Delta
- Model / Part Number: DVP04DA-S2
- Power Supply: 24V DC (20.4VDC to 28.8VDC).
- Power Consumption: 2W (external power supply) to 4W maximum.
- Output Channels: 4 independent analog channels.
- Resolution: 12-bit (divides the analog output range into 4,096 discrete steps).
- Response Time: 3ms per channel.
- Built-in Communication: 1 RS-485 port.
