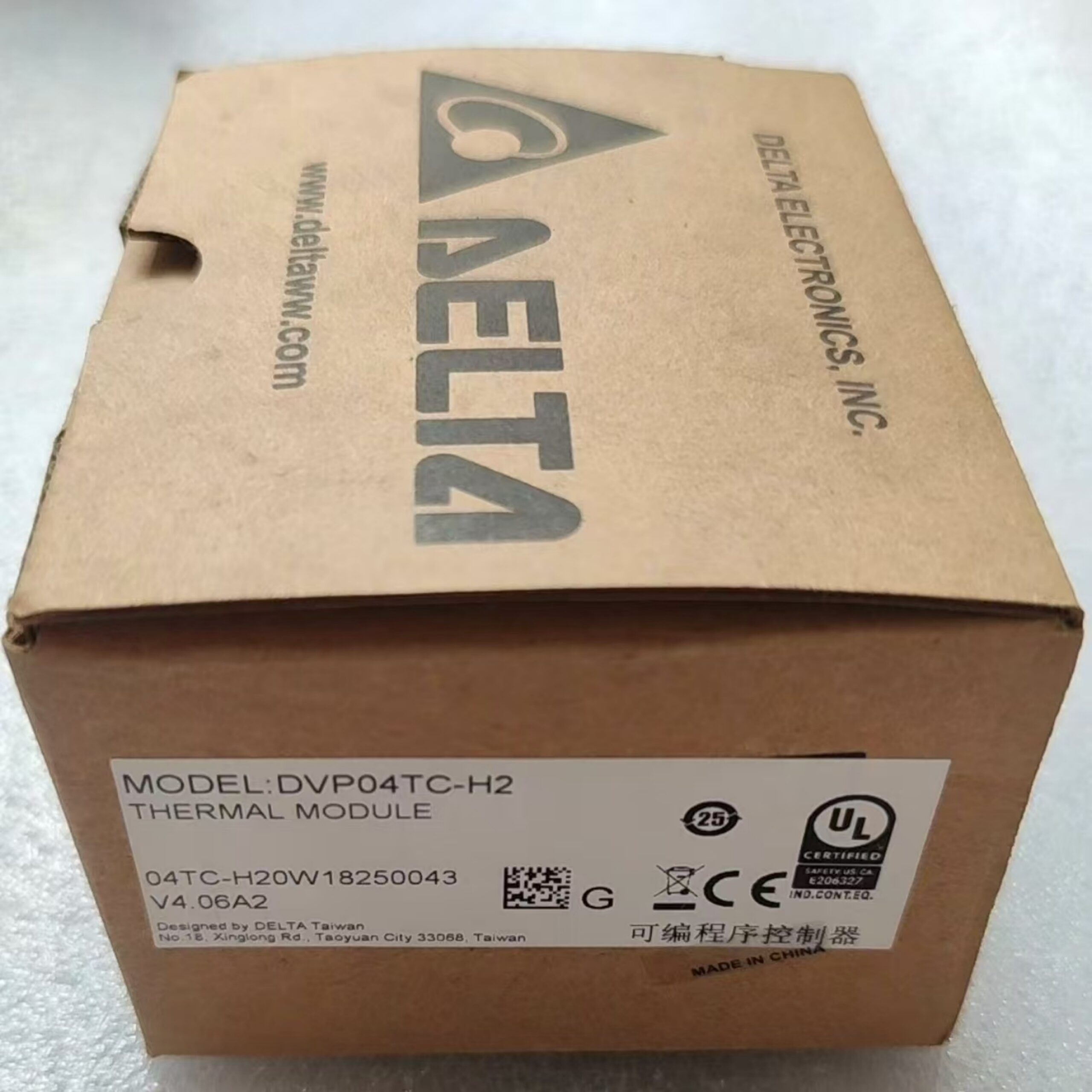

DELTA DVP04TC-H2 Thermocouple Input Module

Manufacturer: DELTA

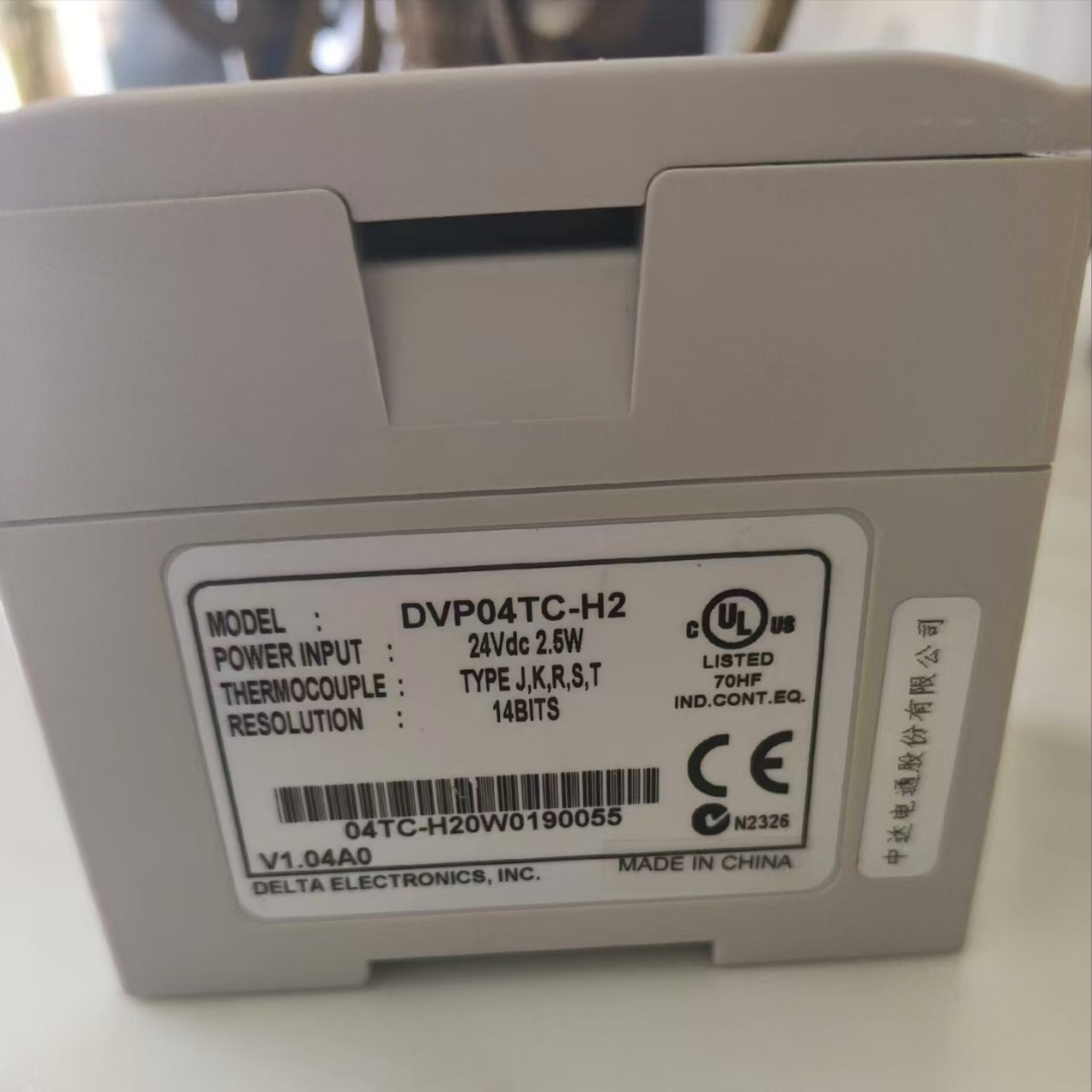

Model / Part Number: DVP04TC-H2
Power Supply: 24 VDC (±10%).

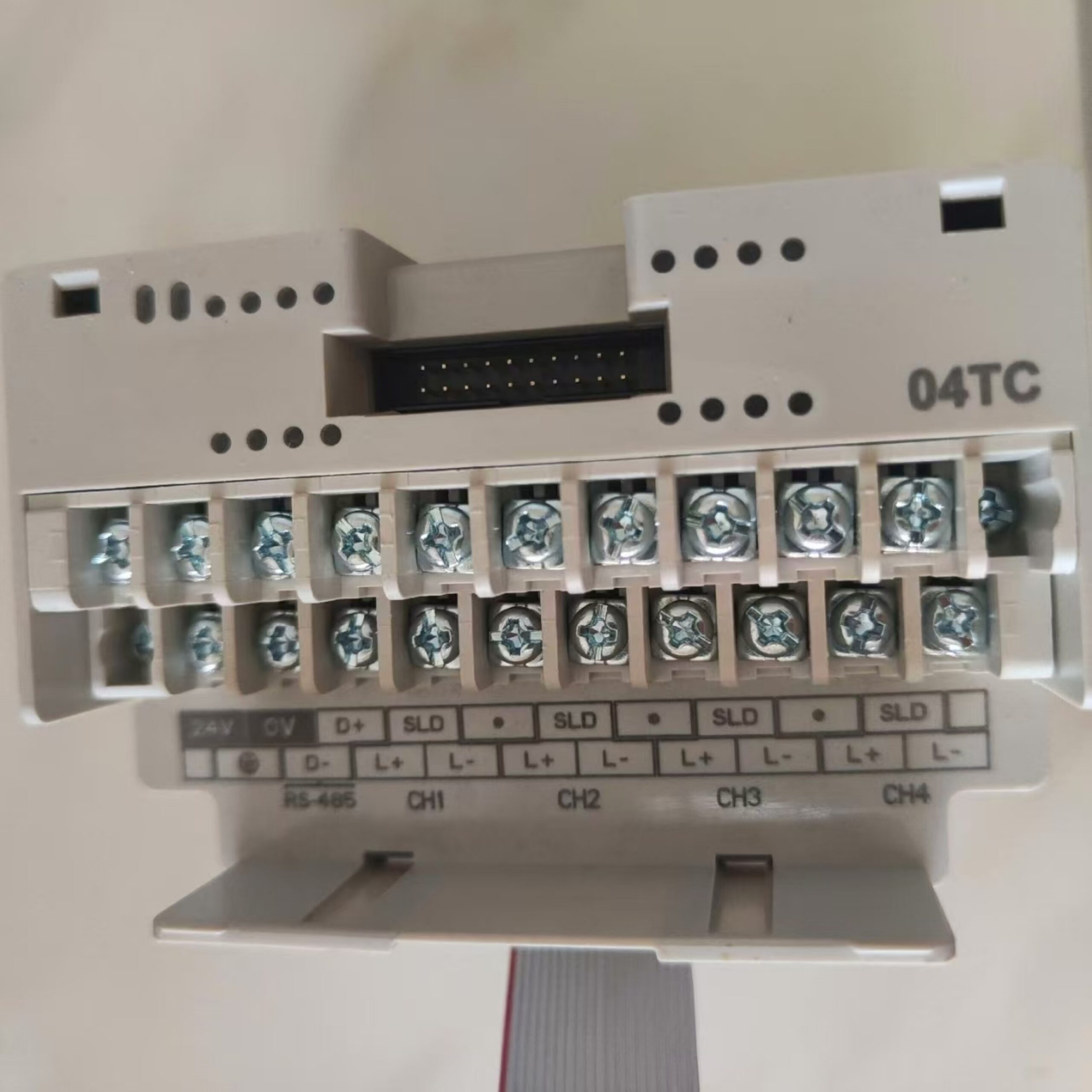

Input Channels: 4 channels per module.
Sensor Compatibility: Thermocouple types J, K, R, S, T, E, and N.
Alternative Input: 0 ~ 150 mV voltage input.
Digital Resolution: 14-bit digital signals.
Temperature Scale Resolution: 0.1°C (or 0.18°F).
Conversion Time: 200ms per channel.
Overall Accuracy: ±0.6%.
Built-in Comms: RS-485 interface.
Data Storage: 49 built-in 16-bit Control Registers (CR) accessible via FROM / TO PLC ladder logic instructions.
Hardware PID Function: Includes built-in PID capabilities for precise, closed-loop temperature control profiles directly from the module.
Isolated Design: The main power unit and the processing modules are isolated to minimize signal distortion, electrical shocks, and electromagnetic noise.

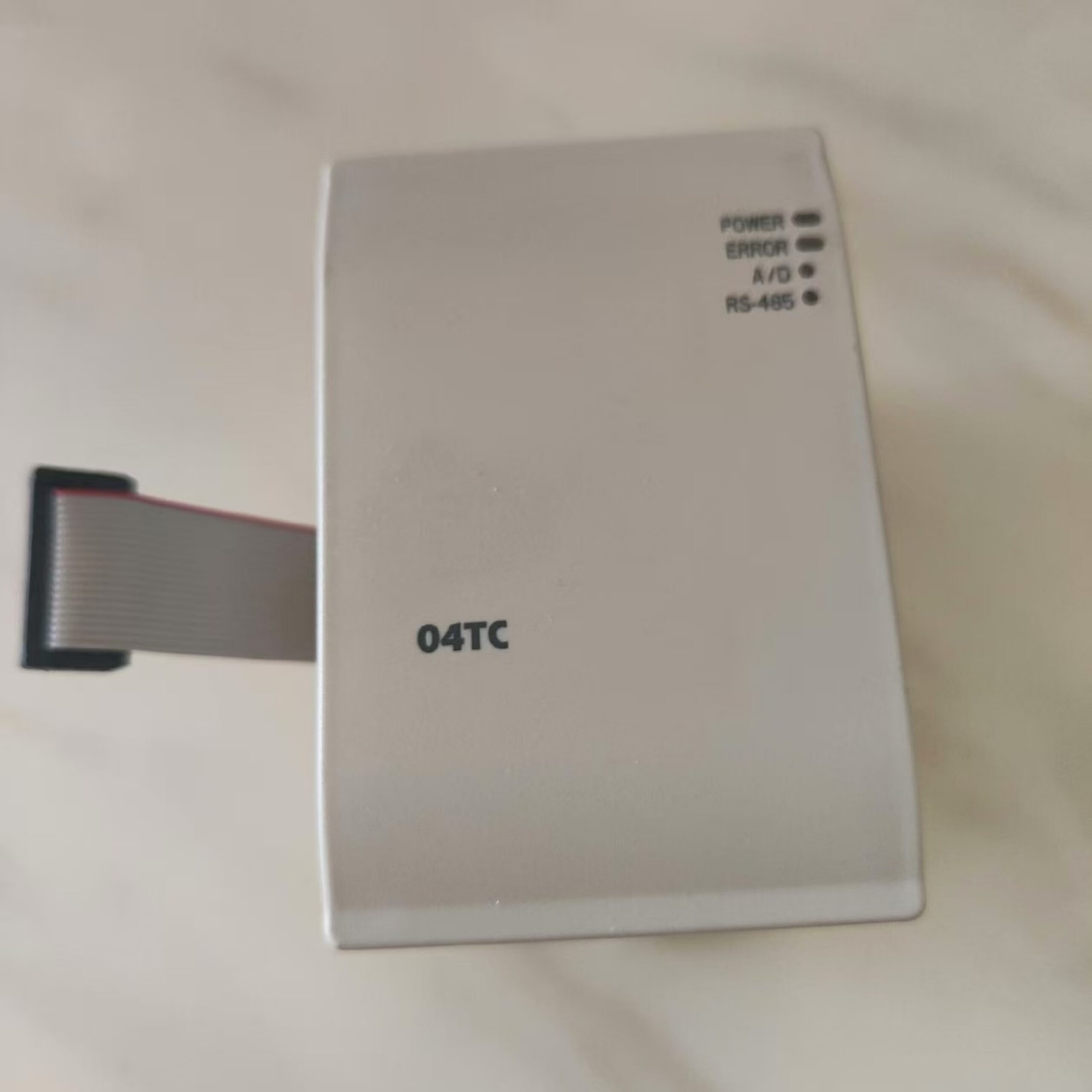

Status Indicators: Built-in LED lights map real-time diagnostics for POWER, ERROR, and A/D conversion states.
Environment: Must be securely installed inside an enclosed control cabinet that is entirely free of airborne dust, heavy humidity, static shock, or high vibration.
Grounding: The module and the shielded sensor cables must be properly grounded to maintain signal integrity and avoid erratic temperature fluctuations.
