Showing 1–16 of 20 results
-
REQUEST A QUOTE
- Rated Power: 3000 W (3 kW)
- Output Voltage: 250 VDC
- Rated Current: 12 A
- Input Voltage Range: 180 ~ 264 VAC
- Efficiency: Up to 93%
- Auxiliary Power: 12V @ 400 mA
- Cooling: Forced Air
- Dual Operating Modes: Can be configured to work in Constant Voltage (CV) or Constant Current (CC) mode via output programming.
- Design Flexibility: Supports active current sharing (allowing units to be configured in parallel for higher power needs), remote ON-OFF control, and a DC OK signal.
- Comprehensive Protection Suite: Built-in safeguards against short circuits, overloads, over-voltage, over-temperature, and fan failures.
MEAN WELL CSP-3000-250 Switching Power Supply (CSP-3000).
-
REQUEST A QUOTE
- Output DC Voltage: 12V DC
- Rated Current Range: 0 ~ 7.5A max
- Rated Power: 90 Watts continuous (often categorized under 100W max class)
- Universal AC Input: 88 ~ 264V AC (or 124 ~ 370V DC) universal compatibility
- Input Frequency: 47 ~ 63 Hz
- Built-in Protections: Short circuit, Overload, Overvoltage, Over-temperature
- Physical Dimensions: 100 mm x 93 mm x 56 mm (L x W x H)
- Best For: Direct drop-in replacement for the legacy DR-100-12.
- Best For: Strict retrofitting where exact physical cabinet space match is mandatory.
- Convection Cooling: The unit relies on free-air convection. Avoid blocking the top and bottom ventilation grilles, and ensure at least 20mm–30mm of clear spacing from neighboring components on the rail to prevent thermal overheating.
MEAN WELL DR-100-12 DIN Rail Power Supply (DR-100).
-
REQUEST A QUOTE
- Output DC Voltage: 15V DC
- Rated Output Current: 6.5 A
- Rated Output Power: 97.5 Watts
- Voltage Adjustment Range: 12V to 15V DC (Adjustable via front potentiometer)
- AC Input Voltage Range: 88V ~ 264V AC (Universal / Full Range, Single Phase)
- DC Input Voltage Range: 124V ~ 370V DC
- Efficiency (Typical): 87%
- No-Load Power Consumption: < 0.75W ~ 1W
- Cooling Method: Free air convection (no internal fan)
- Operating Temperature: -20°C to +60°C (-4°F to 140°F)
MEAN WELL DR-100-15 DIN Rail Power Supply (DR-100).
-
REQUEST A QUOTE
- Output DC Voltage: 24V DC
- Rated Output Current: 4.2 A
- Rated Power Capacity: 100.8 Watts
- AC Input Range: Full Range: 88 ~ 264 VAC (or 124 ~ 370 VDC)
- Input Frequency: 47 Hz to 63 Hz
- No Load Consumption: < 1.0W
- Ripple & Noise: 150 mVp-p
- Safety Protections: Built-in safeguards against Overload (constant current limiting), Over Voltage (shut down/re-power to recover), Over Temperature, and Short Circuits.
- Thermal Management: Completely cooled by free air convection; relies on standard enclosure ventilation without an internal fan.
- Mounting Compatibility: Snaps directly onto standard industrial standard tracks: DIN rail TS-35 / 7.5 or TS-35 / 15.
MEAN WELL DR-100-24 DIN Rail Power Supply (DR-100).
-
REQUEST A QUOTE
- Model: DR-120-12
- Output Voltage: 12V DC (Adjustable via onboard potentiometer)
- Rated Current: 10 A
- Rated Power: 120 Watts
- Input Voltage Range: 85 ~ 264V AC selectable by switch (or 120/240V AC nominal)
- Efficiency: 80%
- Switching Frequency: Fixed at 55 KHz
- Cooling: Free air convection (No fan)
- Form Factor: DIN Rail Mountable (TS-35 / 7.5 or 15)
- Dimensions: 65.5 mm (W) x 125.2 mm (H) x 100 mm (D)
MEAN WELL DR-120-12 DIN Rail Power Supply (DR-120).
-
REQUEST A QUOTE
- Brand: MEAN WELL
- Part Number: DR-120-24
- Output Voltage: 24V DC (Adjustable on-front)
- Output Current: 0 – 5.0 Amps
- Rated Power: 120 Watts
- Input Voltage Range: 88 – 132V AC / 176 – 264V AC (via mechanical slider toggle switch)
- Input Frequency: 47 – 63 Hz
- Efficiency: 84%
- Form Factor / Mount: Enclosed Metal Housing, TS-35 / 7.5 or 15 DIN Rail compliant
- Cooling: Free air convection (no internal fan)
MEAN WELL DR-120-24 DIN Rail Power Supply (DR-120).
-
REQUEST A QUOTE
- Output Power: 120 Watts
- Output Voltage: 48V DC (adjustable via front potentiometer)
- Output Current: 2.5 Amps
- Input Voltage: Switch-selectable ranges of 88–132 VAC or 176–264 VAC
- Efficiency: 85%
- Cooling: Free air convection (no internal fan)
- Dimensions: 65.5 mm (W) x 125.2 mm (H) x 100 mm (D)
- Protections: Integrated short-circuit, overload, over-voltage, and over-temperature safety
MEAN WELL DR-120-48 Industrial DIN-Rail Power Supply (DR-120 Series).
-

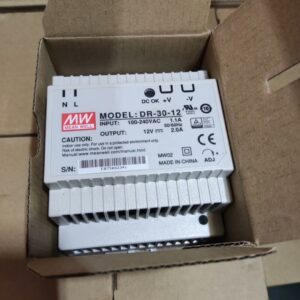

- Manufacturer: MEAN WELL
- Model / Part Number: DR-30-12
- Output Voltage: 12V DC. It has a small front dial (potentiometer) that lets you manually tweak the voltage from 10.8V to 13.2V if your wires are very long.
- Input Voltage Range: Wide universal input handling 85 to 264V AC. This means it can safely work in both North America (120V) and Europe (230V).
- Mounting Style: Snaps directly onto TS-35/7.5 or TS-35/15 DIN rails. This makes it super easy to install inside electrical control cabinets or breaker boxes.
- Built-in Safety Protection: Includes automatic shut-off protections for short circuits, power overloads, and over-voltages to prevent fires or broken equipment.
- Cooling: It uses "free air convection," meaning it cools itself down naturally using standard surrounding air rather than needing a noisy, mechanical cooling fan.
-

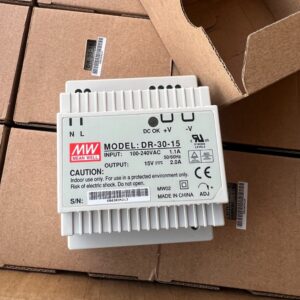

- Manufacturer: MEAN WELL
- Model / Part Number: DR-30-15
- Output Voltage: 15V DC
- Output Current: 0 to 2A
- Rated Power: 30W
- Input Voltage Range: 85 ~ 264V AC (Universal / Full range)
- Efficiency: 82%
- Cooling: Free air convection (no internal fan)
- Dimensions: 78mm x 93mm x 56mm (Width x Height x Depth)
- DIN Rail Support: Fits TS-35/7.5 or TS-35/15 rails
- Short Circuit Protection: Automatically recovers after the fault condition is removed.
- Overload Protection: Limits power output to prevent overheating damage.
- Over Voltage Protection: Shuts down or clamps voltage if it exceeds safe limits.
- Isolation Class II: Double insulated plastic case layout that does not require a safety ground connection.
- LED Status Light: Features a visual "Power On" indicator light on the front panel.
-

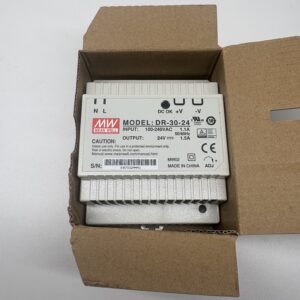

- Manufacturer: MEAN WELL
- Model / Part Number: DR-30-24
- Output Voltage: 24V DC
- Output Current: 1.5 Amps max
- Rated Power: 30 Watts to 36 Watts max
- Input Voltage Range: Universal 85~264V AC (Accepts standard global line voltages)
- Efficiency: 83% typical
- Mounting Style: Standard TS-35/7.5 or TS-35/15 DIN rail mount
- Dimensions: 78mm Width x 93mm Height x 56mm Depth
- Safety & Protection: Features built-in isolation (Class II, no ground wire required), overload protection, overvoltage protection, and short-circuit protection.
-

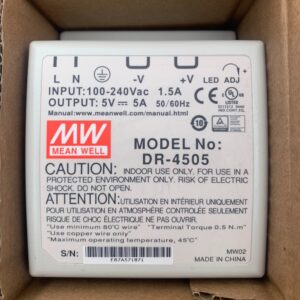

- Manufacturer: MEAN WELL
- Model / Part Number: DR-4505
- Output Voltage: 5 VDC
- Output Current: 5 A
- Rated Power: 25 W
- Input Voltage: 85–264 VAC
- Connection: Screw terminals
-
- Manufacturer: MEAN WELL
- Model / Part Number: DR-4512
- Output Voltage: 12V DC.
- Voltage Adjust Range: 10.8V to 13.2V (tuned using a small built-in dial).
- Output Current: 0 to 3.5 Amps.
- Total Power: 42 Watts.
- Input Voltage Range: 85 to 264V AC (Universal wall electricity).
- Mounting Type: DIN Rail TS-35 / 7.5 or 15.
-

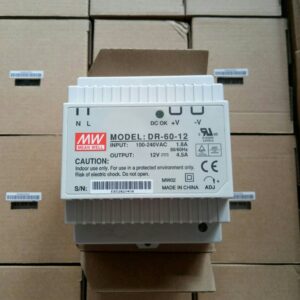

- Manufacturer: MEAN WELL
- Model / Part Number: DR-60-12
- Output Voltage: 12 VDC
- Output Current: 4.5 A
- Rated Power: 54 W
- AC Input Voltage: 88 to 264 VAC
- Dimensions: 78 x 93 x 56 mm
- Mounting: TS-35 DIN rail
- Cooling: Natural convection
- Status Indicator: Power-on LED
-

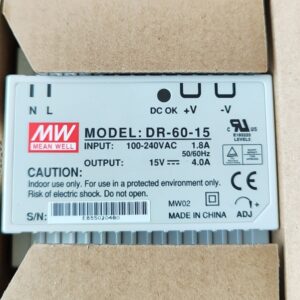

- Manufacturer: MEAN WELL
- Model / Part Number: DR-60-15
- Output Voltage: 15V DC (Adjustable by ±10% via front trimmer)
- Output Current: 0 to 4A
- Rated Power: 60 Watts
- Input Voltage Range: 88~264V AC (or 124~370V DC)
- Efficiency: 83% typical
- Cooling: Free air convection (fanless design)
- Mounting Type: Snaps onto standard TS-35/7.5 or TS-35/15 DIN rails
- Dimensions: 78mm Width × 93mm Height × 56mm Depth
- Short Circuit Protection: Prevents damage during direct line faults.
- Overload Protection: Automatically limits current if demand exceeds 4A.
- Overvoltage Protection: Shuts down or clamps output if voltage spikes dangerously.
-
REQUEST A QUOTE
- Manufacturer: MEAN WELL
- Output Voltage: 42 VDC (Constant Current Region: 21V to 42V)
- Maximum Output Current: 7.65 A
- Maximum Output Power: 321.3 W
- Input Voltage Range: 90 ~ 305 VAC (or 127 ~ 431 VDC)
- Efficiency: 95%
- Dimming Methods: 1–10VDC, 10V PWM signal, or Resistance
- IP Rating: IP67 (Dust-tight and water-resistant for indoor/outdoor use)
- Operating Temperature: -40°C to +90°C (-40°F to 194°F)
- Dimensions: 252 x 90 x 43.8 mm (9.92" x 3.54" x 1.72")
MEAN WELL HLG-320H-42B LED Power Supply (HLG-320).
-
- Manufacturer: MEAN WELL
- Model / Part Number: LRS-350-24
- Rated Power: 350 W
- Output Voltage: 24 VDC
- Output Current: 14.6 A
- AC Input Range: 90–132 VAC or 180–264 VAC, switch selectable
- DC Input Range: 240–370 VDC
- Protection: Short circuit, overload, overvoltage and overtemperature
