Showing 1–16 of 62 results
-
REQUEST A QUOTE
- Inverter Channels: Two fully independent inverter channels built into a single module.
- Current Rating: 22 A continuous output.
- Voltage Compatibility: Supports 3-phase motor operation with a 750 VDC nominal DC bus.
- Peripheral Connections: Direct internal connections for motor holding brakes and temperature monitoring sensors.
- Expansion Slots: 2 slots available to receive plug-in interface or application modules.
- Standards Compliance: Fully certified for global industrial deployment (CE, UL cULus, UKCA, KC).
- Use Case: Direct drop-in replacement for failed multi-axis system amplifiers.
- Support: Features 24/7 technical customer assistance lines.
Brand New B&R 8BVI0220HWD0.000-1 Servo Inverter Module (8BVI Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Input Voltage: 3-phase 400 to 480 VAC (−15% / +10%), 50/60 Hz
- Apparent Power: 2.1 kVA
- Rated Output Power: 0.7 kW (approx. 0.94 HP)
- Continuous Output Current: 1.6 A to 1.2 A (RMS)
- Peak Output Current: 5 A
- Maximum Output Frequency: 500 Hz
- Weight: 6.00 lbs
- Modular Expansions: Equipped with 3 expansion slots for plug-in modules to integrate fieldbus networks (such as POWERLINK or CAN bus) and various encoder feedback interfaces (such as EnDat or resolvers).
- Power & Performance: Features an IGBT power stage alongside a built-in multi-axis DC bus connection.
- Built-in Components: Incorporates an integrated line filter to suppress electromagnetic interference, an integrated braking resistor, and a built-in brake chopper.
- Integrated Safety: Features a hardware-integrated electronic safe restart interlock (inhibit function) to prevent accidental engine re-activation.
- Certifications: Officially certified with cULus (File E225616, SCCR 65kA), CE marking, and KC certification.
- Operating Temperature: Nominal performance ranges between 5 to 40°C, up to a maximum threshold of 55°C.
Brand New B&R 8V1016.00-2 AC Servo Drive (8V Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Power Rating: 2 kW
- Output Current: 4.4 A continuous (RMS) | 24 A peak
- Mains Input Voltage: 3-phase, 400 to 480 V AC (±10%), 50/60 Hz
- Control Power Supply: 24 V DC nominal input
- Braking Resistor: 200 W continuous power | 7 kW peak power output
- Expansion Slots: 4 integrated module slots for plug-in cards (such as POWERLINK, CAN bus, encoder interfaces, or digital I/O)
- Safety Integration: Electronic secure restart inhibit / Safe Torque Off (STO)
- Protection Class: IP20 rating
Brand New B&R 8V1045.00-2 AC Servo Drive (8V Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Power Output: 4 kW continuous power capacity (10 kVA apparent power).
- Mains Input Voltage: 3-phase 400 V AC to 480 V AC (±10%, 50/60 Hz).
- Output Current: 8.8 A continuous (RMS) with a peak current capacity up to 24 A.
- Output Frequency: 0 to 500 Hz.
- Integrated Safety & Filtering: Built-in line filter, integrated braking resistor, and electronic safe restart inhibit function.
- Expansion Slots: Features 4 plug-in slots to accept application-specific I/O modules, communication cards (like CAN bus or POWERLINK), and encoder interfaces.
- Physical Dimensions: 70.5 mm width × 375 mm height × 235.5 mm depth; weighs approximately 4.4 kg (10.01 lbs).
Brand New B&R 8V1090.00-2 Servo Drive (ACOPOS 1090 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Manufacturer: ABB
- Part Number (MPN): 3HAC029818-001
- Model Designation: DSQC 663 (MDU-790A HV / HV6P)
- Application: 6-Axis Servo Drive & Motion Control
- Cabinet Compatibility: ABB IRC5 Controller
- Built-in Protections: Overvoltage, Overcurrent, Overheating, Short-Circuit
- Net Weight: 12.33 kg (27.18 lbs)
- Gross Shipping Weight: 13.96 kg – 15.00 kg (30.77 – 33.07 lbs)
- Country of Origin: Estonia / Sweden / Switzerland (Varies by manufacturing lot)
- Medium Payload: IRB 2400 / IRB 2600
Brand New ABB 3HAC029818-001 DSQC663 Servo Drive. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Product ID / MPN: 3AUA0000058190
- Phase Type: 3-Phase Input & 3-Phase Output
- EMC Filter: European Filter Equipped (C3)
- Amperage Rating: 12.5 A
- Voltage Class: 380 V to 480 V AC
- Power Rating: 5.5 kW (7.5 HP)
- Enclosure Rating: IP20 / UL Open Type
- Control Modes: Scalar (V/f) and Sensorless Vector Control
- Safety Function: Built-in Safe Torque Off (STO)
- Brake Chopper: Built-in as standard
Brand New ABB ACS355-03E-12A5-4 Servo Drive. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Manufacturer: Rockwell Automation / Allen-Bradley
- Series: PowerFlex 525
- Input Voltage: 200–240 VAC, 3-Phase (47–63 Hz)
- Output Current: 5.0 Amps
- Power Rating: 1.0 HP / 0.75 kW (Identical for Normal Duty and Heavy Duty)
- Enclosure Rating: IP20 / NEMA Type Open
- EMC Filtering: No Filter
- Physical Size: Frame A
- Weight: 2.20 lbs / 1.00 kg
- Advanced Motor Control Methods: Supports standard Volts per Hertz (V/Hz) control, Sensorless Vector Control (SVC), Closed-Loop Velocity Vector Control, and Permanent Magnet Motor Control.
Brand New ALLEN-BRADLEY 25B-B5P0N104 Servo Drive. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Feature / Attribute: Specification Details
- Product Family: PowerFlex 525 AC Drive
- Power Output: 1.5 kW / 2.0 HP (Normal & Heavy Duty)
- Input Voltage: 200–240V AC, 3-Phase (50/60 Hz)
- Output Current: 8.0 Amps
- Physical Frame Size: Frame A (Weight: ~2.25 lbs / 1.02 kg)
- Enclosure Rating: IP20 / NEMA Open Type
- EMC Filtering: No Filter
- Brake Mechanism: Included Brake IGBT
- Removable Control Core: Features a signature modular design. The control module can be separated from the power module, allowing you to configure parameters via USB software before main power installation.
Brand New ALLEN-BRADLEY 25B-B8P0N104 Servo Drive. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Number of Axes: 2 axes (drives two motors independently)
- Rated Output Current: 1.9 A per axis
- Output Voltage: 3 x 0 to 480 V AC
- Output Frequency: 0 to 500 Hz (up to 598 Hz maximum)
- Control Supply: 24 VDC control voltage
- Safety Functions: Integrated safe stop and uncontrolled stop capabilities
- Expansion Slots: 2 plug-in slots for ACOPOSmulti modules (e.g., encoder or communication interfaces)
- Physical Mounting: Wall-mounted design with an IP20 protection rating
- Weight: Approximately 2.8 kg (6.17 lbs)

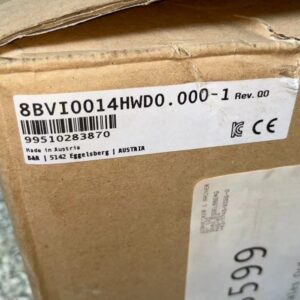

Brand New B&R 8BVI0014HWD0.000-1 ACOPOSmulti Inverter Module (ACOPOSmulti Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Manufacturer: B&R Automation (by ABB)
- Part Number: 8BVI0440HCS0.000-1 (also listed as 8BVI0440HCS0000-1)
- Product Series: ACOPOSmulti (Single-Axis Inverter Module)
- Current Rating: 44 A max continuous output
- Voltage Supply: 3 × 400–480 Vac (Three-phase AC power input)
- Cooling / Mounting: Cold plate or pass-through/feed-through mounting
- Expansion Capability: 2 slots integrated for ACOPOSmulti plug-in modules
- Safety Functions: Integrated uncontrolled standstill and Safe Stop (STO)
- Built-in Interfaces: Dedicated connections for motor holding brake & temperature sensor
- Modular Multi-Axis Sync: Designed to attach to standard ACOPOSmulti backplane rails, sharing a common DC bus with power supply modules to regenerate and optimize energy efficiency.
Brand New B&R 8BVI0440HCS0.000-1 Servo Drive. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Specification Pillar: Attribute
- Electrical Power: Continuous Current
- Peak Current: 80 A
- Continuous Power: 16 kW
- Mains Input Voltage: 3x 400 VAC to 480 VAC ±10%
- Frequency: 50 / 60 Hz
- Hardware Features: PCB Coating
- Line Filter: Integrated
- Braking Resistor: Integrated (Peak: 14 kW / Continuous: 0.4 kW)
- DC Bus Capacitance: 1645 µF
Brand New B&R 8V1320.001-2 Servo Drive. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Input Voltage: 85V to 260V AC
- Output Voltage: 0V to 260V AC (adjustable)
- Maximum Current: 5A
- Output Power capacity: 0 to 1100VA
- Automatic Voltage Regulation (AVR): Prevents feeding speed changes by neutralizing fluctuations from the main power grid.
- Soft Startup: Protects materials and the mechanism from sudden jarring motions by gently ramping up output voltage from 0 to the target value.
- Preset Speeds: Stores up to four distinct feed speeds that can be activated instantly using external short-circuit signal triggers.
- Sensor Integration: Supports dual NPN switch sensors, PLC logic control, or CUH Intelligent Photoelectric Sensors to automatically turn feeding on or off based on material level requirements.
- Remote Management: Allows external speed modulation through a standard potentiometer, PLC, or a 1–5V DC analog control signal.
- Built-in System Protection: Equipped with comprehensive safety mechanisms including overheat, overcurrent, overvoltage, and fuse short-circuit protection.

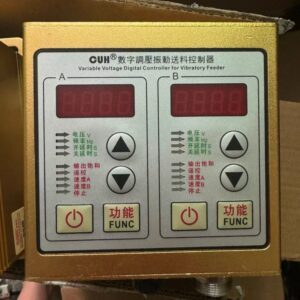

Brand New CUH SDVC22-S Variable Voltage Vibratory Feeder Controller (SDVC Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Input Voltage: 85 – 260 VAC
- Output Voltage: 0 – 260 VDC
- Max Current: 3.0 A
- Output Frequency: 40.0 – 400.0 Hz
- Max Output Power: 660 W
- Soft Start Time: 0 – 10 seconds
- On/Off Delay Range: 0 – 20 seconds
- Automatic Voltage Regulation (AVR): An internal digital circuit automatically eliminates feeding speed variations caused by factory mains voltage fluctuations.
- Remote Speed Control: Supports external tuning. The output voltage can be adjusted remotely via an external potentiometer, standard PLC logic, or a 1–5V DC analog signal.
- Auxiliary DC Control Output: Generates a low-voltage DC synchronized output associated with the feeder status to drive companion solenoids, gates, or small air valves.

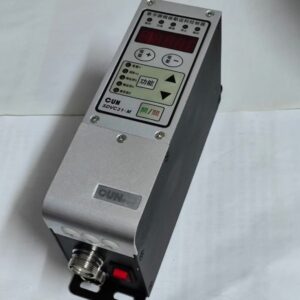

Brand New CUH SDVC31-M Servo Drive. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Input Voltage: 85 V AC – 260 V AC (Wide Range)
- Output Voltage: 0 V AC – 260 V AC
- Output Frequency: 40 Hz – 400 Hz (Manually adjustable)
- Max Output Current: 6.0 Amps (Continuous)
- Max Output Power: 1320 Watts (0 W – 1320 W)
- Certifications: CE certified, RoHS compliant
- Resonant Frequency Tuning: The output frequency can be manually adjusted to perfectly match the mechanical resonance point of your vibratory feeder. This maximizes efficiency, delivers smooth material flow, and dramatically reduces noise and energy usage.
- Automatic High-Precision Voltage Regulation: Built-in digital circuitry stabilizes the output voltage against external mains fluctuations. This guarantees consistent feed speeds regardless of factory grid voltage sags or surges.
- Time-Adjustable Soft Start: Prevents sudden material jerks and mechanical shock by gradually ramping the output voltage from 0 to the preset target upon startup. The ramp time can be digitally customized.
- Switch/PLC Control: Features dedicated ON/OFF control pins supporting NPN/PNP proximity sensors or remote PLC signals to manage track-full/track-empty material line states.
Brand New CUH SDVC31-XL Servo Drive. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Manufacturer: Nanjing CUH Science & Technology Co., Ltd. (CUH)
- Input Voltage: 85 ~ 260 V AC (Universal Input)
- Output Voltage: 0 ~ 260 V AC
- Output Frequency Range: 25 ~ 400 Hz
- Maximum Output Power: 660 VA
- Communication Interface: RS-485 Serial Port
- Automatic Resonant Frequency Search: The controller scans the system to locate the precise resonant frequency of the vibratory load, ensuring peak efficiency and reducing energy consumption.
- Constant Feed Speed Control: Continuously tracking real-time data, it automatically adjusts the output voltage to maintain a steady preset feed speed regardless of weight changes as workpieces deplete.
- Intelligent Sensor Recognition: Features automatic switch sensor type recognition, meaning it automatically adapts to both PNP and NPN type proximity sensors without manual configuration changes.
- Sync Waveform Output: Syncs the output frequency and phase of a slave controller to a master controller, eliminating the "beat effect" across complex, multi-feeder production lines.
Brand New CUH SDVC34-MR Servo Drive. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Model Code: FC-051P2K2T4E20H3BXCXXXSXXX
- Power Output: 2.2 kW / 3.0 HP
- Input / Output Voltage: 380–480 V AC (Three-Phase)
- Amperage Output: 4.8 A (Constant) / 5.6 A (Max)
- Control Principle: Open Loop Vector / V/Hz
- Braking Features: Built-in Brake Chopper
- RFI Filter: Class A1/B (C1)
- Enclosure Rating: IP20 / Chassis
- Frame Size: M2
- PCB Protection: Conformal Coated

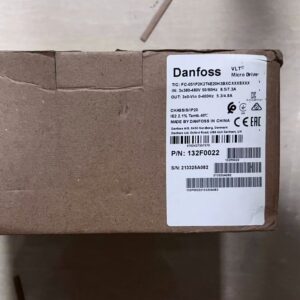

Brand New DANFOSS 132F0022 Servo Drive. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
