Showing 33–48 of 100 results
-
- Manufacturer: FANUC
- Model / Part Number: A06B-6117-H205
- Model Line: Alpha i Series (aiSV-20/20)
- Axis Configuration: Dual-axis (Controls 2 axes, labeled L-axis and M-axis)
- Rated Input Power: 5 kW
- Input Voltage: 283V to 325V DC (Supplied via a matching Alpha i power supply module)
- Maximum Output Voltage: 240V AC
- Output Current: 6.5A rated per axis (20 Amp peak current class capacity)
- Interface Type: FSSB (Fanuc Servo Serial Bus) Optical Fiber interface
- Cooling System: Internal cooling fan
- Height: 2.6 inches (approx. 66 mm)
- Width: 7.3 inches (approx. 185 mm)
- Length/Depth: 16 inches (approx. 406 mm)
- Weight: 12 lbs (approx. 5.4 kg)
- Compatible Controls: FANUC 0i-D, 0i-F, 16i/18i/21i Model B, and 30i / 31i / 32i series.
- Compatible Servo Motors: Typically paired with FANUC Alpha i series motors, specifically sizes like the αi2, αi4, or αi12/3000.
- Base Board: A16B-2203-0695
- Control Board: A20B-2101-0041
- Interface Card: A20B-1007-0880
- Internal Fan Part: A90L-0001-0510 (Note: A failure here triggers a "Fanuc Alarm 1" on the drive).
-
REQUEST A QUOTE
- Model Type: Servo Amplifier Module / Alpha i Servo Drive (αiSVM 3-20/20/20i)
- Number of Axes: 3-Axis (Triple Axis management labeled as L, M, and N axes)
- Interface Technology: FSSB (Fanuc Servo Serial Bus) Optical Fiber interface for high-speed CNC communication
- Rated Input Power: 7.5 kW (Note: Core control circuit consumes ~1.5 kW energy)
- Input DC Voltage Range: 283 V DC to 339 V DC
- Output AC Voltage Range: 200 V AC to 240 V AC (Max 240V)
- Rated Output Current: 3A to 6.5A continuous per axis (L, M, N) depending on specific HRV control mode
- Output Frequency Range: 0.1 Hz to 800 Hz
- Position Feedback: INC (Incremental Encoder) support
- Environmental Limits: 0°C to 55°C operating ambient temperature; up to 90% non-condensing humidity
FANUC A06B-6117-H303 Servo Amplifier Module (Alpha Series).
-
- Manufacturer: FANUC
- Model / Part Number: A06B-6132-H002
- Interface Type: Uses the standard I/O Link communication protocol to talk to the main CNC controller.
- Input Voltage: Runs on 200–240 VAC power. It supports both single-phase and three-phase industrial electrical lines.
- Current Capacity: Features an input rating of 8.0 Amps and supplies a regulated output current of 6.8 Amps directly to the servo motor.
- Frequency: Standard 50/60 Hz operation.
-
- Manufacturer: FANUC
- Model / Part Number: A06B-6240-H211
- Part Number: A06B-6240-H211
- Series: α i-B Series (α iSV 160/160-B)
- Number of Axes: 2-axis control
- Module Width: 90 mm
- Weight: 5.44 kg (approx. 12 lbs)
- Input Voltage (DC Link): 283 V to 339 V DC
- Control Input Voltage: 24 V DC
- Maximum Draw Current: 67 A
- Output Voltage: 240 V AC (3-Phase)
- Output Current: 45 A per axis
- Operating Frequency Range: 0 Hz to 550 Hz
- Cooling Method: Integrated fan cooling
- Compatible Controllers: Works with FANUC R-30iB, R-30iB Plus robotic controllers, and FS 3xi-B / 0iF Plus CNC systems.
-
REQUEST A QUOTE
- Feature Group: Code/Spec
- Basic Series: DFM
- Piston Size: 16
- Stroke: 20
- Generation: B
- Cushioning: PPV
- Position Sensing: A
- Guide Type: GF
- Torque & Lateral Load Resistance: The dual-rod integrated layout prevents twisting or rotation during operation. The plain-bearing (GF) guide design handles heavy side-loading far more effectively than basic unguided cylinders.
- Adjustable PPV Dampening: Unlike fixed elastic pads, the adjustable PPV cushioning lets machine builders fine-tune air-pocket escape speeds. This reduces machine vibration, lowers noise levels, and protects internal mechanisms from impact failure under high velocity.
FESTO DFM-16-20-B-PPV-A-GF 529120 Guided Linear Drive (DFM Series).
-
REQUEST A QUOTE
- Mode of Operation: Double-acting (requires compressed air to move in both directions).
- Operating Medium: Compressed air in accordance with ISO 8573-1:2010 [7:4:4]. Lubricated operation is permissible (and will require subsequent continuous lubrication).
- Ambient Temperature: -10°C to 60°C (14°F to 140°F).
- Mounting Position: Any / optional.
- Material Composition: Main housing/barrel constructed from aluminum; seals made from NBR/PU; slot sealing band composed of Polyamide (PA).
- ATEX Zone Compliance: Zone 1, Zone 2 (Gas); Zone 22 (Dust).
- ATEX Category: II 2G (Gas).
- Certifications: CE mark and UKCA marking conforming to EU explosion protection directives.
- Proximity Sensors: Typically uses Festo SMT-8M or SME-8M series T-slot proximity switches for automated end-stroke and intermediate position detection.
- Central Supports: Festo MUP-18/25 profile mount clamps to prevent deflection on mid-to-long stroke lengths.
FESTO DGC-K-25-400-PPV-A-GK 1312501 Rodless Cylinder (DGC Series).
-
REQUEST A QUOTE
- Part Number: 11909
- Size: 12
- Swivel / Rotation Angle: 0° to 180° (Fully adjustable)
- Mode of Operation: Double-acting
- Design Structure: Rotary vane actuator
- Theoretical Torque: 1 Nm at 0.6 MPa (6 bar / 87 psi)
- Operating Pressure: 2 bar to 8 bar (0.2 MPa to 0.8 MPa)
- Cushioning Type: Elastic cushioning rings/plates at both ends
- Cushioning Angle: 2.2°
- Pneumatic Connection: M5 threaded port
FESTO DSR-12-180-P 11909 Semi-Rotary Drive (DSR Series).
-

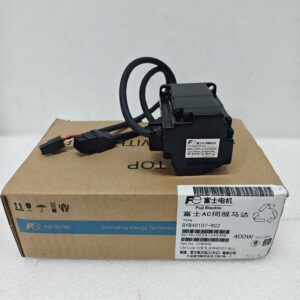

- Manufacturer: Fuji
- Model / Part Number: GYB401D7-RC2
- Basic Motor Type (GYB): Medium inertia design. This means it provides a good balance of control stability and speed when accelerating or slowing down heavy mechanical loads.
- Rated Speed (D): Built to rotate at a standard speed of 3,000 RPM (revolutions per minute).
- Built-in Encoder (R): Includes a high-resolution 20-bit incremental encoder to track the exact position of the motor shaft.
- Shaft & Seal Style (C): Features a straight shaft without a keyway and is built without an oil seal.
- Physical Weight: The motor alone weighs roughly 1.5 kg (3.3 lbs).
-
REQUEST A QUOTE
- Manufacturer: Fuji Electric
- Model / Part Number: RYH201F5-VV2
- Product Series: ALPHA5 Smart Series
- Applicable Motor Output: 50W / 100W / 200W (0.2 kW Max)
- Input Power Supply: 3-Phase or Single-Phase 200V–240V AC (50/60 Hz)
- Control Interfaces: General-purpose interface (Pulse train / Analog voltage)
- Control Modes: Position, Speed, and Torque Control
- Frequency Response: 1500 Hz
- Compatible Motor Speed: 1500 to 3000 r/min nominal (Max 6000 r/min)
- Compatible Encoders: 18-bit ABS/INC (262,144 pulses) or 20-bit INC (1,048,576 pulses)
FUJI RYH201F5-VV2 AC Servo Amplifier (ALPHA5).
-
REQUEST A QUOTE
- Manufacturer: Fuji Electric
- Model Number: RYS101S3-LPS
- Series Group: FALDIC-Alpha
- Amplifier Type: L-Type (Built-in Linear Positioning Function)
- Rated Output Power: 0.1 kW (100 Watts)
- Input Voltage: 200V to 230V AC
- Number of Phases: 3-Phase Input
- Encoder Interface: 16-bit Absolute / Incremental (ABS/INC)
- Upper-Level Interface: Digital Input / Digital Output (DI/DO)
- Lifecycle Status: Discontinued (Legacy/Surplus Support Only)
FUJI RYS101S3-LPS AC Servo Amplifier (FALDIC-Alpha).
-
REQUEST A QUOTE
- Manufacturer: Fuji Electric
- Model / MPN: RYT201D5-LS2-Z25
- Product Series: ALPHA5
- Type: LS Type AC Servo Drive
- Power Rating: 750 W (0.75 kW)
- Input Voltage: 220 VAC
- Input Phase: Three-Phase
- Control Mode: Position Control + Speed Control
- Communication Interface: RS-485
- LS Type Functional Variant: The "LS" designation typically dictates specific firmware or hardware adaptations within the ALPHA5 family, often corresponding to specific pulse-train and analog input configurations optimized for standard PLC sequencing.
FUJI RYT201D5-LS2-Z25 AC Servo Drive (ALPHA5).
-
- Manufacturer: INOVANCE
- Model / Part Number: IS620FS1R6I
- Product Series: IS620F Series (Industrial Profinet Network variant)
- Current Rating: 1.6 Amps (S1R6 designation)
- Compatible Motor Power: Optimized primarily for 200W servo motors
- Communication Interface: Profinet Industrial Ethernet
- Feedback System: Supports Inovance high-resolution absolute encoders
- High Bandwidth: Features a 1.2 kHz speed loop bandwidth for lightning-fast dynamic responses.
- Vibration Suppression: Equipped with an adaptive notch filter and built-in mechanical damping filters to cancel out low-frequency resonance.
- Diagnostic Data: Stores up to 30 historical fault codes to help engineers monitor the drive's health and predict component lifetimes.
- I/O Connections: The CN1 terminal handles reference input/output and safety signals, while the CN2 terminal links directly to the motor encoder.
- Dedicated Hardware Cable: For direct physical debugging or downloading parameters, the drive utilizes the Inovance S6N-L-T00-3.0 USB Debugging Cable.
-
- Manufacturer: INOVANCE
- Model / Part Number: IS620FS1R6I-RT
- Control Capabilities: Features a 1.2 kHz speed loop bandwidth. This means it can react and adjust its speed very quickly (in milliseconds) to keep machines running smoothly.
- Supported Motors: Works flawlessly with Inovance MS1 high-response servo motors equipped with 23-bit high-resolution encoders for extreme precision.
- PC Software: You can fine-tune this drive on your computer using the InoServoShop software tool.
-
- Manufacturer: INOVANCE
- Model / Part Number: IS620FS5R5I-RT
- Series Type: IS620F Series (PROFINET Bus Type)
- Model Code: IS620FS5R5I-RT
- Rated Output Power: 750 W (0.75 kW)
- Rated Output Current: 5.5 A
- Input Voltage: Single-Phase / Three-Phase 220 VAC
- Communication Interface: PROFINET Industrial Ethernet bus architecture
- Matching Motors: Optimized for MS1 series AC servo motors
- Frequency Response: Speed loop bandwidth up to 1.2 kHz
- RT: Fast real-time control variant optimization code.
- PC Commissioning Software: Fine-tuning and parameter handling are managed through the InoServoShop Windows application.
-
- Manufacturer: INOVANCE
- Model / Part Number: IS620FT3R5I
- Power Output: 1.0 kW (Kilowatt)
- Input Voltage: Three-phase 380V to 440V AC (+10% to -15%), 50/60 Hz
- Rated Current: 3.5 A
- Maximum Peak Current: 8.5 A
- Resonance Suppression: Built-in adaptive notch filters and damping filters automatically eliminate mechanical vibration.
-
- Manufacturer: INOVANCE
- Model / Part Number: IS620FT5R4I
- Rated Power: 1.5 kW
- Rated Output Current: 5.4 A
- Peak Current: 14.0 A
- Input: Three-phase 380–440 VAC, 50/60 Hz
- Output: Three-phase 0–380 VAC, 0–400 Hz
- Communication Interfaces: Dual Ethernet ports
- Encoder Backup Battery: 3.6 V, model 58-C4
- Compliance: CE
