Showing 1–16 of 29 results
-
REQUEST A QUOTE
- Channels: 16 channels (differential).
- Input Ranges: Configurable for 0…20 mA, 4…20 mA, or 0…25 mA current signals.
- Input Impedance: 250 Ohms.
- Absolute Accuracy Error: +/- 0.125 % of full scale.
- Addressing Requirements: Uses 17 input words in the control system architecture.
- Built-in Protection: Features active broken wire detection when running in the standard 4…20 mA mode.
- Isolation: Optical isolation between the channel circuitry and the backplane bus (1780 V AC for 60 seconds), allowing safe hot-swapping.
- Hardware Interface: Connects via a separate Schneider 140XTS00200 removable terminal strip for easier field wiring and drop-in maintenance.
- Product Description P/N: 140ACI04000 * Description. The Schneider Electric 140ACI04000 is a 16-channel analog current input module…
SCHNEIDER 140ACI04000 Analog Input Module (Modicon Quantum).
-
REQUEST A QUOTE
- Number of Outputs: 4 analog channels
- Output Signal Range: 4 to 20 mA (0 to 4096 counts)
- Resolution: 12-bit bipolar current
- Addressing Requirement: 4 output words
- External Loop Voltage: 12 to 30 V DC
- Maximum Voltage Drop: 30 V @ 20 mA
- Module Format: Standard Quantum slot footprint
- Absolute Accuracy Error: ±0.20% of full scale at 25 °C
- Linearity: ±1 LSB
- Temperature Drift: ±0.004% of full scale/°C (±0.007% of full scale/°C maximum)
SCHNEIDER 140ACO02000 Analog Output Module (Modicon Quantum).
-
REQUEST A QUOTE
- Inputs: 8 differential channels.
- Resolution: 16-bit analog-to-digital conversion.
- Unipolar Voltage: 0 to 5 V, 0 to 10 V
- Bipolar Voltage: ±5 V, ±10 V
- Unipolar/Bipolar Current: 0 to 20 mA, ±20 mA
- Addressing: Requires 9 input words in the control system architecture.
- Update Time: 10 ms refresh rate.
- Isolation: 500 Vrms AC between the channels and the bus; 135 Vrms AC between individual channels.
- Power Consumption: 2.2 W power dissipation; 280 mA current draw from the bus.
- Diagnostics: Built-in LED indicators tracking channel status, channel faults, and external faults. It features broken wire detection for 4–20 mA loops.
SCHNEIDER 140AVI03000 Analog Input Module (Modicon Quantum).
-
REQUEST A QUOTE
- Processor Type: 80586 (Intel 586 Architecture), 133 MHz Clock Speed
- Internal Memory: 4 MB SRAM (supports ~2.5 MB to 2.7 MB IEC application memory / 64k words user logic)
- Logic Solve Time: 0.1 to 0.5 ms per kiloword (ms/k)
- Programming Software: Concept / Unity Pro
- Watchdog Timer: 250 ms (software adjustable)
- Hardware Topology Note: Functionally identical to the non-"A" version. However, for Hot Standby topologies, you must use identical pairs (either two non-"A" or two "A" modules).
- Built-in Communication Ports: 2 × RS-232 serial ports (9-pin D-shell) utilizing Modbus protocol.
- Network Module Support: Expansion capability for up to 6 network modules including Modbus Plus, Ethernet, and Multi-Axis Motion options.
- I/O Capability: Supports up to 64 input and 64 output words locally, with expansion capacity for up to 31 remote I/O drops.
- Bus Current Requirement: 1.25 A
SCHNEIDER 140CPU53414A CPU Module (Modicon Quantum).
-
REQUEST A QUOTE
- Product Type: RIO drop adaptor module
- Range Compatibility: Modicon Quantum automation platform
- Electrical Connection: 1 female connector F (elbowed) with single cable
- Cable Requirements: Coaxial 75 Ohm
- Transmission Rate: 1544 Mbit/s
- Dynamic Range: 35 dB
- Isolation Voltage: 500 V DC (coaxial center and ground)
- Power Dissipation: 3 W (1 channel)
- Bus Current Requirement: 600 mA (1 channel)
- Electrostatic Discharge: 8 kV on air, 4 kV contact (conforming to IEC 801-2)
SCHNEIDER 140CRA93100 Remote I/O Adapter (Modicon Quantum).
-
REQUEST A QUOTE
- Metric: Specification
- Module Type: RIO Drop Adapter Module
- Compatibility: Modicon Quantum Automation Platform
- Transmission Rate: 1,544 Mbit/s
- Cable Type: 75 Ohm Coaxial Cable
- Connectors: 2 female F-type elbowed connectors (supports redundant cable setups)
- Max Expansion Capacity: Up to 27 I/O expansion modules
- Power Dissipation: 3.8 W across 2 channels
- Bus Current Requirement: 750 mA across 2 channels
- Isolation Voltage: 500 V DC between coaxial center and ground
SCHNEIDER 140CRA93200 Remote I/O Adapter (Modicon Quantum).
-
REQUEST A QUOTE
- Product Range: Modicon M580
- Component Type: Hot Standby Copper Adapter (SFP Socket)
- Interface / Port Type: 1 x RJ45 electrical connector
- Transmission Rate: 1 Gbit/s Ethernet speed
- Primary Application: Dedicated link for redundant processors (HSBY CPU)
- Material: Rugged industrial metal socket
SCHNEIDER 490NAC0100 Hot Standby Adapter (Modicon M580).
-
REQUEST A QUOTE
- Output Voltage: 24V DC (Adjustable from 24V to 28.8V DC via front potentiometer)
- Output Current: 20 A
- Power Rating: 480 W
- Input Voltage: 100V to 240V AC (Supports 1-phase or 2-phase/phase-to-phase connections)
- Input Voltage Limits: 85…132V AC or 170…264V AC
- Mounting: 35mm DIN Rail (Omega rail mounting)
- Efficiency: 88%
- Power Reserve: Provides 150% boost capacity (delivers extra current for short-term peaks)
- Protection Mechanisms: Comprehensive integrated protection against overloads, short-circuits, overvoltage, undervoltage, and thermal faults. Features selectable automatic or manual reset options.
- Diagnostics: Features a dual-color LED status indicator on the front panel and a diagnostic relay terminal block.
SCHNEIDER ABL8RPM24200 Switch-Mode Power Supply (Phaseo).
-
REQUEST A QUOTE
- Power Rating: 18.5 kW (25 Hp) for Heavy Duty applications / 22 kW (30 Hp) for Normal Duty applications.
- Supply Voltage: 380 V to 480 V AC, 3-Phase (50/60 Hz).
- Output Current: Up to 46 A max output current.
- Embedded Communication: Integrated Ethernet/IP and Modbus TCP (via 3 RJ45 ports), offering seamless smart machine integration.
- Motor Compatibility: Controls both 3-Phase Asynchronous (induction) and Synchronous (permanent magnet or reluctance) motors.
- Enclosure / Protection: IP20 protection rating designed for cabinet mounting.
- Safety Features: Embedded STO (Safe Torque Off) and certified to compliance standards like IEC 61508 and ISO 13849-1.
- SCHNEIDER Variable Frequency Drive: In Phase Three, Out …
SCHNEIDER ATV340D18N4E Variable Speed Drive (Altivar ATV340).
-
REQUEST A QUOTE
- Power Rating: 37 kW / 50 HP (Normal Duty); 30 kW / 40 HP (Heavy Duty)
- Supply Voltage: 380V to 480V AC, 3-Phase (50/60 Hz)
- Full Load Amperage (FLA): 74.5 A at 4 kHz (Normal Duty)
- Enclosure Rating: IP21 / UL Type 1 (Wall Mount)
- Embedded Communications: Dual-port Ethernet, Modbus TCP, Modbus Serial
- Safety Integration: STO (Safe Torque Off) SIL 3
- Overload Capability: 110% for 60 seconds (Normal Duty); 150% for 60 seconds (Heavy Duty)
SCHNEIDER ATV630D37N4 Variable Frequency Drive (Altivar ATV630).
-
REQUEST A QUOTE
- Product Type: Brushless AC Synchronous Servo Motor.
- Device Short Name: BCH2.
- Rated Power Output: 400 W.
- Nominal Speed: 3000 RPM.
- Maximum Mechanical Speed: 5000 RPM.
- Continuous Stall Torque: 1.27 N·m (11.24 lbf·in).
- Rotor Inertia: 0.27 kg·cm² (Low Inertia Type).
- Rated Supply Voltage: 220 V (Supports 110V / 220V, Single or Three-Phase networks).
- Continuous Stall Current: 2.19 A.
- Maximum Current (Irms): 7.76 A.
SCHNEIDER BCH2LD0433CA5C Servo Motor (Lexium).
-

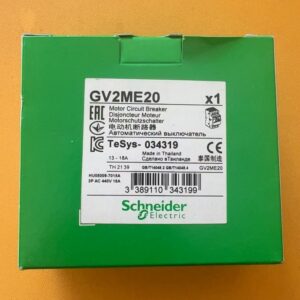

- Brand: Schneider Electric
- Model: GV2ME20
- Series: TeSys GV2 / TeSys Deca
- Device type: Thermal-magnetic motor circuit breaker
- Poles: 3
- Thermal protection setting: 13 to 18 A
- Control: Push-button
- Terminal type: Screw clamp terminals
- Protection technology: Thermal-magnetic
- Degree of protection: IP20
- EAN: 3389110343199
-

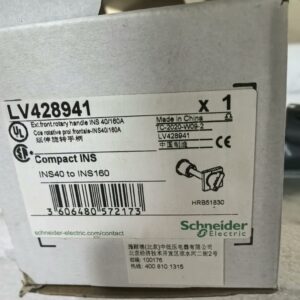

- Brand: Schneider Electric
- Model: LV428941
- Series: Compact INS
- Accessory type: Extended rotary handle
- Compatible range: Compact INS40 to INS160
- Control position: Front
- Handle colour: Black
- Ingress protection: IP55
- Impact resistance: IK08
- EAN: 3606480572173
-

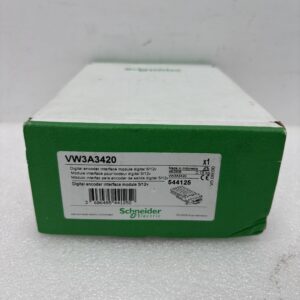

- Manufacturer: SCHNEIDER ELECTRIC
- Model / Part Number: VW3A3420
- Supported Encoder Types: EnDat 2.2, SSI and A/B/I incremental encoders
- Encoder Connector: 15-pin high-density female D-sub
- Encoder Supply Voltage: 5, 12 or 24 VDC
- Signal Interface: RS-422
- Protection: Overload and short-circuit protection
-

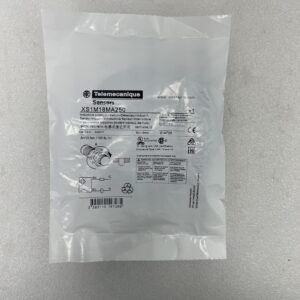

- Manufacturer: SCHNEIDER ELECTRIC
- Model / Part Number: XS1M18MA250
- Sensor Type: Inductive Proximity (only detects metal).
- Size & Shape: M18 cylindrical threaded barrel (18mm diameter) with a length of 60mm.
- Sensing Distance: 5mm.
- Mounting Type: Flush mountable (can be embedded directly into a metal surface without false triggers).
- Wiring Setup: 2-wire configuration with a built-in 2-meter cable.
- Output Type: 1 NO (Normally Open).
- Supply Voltage: Works across a wide range from 24V to 240V AC or 24V to 210V DC.
- Degree of Protection: IP68 certified, making it highly waterproof and resistant to dust and harsh industrial environments.
- Body Material: Strong nickel-plated brass casing with a PPS plastic sensing face.
-
REQUEST A QUOTE
- Processor: 600 MHz RISC CPU
- Memory: 256 MB RAM, 512 KB NVRAM (backup memory), and bundled with a 1 GB SD card
- Expansion Slots: 2 SD card slots
- Input Voltage: 12 to 24 V DC power supply
- Programming Software: Configured and programmed via Schneider's Vijeo Designer software
- Cooling System: Natural convection cooling (fanless) built for rugged operating temperatures between 0°C to 60°C (32°F to 140°F)
- Ethernet Ports: 2 x RJ45 ports supporting Modbus TCP/IP protocols
- Serial Ports: Embedded COM1 (RS-232C) and COM2 (RS-485/RS-422) interfaces for versatile legacy equipment mapping
- USB Interfaces: 2 x USB 2.0 Type A ports, and 1 x USB mini-B port
- Video Output: 1 x DVI-D port
SCHNEIDER HMIG3U HMI Base Unit (Harmony GTU).
