Showing 17–29 of 29 results
-
REQUEST A QUOTE
- Current Rating: 40 A (for AC-3 / AC-3e inductive motor loads up to 440 V) or 60 A (for AC-1 non-inductive resistive loads).
- Coil Voltage: 24 V AC at 50/60 Hz (indicated by the "B7" suffix).
- Poles: 3 Power Poles (3 Normally Open / 3NO).
- Auxiliary Contacts: Integrated 1 NO + 1 NC built-in contacts.
- Termination: Secure screw clamp terminals.
- Mounting Options: Supports standard 35 mm DIN rail mounting or plate mounting via screws.
SCHNEIDER LC1D40B7C Contactor (TeSys D).
-
- Manufacturer: Schneider

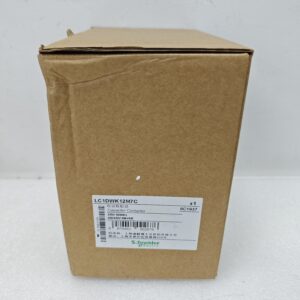

- Model / Part Number: LC1DWK12M7C
- Power Rating: Controls up to 63 kVAR at 400 Volts (50Hz) or up to 104 kVAR at 690 Volts.
- Poles: 3 poles (3NO) to connect all three wires of a standard 3-phase industrial power system.
- Coil Voltage: Uses a 220V AC (50/60Hz) power signal to open or close the switch.
- Extra Switches: Includes 1NO + 2NC built-in auxiliary contacts to send signals to computer controllers or warning lights.
- Mounting: Snaps easily onto a standard DIN rail or bolts flat onto a metal panel.
-
REQUEST A QUOTE
- Current Rating: 32 A
- Voltage Rating: 690 V AC
- Breaking Capacity: 50 kA
- Built-in Contacts: 1 NO + 1 NC
- Mechanical Durability: 15,000,000 cycles
- IP Protection: IP20 / IP40
- Mounting Type: DIN-Rail / Plate
- Single Phase: 2 hp at 115/120 V AC || 5 hp at 230/240 V AC
- Control Unit (LUC series): Plugs directly into the base to establish electronic protection parameters (such as the LUCA standard unit for thermal overload, phase failure, and short-circuit protection).
- Optional Modules: Side-mount or front-insert modules can add auxiliary signaling, change tracking, or functional communication protocols (e.g., Modbus, CANopen).
SCHNEIDER LUB32 Power Base (TeSys U).
-
REQUEST A QUOTE
- Current Settings Range: 4.5 A to 18 A (adjustable via dial).
- Control Circuit Voltage: 110 V to 220 V AC or DC.
- Protection Type: Built-in protection against overloads, short-circuits, phase loss, and insulation faults.
- Trip Class: Class 10 thermal overload protection.
- Compatibility: Inserts plug-and-play into LUB32, LUB320, or LUB38 power bases to build a complete starter controller.
SCHNEIDER LUCA18FU Electronic Control Unit (TeSys Ultra).
-
REQUEST A QUOTE
- Product Line: Lexium 32 (Lexium 32C variant featuring pulse train/analog interface control)
- Phase/Voltage Supply: Three-phase 208V AC to 480V AC (50/60 Hz)
- Output Peak Current: 18A RMS
- Continuous Output Current: 6A to 10A at an 8kHz switching frequency
- Rated Power: 1.8 kW
- Max Continuous Power: 1500W at 230V || 3300W at 400V
- Control Interface: Analog inputs (+/- 10V) and Pulse Train (P/D) signals
- Communication Interface: Embedded Modbus (RJ45 connector, 2-wire RS485 physical interface)
- I/O Count: 6 digital inputs, 5 discrete outputs, 2 analog inputs, and 1 analog output
- Speed Bandwidth: 1,600 Hz high-response speed loop
SCHNEIDER LXM32CD18N4 Servo Drive (Lexium 32C).
-
REQUEST A QUOTE
Technical Specifications
- Primary Brand: Schneider Electric (Often referenced under secondary brands Modicon or Square D)
- Product Series: Modicon Quantum Automation Platform
- Function: Communication Unit / Coaxial Cable Splitter & Repeater (1 Input, 2 Outputs)
- Impedance: 75 Ohm
- Network Topology: Ring Topology
- Application: Repeats a signal from a single cable for dual-cable infrastructure distribution
- End of Commercialization: December 31, 2022 (Schneider Electric no longer accepts new orders for this reference).
- End of Standard Service: December 31, 2030 (The ultimate date up to which Schneider Electric will offer repair services and spare parts).
SCHNEIDER MA-0186-100 Coaxial Cable Splitter (Modicon Quantum).
-
REQUEST A QUOTE
- Port Configuration: 5 x Shielded RJ45 transmission ports for copper cabling (up to 100 meters per segment).
- Management Type: Unmanaged (Layer 2, plug-and-play).
- Communication Protocol: Ethernet TCP/IP, EtherNet/IP.
- Power Requirements: 12–24V DC nominal input range (supports 9.6 V DC to 34 V DC wide range via a removable 3-pin connector).
- Power Consumption: Ultra-low power draw of 1.3W.
- Physical Protection: IP30 rated housing.
- Dimensions: 26 mm (W) x 102 mm (H) x 79 mm (D); Weighs 0.125 kg.
- Operating Temperature: 0 °C to +60 °C (32 °F to 140 °F).
- Legacy Replacement: Directly replaces older Schneider part numbers TCSESU033FN0 and TCSESU053FN0.
SCHNEIDER MCSESU053FN0 Unmanaged Ethernet Switch (Modicon).
-
REQUEST A QUOTE
- Product Type: Zelio Logic Relay-PC Cable.
- Application: Connects smart relay units to a PC for programming via software.
- Approximate Length: Original configurations typically measured 1.8 meters (1M80).
SCHNEIDER SR1CBL01 PC Connecting Cable (Zelio Logic).
-
REQUEST A QUOTE
- Display Capacity: 8 lines of text, 240 x 160 pixels resolution.
- Environmental Rating: IP54 protection (dust and splash resistant, ideal for door mounting on electrical enclosures).
- Operating Temperature: -15°C to 50°C (+5°F to 122°F).
- Memory Capacity: Can save and download up to 4 distinct drive configuration files.
- Communication Interface: Built-in RS485 Modbus port.
- Compact & Machine Drives: ATV212, ATV312, ATV32, ATV320.
- High-Performance & Process Drives: ATV61, ATV71, ATV61Q, ATV71Q, and Altivar Lift.
- Door Mounting Kit: Part number VW3A1102 (IP54 bezel kit to securely anchor the keypad onto an enclosure face).
- Direct Drive Adapter: Part number VW3A1105 (needed if connecting the terminal directly to the front of certain drives without a remote bezel).
Schneider VW3A1101 Remote Graphic Display Terminal (Altivar Series).
-
REQUEST A QUOTE
- Connectors: Pre-wired with one M23 connector and one RJ45 connector.
- Cable Composition: 3 x (2 x 0.14 mm²) + (2 x 0.34 mm²).
- Length: 10 meters (32.81 feet).
- Net Weight: 1.98 lb / 0.9 kg.
- Compatibility: Fully optimized for Lexium 32 servo drives and compatible SinCos Hiperface encoders.
SCHNEIDER VW3M8102R100 Encoder Cable (Altivar).
-
REQUEST A QUOTE
- Supply Voltage: 230 V AC (with an incorporated 24 V DC option)
- Safety Contacts: 3 Normally Open (N/O) safety relay outputs
- Auxiliary/Signalling Contacts: 1 Normally Closed (N/C) volt-free signaling contact
- Additional Outputs: 4 solid-state outputs that duplicate the front-panel status LEDs for PLC communication
- Reset Methods: Configurable for automatic or manual starting
- Mounting: 35 mm symmetrical DIN rail (45 mm compact housing width)
SCHNEIDER XPSAK371144 Safety Relay (Preventa).
-
REQUEST A QUOTE
- Sensor Application: Rotation monitoring
- Sensor Design: Cylindrical M30 × 1.5 threaded body
- Size: 81 mm total length (67 mm threaded length)
- Mounting Type: Flush mountable
- Output Function: 1 NC (Normally Closed)
- Wiring Technique: 2-wire
- Adjustable Frequency Range: 6 to 150 cycles/minute (impulses/min)
- Supply Voltage Limits: 20…264 V AC/DC
- Switching Capacity: 5…350 mA AC or 5…200 mA DC
- Voltage Drop: < 5.7 V when closed
SCHNEIDER XSAV11801 Inductive Proximity Sensor (XSA Series).
-
REQUEST A QUOTE
- Manufacturer: Telemecanique Sensors (Schneider Electric)
- Component Type: Latching Emergency Stop Rope Pull Switch
- Contact Configuration: 2 NC + 1 NO (Slow-break)
- Maximum Cable Span: Up to 30 meters
- Reset Operation: Booted pushbutton
- Local Signaling: Without pilot light
- Electrical Rating: 240V AC max / 250V DC max
- IP Protection Rating: IP65 (Dust-tight and water-jet resistant)
- Operating Temperature: -25°C to +70°C
- Housing Material: Stainless Steel / Heavy-duty metal
SCHNEIDER XY2CH13290 Emergency Stop Rope Pull Switch (XY2).
