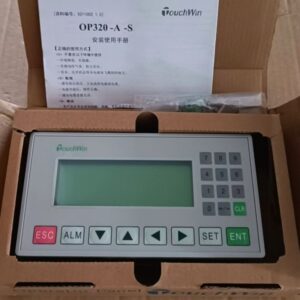

- Brand: Xinje
- Model: OP320-A-S
- Series: OP320
- Display: 3.7-inch STN LCD
- Resolution: 192 × 64 pixels
- Keys: 20 physical keys
- Power supply: 24 V DC; 20–28 V DC operating range
- Power consumption: Less than 4 W; 2 W typical
- Communication: RS-232 and RS-485
- Flash memory: 64 KB
- SRAM: 1 KB
- Overall dimensions: 172 × 94 × 30 mm
- Operating temperature: 0 to +50 °C
- Front protection: IP65
-
REQUEST A QUOTE
- Display: 4.3-inch TFT LCD, 16 million true colors, 480×272 resolution with LED backlighting.
- Performance: ARM9 400MHz CPU paired with 128MB Internal Memory.
- Power Requirements: DC24V input voltage (operational range: DC22V to DC26V) with a current consumption of 140mA.
- Durability: IP65-rated front panel protective design with a backlighting lifespan of roughly 50,000 hours.
- Internal Features: Built-in Real-Time Clock (RTC), data logging capabilities, and multi-PLC communication profiles.
- Main Features: * ARM9 400MHz CPU, Memory 128MB. * 4.3 inch LCD, 16 million colors TFT LCD, LED backlight, resolution 480*272. * 1 …
Xinje TG465-MT 4.3-Inch HMI Touch Screen (TouchWin TG Series).
-
REQUEST A QUOTE
- Display Size: 7.0 inches (Diagonal)
- Resolution: 800 x 480 pixels (TFT LCD with LED backlight)
- Processor: ARM Cortex-A7 dual-core (1GHz clock speed)
- Memory: 128MB RAM
- Touch Panel: 4-wire resistive touch interface
- Operating System: Linux
- Configuration Software: TouchWin Pro Editing Tool
- Input Power: DC 24V (Operating range: 22V–26V)
- Robust Protection: The front panel is rated IP65, protecting it against dust, liquid ingress, and airborne debris common in factory environments.
- Connectivity Profile: Typically equipped with critical communication interfaces including RS232/RS485 COM ports, a USB-A port for external storage/peripherals, a USB-B download port, and an RJ45 Ethernet port for PLC synchronization and remote monitoring.
XINJE TS3-700-Z Human-Machine Interface (HMI) (TS Series).
-
REQUEST A QUOTE
- Total I/O Points: 60 points (comprising 36 digital inputs and 24 digital outputs).
- Input Type: Dual compatibility supporting both NPN and PNP signals.
- Output Type: Relay (R), making it highly reliable for switching heavier electrical loads compared to transistor variants.
- Power Supply: AC 100V ~ 240V (standard AC220V compatibility).
- High-Speed Counting: Supports built-in high-speed counting up to 80KHz alongside 2-way AB phase counting, suitable for connection with incremental encoders.
- Communication Interfaces: Equipped with a standard RS232 port for program uploads/downloads via the XC Pro software, and a standard RS485 port for Modbus networking or peripheral communication.
- System Expansion: Supports the addition of up to 7 external expansion modules and external expansion BD boards to scale up I/O capacity or integrate specialized functions.
- Condition: Brand NEW Model:XC3-60R-E This item include: 1Pcs XC3-60R-E XC3-60R-E Main Feature Host 36 in/24 out, relay output, AC10…
XINJE XC3-60R-E PLC (XC3).
