Showing 1–16 of 23 results
-
- Manufacturer: Festo
- Model / Part Number: CMMO-ST-C5-1-DIOP 1512316
- Product type: Motor controller
- Type code: CMMO-ST-C5-1-DIOP
- Order code: 1512316
- GTIN: 4052568238001
- Product lifecycle: Phasing out since 03/2022; spare part only since 12/2022; discontinued 12/2026
- Functional replacement: CMMT-ST-C8-1C-EC-S0 (order code 8084005)
-
REQUEST A QUOTE
- Feature Group: Code/Spec
- Basic Series: DFM
- Piston Size: 16
- Stroke: 20
- Generation: B
- Cushioning: PPV
- Position Sensing: A
- Guide Type: GF
- Torque & Lateral Load Resistance: The dual-rod integrated layout prevents twisting or rotation during operation. The plain-bearing (GF) guide design handles heavy side-loading far more effectively than basic unguided cylinders.
- Adjustable PPV Dampening: Unlike fixed elastic pads, the adjustable PPV cushioning lets machine builders fine-tune air-pocket escape speeds. This reduces machine vibration, lowers noise levels, and protects internal mechanisms from impact failure under high velocity.
FESTO DFM-16-20-B-PPV-A-GF 529120 Guided Linear Drive (DFM Series).
-
REQUEST A QUOTE
- Mode of Operation: Double-acting (requires compressed air to move in both directions).
- Operating Medium: Compressed air in accordance with ISO 8573-1:2010 [7:4:4]. Lubricated operation is permissible (and will require subsequent continuous lubrication).
- Ambient Temperature: -10°C to 60°C (14°F to 140°F).
- Mounting Position: Any / optional.
- Material Composition: Main housing/barrel constructed from aluminum; seals made from NBR/PU; slot sealing band composed of Polyamide (PA).
- ATEX Zone Compliance: Zone 1, Zone 2 (Gas); Zone 22 (Dust).
- ATEX Category: II 2G (Gas).
- Certifications: CE mark and UKCA marking conforming to EU explosion protection directives.
- Proximity Sensors: Typically uses Festo SMT-8M or SME-8M series T-slot proximity switches for automated end-stroke and intermediate position detection.
- Central Supports: Festo MUP-18/25 profile mount clamps to prevent deflection on mid-to-long stroke lengths.
FESTO DGC-K-25-400-PPV-A-GK 1312501 Rodless Cylinder (DGC Series).
-
REQUEST A QUOTE
- Part Number: 11909
- Size: 12
- Swivel / Rotation Angle: 0° to 180° (Fully adjustable)
- Mode of Operation: Double-acting
- Design Structure: Rotary vane actuator
- Theoretical Torque: 1 Nm at 0.6 MPa (6 bar / 87 psi)
- Operating Pressure: 2 bar to 8 bar (0.2 MPa to 0.8 MPa)
- Cushioning Type: Elastic cushioning rings/plates at both ends
- Cushioning Angle: 2.2°
- Pneumatic Connection: M5 threaded port
FESTO DSR-12-180-P 11909 Semi-Rotary Drive (DSR Series).
-
REQUEST A QUOTE
- Valve Function: 5/2-way, Bistable-Dominant (Double Pilot)
- Design Structure: Poppet Seat
- Operating Pressure: 1 to 8 bar (14.5 to 116 psi)
- Standard Nominal Flow Rate: 105 L/min
- Nominal Size / Width: 2.5 mm
- Shifting Time (Um): 9 ms (Dominating: 25 ms)
- Operating Medium: Compressed air conforming to ISO 8573-1:2010
- Ambient Temperature Range: 0°C to +60°C
- Pneumatic Connections: 5 x PK-3 barbed fittings for main ports (1, 2, 3, 4, 5) + 2 x PK-3 barbed fittings for auxiliary pilot ports (10, 12). Designed to fit 3 mm internal diameter tubing.
- Housing Material: Polymer plastic and reinforced die-cast zinc pressure casting.
FESTO JD-5-PK-3 4901 Directional Control Valve (JD Series).
-
REQUEST A QUOTE
- Manufacturer: Festo Corporation
- Part Number (MPN): 161879
- Type Code: KMPPE-B-2,5
- GTIN / EAN: 4052568072131
- Cable Length: 2.5 m (8.2 ft)
- Number of Cores: 8-wire configuration
- Conductor Cross Section: 0.25 mm² (~24 AWG)
- Outer Cable Diameter: 6.8 mm
- Surge Immunity: 0.6 kV
- Core Identification: DIN 47100 standard
FESTO KMPPE-B-2-5 161879 Plug Socket (KMPPE Series).
-

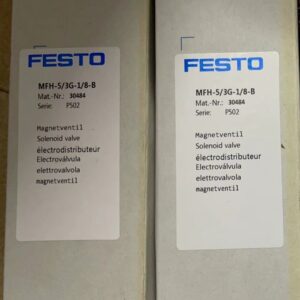

- Brand: Festo
- Model: MFH-5/3G-1/8-B
- Series: MFH
- Part number: 30484
- Valve function: 5/3-way, closed centre
- Actuation: Electrical
- Pilot supply: Internal
- Reset method: Spring return
- Pneumatic connection: G1/8
- Operating pressure: 3–10 bar
- Standard nominal flow rate: 1000 l/min
- Nominal size: 8 mm
- Valve width: 26 mm
- Manual override: Non-detenting
- Maximum switching frequency: 3 Hz
- Switch-on time: 23 ms
- Switch-off time: 30 ms
- Ambient temperature: -5 to +40 °C
- Medium temperature: -10 to +60 °C
- Weight: 400 g
-
- Manufacturer: Festo
- Model / Part Number: NPQH-T-Q6-E-P10 578381
- Design: T-shaped push-in connector, full-metal electroless nickel-plated brass
- Pneumatic connection: For tubing with 6 mm outside diameter
- Working pressure: -0.95 to 20 bar
- Ambient temperature: 0 to 150 deg C
- Nominal width: 5 mm
- Order code: 578381
-
REQUEST A QUOTE
- Pneumatic Connection: G 1/8 thread
- Operating Pressure Range: 0 to 8 bar (0 to ~116 PSI)
- Switching Element Function: Changeover switch (SPDT – Single Pole Double Throw)
- Maximum Switching Frequency: 1 Hz
- Operating Voltage Range: 12 V to 250 V AC / 12 V to 250 V DC
- Current Ratings: 6 A at 250 V AC (Resistive / Ohmsche Last)
- Operating Medium: Compressed air conforming to ISO 8573-1:2010 [7:4:4] (Lubricated or unlubricated)
- Ambient / Media Temperature: 0°C to 60°C (32°F to 140°F)
- Mounting Position: Any
FESTO PE-1 8-1N 6217 Pressure Switch (PE Series).
-
REQUEST A QUOTE
- Manufacturer & Series: Festo, PE Series
- Part Number / Alias: 6484 (Equivalent to PE1/81NSW)
- Pneumatic Connection: G1/8" (1/8" BSPP) threaded female port
- Sensing / Operating Range: 0 to 8 bar (0 to 0.8 MPa)
- Switch-On Point: Fixed at 2.0 bar
- Switch-Off Point: Fixed at 0.5 bar
- Electrical Output Type: 1 x Digital Output (Changeover SPDT contact)
- Voltage Range: AC/DC 12 V to 250 V (Supports 24V, 110V, 230V nom.)
- Electrical Connection: Pre-wired 0.5-meter (50cm) PVC 3-core cable with bare end flying leads
- Ingress Protection: IP67 certified
FESTO PE-1-8-1N-SW 6484 Pressure Switch (PE Series).
-
REQUEST A QUOTE
- Operating Medium: Compressed air (filtered, lubricated, or unlubricated) and water.
- Pneumatic Connection: G1/4 female thread.
- Electrical Connection: Plug design conforming to EN 175301-803 (Form A rectangular plug, formerly DIN 43650).
- Switching Element Function: SPDT (Single Pole Double Throw) changeover switch.
- Max Switching Voltage: 250 VAC / 125 VDC.
- Max Electrical Current: 5 A.
- Enclosure Protection Rating: IP65 (dust-tight and water-jet proof).
- Housing Material: Sturdy die-cast aluminum.
- Adjustability: Fully adjustable switching point with a visual scale for clear, onsite pressure tuning.
FESTO PEV-1 4-B 10773 Pressure Switch (PEV Series).
-

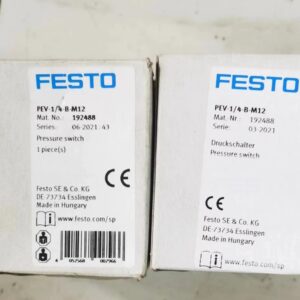

- Manufacturer: Festo
- Model / Part Number: PEV-1-4-B-M12 192488
- Pressure Range: Adjustable from 1 to 12 bar (15 to 175 PSI).
- Pneumatic Connection: G 1/4 female thread
- Electrical Connection: 4-pin M12x1 plug connector design.
- Operating Voltage: Up to 48V AC or DC.
- Switching Element: Changeover switch (can be wired as Normally Open or Normally Closed).
- Protection Rating: IP65 (dust-tight and protected against water jets).
-
REQUEST A QUOTE
- Manufacturer / Part Number: Festo / 553744
- Design / Slot Type: T-slot (inserted into the slot from above)
- Sensing / Measuring Range: Up to ≤ 40 mm
- Analog Output Signal: 0 – 10 V DC
- Displacement Resolution: 0.02 mm
- Accuracy: ± 0.1 mm on Cylinders / ± 0.025 mm on Grippers
- DC Operating Voltage Range: 15 V – 30 V DC (24 V DC nominal)
- Electrical Connection: 0.3 m pigtail cable with an M8x1 A-coded 4-pin male connector
- Housing Material: Polyamide 6 (PA6) reinforced
- Protection Class: IP65 / IP68
FESTO SMAT-8M-U-E-0.3-M8D 553744 Magnetic Position Transmitter (SMAT Series).
-
REQUEST A QUOTE
- Measuring Principle: Magnetic Reed (Contact-based, bipolar)
- Switching Element Function: N/O (Normally Open) contact
- Operating Voltage Range: 12 V – 27 V AC/DC (24 V Nominal)
- Electrical Connection: Pre-wired 0.3 m (30 cm) cable with an in-line 3-pin M8 male connector
- Visual Indicator: Yellow LED switching status light
- Repetition Accuracy: ± 0.2 mm
- Environmental Protection: IP65 / IP67
- Ambient Temperature Range: -20°C to +70°C (Static cable installation)
- Housing Materials: Nickel-plated brass / PPS / High-alloy stainless steel
- Tightening Torque: Max. 0.1 Nm
FESTO SME-10-SL-LED-24 173212 Magnetic Proximity Sensor (SME Series).
-
REQUEST A QUOTE
- Measuring Principle: Magnetic Reed
- Operating Voltage (AC/DC): 3 V to 230 V
- Switching Output: Contact-based, Bipolar
- Switching Element Function: Normally Open (N.O.) Contact
- Electrical Connection: 2-wire / Open-end cable
- Standard Cable Length: 2.5 meters (8.2 feet)
- Mounting Profile: Clamped in T-Slot (Lengthwise insertion)
- Status Indicator: Integrated LED (Yellow switching status)
- Operating Temperature Range: -5°C to +60°C (23°F to 140°F)
- Tightening Torque: 0.2 Nm
FESTO SME-8-K-LED-230 152820 Magnetic Proximity Sensor (SME Series).
-
REQUEST A QUOTE
- Feature / Attribute: Specification
- Sensing Method: Magnetic Reed (Contact-based, bipolar)
- Switching Function: Normally Open (N.O. / N/O contact)
- Operating Voltage: 12 V to 30 V AC / DC (24 V Nominal)
- Response Speeds: Turn-on time: 0.5 ms | Release time: 0.03 ms
- Ingress Protection: IP67 (Fully dust-tight and water immersion proof)
- Operating Temperature: -40°C to +70°C (Static cable) | -5°C to +70°C (Flexible loop installations)
- Status Indicator: Integrated Yellow LED
- Housing Materials: Polycarbonate (PC), PET, Epoxy Resin, High-alloy Stainless Steel
- Environmental Compliance: RoHS Compliant, free of Copper and PTFE
FESTO SME-8-S-LED-24 150857 Magnetic Proximity Sensor (SME Series).
