- Input Voltage Range: 24 VDC ~ 70 VDC
- Output Phase Current: 2.4 A ~ 8.0 A (Peak)
- Step Resolution: Up to 25,600 steps/rev
- Compatible Motors: 2-Phase Hybrid Steppers
- Over-Voltage Protection: > 85 VDC
- Low-Voltage Protection: < 15 VDC
- Cooling Method: Natural Air / Cooling by Air
- Operating Temperature: 0°C to +40°C
- Dimensions & Weight: 118 × 75.5 × 34 mm
- Auto-Current Reduction: When the motor stops spinning, the drive automatically scales down the idle current. This significantly lowers standby power consumption, reduces motor heat generation, and expands motor lifetime.
KINCO 2CM880 PLC (KINCO).
-
REQUEST A QUOTE
- Display Size: 4.3 inches
- Resolution: 480 × 272 pixels (Note: Some baseline configurations share the processing architecture of the larger 800 × 480 ET070 series).
- Touch Panel Type: 4-wire precision analog resistor network with a 4H surface hardness protective layer.
- Processor (CPU): 400MHz RISC high-speed processor.
- Memory Capacity: 128MB Flash Storage + 64MB SDRAM.
- Onboard Storage: Real-Time Clock (RTC) + 512KB dedicated recipe memory.
- Programming & Expansion: Features a dedicated USB Slave port alongside serial interface options for uploading or downloading logic programs.
- PLC Compatibility: Broadly deployed alongside controllers such as the Inovance H0U/H1U/H2U/H3U series using specialized interface cables.
KINCO ET050 HMI Touch Screen Panel (eView Series).
-
- Manufacturer: KINCO

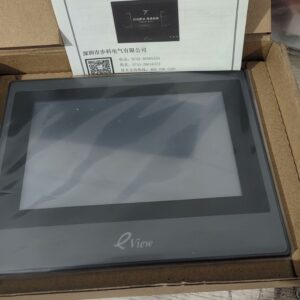

- Model / Part Number: ET070
- Display: 7-inch TFT LED backlit screen
- Resolution: 800 x 480 pixels
- Colors: 65,536 colors
- Touch Panel: 4-wire high-precision electric resistance touch screen
- Memory: 128MB Flash memory + 64MB SDRAM
- Power Input: DC 24V (runs safely between DC 12V and DC 28V)
- Ports: Serial ports (COM0 supporting RS232/RS485, and COM2 supporting RS232) and a USB Slave interface for downloading programs. Note: This model does not have an Ethernet port.
-
- Manufacturer: KINCO

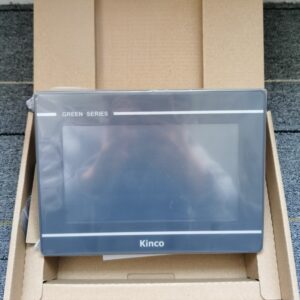

- Model / Part Number: G070
- Display: 7-inch TFT screen with an 800×480 pixel resolution and a rich 16.7 million color display.
- Processor: Powered by a 32-bit ARM RISC 800MHz industrial-grade CPU.
- Memory: Equipped with 128MB of NAND Flash Storage and 128MB of DDR3 RAM.
- Hardware Port Features: Includes a built-in Real-Time Clock (RTC), 1 USB Host port, and 1 Micro USB programming download port.
- Software: Programmed using Kinco's standard DTools configuration software.
-
- Manufacturer: KINCO

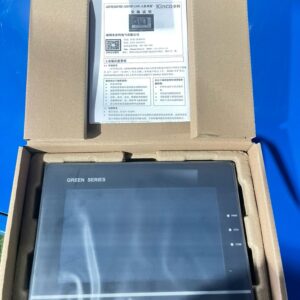

- Model / Part Number: G070E
- Display Size: 7 inches TFT widescreen
- Resolution: 800 × 480 pixels
- Colors: 16.77 million true colors
- Memory: 128 MB NAND Flash memory + 128 MB DDR3 RAM
- Power Supply: 24V DC input voltage
- Built-in Ethernet: Features a 10/100M self-adaptive Ethernet port to connect to local networks and PLCs.
- Serial Ports: Includes 3 COM ports supporting RS232, RS485, and RS422 communication styles simultaneously.
- Expansion: Contains a USB Host port for uploading/downloading software programs via USB flash drives.
- Programming Software: Programmed using Kinco's free Dtools configuration software.
- External Size: Approximately 20.4 cm × 15.0 cm × 3.7 cm
- Front Panel Rating: IP65-rated waterproof and dustproof front boundary.
-
- Manufacturer: KINCO

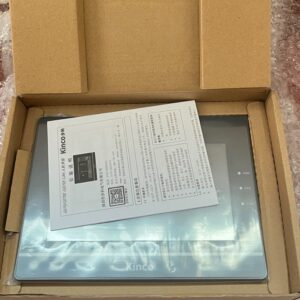

- Model / Part Number: G070E-CAN
- Display Size: 7 inches TFT widescreen
- Resolution: 800 × 480 pixels
- Colors: 16.77 million colors for a rich, sharp image
- Processor: ARM RISC 32-bit 800MHz industrial-grade CPU
- Memory: 256MB Flash Memory + 128MB RAM
- Touch Panel: 4-wire precision resistance network (4H surface hardness)
- Protection Rating: IP65-rated front panel (dustproof and water-resistant)
- Power Requirement: DC 12V to DC 28V input
- Software: Programmed using Kinco's Dtools configuration software
- CANbus Port: Multiplexed on the COM1 D-SUB connector for bus-style control.
- Ethernet Port: Built-in RJ45 port for connecting to local factory networks, online simulations, PC software downloads, or network-capable PLCs.
- USB Host/Slave: For uploading/downloading programs or attaching external storage devices.
-
- Manufacturer: KINCO
- Model / Part Number: G100
- Display: 10.1-inch TFT screen featuring 1024×600 pixel resolution and 16.7 million true colors.
- Processor: Powerful 800MHz ARM RISC 32-bit CPU for snappy response times.
- Memory: 128MB Flash storage paired with 128MB DDR3 RAM.
- Power Supply: Runs on standard industrial DC 24V.
- Enclosure: Built with an IP65-rated waterproof front panel and a durable engineering plastic shell.
- Software: Programmed and designed using Kinco DTools configuration software.
- Outer Panel Dimensions: 280 mm × 193 mm × 36 mm.
- Panel Cutout Size: Requires a 261 mm × 180 mm hole for secure mounting.
- USB Host: Allows you to plug in a USB flash drive (up to 16GB) to upload programs or download logged data.
-
- Manufacturer: KINCO

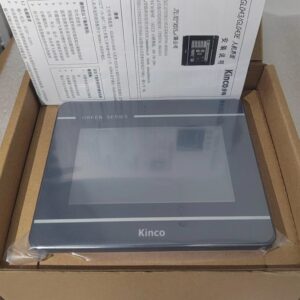

- Model / Part Number: GL043
- Screen Size: 4.3 inches (Diagonal)
- Display Area: 95.04 mm (Width) x 53.86 mm (Height)
- Resolution: 480 x 272 pixels
- Colors: 16.77 million True Color (24-bit)
- Backlight: LED with over 30,000 hours of life
- Brightness / Luminance: 450 cd/m²
- Touchscreen Type: 4-wire high-precision resistive network (Surface hardness of 4H)
- Processor (CPU): 32-Bit ARM RISC Cortex-A7 architecture, running at 800 MHz
- Storage Memory (Flash): 128 MB NAND Flash (Used for storing your programs and data)
- System Memory (RAM): 128 MB DDR3 RAM
- Real-Time Clock (RTC): Built-in.
- Serial Ports: 2 Physical COM Ports
- USB Port: 1 x Micro USB Slave port (Used for downloading your screen designs from a computer)
- Input Voltage: Supports a wide range from 10V DC to 28V DC (Nominal 24V DC)
- Power Consumption: Very low power usage, around 2 Watts
- Insulation Resistance: Greater than 50MΩ at 500V DC
- Operating Temperature: Works safely between 32°F and 122°F (0°C to 50°C)
- Front Protection: The front panel is rated IP65 (Dust-tight and protected against water jets when mounted correctly in a panel wall).
- Outer Size: 132 mm x 102 mm x 33 mm
- Weight: 0.21 Kg (Super lightweight)
- Programming Software: Designed and programmed using the free Kinco DTools configuration software.
-
REQUEST A QUOTE
- Manufacturer: KINCO
- Model / Part Number: MT4414TE V1
- Display: 7-inch TFT LCD, 16:9
- Resolution: 800 x 480 pixels
- Display Colors: 65,536
- Touch Panel: 4-wire analog resistive
- Processor: 32-bit RISC, 800 MHz
- Memory: 128 MB Flash and 64 MB SDRAM
- Recipe Memory: 512 KB
- Real-Time Clock: Built-in
- Ethernet: 10/100 Base-T
- USB Ports: 1 USB Host and 1 USB Slave
- Serial Ports: COM0: RS-232, RS-422 and RS-485; COM2: RS-232
- Supply Voltage: 24 VDC nominal; 12 to 28 VDC range
- Power Consumption: 4 W
- Front Protection: IP65
KINCO MT4414TE V1 is a 7-inch touchscreen HMI with Ethernet, USB and serial interfaces. It has an 800 x 480 display and operates from a nominal 24 VDC supply.
-
REQUEST A QUOTE
- Display Size & Type: 7” (16:9 Aspect Ratio) TFT LCD
- Resolution: 800 × 480 Pixels
- Color Depth: 65,536 Colors (16-bit)
- Touch Panel: 4-Wire Precision Resistive Network
- Processor: 32-bit RISC CPU @ 800 MHz
- Memory: 128 MB Flash + 64 MB DDR2
- Expandable Memory: 1x USB Host, 1x SD Card slot
- Recipe Memory & RTC: 512 KB + Built-in Real-Time Clock (RTC)
- Input Power: 24 VDC
- Programming Software: Kinco DTools / Kinco HMIware
KINCO MT4424TE Human-Machine Interface (HMI) (KINCO).
