Showing 1–16 of 170 results
-
REQUEST A QUOTE
- Manufacturer: Eaton Bussmann Series
- Current Rating: 20A
- Voltage Rating: 690 VAC (UL certified up to 700 VAC)
- Interrupting Rating: 200 kAIC
- Fuse Class: gR (Full-range semiconductor protection)
- Body Style / Size: Square Body, Size 000U/80
- Mounting / Terminals: Blade End to Blade End (DIN 43 620 compatibility)
- Status Indication: Non-indicating
- Approvals: CE, RoHS, UL Listed, IEC
170M1310 BUSSMANN Semiconductor Fuse.
-
REQUEST A QUOTE
- Current Rating: 25 A
- Voltage Rating: 690 V AC (IEC) / 700 V AC (UL)
- Interrupting Rating: 200 kA
- Utilization Category / Class: gR (general purpose semiconductor protection)
- Body Size / Type: Size 000 square body (Dimensions approx. 21mm W x 40mm H x 100mm L)
- Mounting Style: DIN 43 620 blade end x blade end (slotted offset bolted tags)
- Indicator: None (Non-indicating)
- Energy Ratings: Pre-arcing I²t: 19; Clearing I²t at 660V: 130
- Watts Loss: 9 W
170M1311 BUSSMANN Semiconductor Fuse.
-

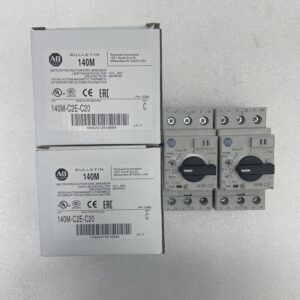

- Manufacturer: AB
- Model / Part Number: 140M-C2E-C20
- Current Adjustment Range: 14.5 to 20 Amps. You can turn a small dial on the front to match your specific motor's full-load current.
- Frame Size: Frame C. This is a standard, compact body style designed to save space inside electrical control panels.
- Trip Class: Class 10. It is designed to cut power within 10 seconds or less if it detects a dangerous overload condition.
- Number of Poles: 3-Pole. Built to handle standard three-phase power systems.
- Mounting Type: 35mm DIN Rail. It easily snaps onto standard metal rails used inside industrial control cabinets.
- Operation Style: Rotary Handle. It uses a turn-knob pointer that clearly points to ON, OFF, or TRIP statuses.
- Thermal Protection (Overload): If the motor is working too hard and gets too hot, the internal bimetal strip bends over time and cuts the power.
- Magnetic Protection (Short Circuit): If a short circuit happens, a magnetic trip instantly cuts power to prevent electrical fires or explosions. It trips instantly at 13 times the rated current.
- Phase Loss Protection: It monitors the electricity coming in. If one of the three power lines drops out, it shuts down to prevent the motor from burning itself out.
-
REQUEST A QUOTE

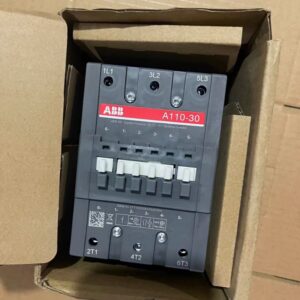

- Manufacturer: ABB
- Model / Part Number: A110-30-11 110VAC
- Contact Current Rating: 110 A (AC-3 load rating for 3-phase motors)
- Pole Configuration: 3 Normally Open (NO) main power contacts
- Auxiliary Contacts: 1 NO and 1 Normally Closed (NC) built-in contact block for control circuitry logic
- Control Voltage: 110V 50Hz / 110V–120V 60Hz AC coil
- Mounting Options: Standard DIN Rail or flat back-panel mount
ABB A110-30-11 110VAC Contactor. Key specifications include Contact Current Rating: 110 A (AC-3 load rating for 3-phase motors); Pole Configuration: 3 Normally Open (NO) main power contacts; Auxiliary Contacts: 1 NO and 1 Normally Closed (NC) built-in contact block for control circuitry logic; Control Voltage: 110V 50Hz / 110V–120V 60Hz AC coil.
-
REQUEST A QUOTE
- Manufacturer: ABB (A-Line Series)
- Number of Poles: 3 Power Poles (3NO) + 2 Auxiliary (1NO / 1NC)
- Coil Voltage: 110V AC @ 50Hz / 110V–120V AC @ 60Hz
- Amperage Rating: 130 A (NEMA / AC-3 operation)
- Maximum Voltage: 690V AC / 1000V AC Insulation
- Horsepower (HP) Ratings: 208V: 40 HP | 240V: 50 HP | 480V: 100 HP | 600V: 125 HP
- Dimensions: 111.5 mm (W) x 196 mm (H) x 160 mm (D) / 4.39" x 7.71" x 6.30"
- Net Weight: 2.9 kg / 6.39 lbs
ABB A145-30-11 110V Magnetic Contactor (A Series).
-
REQUEST A QUOTE

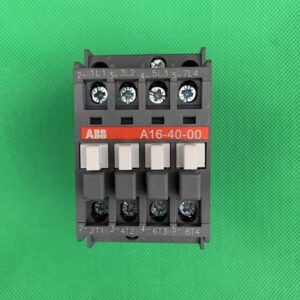

- Manufacturer: ABB
- Model / Part Number: A16-40-00 110V
- Control Coil Voltage: 110V AC at 50Hz / 110V–120V AC at 60Hz
- Main Poles: 4 Normally Open (4 N.O.)
- Auxiliary Contacts: 0 built-in (40-00 denotes 4 main power poles, 0 N.O. auxiliary, and 0 N.C. auxiliary). Front or side-mounted auxiliary blocks can be added.
- Current Rating: 30 A (AC-1 / General Purpose) or 17 A (AC-3 motor control load).
- Mounting Type: Snap-on 35mm DIN Rail or traditional Panel Mount.
ABB A16-40-00 110V Contactor. Key specifications include Control Coil Voltage: 110V AC at 50Hz / 110V–120V AC at 60Hz; Main Poles: 4 Normally Open (4 N.O.); Auxiliary Contacts: 0 built-in (40-00 denotes 4 main power poles, 0 N.O. auxiliary, and 0 N.C. auxiliary). Front or side-mounted auxiliary blocks can be added; Current Rating: 30 A (AC-1 / General Purpose) or 17 A (AC-3 motor control load).
-
REQUEST A QUOTE
- Product Identification: Model: OS800D03P | ID: 1SCA022825R4880
- Poles & Configuration: 3-Pole (3 Fuses); Position of line terminals: Top In – Bottom Out
- Voltage Ratings: Insulation
- Short-Circuit Capacity: Conditioned Rated Short-Circuit Current
- Fuse Compatibility: DIN-Type Size 3 (NH3 fuses)
- Operation Mechanism: Front-operated mechanism located at the end of the switch (Left side / "03" position)
- Physical Dimensions: Width: 343 mm | Height: 306 mm | Depth: 233 mm (Net Weight: 13.5 kg / 29.76 lbs)
- Environmental Standards: Protection Class: IP20 (Front Side) | RoHS Compliant: Yes
- Pistol Handle: Typically packaged with an OHB175J12 or OHB145J12 pistol-grip handle.
- Operating Shaft: Includes an OXP12X280 extended shaft (12 mm diameter, 280 mm length) to clear standard panel depths.
ABB OS800D03P Switch Fuse (OS Series).
-
REQUEST A QUOTE
- Number of Poles: 3-Pole
- Power Loss: 3.2 W per pole
- Mechanical Durability: 20,000 cycles
- Terminal Type: Lug terminals (Terminal Bolt Kit included)
- Standards: IEC 60947-3
- Handle: Black IP65-rated selector pistol handle (Model: OHB65J6), which is padlockable in the "OFF" position for Lockout/Tagout (LOTO) safety compliance.
- Shaft: Extended selector shaft (Model: OXP6X210).
- Hardware: M12 × 50mm connection bolt kit.
- Emergency & Maintenance Isolation: Allows plant operators to isolate powerful downstream equipment cleanly under full load conditions.
- Lockout/Tagout (LOTO): The pistol handle features built-in padlock holes ensuring a technician can physically lock out the panel during system service to prevent accidental restarts.
ABB OT160EV03P Switch Disconnector (OT Series).
-
REQUEST A QUOTE
- Number of Poles: 3-Pole (3P)
- Amperage / Current Rating: 16 A (IEC) / 20 A (UL 508 standard)
- Transition Type: Open Transition (Break-before-make design ensures the connection to the primary power source is fully broken before connecting to the secondary source, preventing hazardous backfeeding).
- Contact Position Indication: I-O-II (Source 1 – OFF – Source 2)
- Mounting Configuration: Base mounting or standard DIN rail mounting
- Terminal Type: Protected clamp/screw terminals providing IP20 finger-safe protection.
- Dimensions: 68 mm H x 70 mm W x 68 mm D (2.68" x 2.76" x 2.68")
- Flexible Mechanics: The switch mechanism is front-operated and mounted directly on top of the device, making it highly accessible inside compact control panels.
ABB OT16F3C Manual Change-Over Switch (SwitchLine OT).
-
REQUEST A QUOTE

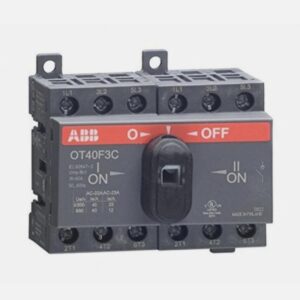

- Manufacturer: ABB
- Model / Part Number: OT40F3C
- Current Rating: 40 A
- Number of Poles: 3-Pole
- Voltage Rating: 600 VAC (UL) / 750 VAC (IEC)
- Horsepower Ratings: 10 hp @ 240 VAC, 20 hp @ 480 VAC, 25 hp @ 600 VAC
- Mounting Type: DIN Rail or Base Panel Mount
- Terminal Type: Protected Clamp/Screw Terminals
- Transition Type: Open Transition (Break-Before-Make)
- Compliances: UL 508, IEC 60947-3, CSA C22.2
ABB OT40F3C: Current Rating 40 A; Number of Poles 3-Pole; Voltage Rating 600 VAC (UL) / 750 VAC (IEC); Horsepower Ratings 10 hp @ 240 VAC, 20 hp @ 480 VAC, 25 hp @ 600 VAC.
-
REQUEST A QUOTE

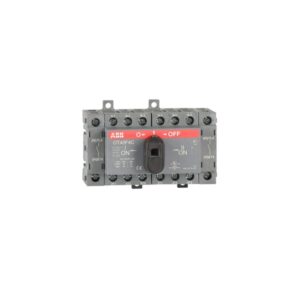

- Manufacturer: ABB
- Model / Part Number: OT40F4C
- Current & Voltage: Rated operational current of 40 A across an operational voltage up to 750 V AC.
- Configuration: 4 Poles. Line terminals feature a standard Top-In / Bottom-Out orientation.
- Mounting Type: Dual capability supporting standard DIN Rail mount or traditional base mounting inside panels.
- Enclosure Rating: Built-in IP20 finger-safe terminal protection.
- Dimensions & Weight: Measures 96 mm width × 68 mm height × 68 mm depth and weighs approximately 0.27 to 0.31 kg.
- Standards: Fully compliant with UL 98, CSA, and IEC 60947-3 for industrial automation safety.
ABB OT40F4C Switch Disconnector. Key specifications include Current & Voltage: Rated operational current of 40 A across an operational voltage up to 750 V AC.; Configuration: 4 Poles. Line terminals feature a standard Top-In / Bottom-Out orientation.; Mounting Type: Dual capability supporting standard DIN Rail mount or traditional base mounting inside panels.; Enclosure Rating: Built-in IP20 finger-safe terminal protection..
-
REQUEST A QUOTE

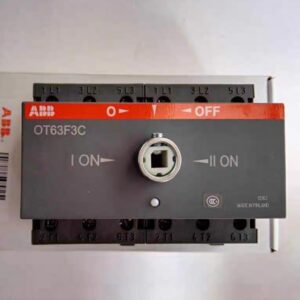

- Manufacturer: ABB
- Model / Part Number: OT63F3C
- Current Rating: 63 A (IEC) / 60 A (UL)
- Voltage Rating: 750 V AC (Operational/Insulation) / 600 V AC (UL)
- Number of Poles: 3
- Power Rating: 15 hp / 30 hp; up to 22 kW at 400 V
- Mounting Type: DIN Rail or Base / Panel Mounting
- Enclosure Rating: IP20 (finger-proof safety)
- Dimensions: 92 mm H x 105 mm W x 85 mm D
ABB OT63F3C: Current Rating 63 A (IEC) / 60 A (UL); Voltage Rating 750 V AC (Operational/Insulation) / 600 V AC (UL); Number of Poles 3; Power Rating 15 hp / 30 hp; up to 22 kW at 400 V.
-
REQUEST A QUOTE
- Manufacturer: ALLEN-BRADLEY
- Model / Part Number: 100-C12EJ10
- Amperage Rating: 12 A at 400V (AC-3), 32 A at 400V (AC-1), and a 12 A thermal current rating.
- Power & Horsepower Ratings: 5.5 kW at 400V AC-3. It is rated for 3 HP at 230V and 7.5 HP at 460V for 3-phase motor loads.
- Coil Voltage: 24V DC Electronic Coil (low power consumption, drawing roughly 1.7 W hold-in power).
- Contact Configuration: 3 Normally Open (N.O.) main power poles plus 1 N.O. integrated auxiliary contact.
- Termination & Mounting: Screw-type terminals with line side coil termination. Supports base panel mounting or installation on standard 35 mm DIN rails.
- Physical Protection: IP20 / IP2X finger protection.
- Environmental Limits: Operational range between -25°C and +60°C.
- Dimensions: 81 mm Height × 45 mm Width × 86.5 mm Depth; weighs approximately 0.4 kg.
- Compliance Standards: Certifications include UL, cUL, CSA, CE, CCC, C-TICK, GOST, and KC. It conforms to IEC/EN 60947-4-1 and 60947-5-1.
-
- Manufacturer: Allen-Bradley
- Model / Part Number: 100-C30D00
- Catalog description: 100-C IEC Contactor, screw terminals, line side, 30 A, 0 N.O. 0 N.C. auxiliary contact configuration, single pack
- Maximum load current: 30 A
- Auxiliary contact configuration: No contact configuration (0 N.O. / 0 N.C.)
- Options: Single pack
- Sub-brand: IEC
- Lifecycle status: Active
-
REQUEST A QUOTE
- Manufacturer: ALLEN-BRADLEY
- Model / Part Number: 100-D180D11
- Current Rating: 180 Amperes continuous current.
- Coil Voltage: Conventional AC operating coil rated for 110V AC at 50 Hz / 120V AC at 60 Hz.
- Power Ratings: Capable of handling motors up to 60 HP at 230V, 150 HP at 460V, or structural loads up to 101 kW.
- Auxiliary Contacts: Built-in configuration with 1 NO (Normally Open) + 1 NC (Normally Closed) contacts.
- Design & Mounting: Non-reversing type, open-style construction engineered for direct panel mounting with screw-type terminals.
-
- Manufacturer: Allen-Bradley
- Model / Part Number: 140M-C2E-B16
- Product type: Motor protection circuit breaker (MPCB), Bulletin 140M, C-frame, screw terminals
- Rated operational current Ie: 1.6 A
- Motor current adjustment range: 1.0…1.6 A
- Magnetic trip current: 21 A (fixed short-circuit release, 13…14 x Ie max.)
- Number of poles: 3
- Rated operating voltage, max.: 690 V AC per IEC (SEV, VDE 0660); 600 V AC class per UL
