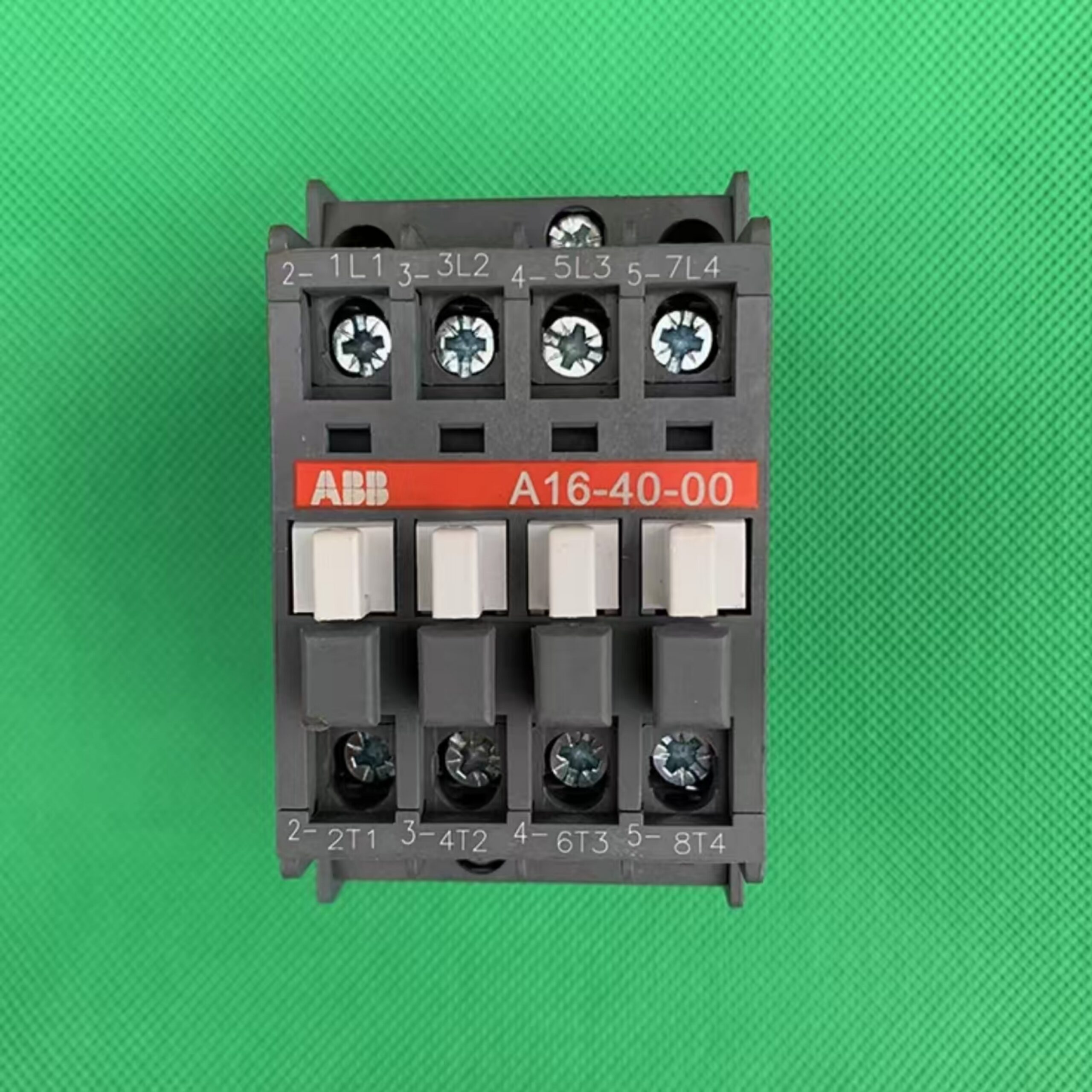

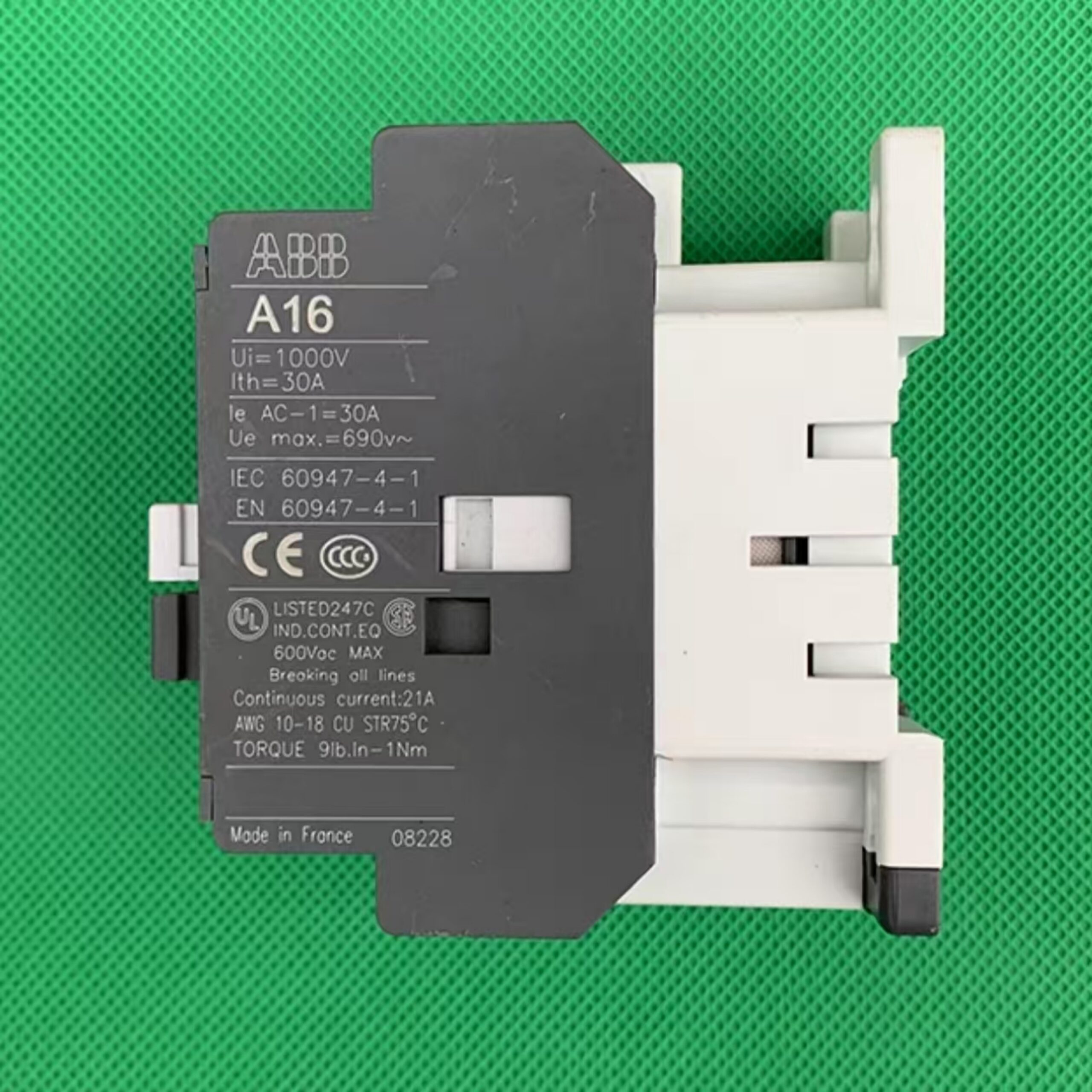

ABB A16-40-00 110V Contactor

Manufacturer: ABB
Model / Part Number: A16-40-00 110V

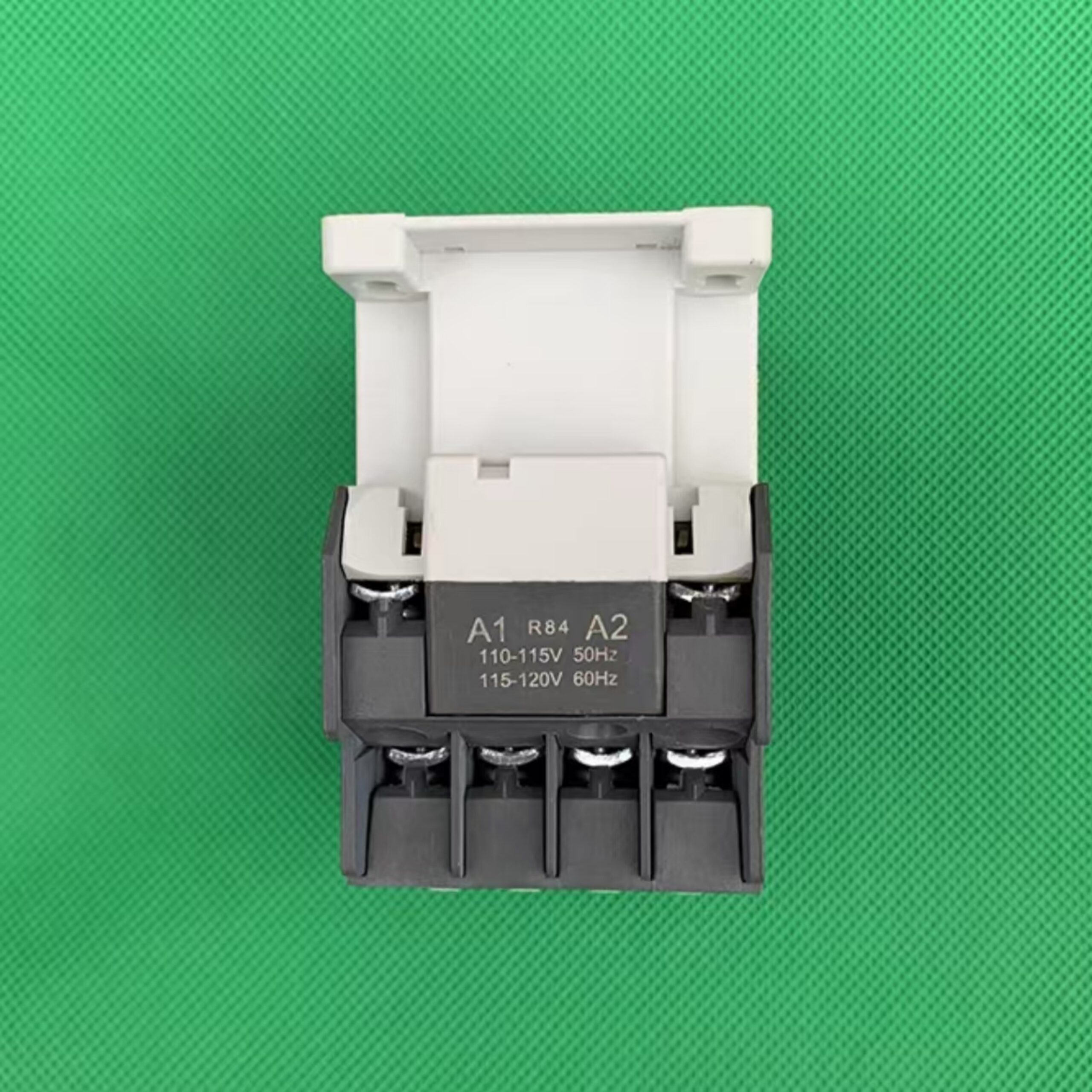

Control Coil Voltage: 110V AC at 50Hz / 110V–120V AC at 60Hz
Main Poles: 4 Normally Open (4 N.O.)
Auxiliary Contacts: 0 built-in (40-00 denotes 4 main power poles, 0 N.O. auxiliary, and 0 N.C. auxiliary). Front or side-mounted auxiliary blocks can be added.
Current Rating: 30 A (AC-1 / General Purpose) or 17 A (AC-3 motor control load).
Mounting Type: Snap-on 35mm DIN Rail or traditional Panel Mount.

ABB A16-40-00 110V Contactor. Key specifications include Control Coil Voltage: 110V AC at 50Hz / 110V–120V AC at 60Hz; Main Poles: 4 Normally Open (4 N.O.); Auxiliary Contacts: 0 built-in (40-00 denotes 4 main power poles, 0 N.O. auxiliary, and 0 N.C. auxiliary). Front or side-mounted auxiliary blocks can be added; Current Rating: 30 A (AC-1 / General Purpose) or 17 A (AC-3 motor control load).

Availability & Delivery

Availability shown is for reference only and will be confirmed at the time the order is processed.
Published quantities may change without prior notice.
The customer is responsible for verifying part number and specifications before confirming the purchase.
Certain products may be considered special order items depending on availability.
