Showing 1–16 of 30 results
-
REQUEST A QUOTE
- Manufacturer: CAREL Industries
- Model Number: BL0T3C00H0 (also written as BLOT3C00H0)
- Type: Disposable (Single-use), 3-Phase Immersed Electrode
- Max Steam Capacity: 15 kg/h to 18 kg/h (Commonly categorized as a 15KG class unit)
- Max Water Volume: 9.8 liters (2.59 gallons)
- Body Material: Polypropylene homopolymer (PPh) plastic; Flame retardant Class HB (UL94)
- Electrodes: Galvanized steel
- Steam Outlet Connection: ∅ 30 mm (1.18 in)
- Manifold Connection: ∅ 22 mm (0.87 in)
- Electrical Connections: Threaded M6; supplied with 10 mm nuts and isolating caps
CAREL BL0T3C00H0 Steam Cylinder (BL0T Series).
-
REQUEST A QUOTE
- Power Supply: 8 to 30 VDC or 12 to 24 VAC
- Temperature Sensor Range: -10 °C to +60 °C (14 °F to 140 °F)
- Temperature Output: Passive CAREL NTC Resistive
- Humidity Sensor Range: 10% to 90% rH
- Humidity Output: 0 to 1 VDC or 4 to 20 mA
- Measurement Accuracy: ±1.2 °C (Temp) / ±3% rH (Humidity)
- Protection Rating: IP30
- Dimensions & Housing: 127 x 80 x 30 mm
- Temperature Circuit: Acts as a standard active CAREL NTC thermistor. Resistance decreases as temperature rises according to the default CAREL curve.
- Humidity Circuit: The relative humidity sensor translates 10–90% rH linearly into either a small DC voltage (0 to 1V) or an industrial loop current (4 to 20mA) depending on how you configure the hardware jump links during installation.
CAREL DPWC111000 Temperature and Humidity Sensor (DPWC Series).
-
REQUEST A QUOTE
- Part Number Variant: E2V24BSF00 (Replaces the multi-pack OEM number E2V24BSF01).
- Connection Size: 12mm x 12mm (Copper ODF connection).
- Actuator Design: Equipped with a stepper motor that provides an equipercentile variation of refrigerant flow, ensuring highly accurate control even at very low flow rates.
- Tight Sealing: Features a Teflon gasket on the actuator and a calibrated spring, eliminating the need for an additional liquid-line solenoid valve.
- Compatibility: Wirelessly or natively supported by Carel controllers like the EVD EVO, MPXPRO, and pCO5 series.
- FrigoPartners: Listed at €149.11 under product number 47-32E2V24BSF00.
CAREL E2V24BSF00 Electronic Expansion Valve (E2V Series).
-
REQUEST A QUOTE
- Manufacturer & Model: CAREL — EVD0000E50 (EVD Evolution Series)
- Communication Interface: RS485 / Modbus® (Built-in serial protocol)
- Valve Compatibility: CAREL Stepper Motor Valves Only (e.g., ExV series)
- Power Supply: 24 Vac (+10/-15%), 50/60 Hz; or 24 Vdc (+10/-15%)
- Transducer Output / Inputs: 4 to 20 mA or low-power ratiometric pressure transducers
- Digital Inputs: 2 programmable digital inputs (e.g., for safety, external enable, or defrost)
- Relay Output: N.O. Contact; 5 A (resistive) / 2 A (inductive) @ 250 Vac
- Physical Housing: DIN Rail Mounting; Plastic; IP20 protection rating
- Superheat Regulation: Seamlessly acts as a standalone sensor controller adjusting the valve position based on pressure and temperature readings.
- Low Superheat Protection (LSH): Prevents liquid floodback to the compressor by rapidly closing the valve if superheat drops below safe limits.
CAREL EVD0000E50 Electronic Expansion Valve Driver (EVD Evolution Series).
-
REQUEST A QUOTE
- Device Type: Remote User Interface Terminal / Display
- Compatibility: CAREL MPXPRO Controller Series
- Visual Indicators: Green LED Display
- Input Interface: Integrated tactile keypad
- Audio Alerts: Internal buzzer for alarms and key feedback
- Connectivity: Commissioning port (for rapid setup & configurations)
- Wireless Support: Built-in Infrared (IR) sensor for compatible devices
- Weight: 0.05 lbs (Approx. 22.7 grams)
- Remote Monitoring & Control: Serves as the primary physical interaction panel for sub-case parameters, allowing real-time viewing of temperatures and operational status without accessing the main controller hub.
- System Commissioning: Features a dedicated commissioning port enabling technicians to rapidly upload, download, or alter complex parameter maps during installation or servicing.
CAREL IR00UGC300 Remote User Interface Terminal (MPXPRO Series).
-
REQUEST A QUOTE
- Supply Voltage: 12 → 24 V ac/dc
- Input Type: Voltage Input (0.5 → 1 V range)
- Front Dimensions: 75 × 33 mm (2.95 × 1.30 in)
- Panel Depth: 72 mm (2.83 in)
- Operating Temperature: 0°C → +50°C (32°F → 122°F)
- Control Action: On/Off Controller
- Replacement Specs: The upgrade model features 2 multi-inputs and 2 relay outputs operating on 24 Vac/dc power.
CAREL IR32W40000 Digital Temperature Controller (IR32 Series).
-
REQUEST A QUOTE
- Outputs: 4 SSR (Solid State Relay) outputs, ideal for rapid cycling applications.
- Inputs: 2 Analog inputs supporting NTC, PTC, or PT1000 temperature sensors.
- Digital Inputs: 2 Digital inputs for external switch or alarm triggers.
- Power Supply: Low voltage operation accommodating 12 to 24 V AC or 12 to 30 V DC.
- Form Factor: Panel-mount design measuring standard 76.2 x 34.2mm front dimensions.
- Interface Features: Built-in internal buzzer for audible alarms and an infrared (IR) receiver for remote control compatibility.
- ST: Temperature Set Point
- RD: Temperature Differential (Hysteresis)
CAREL IR33A7LR20 Universal Electronic Controller (IR33 Series).
-

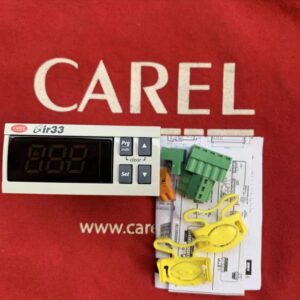

- Manufacturer: Carel
- Model / Part Number: IR33B7LR20
- Outputs: Equipped with 1 relay output and 1 analog 0-10 V output for proportional or modulating control.
- Power Supply: Operates on low-voltage configurations, compatible with 12–24 VAC (50/60 Hz) or 12–30 VDC.
- Universal Inputs: Supports multiple probe types including NTC, NTC-HT, PTC, PT1000, PT100, TC J/K, as well as direct voltage and current signals.
- User Interface: Compact panel-mount design featuring a large digital display with icons, plug-in screw terminals, an integrated alarm horn, and an infrared (IR) receiver for remote control operation.
- Control Features: Built-in PID autotuning capabilities and dual independent control loops.
-

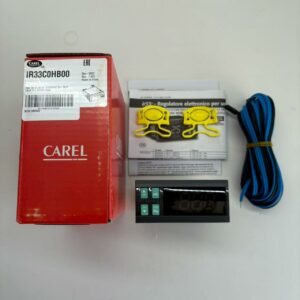

- Manufacturer: CAREL
- Model / Part Number: IR33C0HB00
- Power Supply: 115 to 230 V AC (50/60 Hz).
- Compressor: 1 x 16 A relay.
- Defrosting: 1 x 8 A relay.
- Evaporator Fans: 1 x 8 A relay.
- Auxiliary/Light: 1 x 8 A relay.
- Inputs: 2 NTC temperature probes (not included) and 2 configurable digital inputs.
- Temperature Range: Reads NTC sensors from -50°C to +150°C.
- Dimensions: Front face measures 76 x 34 mm, with a standard 71 x 29 mm panel cutting template.
-

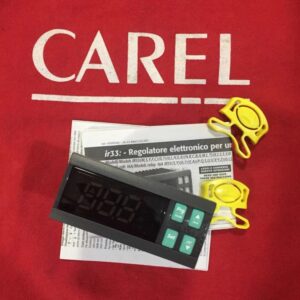

- Manufacturer: CAREL
- Model / Part Number: IR33C0HB0M
- Power Supply: 115 VAC (±10%), 50/60 Hz
- Relay Outputs: 3 configurable relays
- Sensor Inputs: 1 or 2 NTC thermistor probe inputs
- Display: Bright red, 3-digit LED display for temperature monitoring
- Ingress Protection: IP65-rated front panel (dust-tight and water-resistant); IP20-rated rear
-

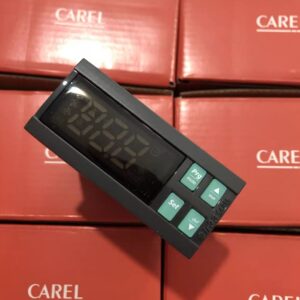

- Manufacturer: CAREL
- Model / Part Number: IR33C0LR00
- Power Supply: Operates on a 12 to 24 VAC (or VDC) electrical supply.
- Outputs: Equipped with 4 relay outputs to manage various parts of a cooling unit.
- Inputs: Includes 2 NTC sensor probe inputs to accurately monitor room and defrost temperatures.
- Display & Build: Features a clear, green or red digital display, a built-in alarm buzzer, and an IP65 waterproof rating for the front panel.
-

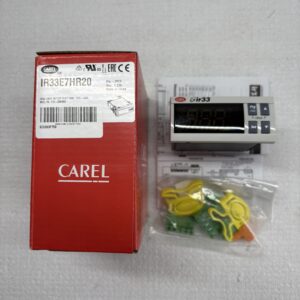

- Manufacturer: CAREL
- Model / Part Number: IR33E7HR20
- Controller Type: Digital temperature controller
- Sensor Inputs: Thermocouple and RTD
- Control Modes: ON/OFF and PID
-

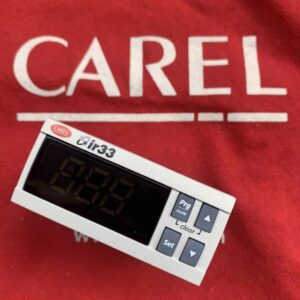

- Manufacturer: CAREL
- Model / Part Number: IR33E7LR20
- Power Supply: Operates on 12 to 24 VAC (50/60Hz) or 12 to 30 VDC.
- Built-in Features: Includes an internal buzzer for local audible alarms and an infrared (IR) sensor for quick wireless setup via remote control.
- LR: Denotes the low-voltage power supply requirement (12–24 VAC / 12–30 VDC).
-
- Manufacturer: CAREL
- Model / Part Number: IR33F0AHA0（115V）
- Supply Voltage: 115 VAC
- Sensor Inputs: 2 NTC temperature inputs
- Digital Inputs: 1 digital input
- Output Relay Capacity: 2 HP
-

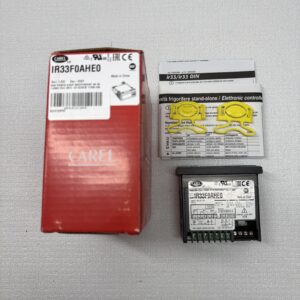

- Manufacturer: CAREL
- Model / Part Number: IR33F0AHE0
- Power Supply: 115 VAC
- Relay Outputs: Features powerful internal relays, including a 3/4 HP compressor relay, alongside 8A and 5A independent relays for controlling peripheral gear like fans or defrost cycles.
- Inputs: Equipped with 2 NTC sensor inputs for highly accurate dual-point temperature monitoring and 1 digital input (DI) for system safety switches or door alerts.
- Connection Type: Secure screw terminals for heavy-duty field wiring.
- Built-in Alerts: Includes an integrated buzzer for real-time error or high-temperature notifications.
- Global Certifications: Fully compliant with CE and UL international safety standards.
-

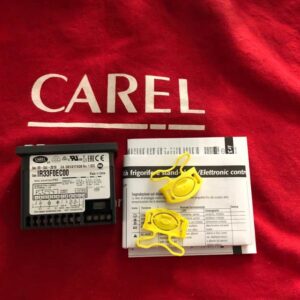

- Manufacturer: CAREL
- Model / Part Number: IR33F0EC00
- Power Supply: 230 Vac
- Inputs: 2 NTC or PTC probe sensors, plus 1 Digital Input (DI)
- Relay Outputs: Three distinct relays to power system components:
- Compressor Control: 8 A relay
- Defrost Control: 8 A relay
- Evaporator Fan Control: 5 A relay
- Terminal Type: Green screw terminals for wiring connections
- Visual Display: Features a bright LED interface showing current temperature, operational symbols, and system codes.
- Built-in Protection: The front panel is built for panel-mounting with an IP65 water-resistance rating.
- Audio Alerts: Features an integrated internal buzzer to flag system alarms or errors.
