CAREL DPWC111000 Temperature and Humidity Sensor (DPWC Series)

• Power Supply: 8 to 30 VDC or 12 to 24 VAC
• Temperature Sensor Range: -10 °C to +60 °C (14 °F to 140 °F)
• Temperature Output: Passive CAREL NTC Resistive
• Humidity Sensor Range: 10% to 90% rH
• Humidity Output: 0 to 1 VDC or 4 to 20 mA
• Measurement Accuracy: ±1.2 °C (Temp) / ±3% rH (Humidity)
• Protection Rating: IP30
• Dimensions & Housing: 127 x 80 x 30 mm
• Temperature Circuit: Acts as a standard active CAREL NTC thermistor. Resistance decreases as temperature rises according to the default CAREL curve.
• Humidity Circuit: The relative humidity sensor translates 10–90% rH linearly into either a small DC voltage (0 to 1V) or an industrial loop current (4 to 20mA) depending on how you configure the hardware jump links during installation.

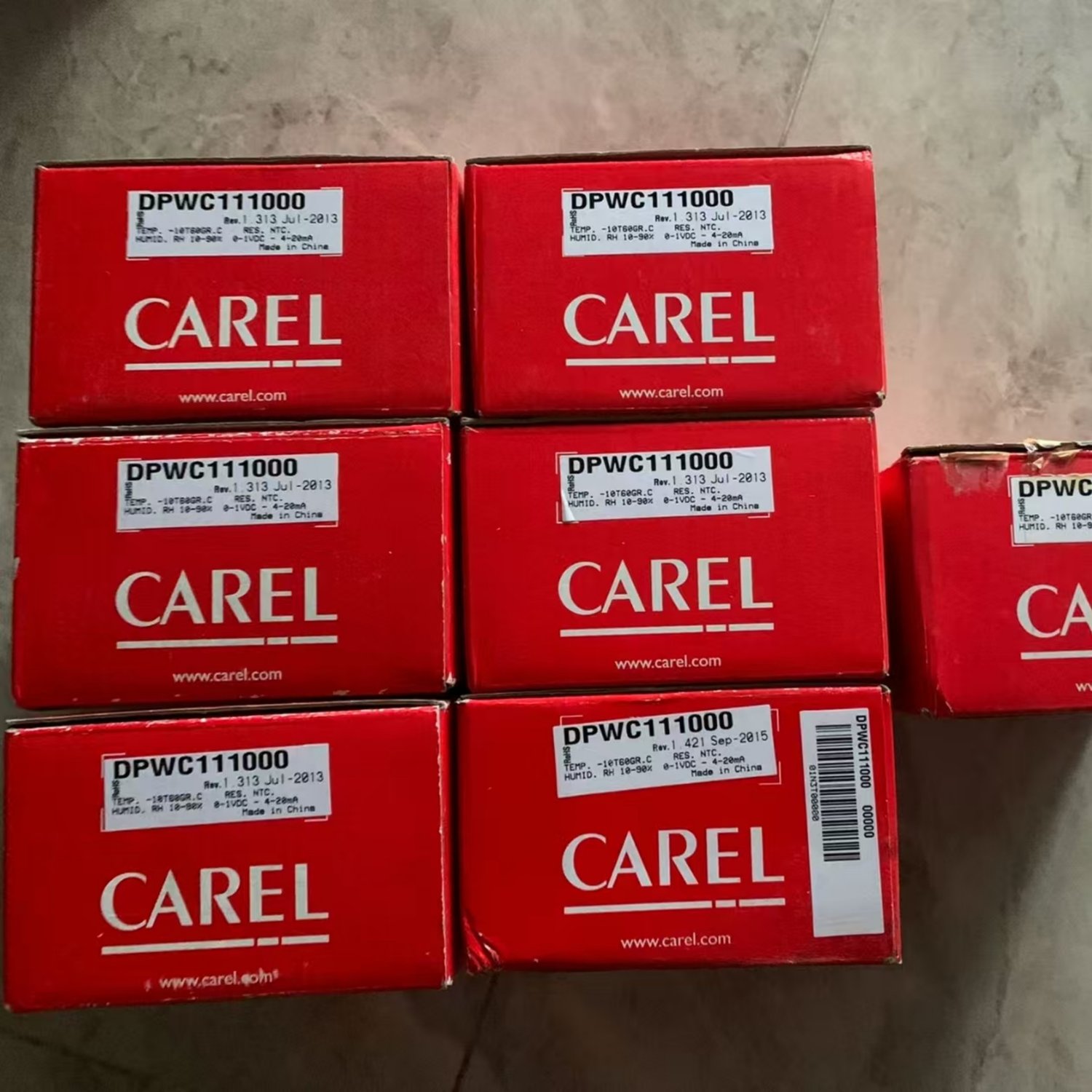

Brand New CAREL DPWC111000 Temperature Controller. In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
