- Manufacturer: CAREL Industries
- Model Number: BL0T3C00H0 (also written as BLOT3C00H0)
- Type: Disposable (Single-use), 3-Phase Immersed Electrode
- Max Steam Capacity: 15 kg/h to 18 kg/h (Commonly categorized as a 15KG class unit)
- Max Water Volume: 9.8 liters (2.59 gallons)
- Body Material: Polypropylene homopolymer (PPh) plastic; Flame retardant Class HB (UL94)
- Electrodes: Galvanized steel
- Steam Outlet Connection: ∅ 30 mm (1.18 in)
- Manifold Connection: ∅ 22 mm (0.87 in)
- Electrical Connections: Threaded M6; supplied with 10 mm nuts and isolating caps
Brand New CAREL BL0T3C00H0 Temperature Controller. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Power Supply: 8 to 30 VDC or 12 to 24 VAC
- Temperature Sensor Range: -10 °C to +60 °C (14 °F to 140 °F)
- Temperature Output: Passive CAREL NTC Resistive
- Humidity Sensor Range: 10% to 90% rH
- Humidity Output: 0 to 1 VDC or 4 to 20 mA
- Measurement Accuracy: ±1.2 °C (Temp) / ±3% rH (Humidity)
- Protection Rating: IP30
- Dimensions & Housing: 127 x 80 x 30 mm
- Temperature Circuit: Acts as a standard active CAREL NTC thermistor. Resistance decreases as temperature rises according to the default CAREL curve.
- Humidity Circuit: The relative humidity sensor translates 10–90% rH linearly into either a small DC voltage (0 to 1V) or an industrial loop current (4 to 20mA) depending on how you configure the hardware jump links during installation.
Brand New CAREL DPWC111000 Temperature Controller. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE

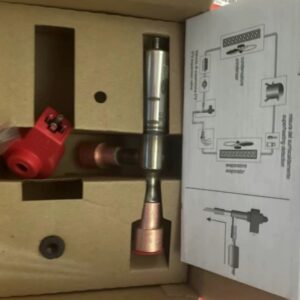

- Part Number Variant: E2V24BSF00 (Replaces the multi-pack OEM number E2V24BSF01).
- Connection Size: 12mm x 12mm (Copper ODF connection).
- Actuator Design: Equipped with a stepper motor that provides an equipercentile variation of refrigerant flow, ensuring highly accurate control even at very low flow rates.
- Tight Sealing: Features a Teflon gasket on the actuator and a calibrated spring, eliminating the need for an additional liquid-line solenoid valve.
- Compatibility: Wirelessly or natively supported by Carel controllers like the EVD EVO, MPXPRO, and pCO5 series.
- FrigoPartners: Listed at €149.11 under product number 47-32E2V24BSF00.
Brand New CAREL E2V24BSF00 Temperature Controller. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE

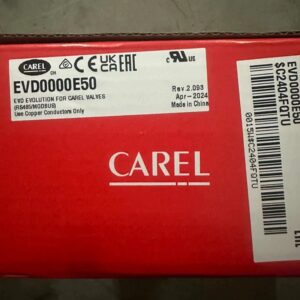

- Manufacturer & Model: CAREL — EVD0000E50 (EVD Evolution Series)
- Communication Interface: RS485 / Modbus® (Built-in serial protocol)
- Valve Compatibility: CAREL Stepper Motor Valves Only (e.g., ExV series)
- Power Supply: 24 Vac (+10/-15%), 50/60 Hz; or 24 Vdc (+10/-15%)
- Transducer Output / Inputs: 4 to 20 mA or low-power ratiometric pressure transducers
- Digital Inputs: 2 programmable digital inputs (e.g., for safety, external enable, or defrost)
- Relay Output: N.O. Contact; 5 A (resistive) / 2 A (inductive) @ 250 Vac
- Physical Housing: DIN Rail Mounting; Plastic; IP20 protection rating
- Superheat Regulation: Seamlessly acts as a standalone sensor controller adjusting the valve position based on pressure and temperature readings.
- Low Superheat Protection (LSH): Prevents liquid floodback to the compressor by rapidly closing the valve if superheat drops below safe limits.
Brand New CAREL EVD0000E50 Temperature Controller. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Device Type: Remote User Interface Terminal / Display
- Compatibility: CAREL MPXPRO Controller Series
- Visual Indicators: Green LED Display
- Input Interface: Integrated tactile keypad
- Audio Alerts: Internal buzzer for alarms and key feedback
- Connectivity: Commissioning port (for rapid setup & configurations)
- Wireless Support: Built-in Infrared (IR) sensor for compatible devices
- Weight: 0.05 lbs (Approx. 22.7 grams)
- Remote Monitoring & Control: Serves as the primary physical interaction panel for sub-case parameters, allowing real-time viewing of temperatures and operational status without accessing the main controller hub.
- System Commissioning: Features a dedicated commissioning port enabling technicians to rapidly upload, download, or alter complex parameter maps during installation or servicing.
Brand New CAREL IR00UGC300 Temperature Controller. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Supply Voltage: 12 → 24 V ac/dc
- Input Type: Voltage Input (0.5 → 1 V range)
- Front Dimensions: 75 × 33 mm (2.95 × 1.30 in)
- Panel Depth: 72 mm (2.83 in)
- Operating Temperature: 0°C → +50°C (32°F → 122°F)
- Control Action: On/Off Controller
- Replacement Specs: The upgrade model features 2 multi-inputs and 2 relay outputs operating on 24 Vac/dc power.
