- I/O Capacity: Provides 10 total I/O points.
- Digital Inputs: Includes 6-point inputs running on a 24 V DC operating voltage.
- Digital Outputs: Includes 4-point relay outputs.
- Programming & Software: Fully compatible with GMWIN software and supports standardized ladder logic configuration.
- Installation: Designed for industrial environments with flexible DIN rail or panel mounting options.
LS G7E-DR10A Digital I/O Expansion Module (GM7 Series).
-
REQUEST A QUOTE
- Manufacturer: LS Electric (LG Industrial Systems)
- Model / MPN: GMC-75 AC110V
- Main Contacts: 3-Pole, Normally Open (3NO)
- Control Coil Voltage: 110V AC (Narrow range, typical tolerance ±10%)
- Installation Profile: 35mm DIN Rail or traditional screw back-plate mounting
- The Official Active Drop-In: LS Electric officially mandates the Metasol MC-75a as the active structural and electrical replacement for legacy GMC-75 models.
- Dimensions & Alignment: The modern Metasol alternative features identical terminal behaviors but boasts updated finger-proof housing designs and physical body parameters (94mm Width × 140mm Height × 137mm Depth).
- Verify Control Voltage Stability: Use a digital multimeter to measure your 110V control bus under full load conditions. Standard 110V AC coils can drop out or buzz severely if the voltage sags below 85% of nominal.
- Thermal Overload Matching: If reusing an existing bimetallic thermal overload relay, ensure the pin configuration aligns properly with the base terminals of the replacement contactor.
- Torque Validation: Always torque structural main electrical power terminals to the factory specified rating to mitigate regional hot spots and high contact resistance over intensive duty cycles.
LS GMC-75 AC110V AC Contactor (GMC Series).
-
- Manufacturer: LS
- Model / Part Number: K4P-15AS
- Processing Speed: It executes basic instructions at 0.2 microseconds (μs) per step, making it fast enough for real-time machine adjustments.
- Memory Capacity: Features a program memory of 15k steps to store complex automation rules and logic.
- Input/Output (I/O) Capacity: Can support up to 1,024 total I/O connection points to read data from sensors and send commands to motors or valves.
- System Expandability: Allows for a maximum of 3 expansion stages and can mount on base racks featuring 4, 6, 8, or 12 slots.
- Built-in Troubleshooting: Includes self-diagnostic safety tools like a Watchdog Timer and sensors for tracking memory errors, battery health, and power issues.
-
REQUEST A QUOTE
- Series / Platform: MASTER-K120S
- Power Supply: 100–240 V AC (±10%), 50/60 Hz (Power consumption: ~55 VA)
- Total I/O Points: 20 Points
- Digital Inputs: 12 Points (24V DC, 7mA rated input)
- Digital Outputs: 8 Points (Relay type outputs, rated at 2A 24V DC / 220V AC)
- Processing Speed: 0.1 μs / step
- Program Memory Backup: Battery-free backup; programs automatically save into the EEPROM via supercapacitors
- Built-in Communication: 1x RS-232C channel (CH0) and 1x RS-485 channel (CH1); supports Modbus protocol
- Mounting Type: 35mm DIN Rail Mount
- Discontinued: The K7M-DR20U has been officially discontinued by the manufacturer (LS ELECTRIC / LSIS).
-
- Manufacturer: LS
- Model / Part Number: L7SA020A
- Power Output: 2.0 kW (2000 Watts).
- Output Current: Rated at 13.5 A continuous, with a peak capacity up to 40.5 A.
- Main Power Input: 3-Phase AC 200V to 230V (-15% to +10% fluctuation allowance) at 50/60 Hz.
- Control Power Input: Single-Phase AC 200V to 230V.
- Supported Encoders: Quadrature type incremental line driver (up to 6000 P/R) and high-resolution Serial types (19-bit/20-bit BiSS protocol).
- Frequency Response: Max 1 kHz or above, allowing for highly dynamic response times.
- Control Interfaces: Supports standard Pulse/Direction inputs, Analog voltage commands (-10V to +10V), and built-in RS-422 or USB communication.
- Physical Weight: Approximately 2.43 kg to 2.5 kg (includes built-in cooling fan).
-
REQUEST A QUOTE
- SV (STARVERT): LS Electric Inverter Series.
- Power Output: 0.75 kW / 1 HP
- Input Phase / Voltage: 3-Phase, 380–460 VAC (50/60 Hz)
- Control Method: V/F (Voltage-to-Frequency) Control
- Overload Capacity: 150% of rated current for up to 60 seconds
- Cooling System: Self-cooling design
- Operating Temperature: -10°C to +50°C (Indoor panel mounting)
- Physical Weight: ~1.7 kg (3.7 lbs)
LS SV008IG5-4 Variable Frequency Drive (Starvert iG5).
-
REQUEST A QUOTE
- Maximum Motor Power: 4.0 kW / 5.4 HP
- Input Voltage: 3-Phase 380 ~ 480 V AC
- Output Frequency: 0.1 ~ 400 Hz
- Control Mode: V/f, Sensorless Vector Control
- Input / Output Structure: 8 Digital Inputs, 2 Analog Inputs
- Enclosure Rating: IP20
- SV: STARVERT series (LS Electric VFD product line).
- Width: 140 mm (5.51 in)
- Height: 128 mm (5.04 in)
- Depth: 155 mm (6.10 in)
LS SV040IG5A-4 Variable Frequency Drive (Starvert iG5A).
-
REQUEST A QUOTE
- Manufacturer: LS Electric (formerly LG Industrial Systems)
- Number of Channels: 4 channels (RTD inputs)
- Supported Sensor Types: Pt100 (JIS C1604-1997) and JPt100 (JIS C1604-1981 / KS C1603-1991)
- Wiring Configuration: 2-wire or 3-wire configurations
- Temperature Input Range: -200°C to +600°C (-328°F to 1112°F)
- Conversion Resolution: 14-bit internal resolution (12-bit digital output conversion; 0.1°C accuracy resolution)
- Accuracy: ±0.3% of full scale (at room temperature)
- Sampling Rate: Up to 10 ms per channel
- Physical Connection: Removable screw terminal block included
- Mounting: 35mm DIN Rail mounting
LS XBF-RD04A RTD Input Module (XGB).
-
- Manufacturer: LS

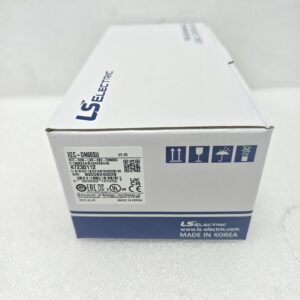

- Model / Part Number: XEC-DN60SU
- Total Built-in I/O: 60 points
- Digital Inputs: 36 points (DC 24V)
- Digital Outputs: 24 points (Transistor, Sink/NPN type)
- Processing Speed: 83ns per step
- Power Supply: AC 100–240V
- Expandability: Up to 284 maximum I/O points
- Dual Communication Channels: Features built-in RS-232C and RS-485 ports.
- Network Protocol Flexibility: Highly compatible with modern automation setups, including Ethernet, EtherNet/IP, Modbus, and CANopen.
- High-Speed Counter: Built-in multi-channel counter for rotary encoders or high-frequency pulses.
- Positioning Control: On-board high-speed pulse outputs to control servo and stepper drives.
-
- Manufacturer: LS

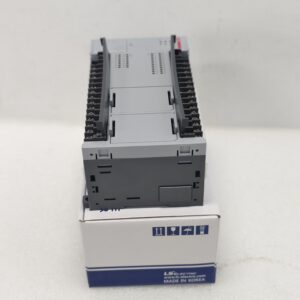

- Model / Part Number: XEC-DR40SU
- Built-in I/O Points: It has 40 total local I/O points.
- Inputs: 24 channels (DC 24V).
- Outputs: 16 channels (Relay outputs).
- Power Supply: Operates on standard AC 100V – 240V power.
- Expandability: It can expand up to 284 total I/O points using additional modules.
- High-Speed Counter: Includes built-in support for reading rapid signals (like rotary encoders) with 8 channels for 1-phase configurations.
-
- Manufacturer: LS

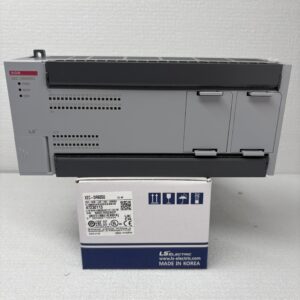

- Model / Part Number: XEC-DR60SU
- XEC Series: Programmed using IEC 61131-3 standard languages, like Structured Text (ST) or IEC-style Ladder Diagram (LD).
- Total Channel I/O Count: 60 points total, providing wide connectivity for a compact brick controller.
- Inputs: 36 points, DC 24V.
- Outputs: 24 points, Relay type (great for switching different voltage types safely).
- Power Supply: Runs on standard 100–240V AC wall power.
- Form Factor: "SU Type" (Standard Unit).
- Expansion Capabilities: You can snap on up to 7 extra expansion modules if you run out of input/output pins.
- Built-in Comms: Comes with RS-232C and RS-485 ports to talk to computers, screens, or other machines.
-
- Manufacturer: LS

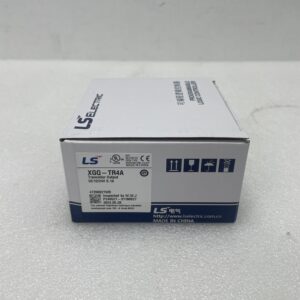

- Model / Part Number: XGQ-TR4A
- Output Type: Transistor output, specifically NPN type (sinking output).
- Capacity: 32 output points (meaning it can send control signals to 32 different connected devices like valves, switches, or lights).
- Voltage Rating: DC 12V / 24V.
- Current Rating: 0.1A per point.
-
REQUEST A QUOTE
- Manufacturer: LS Electric (LSIS)
- Series / Platform: XGT-Panel Series (Micro HMI)
- Display Type: 4.1" Graphic STN grayscale monochrome LCD with LED backlight
- Resolution: 192 x 64 pixels
- Supply Voltage: 24Vdc (Current consumption ≤ 200mA)
- Memory Capacity: 256 KBytes Flash memory (Project data) & 1,000 words System RAM
- Physical Interface: Operator dialogue keypad
- Panel Cutout Size: 141 mm (W) x 87 mm (H) (Note: Some documentation lists an 85 mm height cutout)
- Certifications: CE, cULus Listed, KC
- Supported Protocols: Fully compatible with Master/Slave topologies, Modbus (RTU and ASCII), and LS Electric proprietary frameworks such as MASTER-K Loader/Link (CNET) and GLOFA-GM Loader/Link (CNET).
LS XP10BKB-DC Human-Machine Interface (HMI) (XP Series).
