Showing 1–16 of 49 results
-
REQUEST A QUOTE
- Sensing Type: Diffuse Reflective
- Sensing Distance: 2 meters (Based on non-glossy white paper 200×200mm)
- Control Output: PNP Open Collector
- Operation Mode: Light ON (Note: The BA2M-DDTD-P variant handles Dark ON)
- Power Supply: 12–24 VDC ±10% (Ripple P-P: max. 10%)
- Current Consumption: Max. 15 mA (Max. 30 mA when the output is ON)
- Light Source: Infrared LED (850 nm modulated)
- Response Time: Max. 1.0 ms
- Sensing Target: Opaque and translucent materials
- Hysteresis: Max. 20% at sensing distance
AUTONICS BA2M-DDT-P Diffuse Reflective Photoelectric Sensor (BA2M Series).
-
REQUEST A QUOTE
- Sensing Type: Diffuse Reflective
- Sensing Distance: 100 mm (3.937 in)
- Sensing Target: Opaque, Translucent
- Light Source: Infrared LED (850 nm)
- Power Supply: 12–24 VDC
- Response Time: Max. 1 ms
- Current Consumption: Max. 30 mA
- Control Output: Open Collector
- Operation Mode: Light-ON / Dark-ON
- Protection Circuit: Multi-Protected
AUTONICS BR100-DDT Photoelectric Sensor (BR Series).
-
- Manufacturer: Autonics
- Model / Part Number: BX5M-MFR-T
- Sensing type: Retroreflective type (standard type)
- Sensing distance: 5 m with MS-2 reflector
- Sensing target: Opaque material of min. 60 mm diameter
- Emitter / wavelength: Infrared LED, 850 nm
- Response time: Max. 20 ms
- Power voltage: 24-240 VAC ±10% 50/60 Hz; 24-240 VDC ±10% (ripple P-P max. 10%)
-
The Autonics BX700-DFR is a universal AC/DC photoelectric sensor of the BX Series with a diffuse reflective sensing type and a long 700 mm sensing distance (measured against a 200 x 200 mm non-glossy white paper target). It detects opaque and translucent materials using an infrared LED light source with a 940 nm wavele
-
- Manufacturer: Autonics
- Model / Part Number: BX700-DFR-T
- Sensing type: Diffuse reflective type
- Sensing distance: 700 mm (non-glossy white paper 200 x 200 mm)
- Sensing target: Opaque, translucent material
- Emitter: Infrared LED (940 nm)
- Response time: Max. 20 ms
- Power voltage: 24-240 VAC ±10% 50/60 Hz, 24-240 VDC ±10% (ripple P-P: max. 10%)
-
The Autonics BYD100-DDT is a compact diffuse reflective photoelectric sensor from the BYD Series, designed for presence and object detection in confined machine spaces. It provides a 100 mm sensing distance against opaque and translucent materials using an infrared LED light source, and is built for a 12 to 24 V DC pow
-
- Manufacturer: Autonics
- Model / Part Number: CR18-8AC
- Sensor type: Cylindrical capacitive proximity sensor, M18 threaded
- Sensing distance: 8 mm (standard target 50 x 50 x 1 mm iron)
- Power supply: AC 2-wire type, 100-240 VAC
- Control output: Normally Closed (NC), leakage current max. 2.2 mA
- Response frequency: 20 Hz
- Degree of protection: IP66 (IEC standard)
-
- Manufacturer: Autonics
- Model / Part Number: CR18-8DN
- Sensor type: Cylindrical capacitive proximity sensor, M18 threaded
- Sensing distance: 8 mm (standard target 50 x 50 x 1 mm iron)
- Power supply: DC 3-wire type, 12-24 VDC
- Control output: NPN Normally Open (NO), current consumption max. 15 mA
- Response frequency: 50 Hz
- Degree of protection: IP66 (IEC standard)
-
REQUEST A QUOTE
- Sensing Diameter: M30 (30 mm)
- Mounting Type: Non-flush (Non-shielded)
- Sensing Distance: 0 to 15 mm
- Standard Target: 50 × 50 × 1 mm (Iron)
- Wire Configuration: AC 2-wire
- Control Output: Normally Closed (NC)
- Operating Voltage: 100–240 V AC
- Leakage Current: Max. 2.2 mA
- Response Frequency: 20 Hz
- Environmental Protection: IP65 / IP66
AUTONICS CR30-15AC Capacitive Proximity Sensor (CR Series).
-
- Manufacturer: Autonics
- Model / Part Number: CR30-15DP
- Sensor type: Cylindrical capacitive proximity sensor; sensing side diameter M30
- Sensing distance: 15 mm (standard sensing target 50 x 50 x 1 mm iron)
- Control output: DC 3-wire, PNP normally open
- Supply voltage: 12-24 VDC; current consumption max 15 mA
- Response frequency: 50 Hz (average value)
- Hysteresis: Max 20% of sensing distance
-
REQUEST A QUOTE
- Specification Attribute: Design Parameter Details
- Display Method: 4-digit, 7-segment dual LED display (Process Value: 11mm character height)
- Power Supply: 100–240 VAC (~ 50/60 Hz) with an allowable range of 90% to 110%
- Power Consumption: Maximum 12 VA
- Input Signal Methods: Selectable Voltage input (PNP) or No-voltage input (NPN)
- Control Outputs: Single-stage preset configuration with Relay (SPDT 1c) and NPN open-collector outputs
- Memory Protection: Non-volatile EEPROM data retention for approximately 10 years
- Physical Dimensions: 48 mm (W) x 48 mm (H) with a standard 45 × 45 mm panel cutout
- Ingress Protection: IP65 dust and water resistance restricted to the front panel structure
- Counting Methods: Functions across standard Count Up, Count Down, or bidirectional Count Up/Down modes.
AUTONICS CT4S-1P4 Counter / Timer (CT Series).
-
REQUEST A QUOTE
- Power Supply: 100–240 VAC (~ 50/60 Hz)
- Power Consumption: Max. 12 W
- Display Type: Dual-line, 6-digit 7-segment LED (Current Value: Red, Preset Value: Green)
- Counting Range: -99,999 to 999,999
- Input Logic: Voltage input (PNP) or No-voltage input (NPN)
- Control Output Type: 1-Stage Preset
- Output Contacts: (1) SPDT (1c) Relay Output + (1) NPN Open Collector Solid-State Output
- Memory Protection: EEPROM (Approx. 10 years of data retention)
- Terminal Type: Screw Terminal Block
- Protection Structure: IP65 rated dust and water resistance (Front Panel only)
AUTONICS CT6S-1P4 Counter / Timer (CT Series).
-

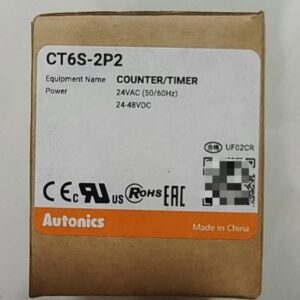

- Manufacturer: AUTONICS
- Model / Part Number: CT6S-2P2
- Series: CT6S
- Display: 6-digit LED
- Input Types: Contact, NPN and PNP
- Preset Operation: Two-stage preset
- Memory: EEPROM
- Mounting: Panel mount
-
REQUEST A QUOTE
- Encoder Type: Incremental Optical Rotary Encoder
- Housing Diameter: ∅ 40 mm (clamping type body)
- Shaft Diameter: ∅ 6 mm (solid external shaft)
- Resolution: 1000 Pulses Per Revolution (PPR)
- Output Phases: 3-Channel: A, B, and Z (Index phase)
- Control Output Type: NPN Open Collector
- Power Supply Voltage: 12–24V DC ± 5% (ripple P-P: max 5%)
- Starting Torque: Max. 40 gf·cm (Max. 0.00392 N·m)
- Connection Type: Radial Cable Type (2-meter pre-wired cable)
- Protection Structure: IP50 (IEC standard)
AUTONICS E40S6-1000-3-N-24 Rotary Encoder (E40S Series).
-
REQUEST A QUOTE
- Encoder Type: Incremental Rotary Encoder
- Housing Size: Ø40 mm diameter
- Shaft Dimensions: Ø6 mm solid shaft outer diameter
- Resolution: 2000 P/R (Pulses per Revolution)
- Output Phases: 3 Channels: A, B, Z
- Control Output Type: Totem Pole (Push-Pull compatible)
- Power Supply Voltage: 12–24 VDC ±5% (Ripple P-P: max. 5%)
- Starting Torque: Max. 40 gf·cm (0.00392 N·m)
- Connection Mechanism: Radial cable type (Standard length: 2m)
- Ingress Protection Rating: IP50 (Dust protection)
AUTONICS E40S6-2000-3-T-24 Rotary Encoder (E40S Series).
-

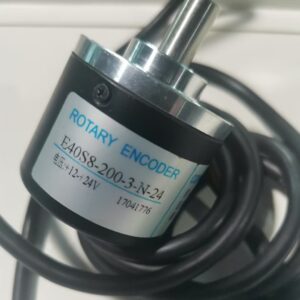

- Manufacturer: Autonics
- Model / Part Number: E40S8-200-3-N-24
- Body Diameter: 40 mm
- Shaft Outer Diameter: Ø8 mm
- Resolution: 200 Pulses per Revolution (P/R)
- Output Phases: 3 Channels (A, B, Z)
- Control Output: NPN open collector
- Power Supply Voltage: 12-24VDC ±5%
- Maximum Response Frequency: 300 kHz
- Maximum Allowable Revolution: 5000 rpm
- Starting Torque: Max. 40 gf·cm (Max. 0.00392 N·m)
- Connection Type: Radial cable type
- Protection Rating: IP50
