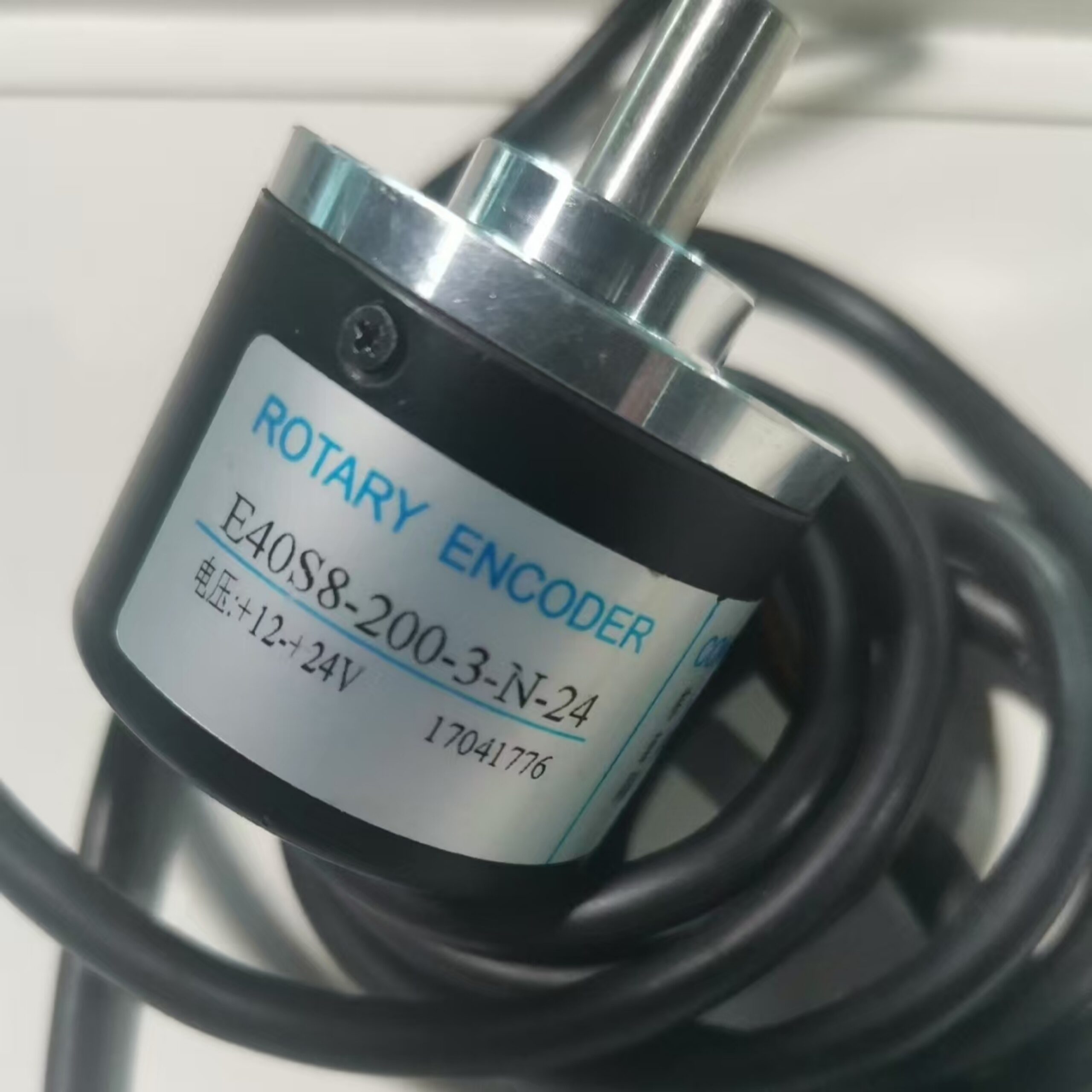

Autonics E40S8-200-3-N-24 Incremental Rotary Encoder

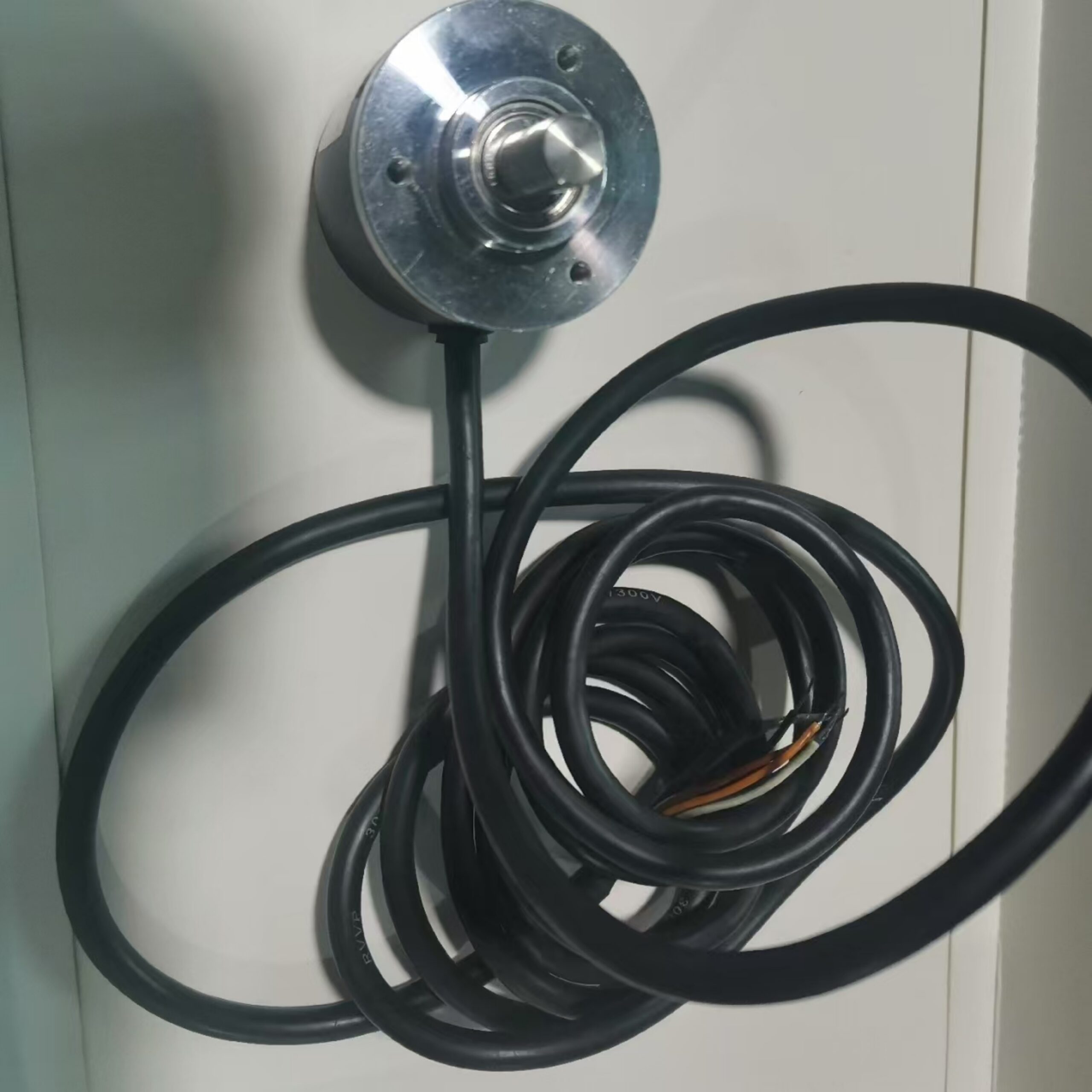

Autonics E40S8-200-3-N-24 Incremental Rotary Encoder - Image 2

Autonics E40S8-200-3-N-24 Incremental Rotary Encoder

  • Manufacturer: Autonics
  • Model / Part Number: E40S8-200-3-N-24
  • Body Diameter: 40 mm
  • Shaft Outer Diameter: Ø8 mm
  • Resolution: 200 Pulses per Revolution (P/R)
  • Output Phases: 3 Channels (A, B, Z)
  • Control Output: NPN open collector
  • Power Supply Voltage: 12-24VDC ±5%
  • Maximum Response Frequency: 300 kHz
  • Maximum Allowable Revolution: 5000 rpm
  • Starting Torque: Max. 40 gf·cm (Max. 0.00392 N·m)
  • Connection Type: Radial cable type
  • Protection Rating: IP50
  • SKU: E40S8-200-3-N-24
  • New Original In Stock
  • 6 Months Warranty
  • shipping by DHL or UPS
  • Availability shown is for reference only and will be confirmed at the time the order is processed.
  • Published quantities may change without prior notice.
  • The customer is responsible for verifying part number and specifications before confirming the purchase.
  • Certain products may be considered special order items depending on availability.
  • Extensive experience in industrial automation.
  • We source hard-to-find or discontinued parts.
  • Network of international manufacturers and distributors.
  • Personalized support for urgent requirements.
