Showing 1–16 of 17 results
-
REQUEST A QUOTE
- Input Voltage: 24V DC
- Power Consumption: 26W to 29W
- Connector Type: ISO 4400 DIN 43650-A
- Duty Rating: Continuous duty (85% to 110% of nominal voltage)
- Inner Diameter (ID): 18 mm
- Length: 46.5 mm
- Encapsulation & Protection: Glass-filled nylon; IP65 weather-proof rating
- Valve Size Compatibility: Fits H-Series cartridge sizes 10, 12, 16, and 20 (up to 350 Bar)
- Common Applications: Agricultural harvesters, refuse haulers, excavators, loaders, and tractors
EATON 300AA00122A 24VDC Solenoid Valve (Vickers).
-
REQUEST A QUOTE
- Catalog Number / SKU: 219655
- Model Code: CI-K2-PKZ0-GR
- EAN / GTIN: 4015082196554
- Net Weight: 0.415 kg (0.91 lbs)
- Ingress Protection: IP65 (Dust-tight, water jet resistant)
- Max Heat Dissipation: 12.5 W
- Housing Material: Plastic
- Standards & Compliance: CE, EN 60204
- Core Devices: Houses one PKZ0 or PKZM0 motor protective circuit breaker.
- Supported Add-ons: Accommodates the circuit breaker equipped with up to 2 units of early-make auxiliary contacts (L-PKZ0), standard auxiliary contacts (NHI or AGM), and trip releases (U or A).
EATON CI-K2-PKZ0-GR Switch Enclosure (CI Series).
-

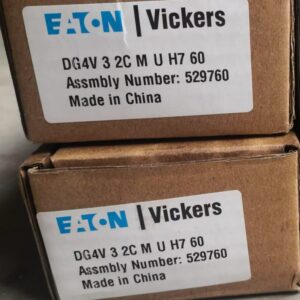

- Manufacturer: EATON
- Model / Part Number: DG4V-3-2C-M-U-H7-60
- Flow Rate: Up to 21 GPM (80 Liters/minute)
- Voltage: 24 Volts DC
- Seal Material: Buna-N (Standard nitrile rubber)
- Weight: Approximately 5.6 lbs (2.5 kg)
-

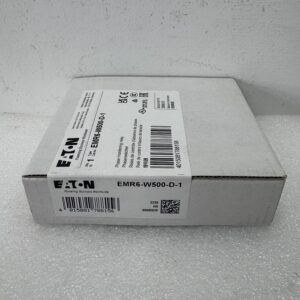

- Manufacturer: EATON
- Model / Part Number: EMR6-W500-D-1
- Monitoring Range: 300 to 500 V AC.
- Frequency Range: 50 to 60 Hz (compatible with both US and European power grids).
- Output Contacts: DPDT (2 Change-Over contacts) rated up to 4 Amps.
- Time Delay: Adjustable built-in delay between 0.1 and 30 seconds to prevent false alarms from temporary power dips.
- Mounting: Snaps easily onto standard standard 35mm DIN rails (IEC/EN 60715).
- Size: Slim profile measuring 22.5 mm wide, 85.6 mm high, and 103.7 mm deep.
-
REQUEST A QUOTE
- Manufacturer: Eaton (Moeller Series)
- Part / Catalog Number: ESR5-NO-31-24VAC-DC / 118702
- UPC / EAN: 786689005931 / 4015081168422
- Device Function: Dual-channel monitoring for Emergency Stop / Protective Guard Doors
- Coil / Supply Voltage: 24 VAC (50/60 Hz) or 24 VDC
- Contact Configuration: 3 Normally Open (NO) enabling paths / 1 Normally Closed (NC) signaling path
- Current Rating: 6 A
- Enclosure / Terminal Type: IP20 rating / M3 Screw Terminals
- Mounting: Standard 35 mm DIN Rail Mount
- Weight: 0.164 kg (0.5 lbs)
EATON ESR5-NO-31-24VAC-DC Safety Relay (ESR5).
-
REQUEST A QUOTE
- Manufacturer / Series: Eaton Moeller® FAK Series
- Actuator Style & Color: Round Domed Mushroom Head, Black
- Enclosure Base Color: Gray Top Enclosure / Base
- Contact Configuration: 1 NO / 1 NC (Normally Open / Normally Closed)
- Switching Action: Momentary (Non-latching, returns to position upon release)
- Electrical Ratings: Max 6A @ 230V AC (Up to 10A @ 600V AC / 5A @ 24V DC)
- Actuation Force: 40 N
- Ingress Protection (IP): IP67 / IP69K (Dust-tight, immersion, and high-pressure washdown safe)
- NEMA Environmental Rating: NEMA 4X / NEMA 13
- Mechanical Lifespan: 1,000,000 Operations
EATON FAK-S KC11 I Foot and Palm Switch (FAK Series).
-
REQUEST A QUOTE
- Manufacturer / Series: Eaton Moeller / RMQ-Titan M22 Series
- Actuator Type: 94 mm (3.7 in) Round Mushroom Head
- Actuator Color: Black (Non-illuminated)
- Enclosure Color: Light Grey top / Black base
- Operation Mode: Momentary / Spring-return (Non-latching)
- Contact Configuration: 1 NO (Normally Open) + 1 NC (Normally Closed)
- Electrical Rating: 6 A @ 230 V AC / 10 A @ 600 V AC / 5 A @ 24 V DC
- Ingress Protection: IP67 / IP69K (High-pressure washdown safe)
- Environmental Rating: NEMA 4X, 13 (Corrosion and oil-resistant)
- Mechanical Lifespan: 1,000,000 Operations
EATON FAK-S-KC11-I Foot and Palm Switch (FAK Series).
-
REQUEST A QUOTE
- Solenoid Voltage: 24 VDC
- Contact Configuration: 2NC (2 Normally Closed), DPST-NC
- Switching Mechanism: Positive Opening, Slow Make-Break
- Contact Rating (AC): 6 A at 240 VAC (Max: 415V)
- Contact Rating (DC): 3 A at 24 VDC (Max: 220V)
- Enclosure Material: Polyamide PA66-GF25 (Glass-fiber reinforced)
- Environmental Rating: IP65, IP66, IP67 / NEMA Protection
- Termination Type: Screw Terminals (M20 conduit entry)
- Operating Temp Range: -13°F to 158°F (-25°C to 70°C)
- Dimensions: 2.36" L x 1.21" W x 6.81" H (59.9 mm × 30.7 mm × 173 mm)
EATON LS-S02-24DFT-ZBZ-X Solenoid Valve (LS-Titan).
-
REQUEST A QUOTE
- Contact Configuration: 2 NC (Normally Closed) safety contacts utilizing slow-action switching with positive opening mechanisms according to IEC/EN 60947-5-1.
- Interlock Locking Principle: Magnet-powered "Power to Lock" mechanism (solenoid interlock) operating on a 24 V DC control voltage.
- Electrical Parameters: Rated current of 6 A at 240V AC (AC-15) and 3 A at 24V DC (DC-13).
- Enclosure: Built from insulated, impact-resistant Polyamide plastic housing (dimensions: approx. 173 mm x 60 mm x 30.8 mm).
- Ingress Protection: IP65 rated for dust and water resistance.
- Mechanical Lifespan: Rated for over 1 million operations with a high repetition accuracy of 0.02 mm.
- Certifications: Certified under UL 508, CSA C22.2, and CE standards.
- Actuator Key: The actuator key is not included with the base switch body and must be ordered separately based on your door configuration (e.g., straight, flexible, or angled keys).
- Cable Gland: To preserve the IP65 environmental rating, Eaton specifies using it with V-M20 cable glands (with a maximum thread length of 9 mm).
- Official Documentation: Technical data sheets, installation diagrams, and formal declarations of conformity can be directly verified on the Eaton SKU Page.
EATON LS-S02-24DMT-ZBZ-X Solenoid-Powered Safety Interlock Switch (LS-Titan Series).
-

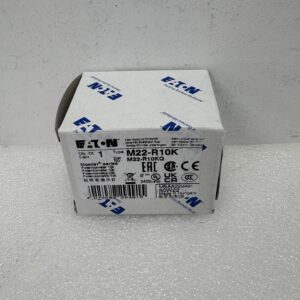

- Manufacturer: Eaton
- Model / Part Number: M22-R10K
- Resistance: 10 kOhm (±10% linear taper)
- Power Rating: 0.5 Watts (1/2 W)
- Mounting Size: Standard 22.5 mm cutout hole
- Environmental Protection: IP66 and NEMA 4X / 13 ratings (highly resistant to dust, water, and high-vibration industrial environments)
- Wiring Connection: 3 screw-type terminals (eliminates the need for soldering)
- Global Certifications: CE, UL, CSA, CCC, and GoST-R compliant for worldwide deployment
-
REQUEST A QUOTE
- Catalog / Part Number: M22-R4K7 (Global ID: 229490)
- Resistance: 4.7 kΩ (4,700 Ohms)
- Power Rating: 0.5 W (1/2 W)
- Mounting Size: 22.5 mm
- Actuator Type: Rotary Knob with Scale Markings
- Bezel Style: Titanium / Silver Silver-colored rim
- Connection Type: Screw Terminals
- Environmental Protection: IP20 (Rear) / IP66, NEMA 4X, 13 (Front)
- Dimensions: 1.17 in × 1.17 in × 1.15 in
- Operating Temp: -25°C to 70°C (-13°F to 158°F)
EATON M22-R4K7 Potentiometer (M22 Series).
-

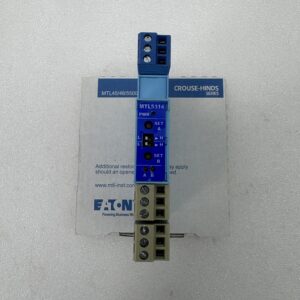

- Manufacturer: Eaton
- Model / Part Number: MTL5314
- Channels: One input channel providing two independent, configurable alarm outputs.
- Input Signal Range: 0 to 24mA, accommodating over-range signals.
- Input Resistance: 25Ω maximum.
- Transmitter Voltage: Greater than 17V available at 20mA (across terminals 1 and 2).
- Trip-Point Adjustment: Adjustable via multi-turn potentiometers on top of the module, covering a range of 0.5 to 22mA.
- Trip-Point Temperature Drift: 1.5µA/°C maximum.
- Response Time: Fast action under 75 milliseconds.
- Safe-Area Output: Two single-pole, changeover relay contacts rated at 250V AC (2A) or 40V DC (2A resistive).
- Supply Voltage: Operates on a 20 to 35V DC rail.
- Field Equipment Location: Zone 0, IIC, T4–T6 hazardous areas (or Class I, Division 1, Groups A–D).
- Series Connection: The input can be looped in series with the hazardous side of an MTL5541 repeater power supply. This extracts dual trip alarms directly from the transmitter path without breaking the signal loop.
- HART Pass-Through: Looping the transmitter loop through terminals 1 and 3 does not degrade or disrupt HART® digital communications.
- LED Status Indicators: Features a green LED for system power and a yellow status LED for each trip relay (illuminated when the relay is energized/not tripped).
-
REQUEST A QUOTE
- Technical Attribute: Specification Details
- Number of Channels: 1 (Single Channel)
- Signal Range: 4–20 mA (Analogue Output)
- Power Supply Voltage: 20–35 VDC
- Current Consumption: 35 mA at 24 VDC
- Power Dissipation: 0.8W at 24 VDC
- Communication Supported: Bi-directional HART® pass-through
- Functional Safety Rating: SIL 2 / SIL 3 (IEC 61508)
- Line Fault Detection (LFD): Normal input <6.0V; Open circuit threshold <0.5mA; Short circuit detection <50Ω
- Transfer Accuracy: Better than 20 µA
EATON MTL5546Y Galvanic Isolator (MTL Series).
-
REQUEST A QUOTE
- Primary Application: Ideal for thermocouples and mV sources.
- Channels: 2 channels (non-polarized), which preserves the "earth-free" floating nature of the sensor signal.
- Safety Parameters: Maximum safety values of 10V, 50 Ω, and 200mA.
- Mounting & Build: Standard DIN rail mount made of durable polycarbonate.
- Certifications: UL approved for Class I, II & III, Division 1 outputs; Class I, Division 2 mounting; and ATEX certified with a T4 temperature classification (rated for -20°C to +60°C).
EATON MTL7760AC Safety Barrier (MTL7700).
-

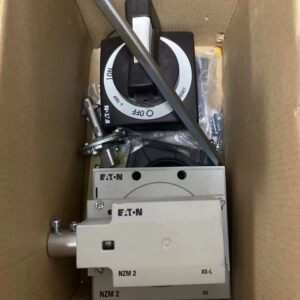

- Brand: Eaton
- Model: NZM2-XS-L
- Series: Moeller NZM
- Catalog number: 266642
- Frame size: NZM2
- Mounting orientation: Left-side panel mounting
- Function: Main switch assembly kit
- Handle style: Door-coupling rotary handle
- Lockable: Yes
- Standard color: Black / grey
- Product dimensions: 190 × 120 × 110 mm (L × W × H)
- Product weight: 0.989 kg
- EAN: 4015082666422
- Compliance: IEC, UL/CSA and RoHS conforming
-
- Manufacturer: EATON
- Model / Part Number: PKZM4-32
- Current Range: 25 to 32 Amps (adjustable).
- Power Rating: 15 kW at 380–400 Volts.
- Voltage Rating: Up to 690 V AC.
- Breaking Capacity: 50 kA at 400 V AC.
- Mounting: Standard 35 mm DIN rail.
- Overload Protection: The built-in thermal mechanism can be finely tuned to match your motor's exact needs so it doesn't overheat.
- Short-Circuit Protection: The magnetic trip instantly disconnects power if a short circuit occurs.
- Phase-Loss Sensitivity: It protects three-phase motors from burning out if one of the power lines drops out.
