Showing 1–16 of 42 results
-
REQUEST A QUOTE
Technical Specifications
- Rated Power: 0.75 kW (1.02 hp)
- Operating Voltage: 3AC 400 V
- Rated / Max Speed: 3,000 rpm / 4,000 rpm
- Rated Current: 2.1 A (6.3 A max)
- Encoder Type: 20-bit absolute encoder (12-bit multi-turn)
- Shaft Design: 45 mm shaft height with a feather key (Tolerance N); No holding brake
- Physical Design: 90x90mm flange, equipped with an angle plug
- Ingress Protection: IP65 degree of protection with a sealing ring
- Net Weight: 5.00 kg (11.02 lbs)
- Global Logistics: Stocked ready for global express delivery with standard manufacturer weight metrics via platforms like WiAutomation.
- Official Reference: For full compliance documents, step-by-step manuals, or dimension drawings, download the complete Siemens SiePortal Technical Data Sheet.
SIEMENS 1FL6044-1AF61-2LA1 Servo Motor (SIMOTICS S-1FL6).
-
REQUEST A QUOTE
- Operating Voltage: 3-phase 400 V AC
- Rated Power Output: 1.00 kW (1.36 hp)
- Rated Speed: 2,000 rpm
- Maximum Speed: 3,000 rpm
- Rated Torque: 4.78 Nm
- Static / Peak Torque: 6.00 Nm / 14.30 Nm
- Rated Current: 3.0 A
- Maximum Current: 9.0 A
- Moment of Inertia: 11.700 kgcm²
- Encoder Type: Integrated incremental encoder providing a feedback resolution of 2,500 increments per revolution.
SIEMENS 1FL6062-1AC61-2AA1 Servo Motor (SIMOTICS S-1FL6).
-
REQUEST A QUOTE
- Signal Type: HTL (High-Threshold Logic) push-pull output. (Note: If you require a TTL signal, the correct model variant is the 1XP8012-20).
- Resolution: 1024 PPR (Pulses Per Revolution).
- Voltage Supply: +10V to +30V DC (commonly running on a standard 24V DC loop).
- Shaft Type: 12mm blind hollow-bore shaft.
- Connection: Flange socket configuration.
- Environmental Rating: IP66 protection, meaning it is dust-tight and highly resistant to moisture or heavy industrial grime.
SIEMENS 1XP8012-10-1024 Incremental Rotary Encoder (1XP Series).
-
REQUEST A QUOTE
- Device Type: Incremental Rotary Encoder
- Resolution: 1024 pulses per revolution (PPR)
- Operating Voltage: 8–30 VDC
- Signal Output: HTL (High-Threshold Logic) via 1024 AK signal type
SIEMENS 1XP8022-10-1024 Rotary Encoder (1XP Series).
-
REQUEST A QUOTE
- Device Type: Incremental Rotary Encoder
- Resolution: 2048 pulses per revolution (PPR) (indicated by the "2048" suffix)
- Common Application: Direct integration with Siemens electric motors, drive systems, and motion control PLCs.
- Alternative: Available ready-to-ship from verified stock on SPW Industrial with automated return policy options.
SIEMENS 1XP8032-11-2048 Incremental Rotary Encoder (1XP Series).
-
REQUEST A QUOTE
- Brand/Series: Siemens Sentron Series (SITOR)
- Designated Size: NH1 (Low Voltage HRC design)
- Current Rating: 250 Amp
- Voltage Rating: 1000 V AC / 440 V DC
- Operating Class: aR (accompanied semiconductor protection for super-quick cut-off)
- Interrupting Rating: 100 kA
- Contact Type: Slotted blade contacts
- Power Loss: 50 W at rated current
- Status Indicator: Front indicator for easy visual identification of a blown fuse
- Approvals: UL, CE, CCC, EAC, VDE
SIEMENS 3NE3227 250A 1000V Semiconductor Protection Fuse (SITOR).
-
REQUEST A QUOTE
- Motor Power Rating: 0.55 to 3 kW
- Current Adjustment Range: 1.6 to 7.0 A
- Control Supply Voltage: 24 V DC
- Main Circuit Voltage: 500 V
- Connection Type: Push-in / screw terminals (mixed connection)
- Width: 22.5 mm (ultra-narrow space-saving design for DIN rails)
- Enclosure Rating: IP20
SIEMENS 3RM1107-3AA04 Fail-Safe Motor Starter (SIRIUS 3RM1).
-
REQUEST A QUOTE
- Current Adjustment Range: 4.5 to 6.3 Amps (adjustable thermal overload release)
- Instantaneous Magnetic Trip: 82 Amps (actuates at short-circuit detection)
- Trip Class: Class 10 (standard motor protection response time)
- Power Rating: 2.2 kW at 400 VAC
- Connection Type: Screw terminals
- Mounting Type: 35 mm standard DIN rail
- Actuator Style: ON/OFF rocker switch
SIEMENS 3RV1011-1GA10 Motor Starter Protector (SIRIUS 3RV1).
-
- Manufacturer: SIEMENS
- Model / Part Number: 3RV2021-4DA20
- Frame Size: S0 (compact size for small to medium setups).
- Current Adjusting Range: 18 A to 25 A (you can adjust the dial within this range to match your motor's rating).
- Instantaneous Trip (N-release): 325 A (shuts off immediately if it detects a huge electrical spike).
- Trip Class: Class 10 (standard trip speed for everyday motor safety).
- Voltage Rating: Up to 690 V AC.
- Connection Type: Spring-type terminals (also called cage clamps, which allow you to push wires in securely without tightening screws).
-
REQUEST A QUOTE
- Control Supply Voltage: 24 V DC
- Output Contacts: Total of 4 Normally Open (NO) safety paths.
- Adjustable Time Delay: 0.05 to 3 seconds for the delayed contacts.
- Connection Type: Reliable screw terminals.
- Dimensions: 22.5 mm Width x 100 mm Height x 121.6 mm Depth.
- Safety Integrity Level: Capable of achieving SIL 3 (IEC 61508) and Performance Level e (ISO 13849-1).
- Brand: Siemens. Part Number # : 3SK11211CB41. SKU #:, 2282304. Amperage Rating: 5 mA. Coil Voltage: 24 V DC. Contact Form: 4NO 4 F…
SIEMENS 3SK1121-1CB41 Safety Relay (SIRIUS 3SK1).
-
REQUEST A QUOTE
- Technical Parameter: Specification Value
- Maximum Switching Current: 5 A (at 24 / 115 / 230 V AC or 24 V DC)
- Insulation Voltage Rating: 300 V
- Maximum Power Loss: 2.5 W
- Connection Terminal Type: Screw connection
- Enclosure Protection Class: IP20 (Finger-safe)
- Operating Temperature Range: -25 °C to +60 °C
- Mechanical Service Life: 10,000,000 switching cycles
- Safety Integrity Level: SIL 3 according to IEC 61508.
- Performance Level: PL e according to EN ISO 13849-1.
SIEMENS 3SK1211-1BB40 Safety Relay Expansion Module (SIRIUS 3SK1).
-
REQUEST A QUOTE
- Control Supply Voltage: 24 V DC
- Housing Width: 45 mm
- Terminal Type: Screw terminals
- Instantaneous Enabling Circuits: 2 NO (Normally Open) safety contacts
- Delayed Enabling Circuits: 2 NO safety contacts with an adjustable time delay range of 0.5 to 30 seconds
- Signaling Contacts: 1 NC (Normally Closed) auxiliary contact
- Reset Method: Monitored start
- Safety Ratings: Achieves up to Safety Category 4 / SIL 3 / PL e for instantaneous circuits, and Category 3 / SIL 2 / PL d for the time-delayed circuits.
- Enclosure Rating: IP20
- IQElectro: Available in new condition at IQElectro.
SIEMENS 3TK2827-1BB40 Safety Relay (SIRIUS).
-
REQUEST A QUOTE
- Display Design: TFT widescreen display with LED backlighting
- Screen Diagonal: 12 inches
- Resolution: 1280 x 800 pixels
- Color Depth: 65,536 colors
- Control Elements: Combined tactile keys (10 programmable function keys) and an analog resistive touchscreen
- Backlight Lifespan: 20,000 hours MTBF at 25 °C (100% dimmable)
- Rated Supply Voltage: 24 V DC
- Permissible Range: 19.2 V to 28.8 V DC
- Rated Current Consumption: 510 mA
- Power Consumption: ~12.2 W
- Network Interface: 1 x Industrial Ethernet/PROFINET interface (RJ45 port)
- USB Interface: 1 x USB port (supports system expansion or data archiving up to 16 GB)
- Supported Protocols: PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, MODBUS TCP/IP, and EtherNet/IP
- Configuration Software: WinCC Basic V13 or STEP 7 Basic V13 (TIA Portal) and higher
- Enclosure Material: Durable plastic housing
- Protection Class: IP65 dust/water protection on the front side
- Mounting Positions: Supports both vertical (portrait) and horizontal (landscape) installation layouts
- Dimensions: 330 mm x 245 mm x 60 mm
- Weight: 2.16 kg
Siemens 6AV2123-2MB03-0AX0 HMI Basic Panel (SIMATIC KTP1200 Series).
-
REQUEST A QUOTE
- Display Type: STN Blue Mode, 4 distinct blue levels
- Screen Size: 5.7-inch diagonal display
- Resolution: 320 x 240 pixels
- Input Interface: Resistive analog touchscreen (operable with gloves or stylus)
- Communication Ports: MPI / PROFIBUS-DP / PPI
- Configuration Software: ProTool/Lite (from V5.2) or WinCC flexible
- Memory Capacity: 320 KB of configuring user memory
- Power Supply: 24 V DC (rated at ~0.24 A)
- Dimensions: Front: 212 x 156 mm | Cutout: 198 x 142 mm | Depth: 45 mm
SIEMENS 6AV6545-0BA15-2AX0 Touch Panel (SIMATIC TP170A).
-
REQUEST A QUOTE
- Display: 5.7-inch STN display (Blue Mode, CCFL backlight).
- Interfaces: Built-in MPI (Multi-Point Interface) and PROFIBUS DP interface.
- Configuration: Programmed using WinCC flexible 2004 Compact HSP or higher.
- Physical Profile: Net weight of approximately 0.988 kg (2.178 lb) with packaging dimensions of roughly 25.3 x 19.5 x 9.1 cm.
- Compatibility: Commonly paired with Siemens S7-300 and S7-400 modular PLCs.
SIEMENS 6AV6642-0AA11-0AX1 Touch Panel (SIMATIC TP177A).
-

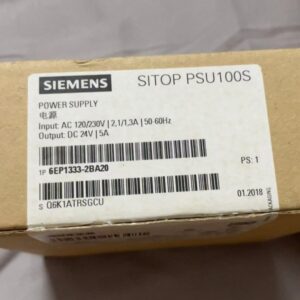

- Brand: Siemens
- Model: 6EP1333-2BA20
- Series: SITOP PSU100S
- Input system: 1-phase AC
- Rated input voltage: 120 / 230 V AC, automatic range selection
- Input voltage range 1: 85 to 132 V AC
- Input voltage range 2: 170 to 264 V AC
- Line frequency: 47 to 63 Hz
- Rated output voltage: 24 V DC
- Rated output current: 5 A
- Power-failure buffering: At least 20 ms at rated output
