- Manufacturer: Bihl+Wiedemann
- MFR Part Number: BWU1703
- Krones Part Number: 0-900-85-353-7 (0900853537)
- Device Type: AS-i 3.0 to PROFIBUS Gateway
- Number of AS-i Masters: 2 Masters (Supports up to 2 distinct AS-i networks)
- Housing Material: Stainless Steel
- Protection Rating: IP20 (Protected against solid bodies >12.5mm, no water protection)
- Operating Voltage: 30V DC (via AS-i) / Compatible up to standard 110V–240V supply architectures
- On the AS-i Side: The unit functions as a master controller for two separate AS-i networks. It continuously polls and collects digital/analog input signals from connected field components like proximity switches, photoeyes, and valve positioners.
- Duplicate Address Recognition: Automatically detects if two slave devices on the same AS-i loop have accidentally been assigned the same node address, preventing erratic signal behavior.

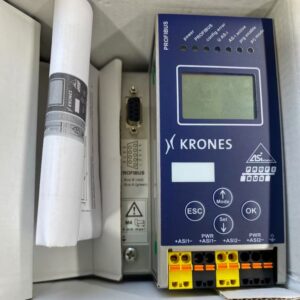

Brand New KRONES BWU1703 Gateway. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Protocols: Modbus RTU Master/Slave, Modbus ASCII Master/Slave.
- Physical Ports: 1 DB9 Male connector supporting RS-232, RS-422, and RS-485.
- Baudrate: 50 bps to 921.6 kbps.
- Capacity: Configurable for up to 100 Modbus commands.
- Protocol: PROFIBUS DP-V0 Slave.
- Physical Ports: 1 DB9 Female connector.
- Baudrate: 9600 bps to 12 Mbps (auto-detecting).
- Casing: Heavy-duty metal housing with an IP30 rating.
- Mounting: Integrated DIN-rail mounting bracket.
- Power Supply: Redundant dual 12 to 48 VDC inputs via a screw-fastened Euroblock terminal.

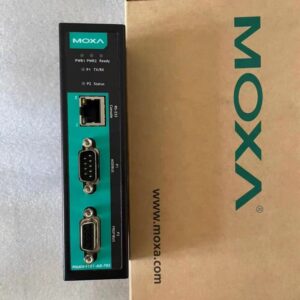

Brand New MOXA MGATE 4101-MB-PBS Gateway. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Supported Protocols: • Downstream: Modbus RTU/ASCII (Master/Slave), Modbus TCP (Client/Server), EtherNet/IP (Adapter)
- Serial Ports: 1 x DB9 or terminal block connection supporting RS-232/422/485
- Ethernet Interface: 2 x 10/100 BaseT(X) ports with built-in 1.5 kV magnetic isolation (Supports cascading switches)
- Data Mapping Capacity: Max 128 Modbus commands; 512 bytes input data size / 512 bytes output data size
- Hardware / Housing: IP30-rated rugged metal casing; DIN-rail or panel mounting
- Power Inputs: Redundant dual DC power inputs (12 to 48 VDC)
- Security Enhancements: Local user authentication database, HTTPS web configuration, and encryption options (AES-128, AES-256, SHA-256)
- External Storage: MicroSD card slot for configuration backup, log tracking, and rapid unit duplication
- System Setup: Connect via the web console (HTTP/HTTPS) and configure basic IP infrastructure parameters, subnet masks, and network names.
- Select Protocols: Set the operational matrix. Define the gateway's target roles (e.g., choosing PROFINET IO Device for upstream communication and Modbus RTU Master for the serial field side).

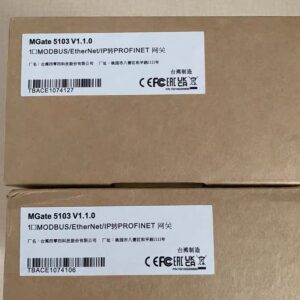

Brand New MOXA MGATE 5103 Gateway. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Serial Ports: 1 DB9 male connector (Supports RS-232, RS-422, or 2-wire/4-wire RS-485)
- Ethernet Ports: 2 RJ45 ports (10/100 Mbps) functioning as a built-in switch for easy daisy-chaining
- Configuration Methods: Web Console (HTTPS/HTTP), MGate Manager Utility, Serial Console, or Telnet
- Power Requirements: 12 to 48 VDC terminal block input
- Mounting: Built-in rugged DIN-rail mounting hardware
- Auto-Device Routing (Patent Pending): Eliminates complex slave ID mapping tables. The gateway automatically detects commands from a SCADA system and routes them dynamically to the correct endpoints, drastically shortening configuration times.
- Priority Control for Urgent Commands: Allows users to assign priority to specific Modbus commands to avoid communication lag in large or critical networks.
- Serial Redirector Function: Allows an existing serial master device to maintain direct communication with local serial slaves through a mapped path without altering the software architecture.
- Flexible Routing: Serial port traffic can be routed strictly by IP address, TCP port number, or Modbus Slave ID mapping.
- Default IP Address: 192.168.127.254

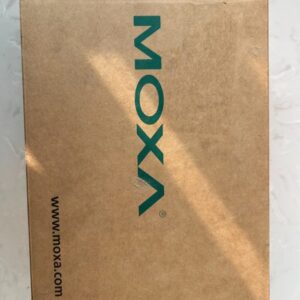

Brand New MOXA MGATE MB3170 Gateway. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Bidirectional Conversion: Translates seamlessly between Modbus TCP (Ethernet master/client or slave/server) and Modbus RTU/ASCII (serial master or slave).
- Modbus TCP Masters: Supports up to 16 simultaneous Modbus TCP masters with up to 32 simultaneous requests per master.
- Modbus Serial Slaves: Connects up to 31 RTU/ASCII serial slave devices via its single serial port.
- Modbus Serial Masters: Supports routing from serial masters to up to 32 remote TCP slave devices.
- Ethernet Port: 1x 10/100BaseT(X) port (RJ45 connector)
- Serial Port: 1x RS-232/422/485 port (DB9 male connector)
- Input Voltage: 12 to 48 VDC
- Dimensions: 22 x 75 x 80 mm (0.87 x 2.95 x 3.15 in)
- Mounting: Desktop or DIN-rail (DK35A kit sold separately)
- Auto Device Routing: Simplifies software configuration by eliminating the need to manually program a complex Modbus slave ID routing table.

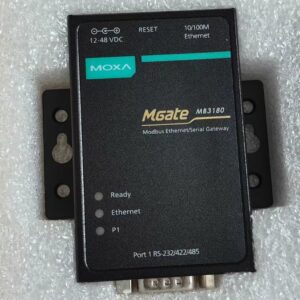

Brand New MOXA MGATE MB3180 Gateway. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Serial Ports: 4 x DB9 Male (Software-selectable RS-232, RS-422, or RS-485)
- Baud Rate: 50 bps to 921.6 kbps
- Ethernet Port: 1 x 10/100BaseT(X) port (RJ45 connector, Auto MDI/MDI-X)
- Magnetic Isolation: Built-in 1.5 kV isolation protection for Ethernet
- Device Routing: Auto-Device Routing (Automatically detects Modbus requests and populates slave ID routing tables via a single click)
- Security Functions: HTTPS, SNMPv3, Local database, Authentication, Encryption
- Input Power: 12 to 48 VDC
- Network Bridging: Ideal for connecting legacy serial PLCs, meters, and sensors to modern SCADA software platforms via Ethernet.
- Auto Device Routing: Eliminates the tedious, error-prone manual process of building a slave ID mapping routing table. Instead, it listens to traffic and maps connections with a single mouse click, reducing commissioning times.
- Mixed Serial Infrastructure: Because each of the 4 ports can be configured independently, you can run Modbus RTU on one port and Modbus ASCII on another, or use completely different baud rates within the same gateway.

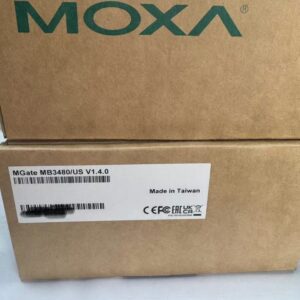

Brand New MOXA MGATE MB3480 Gateway. In stock — ships worldwide within 5-10 days.
