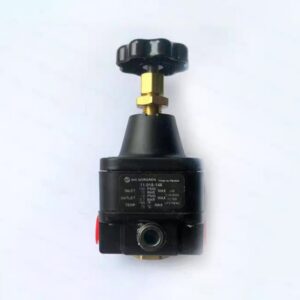

- Manufacturer: NORGREN
- Model / Part Number: 11-018-146
- Port Size: 1/4" NPT / PTF
- Outlet Pressure Range: 0.4 to 10 psig (0.03 to 0.69 bar)
- Maximum Inlet Pressure: 150 to 200 psi depending on system configuration
- Flow Rate: 12 scfm (5.66 dm³/s)
- Construction: Durable zinc alloy body and bonnet with polyurethane elastomers
- Constant Bleed: Provides continuous internal air exhaust, giving the unit extreme sensitivity to tiny upstream or downstream pressure changes.
- Relieving Diaphragm: Allows the operator to manually or automatically reduce downstream pressure safely even when the system line is completely closed (dead-ended).
- Norgren Compressed Air Regulator: 1/4" NPT, 150 Max psi, Precision Constant Bleed 12 CFM MSC # 01724863 Mfr # 11-018-146
-

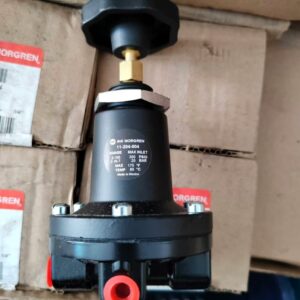

- Brand: Norgren
- Model: 11-204-004
- Series: 11-204 Series
- Regulator type: Feedback pilot pressure regulator
- Pressure adjustment range: 0.16 to 7 bar
- Port size: G1/4
- Relieving function: Yes
- Gauge: Not included
- Approximate weight: 1.10 kg
-

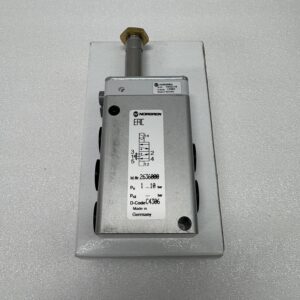

- Manufacturer: Norgren
- Model / Part Number: 2636000
- Valve Type: 5/2-way (5 ports, 2 positions)
- Actuation / Return: Solenoid / Air Spring (Indirectly operated via a pilot valve)
- Port Size: G 1/4 inch threaded connection
- Operating Pressure: 1 to 10 bar (14.5 to 145 psi)
- Flow Rate: 1,200 liters per minute (l/min)
- Switching Time: Fast 20 milliseconds response time
- Body Material: Anodized aluminum housing with nitrile rubber (NBR) seals
- Media: Compressed air (filtered, lubricated, or non-lubricated)
-

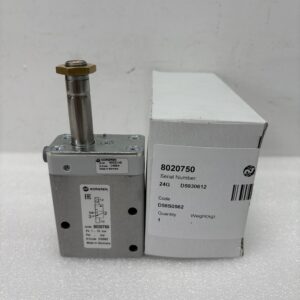

- Manufacturer: NORGREN
- Model / Part Number: 8020750
- Valve Function: 3/2-way, single-solenoid operation
- Port Connection: G 1/4 or 1/4 NPT
- Operating Pressure: 1 to 10 bar
- Nominal Flow Rate: 1200 L/min
- Body Material: Anodized aluminium
-
REQUEST A QUOTE
- Compatible Cylinder Series: Designed for several Norgren ISO/VDMA profile cylinder ranges, including the DA/8000, PRA/182000, PRA/8000, RA/8000, and RA/181/182 series.
- Seal Material: High-grade polyurethane, which offers high impact resistance, efficient low-friction operation, and a long operational lifespan.
- Kit Contents: Comes as a complete overhaul set including all necessary O-rings, pneumatic seals, linear seals, and a grease pack for proper lubrication during reassembly.
Norgren QA/8032/00 Cylinder Service Seal Kit (QA Series).
