Showing 1–16 of 48 results
-
REQUEST A QUOTE
- Brand / Manufacturer: Eaton Bussmann Series
- Component Type: High-Speed Fuse Microswitch
- Voltage Rating: 250 V
- Current Rating: 2 A to 5 A
- Contact Configuration: 1NO – 1NC
- Indicator Compatibility: Type-K Indicator
- Connection & Mounting: Lug terminals; Snap-on adaptor
- Environmental Protection: IP54
- Dual-State Signal Monitoring: Featuring a 1NO-1NC contact layout, the switch can simultaneously toggle a local warning light (normally open closes on trip) and drop a control interlock circuit (normally closed opens on trip).
- Snap-On Design: The device utilizes a factory-mounted adapter on the fuse body for quick, toolless snap-on integration.
BUSSMANN 170H0069 High-Speed Fuse Microswitch (170H Series).
-
REQUEST A QUOTE
- Product Type: Fixed Centre Fuse Base (80mm distance)
- Amperage Rating: 630 A
- Voltage Rating: 1000 Vac/Vdc (UL rated up to 700V / IEC rated up to 690V)
- Number of Poles: 1 (Single Pole)
- Connection Type: M10 Connector Terminal / Screw-On / Base Mount
- Standard / Mounting: DIN 43 653 Compliant / Surface or DIN Rail Mount
- Dimensions: 5.433 in L x 0.315 in W x 2.087 in H (Note: Variant measurements can extend up to 203mm L x 77mm H x 64mm W depending on hardware extensions)
- Material Feature: Halogen-free construction
- UPC / GTIN: 051712804646
- Target Fuses: Specifically engineered for use with high-speed semiconductor fuses featuring an 80 mm center distance (such as the Bussmann Typower ZILOX series or DIN 43653 blade fuses).
BUSSMANN 170H3003 Single-Pole Semiconductor Fuse Base (170H Series).
-
REQUEST A QUOTE
- Component Type: Fixed Center Fuse Base / Holder
- Amperage Rating: 1250 A
- Voltage Rating: 1000 Vac / Vdc (Also compatible with 690V/700V applications)
- Number of Poles: 1-Pole
- Fixing Centers: 80 mm center distance
- Mounting Standard: Conforms to DIN 43 653 (Stud/Screw style)
- Speed Application: High Speed (Class aR)
- Compatibility: Typower ZILOX 80 mm center distance high-speed fuses
- Dimensions: 217 mm Length × 64 mm Width × 82 mm Height (approx. 5.43" L × 0.31" W × 2.08" H depending on specific terminal layout)
- Compliance & Approvals: CE, IEC, RoHS, UL Listed
BUSSMANN 170H3004 Single-Pole Fuse Block (170H Series).
-
REQUEST A QUOTE
- Manufacturer / Brand: Eaton / Bussmann
- Part Number (MPN): 170H3005
- UPC / GTIN: 051712804660
- Current Rating: 630 A
- Voltage Rating: 1400 Vac/Vdc (Note: Often listed downstream as 690V/700V depending on regulatory testing curves)
- Number of Poles: 1 Pole
- Configuration Type: Fixed Centre Fuse Base
- Center Distance: 110 mm (4.33 in)
- Connection / Terminal: Screw-On (M10 Connector)
- Dimensions: 5.433 in L x 0.315 in W x 2.087 in H
BUSSMANN 170H3005 Semiconductor Fuse Holder (170H Series).
-
REQUEST A QUOTE
- Amperage Rating: 1250 A
- Voltage Rating: 1400 Vac/Vdc (also handles 690V/700V applications)
- Fixing Centers / Distance: 110 mm fixed center distance
- Configuration: 1-Pole (Single Pole)
- Standards/Compliance: DIN 43 653, UR (UL Recognized)
- Connection & Mounting: Stud terminal connection; Surface mount execution
- Compatibility: Specifically optimized for Typower ZILOX 110 mm center-distance high-speed fuses
- Weight: 3.1 lbs (1.4 kg)
- Dimensions: 5.433 in L x 0.315 in W x 2.087 in H (approx. 138 mm x 8 mm x 53 mm)
BUSSMANN 170H3006 Industrial Semiconductor Fuse Base (170H Series).
-
REQUEST A QUOTE
- Current Rating: 10 A
- Voltage Rating: 690 V (IEC) / 700 V (UL)
- Interrupting Rating: 200 kA
- Operating Class: gR
- Body Size / Type: Size 000U / 80
- Mounting Type: DIN 43 620 Blade
- Visual Indicator: Non-Indicating
BUSSMANN 170M1308 High-Speed Semiconductor Fuse (170M Series).
-
REQUEST A QUOTE
- Current Rating: 16 A
- Voltage Rating: 690 VAC (IEC) / 700 VAC (UL)
- Interrupting Rating (Breaking Capacity): 200 kA
- Fuse Class: gR (Full-range semiconductor protection)
- Body Size / Design: DIN 000 U/80 (Square body, non-indicating)
- Mounting / Terminal Type: Bolt-down / Stud mount via blade terminals
- Approvals: CE, CSA, UR, UL, IEC, RoHS
BUSSMANN 170M1309 High-Speed Semiconductor Fuse (170M Series).
-

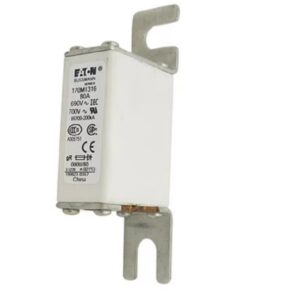

- Manufacturer: Bussmann
- Model / Part Number: 170M1316
- Amperage Rating: 80 A
- Voltage Rating: 690 VAC (IEC) / 700 VAC (UL)
- Interrupting Rating: 200 kAIC
- Fuse Class: aR (Partial-range short-circuit protection for semiconductors)
- Body Size / Type: Size 000, Type U/80
-
REQUEST A QUOTE
- Manufacturer: BUSSMANN
- Model / Part Number: 170M1318
- Amperage Rating: 125 A
- Voltage Rating: 690 V AC (IEC) / 700 V AC (UL)
- Interrupting Rating (Breaking Capacity): 200 kA
- Class: aR (Partial-range semiconductor protection)
- Body Size / Type: Size 000, Square body
- Terminal Type: Slotted offset bolted tags (Type U/80)
- Indication: Non-indicating
- Frequency Range: 45 to 1000 Hz
- Specialty Automation Suppliers: Offers can also be found on electrical trade sites like Kempston Controls and WiAutomation.
-
REQUEST A QUOTE
- Manufacturer: BUSSMANN
- Model / Part Number: 170M1319
- Manufacturer: Eaton Bussmann Series The Reynolds Company
- Current Rating: 160 A EECO
- Voltage Rating: 690 V AC (IEC) / 700 V AC (UL) Eaton UK
- Interrupt Rating: 200 kA Standard Electric Supply
- Fuse Size / Body Type: Size 000 / Square Body EECO
- Utilization Category: aR (Partial-range semiconductor protection) EECO
- Mounting Type: DIN 43653 Stud Mount (Type U/80) The Reynolds Company
- Indicator Style: Non-Indicating (Visual indicator options exist under alternative codes) The Reynolds Company
- Frequency Rating: 45 to 1000 Hz Standard Electric Supply
- Dimensions: 21 mm W x 40 mm H x 100 mm L EECO
- Weight: 131 g (0.131 kg) EECO
- Compliances: CE Marked, RoHS Compliant, UL Recognized, IEC Rated EECO
- Low energy let-through: Minimizes downstream thermal damage to sensitive power semiconductors.
- Low watt loss: Optimizes operational efficiency inside dense electrical cabinets.
- Excellent DC performance: Provides robust clearing characteristics under severe fault conditions.
- Superior cycling capability: Engineered to reliably handle frequent load fluctuations.
-
REQUEST A QUOTE
- Manufacturer: BUSSMANN
- Model / Part Number: 170M1320
- Current Rating: 200 A Eaton
- Voltage Rating: 690 V AC (IEC) / 700 V AC (UL) Eaton
- Interrupt Rating: 200 kA McNaughton-McKay
- Fuse Size & Body: Size 000, Square Body Eaton
- Utilization Category: aR (High-speed semiconductor protection) Eaton
- Mounting Type: DIN 43 653 (Bolt Mount) / Type U/80 Eaton / McNaughton-McKay
- Indicator: Non-Indicating / Type U/80 Visual McNaughton-McKay
- Dimensions: 21 mm W x 40 mm H x 100 mm L (Total Length 105 mm) Eaton
- Weight: 145.3 grams Eaton
- Compliances: CE Marked, RoHS Compliant, UL Recognized, IEC Rated Eaton
- Low Let-Through: Minimizes total clearing energy (I²t) to protect sensitive downstream semiconductors.
- Low Wattage Loss: Optimized performance design limits heat dissipation inside electrical enclosures.
- Cycling Capability: Engineered to withstand cyclic loading profiles standard in industrial drives.
-
REQUEST A QUOTE
- Manufacturer: BUSSMANN
- Model / Part Number: 170M1321
- Amperage Rating: 250 A
- Voltage Rating: 690 V AC (IEC) / 700 V AC (UL)
- Interrupt Rating: 200 kA
- Operating Class: aR (Partial-range short-circuit protection for semiconductors)
- Body Size / Design: Size 000, Square Body
- Mounting Type: DIN 43 620 Type U/80 (Blade End)
- Indication: Non-Indicating (Note: The top-indicator version is model 170M1371)
- Physical Dimensions: 100 mm L x 21 mm W x 40 mm H
- Industrial & Automation Suppliers: Regional options with online ordering include Crescent Electric Supply Company, Eastern Industrial Automation, and McNaughton-McKay.
-

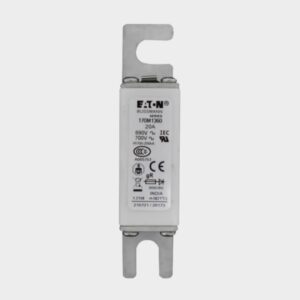

- Manufacturer: BUSSMANN
- Model / Part Number: 170M1360
- Current Rating: 20 Amps
- Voltage Rating: 690 Volts AC (IEC) / 700 Volts AC (UL)
- Interrupting / Breaking Capacity: 200 kA
- Fuse Class: gR (Full-range protection for semiconductor devices)
- Body Size / Style: DIN 000, square body with bolt-down/stud mounting slots
- Power Losses (Watts): 7 Watts
- Indicator: Single visual indicator to show when blown
- Physical Dimensions: 21 mm x 40 mm x 100 mm (overall length 105 mm)
-

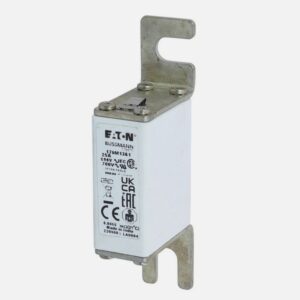

- Manufacturer: BUSSMANN
- Model / Part Number: 170M1361
- Manufacturer: Eaton Bussmann
- Current Rating: 25 A
- Voltage Rating: 690 Vac (IEC) / 700 Vac (UL)
- Interrupting Rating (IR): 200 kA RMS Symmetrical
- Fuse Size & Body Style: Size 000 / 80 (Square body blade)
- Operating Class: gR (Full-range semiconductor protection)
- Power/Watt Losses: 9 W
- Mounting Type: DIN 43653 Bolted Stud / Bolt Down
- Status Indicator: Visual single indicator
- Body Size: 21 mm x 40 mm x 100 mm
- Fixing Centers: 80 mm (standard stud mount length for Type 80)
-

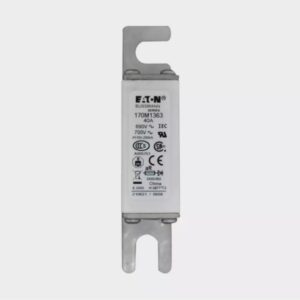

- Manufacturer: BUSSMANN
- Model / Part Number: 170M1363
- Amperage Rating: 40 Amps (The maximum continuous electrical current it can handle).
- Voltage Rating: 690V AC (Built for heavy-duty industrial systems).
- Interrupt Rating: 200 kAIC (The maximum dangerous current the fuse can safely stop without exploding).
- Size Code: DIN 000 (Measuring roughly 21mm x 40mm x 100mm).
- Body Shape: Square body with blade-end/slotted offset bolted tags for secure mounting.
- Indicator: Includes a top visual indicator that pops out or changes color when the fuse blows.
-

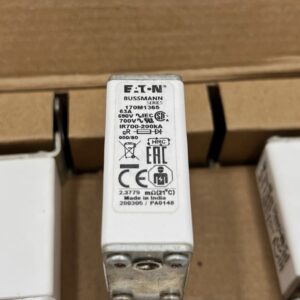

- Manufacturer: BUSSMANN
- Model / Part Number: 170M1365
- Current Rating: 63 Amps
- Voltage Rating: 690 Vac (IEC) / 700 Vac (UL)
- Interrupting Rating (Breaking Capacity): 200 kAIC RMS Symmetrical
- Operating Class: gR (full-range protection for semiconductors)
- Body Style: Square body, size 000
- Mounting Type: DIN 43 653 offset bolted blades (80 mm fixing centers)
- Indicator: Top visual fuse status indicator
- Power Dissipation: 16 Watts
