Showing 33–48 of 48 results
-
- Manufacturer: BUSSMANN

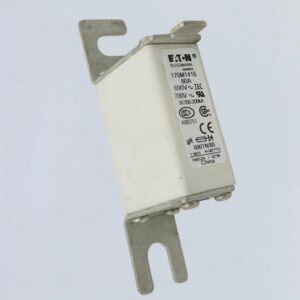

- Model / Part Number: 170M1416
- Current Rating: 80 Amps
- Voltage Rating: 690 Volts AC (often listed up to 700V AC)
- Interrupting Rating: 200 kA (kiloamps)
- Body Size: DIN 000 (Compact square body)
- Operating Class: aR (Partial-range short-circuit protection for semiconductors)
- Mounting style: DIN 43-653 bolted tags/studs
- Features: Includes a single visual indicator to easily see if the fuse has blown.
-

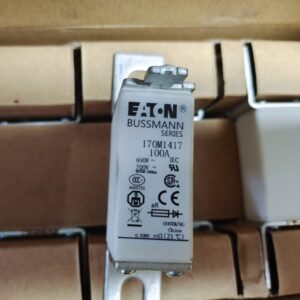

- Manufacturer: BUSSMANN
- Model / Part Number: 170M1417
- Current Rating: 100 Amps
- Voltage Rating: 690 Vac (according to IEC standards) or 700 Vac (according to UL standards)
- Fuse Size: 000
- Operating Class: aR (Partial-range semiconductor protection, meaning it clears short circuits very quickly)
- Interrupting Rating (Breaking Capacity): 200 kA
- Power Loss (Watt Loss): 24.0 Watts at rated current
- Mounting Type: DIN 43653 offset bolted tags
- Visual Indicator: Features a top status indicator (Type T) that can work with a microswitch for remote fault monitoring.
-
- Manufacturer: BUSSMANN

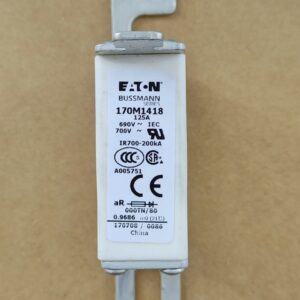

- Model / Part Number: 170M1418
- Amperage Rating: 125 Amps.
- Voltage Rating: 690 Volts AC according to IEC standards, and 700 Volts AC under UL recognition.
- Interrupting Capacity: 200 kAIC, which means it can safely clear very massive electrical fault currents very quickly.
- Utilization Category: Class aR, meaning it provides partial-range, ultra-fast short-circuit protection specifically tailored for semiconductors like diodes and thyristors.
- Physical Body & Tags: Size 000 square body featuring slotted offset bolted tags designed for secure, low-resistance stud mounting.
- Energy Management: Features a pre-arc I²t energy let-through rating of 1,200 and clears at 8,500 at 660V to minimize downstream component damage. Total rated power loss during normal operation is 28 Watts.
-
- Manufacturer: BUSSMANN

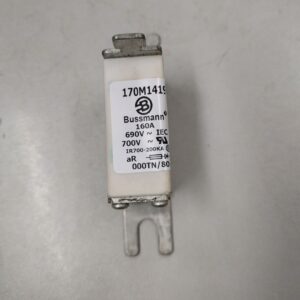

- Model / Part Number: 170M1419
- Current Rating: 160 Amps (A)
- Voltage Rating: 690 Volts AC (per IEC standards) / 700 Volts AC (per UL standards)
- Interrupting Rating: 200 kiloamps (kA)
- Fuse Size: 000
- Utilization Class: aR (partial-range semiconductor protection)
- Body Type: Square body with ceramic construction
- Termination: Blade end with live gripping lugs and a single visual indicator
- Dimensions: 100 mm Length x 21 mm Width x 53 mm Height
- Weight: 135 grams
- Compliances: CE Marked, RoHS Compliant, IEC Rated, and UL Recognized
-
- Manufacturer: BUSSMANN

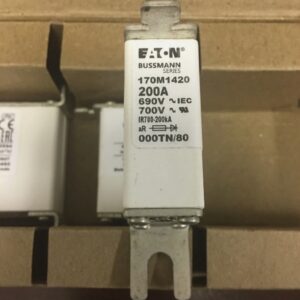

- Model / Part Number: 170M1420
- Current Rating: 200 Amps (A) — This is the maximum amount of steady electrical current the fuse can handle safely without blowing.
- Voltage Rating: 690 Volts (V) AC for international standards (IEC) and 700 Volts (V) AC for North American standards (UL).
- Interrupting Rating: 200 kiloamps (kA) — This means it can safely stop a massive, sudden surge of up to 200,000 amps of electricity without exploding.
- Class: aR — This tells us it is a high-speed, partial-range fuse meant specifically to protect semiconductors (the brainy chips inside large electronic systems).
- Body Size: 000 (Square Body) — It has a small, square, ceramic body built to handle extreme heat.
- Mounting Style: DIN 43653 — It features flat, bladed tags with slots on the ends, meaning it is screwed or bolted directly into place onto a mounting block.
- Visual Indicator: It includes a built-in top status indicator. This acts like a tiny flag that changes or pops up to tell you visually if the fuse has blown and needs to be replaced.
-
- Manufacturer: BUSSMANN

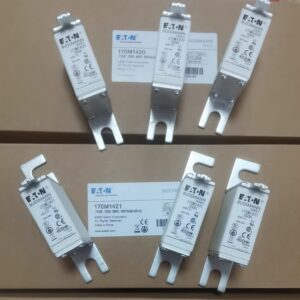

- Model / Part Number: 170M1421
- Current Rating: 250A
- Voltage Rating: 690 Vac according to IEC standards, and 700 Vac according to UL standards.
- Interrupting Rating (Breaking Capacity): 200 kA RMS Symmetrical.
- Fuse Size: Size 000.
- Utilization Category: aR (highly specialized for fast-acting semiconductor protection).
- Mounting Style: DIN 43653 offset bolted tags with 80mm fixing centers.
- Status Indicator: Features a single top-mounted visual indicator system suitable for attaching a microswitch.
- Length: 100 mm
- Height: 53 mm
- Width: 21 mm
- Weight: 136.4 grams
- Standards: Fully compliant with CE guidelines, RoHS restrictions, UL recognition, and IEC 60269 Part 4 certification.
-

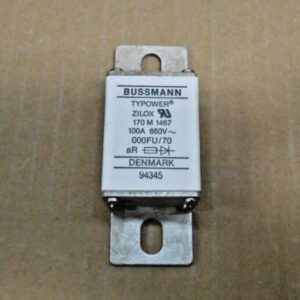

- Manufacturer: BUSSMANN
- Model / Part Number: 170M1467
- Current Rating: 100 Amps
- Voltage Rating: 660 Volts AC (IEC) / 700 Volts AC (UL)
- Body Style: Square body with offset bolted tags (Size 000)
-
- Manufacturer: BUSSMANN

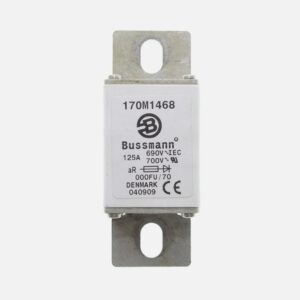

- Model / Part Number: 170M1468
- Amperage Rating: 125 Amps
- Voltage Rating: 690 Volts AC (IEC standard) / 700 Volts AC (UL standard)
- Interrupting Rating: 200 kAIC (meaning it can safely stop very massive short-circuit currents)
- Body Size: Size 000 with offset bolted tags for easy mounting
- Class: aR (provides ultra-fast "partial range" protection specifically for semiconductors)
-

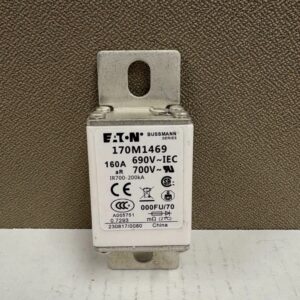

- Manufacturer: BUSSMANN
- Model / Part Number: 170M1469
- Current Rating: 160 Amps
- Voltage Rating: 690 Volts AC (IEC standard) / 700 Volts AC (UL standard)
- Interrupt Rating: 200 kA RMS Symmetrical (highly effective at stopping massive short circuits)
- Fuse Class: aR (partial-range protection for semiconductors)
- Body Size: Size 000 (compact dimensions of 24 x 36 x 96 mm)
- Mounting Style: Stud mount / center-bolted blade tags
- Visual Indicator: None (non-indicating style)
-

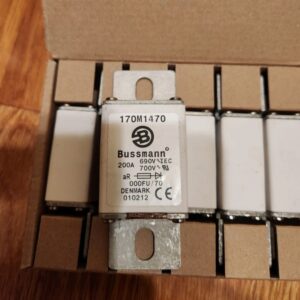

- Manufacturer: BUSSMANN
- Model / Part Number: 170M1470
- Current Rating: 200 Amps
- Voltage Rating: 690 Volts AC according to international IEC standards, or 700 Volts AC under North American UL guidelines.
- Interrupting Rating (Breaking Capacity): 200 kA RMS Symmetrical. This means it can safely stop very massive electrical short-circuit currents without exploding.
- Fuse Class: aR. This indicates it is a partial-range high-speed fuse meant specifically for short-circuit protection in semiconductor setups, rather than everyday motor or cable protection.
- Body Size: 000 (Measures roughly 24mm x 36mm x 96mm).
- Mounting Style: Square body featuring offset bolted tags (visualize metal blades sticking out of the ends with holes to bolt directly onto electrical panels or busbars).
- Certifications: Formally approved by CE, UL, CSA, and RoHS compliant.
-
REQUEST A QUOTE
- Current Rating: 16 A
- Voltage Rating: 690 V AC (IEC) / 700 V AC (UL)
- Fuse Size / Body Style: DIN 000 / Square Body Blade
- Operating Class: gR (Full-range semiconductor protection)
- Indicator Type: Dual Indicator (Visual status + microswitch option)
- Contact Type: Knife Blade / Live Gripping Lugs
- Overall Length: 79 mm (3.11 in)
- Body Height: 51 mm (2.01 in)
- Body Width: 21 mm (0.83 in)
- Net Weight: 135.6 grams (0.30 lbs)
BUSSMANN 170M1559 Ultra-Fast Semiconductor Fuse (170M Series).
-
- Manufacturer: BUSSMANN

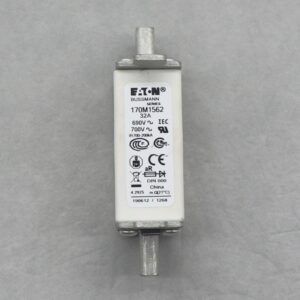

- Model / Part Number: 170M1562
- Amperage Rating: 32 Amps (32A)
- Voltage Rating: 690V AC according to international IEC standards, or 700V AC under UL safety standards
- Interrupting Rating (Breaking Capacity): 200,000 Amps (200kA) — meaning it can safely stop massive electrical surges
- Physical Size: DIN 000 (a standard compact size designation for industrial hardware)
- Shape & Mounting: Square body construction featuring knife blade contacts and live gripping lugs for secure installation
- Utilization Category: Class gR (fast-acting full-range protection specialized for semiconductors)
- Indicator: Built-in dual fuse status indicator to visually confirm when the fuse has blown
-
REQUEST A QUOTE

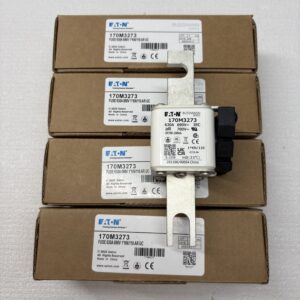

- Manufacturer: BUSSMANN
- Model / Part Number: 170M3273
- Rated Current: 630 A
- Voltage Rating: 690 VAC (IEC); 700 VAC (UL)
- Interrupting Rating: 200 kA RMS symmetrical
- Utilization Category: aR
- Body Size: Size 1*, square body
- Terminals: DIN 43620 blade connections
- Indicator: Type K visual indicator
- Dimensions: 45 x 58 x 134 mm
BUSSMANN 170M3273 is a 630 A square-body high-speed fuse for semiconductor protection. It has aR utilization characteristics and a Type K visual indicator.
-
REQUEST A QUOTE
- Manufacturer: BUSSMANN

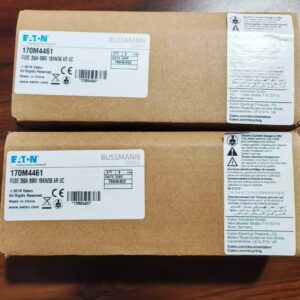

- Model / Part Number: 170M4461
- Current Rating: 350 A
- Voltage Rating: 690 VAC (IEC); 700 VAC (UL)
- Interrupting Rating: 200 kA
- Utilization Category: aR
- Body Style: Square body, size 1
- Termination: Type BKN flush end contacts, screw mounting
- Indicator: Type K visual indicator
- Power Dissipation: 60 W
- Dimensions: 70 x 51 x 51 mm
BUSSMANN 170M4461 is a 350 A high-speed square-body fuse for semiconductor protection. It has aR utilization characteristics and Type BKN flush end contacts.
-

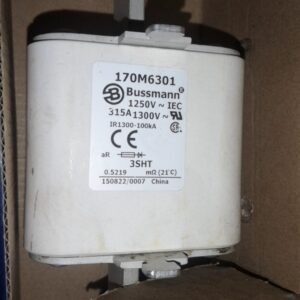

- Brand: Bussmann
- Model: 170M6301
- Series: 170M
- Rated current: 315 A
- IEC voltage rating: 1250 V AC
- UL voltage rating: 1300 V AC
- Utilisation category: aR
- Body size: 3
- Construction designation: 3SHT
- Interrupting rating: 100 kA at 1300 V AC
-
REQUEST A QUOTE
- Amperage Rating: 1000 A
- Voltage Rating: 1000 V AC (IEC)
- Interrupt Rating: 125 kAIC
- Fuse Class: aR (Partial-range semiconductor protection)
- Body Style / Size: Size 3, Square Body (139 mm x 74 mm x 90 mm)
- Termination Type: DIN 43 653 Slotted Center Bolted Tags (110 mm centers)
- Status Indicator: Visual Top Fuse Status Indicator (Type T)
- Power Dissipation: 150 W
- Certifications: UR (UL Recognized), IEC
- Microswitch Indicator: Eaton Bussmann 170H0235 or 170H0237 (5A / 2A, AC 250V remote signal indicators that clip onto the Type T top indicator terminal).
BUSSMANN 170M8639 Square-Body Semiconductor Fuse (170M Series).
