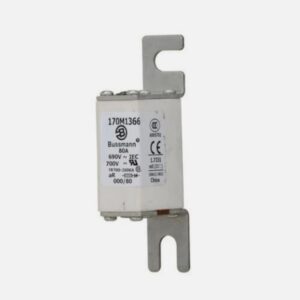

Showing 17–32 of 48 results
-
- Manufacturer: BUSSMANN
- Model / Part Number: 170M1366
- Amperage: 80 Amps
- Voltage Rating: 690 Volts AC (IEC) / 700 Volts AC (UL)
- Interrupt Rating: 200 kA (kiloamps)
- Indicator: Built-in top visual status indicator to show when the fuse is blown
-
- Manufacturer: Bussmann
- Model / Part Number: 170M1367
- Current Rating: 100 A
- Voltage Ratings: 690 V (IEC) / 700 V (UL)
- Interrupting Rating: 200 kAIC (kilo-amperes interrupting capacity)
- Fuse Size: 000
- Operating Class: aR (Partial-range semiconductor protection)
- Mounting / Terminals: DIN 43653, Blade end X blade end (Bolt-down style)
-
- Manufacturer: BUSSMANN

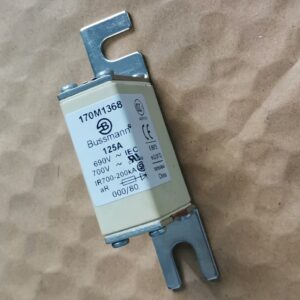

- Model / Part Number: 170M1368
- Current Rating (Amperage): 125 Amps. This is the maximum amount of electricity that can safely flow through the fuse during normal operation.
- Voltage Rating: 690 Volts AC under international rules (IEC) and 700 Volts AC under American standards (UL). It is built to handle very high-voltage industrial power.
- Interrupting Rating: 200 kA (kiloamps). This means it can safely cut off a massive surge of up to 200,000 amps without exploding or failing dangerously.
- Fuse Class: aR. This means it is a partial-range, ultra-fast acting fuse designed specifically to protect sensitive semiconductors (the "brains" inside modern electric motor drives).
- Physical Shape: Square Body with Slotted Offset Bolted Tags (Size 000/80). It features flat, metal metal tabs with slots on each end so it can be securely bolted down inside an electrical cabinet.
- Visual Indicator: Includes a top fuse status indicator. This is a tiny physical window or pop-up tab on top that lets a technician instantly see if the fuse has blown without needing tools to test it.
-

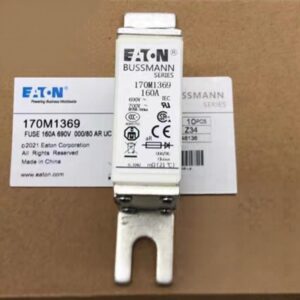

- Manufacturer: BUSSMANN
- Model / Part Number: 170M1369
- Fuse Type: High-speed square-body semiconductor fuse
- Rated Current: 160 A
- Rated Voltage: 690 VAC IEC / 700 VAC UL
- Body Size: Size 000
- Indicator: Top fuse-status indicator
- Terminal Style: Blade terminals
-

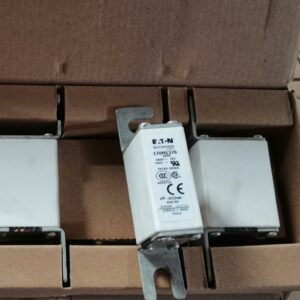

- Manufacturer: BUSSMANN
- Model / Part Number: 170M1370
- Amperage: 200 Amps
- Voltage Rating: 690V (according to IEC standards) / 700V (according to UL standards)
- Interrupt Rating: 200 kA (it can safely stop massive short circuits)
- Class: aR (this means it is a semiconductor protection fuse designed to blow incredibly fast)
- Body Style: Square body with blade ends for easy mounting
-
- Manufacturer: Bussmann

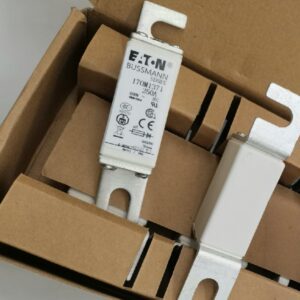

- Model / Part Number: 170M1371
- Amperage (Current) Rating: 250 A
- Interrupting Rating (Breaking Capacity): 200 kA (the maximum current the fuse can safely stop without exploding)
- Operating Class: Class aR (provides partial-range short-circuit protection for semiconductors)
- Fuse Body Size: Size 000 with a square ceramic body
- Mounting Style: DIN 43653 bolted tag style with an 80 mm center-to-center distance between the mounting holes
- Status Indicator: Equipped with a top visual indicator to quickly signal when the fuse has blown
-
- Manufacturer: Bussmann

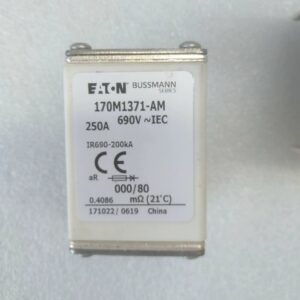

- Model / Part Number: 170M1371-AM
- Current Rating: 250 Amps
- Interrupting Rating: 200 kAIC
- Fuse Class: aR (partial-range protection for semiconductors)
- Body Size / Style: Size 000 square body with slotted offset bolted tags
- Mounting Standard: DIN 43653 / Slotted Bolt Mount
- Indicator Type: Top fuse status visual indicator (/80 variant)
-
- Manufacturer: BUSSMANN

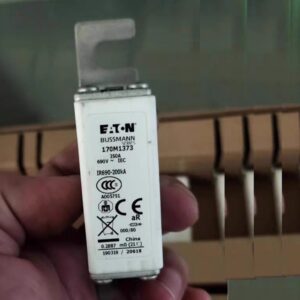

- Model / Part Number: 170M1373
- Current Rating: 350 Amps — It is designed to handle very large amounts of electricity.
- Voltage Rating: 690V to 700V AC — Built safely for high-power industrial machinery.
- Interrupting Rating: 200 kAIC — This means it can safely stop a massive short-circuit current of up to 200,000 amps without exploding.
- Class aR: Partial-range semiconductor protection — It triggers ultra-rapidly specifically during short circuits to protect delicate power electronics.
- Size & Body: Size 000 with a square body — Features standard DIN 43 620 blade ends that slot into standard industrial fuse blocks.
- Visual Indicator: Includes a top status indicator — A small visual window on top lets maintenance workers see instantly if the fuse is blown without needing tools.
-

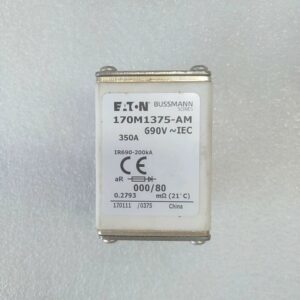

- Manufacturer: Bussmann
- Model / Part Number: 170M1375-AM
- Part Number: 170M1375-AM
- Rated Current: 350 A
- Rated Voltage: 690V AC (IEC) / 700V AC (UL)
- Interrupting Rating (Breaking Capacity): 200 kA RMS Symmetrical
- Operating Class: aR (High-speed partial-range protection for semiconductor devices)
- Body Size / Type: Size 000 with square body profile
-

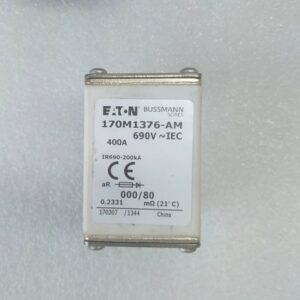

- Manufacturer: BUSSMANN
- Model / Part Number: 170M1376-AM
- Model Number: 170M1376-AM
- Rated Current: 400 Amps (400A)
- Rated Voltage: 690 V a.c. (IEC) / 700 V a.c. (UL)
- Interrupting Rating (Breaking Capacity): 200 kA RMS Symmetrical
- Operating Class: aR (High-speed partial-range protection for semiconductors)
- Body Size / Type: Size 000 square body
-

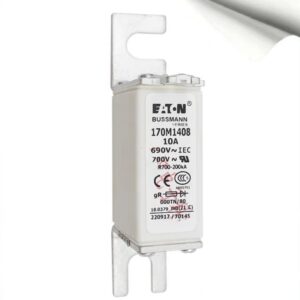

- Manufacturer: BUSSMANN
- Model / Part Number: 170M1408
- Current Rating: 10 Amps
- Voltage Ratings: 690 Vac (IEC) / 700 Vac (UL) / 700 Vdc
- Interrupting Rating (Breaking Capacity): 200 kA RMS Symmetrical (AC) / 50 kA (DC)
- Operating Class: gR (full-range semiconductor protection)
- Power Loss: 3.0 Watts at rated current
- Body Size: Size 000 (Compact square body)
- Mounting Type: 80mm Bolted tags / Stud mount (DIN 43 653)
- Termination Style: Blade end to blade end (Bolt down)
- Status Indicator: Top visual "T" indicator (compatible with microswitches for remote signaling)
- Weight: 134 to 136.4 grams
- Standards & Certifications: CE Marked, UL Recognized, IEC Rated, and RoHS Compliant.
-
- Manufacturer: BUSSMANN

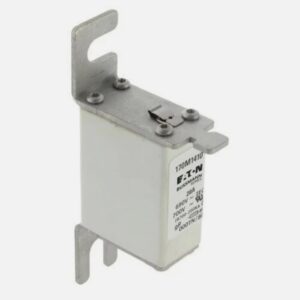

- Model / Part Number: 170M1410
- Current Rating: 20 Amps
- Voltage Ratings: 690 Vac (IEC standard) / 700 Vac (UL standard)
- Interrupting Rating (AC Breaking Capacity): 200 kAIC
- Operating Class: gR (full-range protection for semiconductors)
- Power Loss: 7.0 Watts (at rated current)
- Body Type: Square body
-

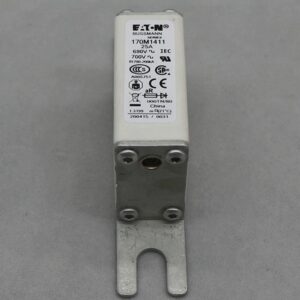

- Manufacturer: BUSSMANN
- Model / Part Number: 170M1411
- Current Rating: 25 Amps
- Voltage Rating: 690 V (according to European IEC standards) or 700 V (according to American UL standards)
- Interrupting Rating: 200 kA (the maximum current the fuse can safely interrupt)
- Operating Class: gR (full-range protection for semiconductors)
- Body Size: Size 000 (very compact square body design)
- Visual Indicator: Features a top fuse status indicator to quickly show if the fuse has blown.
- Mounting Style: Features slotted offset bolted tags (visualized as blade terminals with tabs) designed for secure stud mounting into electrical panels.
-

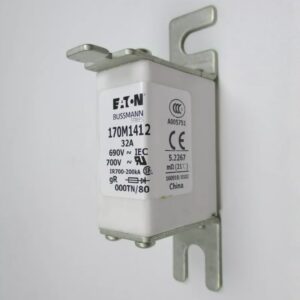

- Manufacturer: BUSSMANN
- Model / Part Number: 170M1412
- Current Rating: 32 Amps
- Voltage Rating: 690 Volts AC (IEC standard) / 700 Volts AC (UL standard)
- Interrupting Rating (Breaking Capacity): 200 kA
- Fuse Size: DIN 000
- Body Type: Square body with a TN/80 model code
- Operating Class: gR (Full-range semiconductor protection)
- Visual Indicator: Features a single visual indicator to show if the fuse has blown
- Mounting Style: Bolt mount with live gripping lugs
- Length: 100 mm
- Height: 53 mm
- Width: 21 mm
- Weight: 145.8 grams
- Safety Certifications: UL Recognized, IEC Rated, and CSA Approved
- Environmental Standards: CE Marked and RoHS Compliant
-
- Manufacturer: BUSSMANN

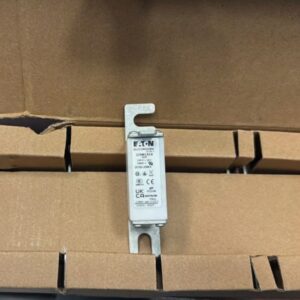

- Model / Part Number: 170M1414
- Current Rating: 50 A
- Voltage Rating: 690 V AC (IEC) / 700 V AC (UL)
- Breaking Capacity: 200 kA (Interrupting rating to safely stop major shorts)
- Utilization Category: gR (Full-range protection for semiconductor devices)
- Body Size: DIN 000 (Very compact square body shape)
- Mounting Style: Stud mount / Bolt-down tags with 80 mm center spacing
- Status Indicator: Single top visual indicator to show if the fuse has blown
- Gripping Lugs: Includes live gripping lugs (TN/80 type)
- Weight: 146.1 grams
- Compliance: CE marked, RoHS compliant, IEC 60269-4, and UL recognized.
-
- Manufacturer: BUSSMANN

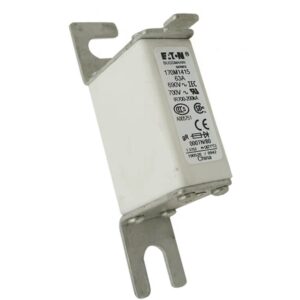

- Model / Part Number: 170M1415
- Current Rating: 63 Amps
- Voltage Rating: 690 Volts AC (IEC) / 700 Volts AC (UL)
- Interrupting Rating: 200 kAIC (kilofail Amps interrupting capacity)
- Operating Class: gR (provides full-range protection for semiconductor components)
- Body Size / Frame: DIN 000 (Square body)
- Dimensions: 100 mm Length × 21 mm Width × 40 mm Height
- Terminal Type: Blade end to blade end (Visual status indicator included on top)
- Mounting Style: Stud mount with bolt-down termination
- Weight: 133.6 grams
- Standards: UL Recognized, IEC Rated, CE Marked, and RoHS Compliant.
