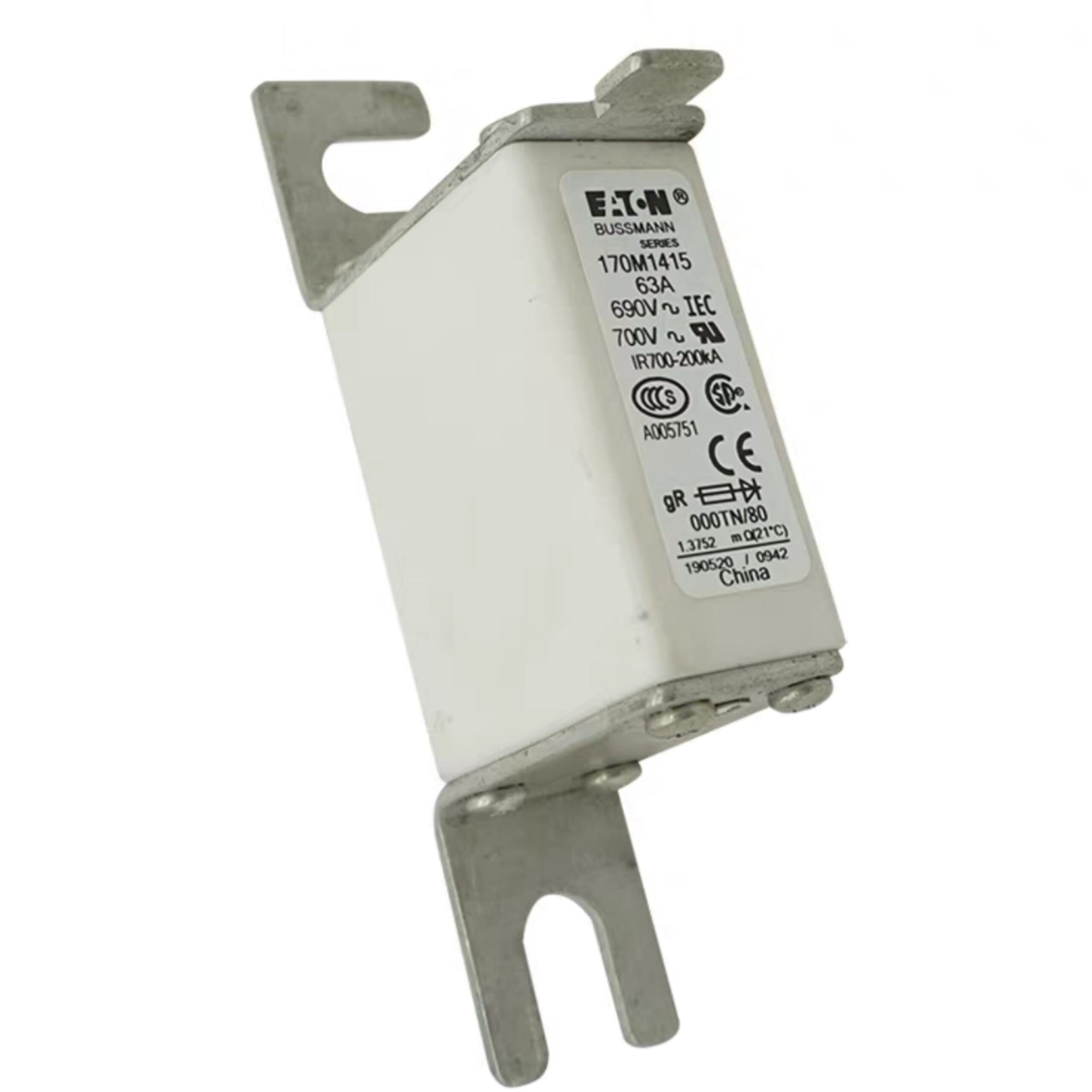

BUSSMANN 170M1415 Industrial Electrical Component
- Manufacturer: BUSSMANN
- Model / Part Number: 170M1415
- Current Rating: 63 Amps
- Voltage Rating: 690 Volts AC (IEC) / 700 Volts AC (UL)
- Interrupting Rating: 200 kAIC (kilofail Amps interrupting capacity)
- Operating Class: gR (provides full-range protection for semiconductor components)
- Body Size / Frame: DIN 000 (Square body)
- Dimensions: 100 mm Length × 21 mm Width × 40 mm Height
- Terminal Type: Blade end to blade end (Visual status indicator included on top)
- Mounting Style: Stud mount with bolt-down termination
- Weight: 133.6 grams
- Standards: UL Recognized, IEC Rated, CE Marked, and RoHS Compliant.
- SKU: 170M1415
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
