KEYENCE GL-T11R Safety Light Curtain (GL-T)

• Applicable Models: KEYENCE GL-R Series

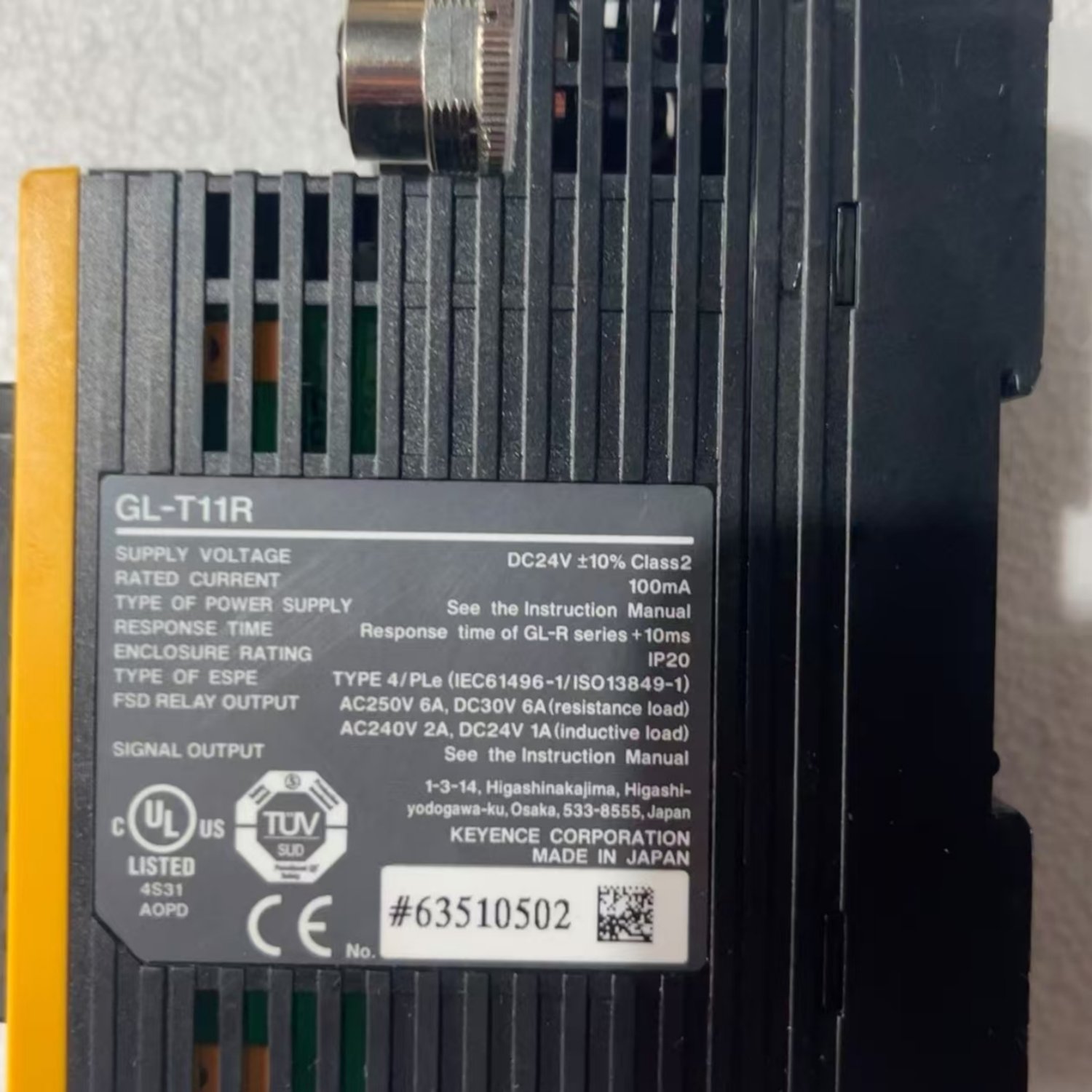

• Power Supply Input: 24 VDC ± 10%, Rated Current: 100 mA
• Safety Relay Outputs: Dual Force-Guided Outputs (FSD1 and FSD2)
• Max Switching Capacity: Resistive: 250 VAC 6 A / 30 VDC 6 A
• Inductive: 240 VAC 2 A / 24 VDC 1 A
• Response Time: ON → OFF: ≤ 10 ms | OFF → ON: ≤ 32 ms
• Electrical Lifespan: ≥ 100,000 cycles at maximum resistive load (6 A)
• Enclosure / Housing: Polycarbonate, IP20 rating (Must install in an IP54+ control panel)
• Safety Certifications: ISO13849-1 (Category 4, PLe), EN61496-1, UL508

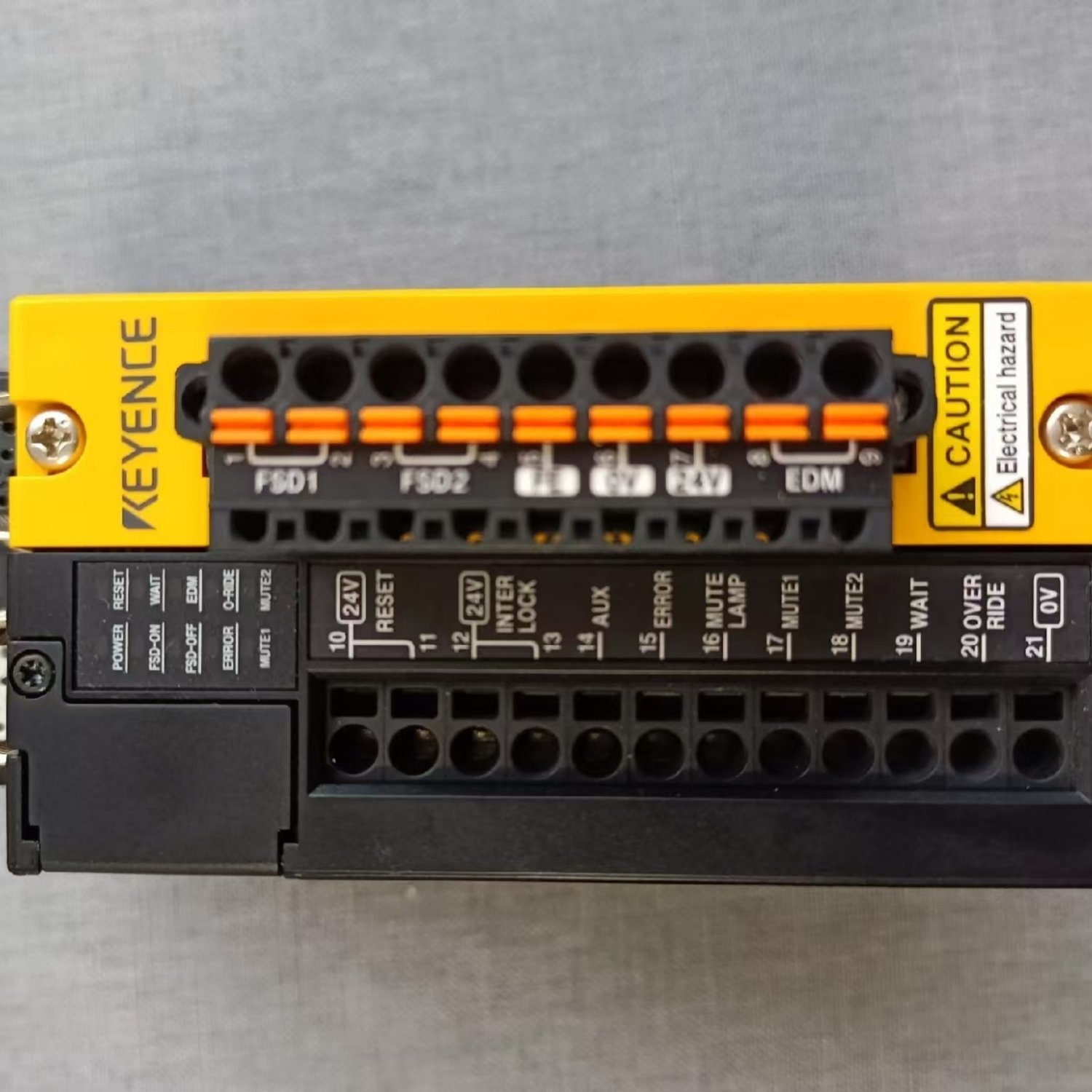

• Simplified Safety Interlocking: Features onboard options for Manual and Automatic Reset. Under factory default settings, integrated shorting bars are pre-installed between terminals 8-9 and 10-11 to bypass specific diagnostic options if simpler logic is desired.

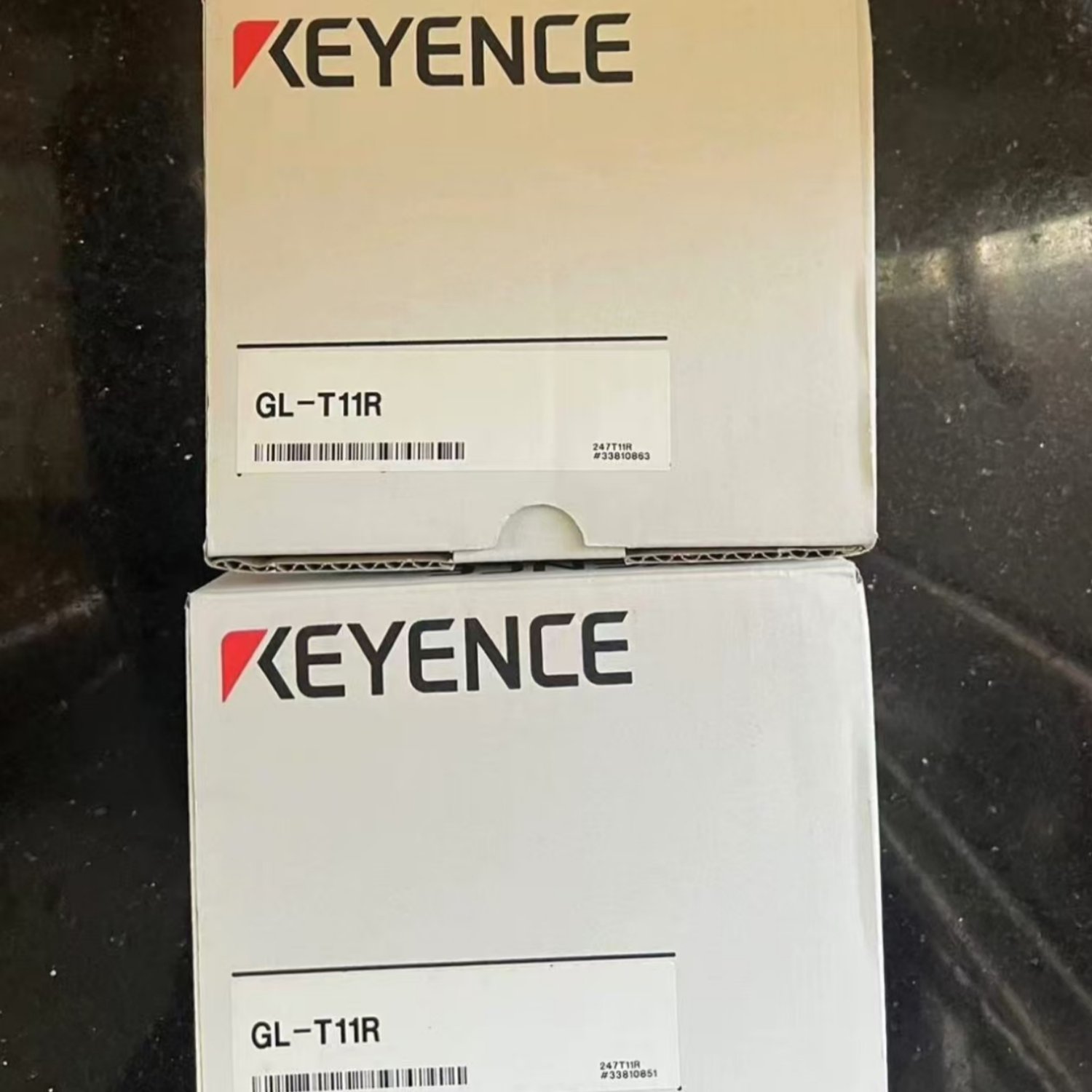

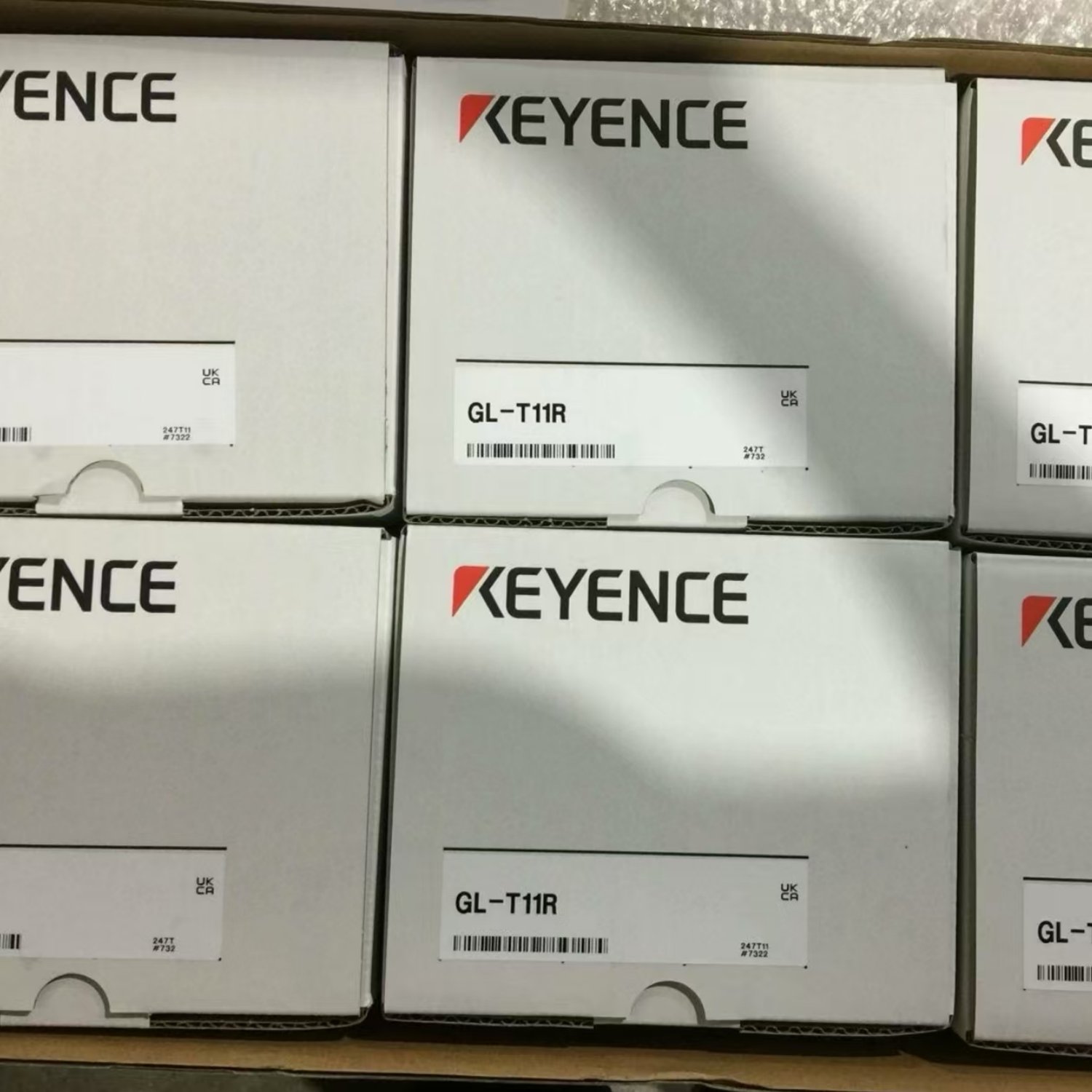

Brand New KEYENCE GL-T11R Relay. In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
