Showing 1–16 of 25 results
-

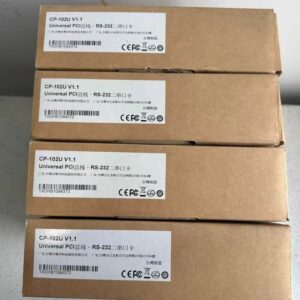

- Brand: Moxa
- Model: CP-102U
- Series: CP-102U/102UL
- Bus: 32-bit Universal PCI
- Serial standard: RS-232
- Number of ports: 2
- Connectors: 2 × DB9 male
- Baud rate: 50 bps to 921.6 kbps
- Controller: MU860, 16C550C compatible
- Data bits: 5, 6, 7 or 8
- Stop bits: 1, 1.5 or 2
- Parity: None, even, odd, space or mark
- Flow control: RTS/CTS, XON/XOFF or none
- Input current: 93 mA at 5 V DC
- Dimensions: 80 × 120 mm
- Operating temperature: 0 to +55 °C
-
REQUEST A QUOTE
- Bus Interface: PCI Express 1.0 (x1 classification, meaning it can physically fit into any x1, x4, x8, or x16 PCIe slot).
- Serial Standard: RS-232 (supports TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND).
- On-Board Connector: Single DB44 female connector on the bracket. (Note: It requires a breakout cable to split into individual DB9 or DB25 serial ports).
- Baudrate Support: 50 bps to 921.6 kbps (including customized non-standard baudrates).
- Performance Components: 128-byte FIFO cache per port and 16C550C-compatible communication controller to minimize CPU overhead.
- Form Factor: Low-profile design, making it highly versatile for small-form-factor ("shoebox") PCs as well as full-sized towers.
- Power Input: Requires only a 3.3 VDC power supply directly from the PCIe bus.
- Built-in Protection: 15 kV ESD (electrostatic discharge) protection directly on the board to protect connected peripherals from power surges.
- Windows: Full Windows COM driver suite (including modern versions and embedded configurations like WEPOS).
- Linux: Real TTY drivers supporting kernel versions 2.4.x, 2.6.x, and 3.x up to modern kernels.
MOXA CP-104EL-A Multiport Serial Board (CP Series).
-

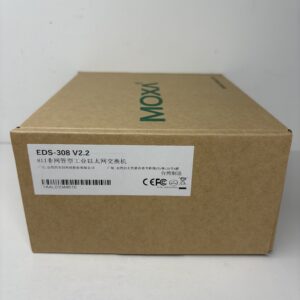

- Manufacturer: MOXA
- Model / Part Number: EDS-308
- Ethernet Ports: 8 x 10/100BaseT(X) RJ45 ports
- Alarm Output: Relay output for power failure and port break alarms
- Operating Temperature: -10 to 60 °C
- Installation: DIN rail mounting
- Network Type: Unmanaged industrial Ethernet switch
-
REQUEST A QUOTE
- Ethernet & PoE: 10/100/1000BaseT(X) ports, IEEE 802.3af/at compliant, Max 30W output
- Power Inputs: Dual redundant 24/48 VDC (22 to 57 VDC range)
- Mechanical: IP30 plastic housing, DIN-rail mounting, 115 g, 24.9 x 100 x 86.2 mm
- Temp Range: Standard: 0 to 60°C; -T Model: -40 to 75°C
- Safety: UL 508, EN 62368-1
- EMI/EMC: CISPR 32, FCC Part 15B Class A, IEC 61000-4-2 ESD
MOXA INJ-24 PoE Injector (INJ-24 Series).
-
REQUEST A QUOTE
- Analog Inputs: 8 differential channels (Screw-fastened Euroblock terminal)
- Input Ranges: Voltage: 0 to 10 VDC
- Current: 0 to 20 mA, 4 to 20 mA (with built-in 120 Ω resistor & burn-out detection)
- Resolution & Accuracy: 16-bit resolution; Accuracy: ±0.1% FSR @ 25°C (±0.3% FSR across full operating temp)
- Sampling Rate: 12 samples/sec per module
- Network Interface: 2-port 10/100 Mbps Ethernet switch (RJ45 connectors) supporting daisy-chaining
- Isolation Protection: 1.5 kV Magnetic isolation; 3 kVDC or 2 kVrms I/O isolation
- Environmental Limits: Standard models: -10 to 60°C (14 to 140°F)
- Wide-temp (-T) models: -40 to 75°C
- Certifications: Class I Division 2, ATEX Zone 2, UL 508, CE/FCC
MOXA IOLOGIK E1240 Remote I/O (ioLogik E1200).
-
REQUEST A QUOTE
- Protocols: Modbus RTU Master/Slave, Modbus ASCII Master/Slave.
- Physical Ports: 1 DB9 Male connector supporting RS-232, RS-422, and RS-485.
- Baudrate: 50 bps to 921.6 kbps.
- Capacity: Configurable for up to 100 Modbus commands.
- Protocol: PROFIBUS DP-V0 Slave.
- Physical Ports: 1 DB9 Female connector.
- Baudrate: 9600 bps to 12 Mbps (auto-detecting).
- Casing: Heavy-duty metal housing with an IP30 rating.
- Mounting: Integrated DIN-rail mounting bracket.
- Power Supply: Redundant dual 12 to 48 VDC inputs via a screw-fastened Euroblock terminal.
MOXA MGATE 4101-MB-PBS Protocol Gateway (MGate 4101).
-
REQUEST A QUOTE
- Supported Protocols: • Downstream: Modbus RTU/ASCII (Master/Slave), Modbus TCP (Client/Server), EtherNet/IP (Adapter)
- Serial Ports: 1 x DB9 or terminal block connection supporting RS-232/422/485
- Ethernet Interface: 2 x 10/100 BaseT(X) ports with built-in 1.5 kV magnetic isolation (Supports cascading switches)
- Data Mapping Capacity: Max 128 Modbus commands; 512 bytes input data size / 512 bytes output data size
- Hardware / Housing: IP30-rated rugged metal casing; DIN-rail or panel mounting
- Power Inputs: Redundant dual DC power inputs (12 to 48 VDC)
- Security Enhancements: Local user authentication database, HTTPS web configuration, and encryption options (AES-128, AES-256, SHA-256)
- External Storage: MicroSD card slot for configuration backup, log tracking, and rapid unit duplication
- System Setup: Connect via the web console (HTTP/HTTPS) and configure basic IP infrastructure parameters, subnet masks, and network names.
- Select Protocols: Set the operational matrix. Define the gateway's target roles (e.g., choosing PROFINET IO Device for upstream communication and Modbus RTU Master for the serial field side).
MOXA MGATE 5103 Protocol Gateway (MGate 5103).
-
REQUEST A QUOTE
- Serial Ports: 1 DB9 male connector (Supports RS-232, RS-422, or 2-wire/4-wire RS-485)
- Ethernet Ports: 2 RJ45 ports (10/100 Mbps) functioning as a built-in switch for easy daisy-chaining
- Configuration Methods: Web Console (HTTPS/HTTP), MGate Manager Utility, Serial Console, or Telnet
- Power Requirements: 12 to 48 VDC terminal block input
- Mounting: Built-in rugged DIN-rail mounting hardware
- Auto-Device Routing (Patent Pending): Eliminates complex slave ID mapping tables. The gateway automatically detects commands from a SCADA system and routes them dynamically to the correct endpoints, drastically shortening configuration times.
- Priority Control for Urgent Commands: Allows users to assign priority to specific Modbus commands to avoid communication lag in large or critical networks.
- Serial Redirector Function: Allows an existing serial master device to maintain direct communication with local serial slaves through a mapped path without altering the software architecture.
- Flexible Routing: Serial port traffic can be routed strictly by IP address, TCP port number, or Modbus Slave ID mapping.
- Default IP Address: 192.168.127.254
MOXA MGATE MB3170 Modbus Gateway (MGate MB3170).
-
REQUEST A QUOTE
- Bidirectional Conversion: Translates seamlessly between Modbus TCP (Ethernet master/client or slave/server) and Modbus RTU/ASCII (serial master or slave).
- Modbus TCP Masters: Supports up to 16 simultaneous Modbus TCP masters with up to 32 simultaneous requests per master.
- Modbus Serial Slaves: Connects up to 31 RTU/ASCII serial slave devices via its single serial port.
- Modbus Serial Masters: Supports routing from serial masters to up to 32 remote TCP slave devices.
- Ethernet Port: 1x 10/100BaseT(X) port (RJ45 connector)
- Serial Port: 1x RS-232/422/485 port (DB9 male connector)
- Input Voltage: 12 to 48 VDC
- Dimensions: 22 x 75 x 80 mm (0.87 x 2.95 x 3.15 in)
- Mounting: Desktop or DIN-rail (DK35A kit sold separately)
- Auto Device Routing: Simplifies software configuration by eliminating the need to manually program a complex Modbus slave ID routing table.
MOXA MGATE MB3180 Modbus Gateway (MGate MB3180).
-
REQUEST A QUOTE
- Serial Ports: 4 x DB9 Male (Software-selectable RS-232, RS-422, or RS-485)
- Baud Rate: 50 bps to 921.6 kbps
- Ethernet Port: 1 x 10/100BaseT(X) port (RJ45 connector, Auto MDI/MDI-X)
- Magnetic Isolation: Built-in 1.5 kV isolation protection for Ethernet
- Device Routing: Auto-Device Routing (Automatically detects Modbus requests and populates slave ID routing tables via a single click)
- Security Functions: HTTPS, SNMPv3, Local database, Authentication, Encryption
- Input Power: 12 to 48 VDC
- Network Bridging: Ideal for connecting legacy serial PLCs, meters, and sensors to modern SCADA software platforms via Ethernet.
- Auto Device Routing: Eliminates the tedious, error-prone manual process of building a slave ID mapping routing table. Instead, it listens to traffic and maps connections with a single mouse click, reducing commissioning times.
- Mixed Serial Infrastructure: Because each of the 4 ports can be configured independently, you can run Modbus RTU on one port and Modbus ASCII on another, or use completely different baud rates within the same gateway.
MOXA MGATE MB3480 Modbus Gateway (MGate MB3480).
-
REQUEST A QUOTE
- Specification Attribute: Detail
- Serial Standard: RS-232 exclusively
- Serial Interface / Port: 1 x DB9 Male connector
- Network Interface: 1 x 10/100 Mbps RJ45 Ethernet Port
- Baudrate Support: 110 bps to 230.4 kbps
- Input Voltage Range: 12 to 48 VDC
- Input Current: 128.7 mA @ 12 VDC
- Configuration Methods: Web Console (HTTP), Telnet, or Windows Utility
- Real COM Mode: Bundled with native drivers for Windows, Linux, and macOS. It transparently maps a virtual COM port on your operating system directly to the physical port on the hardware, ensuring full backwards compatibility with legacy software.
- TCP Client / Server Mode: Allows the device to actively initiate a connection to a centralized host computer (Client mode) or wait passively for incoming connections from a control system (Server mode).
MOXA NPORT 5110 Serial Device Server (NPort 5110).
-
REQUEST A QUOTE
- Serial Interface: 1 x RS-232 (DB9 male connector)
- Ethernet Interface: 1 x 10/100BaseT(X) port (RJ45 connector)
- Power Consumption: 1 Watt (82.5 mA @ 12 VDC)
- Input Voltage: 12 to 48 VDC via power jack or screw connector
- Surge Protection: 0.5 kV serial surge protection (15 kV ESD)
- Operating Temperature: 0 to 60°C (32 to 140°F) (Note: The "-T" variant supports -40 to 75°C)
- Physical Dimensions: 75.2 x 80 x 22 mm (2.96 x 3.15 x 0.87 in)
- Housing & Mounting: Metal housing; Desktop, Wall, or DIN-rail mounting
- Versatile Operation Modes: Supports standard network architectures including Real COM (mapping virtual COM ports on Windows/Linux), TCP Server, TCP Client (for continuous active data streaming), and UDP.
- Multi-Host Connectivity: Can connect up to 8 TCP hosts simultaneously, allowing multiple operators or systems to monitor the same serial device at once.
MOXA NPORT 5110A Serial Device Server (NPort 5110A).
-
REQUEST A QUOTE
- Serial Interface: 1 x RS-422/485 port (DB9 male connector)
- Network Interface: 1 x 10/100Base-T(X) port (RJ45)
- Baudrate: 50 bps to 921.6 kbps
- Serial Protection: Built-in 15 kV ESD protection for all serial signals
- Pull High/Low Resistor: Adjustable (1 kilo-ohm, 150 kilo-ohms) for RS-485
- Data Direction Control: Automatic Data Direction Control (ADDC) for RS-485
- Configuration Options: Web Console (HTTP/HTTPS), Telnet, or Windows Utility
- Real COM Mode: Creates a virtual COM port on Windows or Linux PCs, tricking legacy software into thinking the device is plugged directly into a local physical serial port.
- TCP Server / Client: Establishes direct raw data streams via explicit TCP socket connections across the IP network.
- UDP Mode: Provides low-latency, point-to-multipoint unicast or multicast serial communication over UDP protocols.
MOXA NPORT 5130 Serial Device Server (NPort 5130).
-
REQUEST A QUOTE
- Ethernet: 1 x 10/100BaseT(X) RJ45, 1.5 kV isolation.
- Serial: 1 x DB9 male (3-in-1 RS-232/422/485).
- Baudrate: 50 bps to 921.6 kbps.
- Serial Signals: Supports RS-232, 4-wire RS-422, and 2/4-wire RS-485 with ADDC.
- Protection: Built-in 15 kV ESD protection for serial signals.
- Flow Control: RTS/CTS, DTR/DSR, XON/XOFF.
- Operation Modes: Real COM, TCP Server, TCP Client, UDP, Pair Connection, Reverse Telnet, Ethernet Modem.
- Driver Support: Windows Real COM, Linux/macOS Real TTY.
- Housing: Metal construction.
- Dimensions: 52 x 80 x 22 mm (without ears).
MOXA NPORT 5150 Serial Device Server (NPort 5150).
-
REQUEST A QUOTE
- Ethernet Interface: 1 x 10/100BaseT(X) port (RJ45 connector) with 1.5 kV magnetic isolation
- Serial Interface: 1 x RS-232/422/485 port via a DB9 male connector
- Baudrate: Supports standard baudrates from 50 bps to 921.6 kbps
- Serial Parameters: • Data Bits: 5, 6, 7, 8
- Flow Control: RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF
- Operation Modes: Real COM, TCP Server, TCP Client, UDP, Pair Connection, Reverse Telnet, Ethernet Modem
- OS Drivers Supported: Real COM/TTY drivers for Windows, Linux, macOS, and Arm platforms
- Security Functions: Authentication, Encryption, HTTPS, RSA-1024, SHA-1, SHA-256
- Power Requirements: • Input Voltage: 12 to 48 VDC
- Surge Protection: 0.5 kV serial surge protection (line-to-line), plus Ethernet & power line surge protection
MOXA NPORT 5150A Serial Device Server (NPort 5150A).
-
REQUEST A QUOTE
- Feature / Attribute: Specification Details
- Serial Ports: 1 x DB9 male connector
- Serial Standards: Software-selectable RS-232, RS-422, or RS-485
- Ethernet Port: 1 x 10/100 Base-T(X) auto-sensing port (RJ45 connector)
- Operating Temperature: -40°C to 75°C (-40°F to 167°F)
- Power Input: 12 to 48 VDC via terminal block or screw-type power jack
- Power Consumption: Ultra-low power design, consuming only 1 Watt
- Surge Protection: 0.5 KV serial surge protection compliant with IEC 61000-4-5
- Physical Dimensions: 75.2 x 80 x 22 mm (2.96 x 3.15 x 0.87 in) with mounting ears
- Housing & Mounting: Rugged metal chassis; supports Desktop, DIN-rail, or Wall mounting
MOXA NPORT 5150A-T Serial Device Server (NPort 5150A).
