Showing 1–16 of 25 results
-
REQUEST A QUOTE
- Ports: 16 x RJ45 ports
- Transmission Speed: 10/100 Mbps (Fast Ethernet)
- Network Protocols: PROFINET Conformance Class B, DHCP (Client/Server), VLANs, MRP (Client/Manager), RSTP, SNMP
- Supply Voltage: 12 V DC to 57 V DC
- Current Consumption: 315 mA
- Operating Temperature: -40 °C to 70 °C
- Dimensions: 85 mm (W) x 130 mm (H) x 115 mm (D)
- Mounting Type: DIN rail mounting
- Degree of Protection: IP20
- Security Standards: IEC 62443-4-1 (Certified process), IEC 62443-4-2 (Product certified)
PHOENIX CONTACT 1044029 Managed Ethernet Switch (FL SWITCH).
-
- Brand: Phoenix Contact

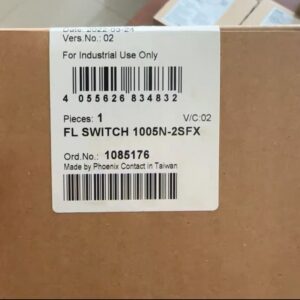

- Model: 1085176
- Series: FL SWITCH 1000
- Type designation: FL SWITCH 1005N-2SFX
- Copper ports: 5 × RJ45, 10/100 Mbps
- Fibre interfaces: 2 × SFP slots, 100 Mbps
- DC supply range: 9–32 V DC
- AC supply range: 18–30 V AC, 50/60 Hz
- Nominal supply: 24 V
- Switching method: Store and forward
- MAC address table: 2K entries
- PROFINET: Conformance Class A
- Power connection: Push-in spring terminals
- Mounting: DIN rail
- Dimensions W × H × D: 22.5 × 140.4 × 92.4 mm
- Protection: IP30
- Operating temperature: -10 to +60 °C
-
- Manufacturer: PHOENIX CONTACT
- Model / Part Number: 1085219
- Ports: 16 RJ45 ports.
- Speed: Gigabit Ethernet (10/100/1000 Mbps) across all ports.
- Design: Slim, narrow housing (40mm width) for saving space on a DIN rail.
- Protection: IP30 rated metal housing.
- Power Supply: 9V DC to 32V DC input.
-
REQUEST A QUOTE
- Product Series: FL SWITCH 1000 (Narrow design)
- Port Count: 8 × RJ45 ports
- Data Rate: 10/100 Mbps (Auto-negotiation)
- Transmission Length: Up to 100 meters per segment
- Supply Voltage: 24 V DC (Accepts 9 V to 32 V DC) / 24 V AC
- Power Consumption: Max current 173 mA (1.557 W at 24 V DC)
- Operating Temp: -10 °C to +60 °C (14 °F to 140 °F)
- Protection Rating: IP30 (Polycarbonate fiber-reinforced plastic)
- Traffic Optimization: Built-in Quality of Service (QoS) capabilities prioritize automation protocol messages to minimize latency.
- PROFINET Ready: Compliant with PROFINET Conformance Class A and includes a PROFINET PTCP filter for real-time, reliable data exchange.
PHOENIX CONTACT 1085256 Unmanaged Ethernet Switch (FL SWITCH).
-
REQUEST A QUOTE
- Data Throughput: Supports up to 124 Mbps bidirectional firewall throughput in router mode, and up to 61 Mbps in stealth mode.
- Network Interfaces: Equipped with 2 RJ45 ports (10/100 Mbps) supporting Network Address Translation (NAT).
- VPN Capacities: Out of the box, it provides secure remote maintenance. It can be optioned to support 10 IPsec VPN tunnels, extendable up to 250 tunnels with additional licensing.
- Industrial Design: Housed in a rugged metal casing featuring an extended operating temperature range and a built-in slot for an SD memory card to easily back up configurations.
- Management: Offers straightforward, web-based management (HTTPS) that eliminates the need for specialized external software.
Phoenix Contact 2700634 （FL MGUARD RS4000TX） Security Router Firewall (FL MGUARD Series).
-
REQUEST A QUOTE
- Port Configuration: 8 x RJ45 ports supporting 10/100 Mbps transmission speeds with auto-negotiation and autocrossing features.
- Network & Protocols: Fully supports Layer 2 switching, VLANs, DHCP (client/server/Option 82), RSTP, and PROFINET Conformance-Class B networks.
- Environmental & Design: Built with a robust polycarbonate housing rated at IP20 protection. It is explicitly designed for a DIN rail mount setup.
- Temperature Range: Operates in extreme temperatures ranging from −40 °C to +70 °C.
- Power Supply: Wide input range of 12 V DC to 57 V DC (supporting 24 V DC redundant configurations).
- Sager Electronics: Listed under their core embedded system solutions catalog.
PHOENIX CONTACT 2702327 Managed Ethernet Switch (FL SWITCH 2208).
-
REQUEST A QUOTE
- Product Series: Managed Switch 2000 series
- Interfaces: 16 x RJ45 ports (10/100 Mbps, auto-negotiation, autocrossing)
- Transmission Media: Copper, max. 100 m per segment
- Supply Voltage Range: 12 V DC … 57 V DC (Redundant)
- Current Consumption: Typical: 315 mA (at 24 V DC)
- Max: 1.4 A (at 12 V DC / 70°C)
- Degree of Protection: IP20
- Dimensions (WxHxD): 85 mm x 130 mm x 119 mm
- Net Weight: 445 g
- Mounting Type: DIN rail mounting
PHOENIX CONTACT 2702904 Managed Ethernet Switch (FL SWITCH 2216).
-
- Brand: Phoenix Contact
- Model: 2810463
- Series: MINI MCR-BL-I-I / ESSENTIAL Edition
- Channels: 1
- Isolation: 3-way electrical isolation
- Input signal: 0 to 20 mA or 4 to 20 mA
- Output signal: 0 to 20 mA or 4 to 20 mA
- Supply voltage: 19.2 to 30 V DC
- Maximum transmission error: < 0.1% of final value
- Output load: < 500 Ω at 20 mA
- Limit frequency: Approximately 100 Hz
- Connection: Screw connection
- Mounting: DIN rail
- Dimensions: 6.2 × 93.1 × 102.5 mm
- Operating temperature: -10 to +60 °C
- Protection rating: IP20
-
REQUEST A QUOTE
- Manufacturer: Phoenix Contact
- Part Number: 2864176
- Model Name: MINI MCR-SL-UI-2I-NC
- Product Family: MINI Analog
- Isolation Type: 4-way isolation
- Supply Voltage: 19.2 V DC to 30 V DC (24 V DC nominal)
- Configuration: Side-accessible DIP switches (up to 8 combinations)
- Connection Method: Screw connection (12 mm stripping length)
- Mounting Type: DIN rail mounting
- Number of Inputs: 1 analog input
PHOENIX CONTACT 2864176 Signal Conditioner (MINI MCR-SL).
-
REQUEST A QUOTE
- Port Configuration: 5 × Fast Ethernet TP RJ45 ports supporting 10/100 Mbps.
- Installation & Form Factor: Compact aluminum housing mountable on a standard DIN rail, rated with IP20 protection.
- Network Features: Supports Auto-Negotiation (automatic speed adaptation) and Autocrossing (no cross-over cables needed).
- Switching Mode: Store-and-forward.
- Power Requirements: 24 V DC supply voltage.
- Operating Range: Operational in ambient temperatures from -10 °C to +60 °C.
- Diagnostics: Local diagnostic LED status indicators per port for active link and data reception.
- Phoenix Contact Official Product Page: View complete regional technical documentation and global regional specifications directly via Phoenix Contact Global.
PHOENIX CONTACT 2891001 FL SWITCH SFNB 5TX Unmanaged Ethernet Switch (FL SWITCH SFNB).
-
REQUEST A QUOTE
- Nominal Input Voltage: 24 V AC/DC (Accepts 20.4 V to 26.4 V)
- Contact Configuration: 2 Form A (DPST-NO) Enabling Paths + 1 Signaling Path
- Max Contact Current: 6 A
- Safety Ratings: SIL 3 (IEC 61508) / Cat. 4, PL e (EN ISO 13849-1)
- Terminal Connection: Plug-in screw terminal blocks
- Housing Dimensions: 22.5 mm width; DIN Rail mountable
- Environmental Protection: IP20 rating
- Versatile Control Logic: Supports both single-channel and dual-channel safety circuit architectures.
- Activation Modes: Features automatic reset or manually monitored start logic within the same unified device.
- Electrical Safety: Built with reinforced electrical insulation between circuits to maintain dependable fault protection.
PHOENIX CONTACT 2900525 Safety Relay (PSR-SCP).
-
REQUEST A QUOTE
- Input Voltage: 100–240 V AC nominal (Range: 85–264 V AC) | 110–250 V DC
- Output Voltage: 48 V DC (adjustable secondary voltage)
- Output Current: 5 A nominal
- Maximum Power: 240 W
- Mounting Style: DIN Rail Mount
- Connections: Tool-free Push-in connection technology
- Operating Temperature: -25°C to +70°C (with device startup operational down to -40°C)
- Protections: Short-circuit-proof, idle-proof, and features an IP20 protection rating
- Dimensions: 132 mm (H) x 42 mm (W) x 160 mm (D)
- Dynamic Boost: Delivers up to 150% of the nominal current for 5 seconds to help start up heavy, demanding loads.
PHOENIX CONTACT 2903159 DIN Rail Power Supply (TRIO-PS).
-
REQUEST A QUOTE
- Channels: 1 Input channel → 2 Output channels (Galvanically isolated).
- Input Signal Ranges: Configurable for
- Output Signal Ranges: Configurable up to 10.5 V or 21 mA.
- Configuration: Adjusted via integrated DIP switches or via free software solutions.
- Form Factor & Mounting: Ultra-slim 6.2 mm housing width designed for standard DIN rail mounting.
- Connection Type: Plug-in screw connection technology.
- Power Supply: 24 V DC nominal supply (can be powered via the TBUS DIN rail connector).
PHOENIX CONTACT 2905026 Signal Duplicator (MINI MCR-2).
-
REQUEST A QUOTE
- Manufacturer: Phoenix Contact
- Part Number (MPN): 2963718
- Model Designation: PSR-SCP-24UC/ESM4/2X1/1X2
- Nominal Input Voltage: 24 V AC/DC
- Contact Configuration: DPST-NO (2 Enabling/Safety paths) & SPST-NC (1 Signaling/Auxiliary path)
- Safety Integrity Level: Up to SIL 3 (IEC 61508)
- Performance Level: Up to PL e / Category 4 (EN ISO 13849)
- Connection Method: Plug-in screw terminal blocks
- Mounting Type: Standard DIN Rail
- Protection Rating: IP20
PHOENIX CONTACT 2963718 Safety Relay (PSR-SCP).
-
REQUEST A QUOTE
Technical Specifications
- Core Function: Emergency stop and safety door monitoring.
- Safety Ratings: Up to Cat. 4 / PL e (EN ISO 13849-1), SIL 3 (IEC 61508).
- Channels: 2-channel operation.
- Contacts: 2 enabling current paths (DPST-NO) and 1 signaling current path (SPST-NC).
- Input Voltage: 24 V AC/DC nominal.
- Switching Capacity: Maximum 6 A / 250 V AC/DC.
- Connection Type: Plug-in screw terminal blocks.
- Mounting: Standard DIN rail mounting.
- WiAutomation US: Available at WiAutomation US.
- PLC Direct: Available at PLC Direct.
PHOENIX CONTACT 2963750 Safety Relay (PSR-SCP).
-
REQUEST A QUOTE
- Core Function: Safety monitoring for E-stops, light curtains, and safety gates.
- Safety Integrity: Up to SIL 3, Cat. 4, and PL e compliance according to EN ISO 13849 standards.
- Control Voltage: 24 V AC/DC nominal input.
- Contact Configuration: 3 Enabling current paths (3 NO / DPST-NO) and 1 signaling path (1 NC).
- Switching Capacity: Max. 6 A continuous current / 250 V AC/DC switching voltage.
- Connection & Mounting: Plug-in screw terminal blocks mounted on standard DIN rails.
- Activation Modes: Supports both manually monitored and automatic activation within a single device.
PHOENIX CONTACT 2963763 Safety Relay (PSR-SCP).
