Showing 17–25 of 25 results
-
REQUEST A QUOTE
- Safety Ratings: SIL 3 (IEC 61508) • Cat. 4 / PL e (EN ISO 13849-1)
- Nominal Input Voltage: 24 V AC/DC
- Power Consumption: ~1.68 W
- Typical Input Current: 140 mA AC / 65 mA DC
- Output Contacts: 3 Enabling current paths (N/O) • 1 Signaling current path (N/C)
- Response / Release Time: 20 ms (manual start) • 10 ms (two-channel release)
- Connection Method: Plug-in screw terminal block
- Operating Temperature: -20 °C … 55 °C
- Flexible Control: Supports both 1-channel and 2-channel operation loops.
- Activation Modes: Configurable for manual monitored activation or automatic start.
PHOENIX CONTACT 2963776 Safety Relay (PSR-SCP).
-
REQUEST A QUOTE
- Control & Channels: 1- or 2-channel control with options for automatic or manually monitored activation.
- Contact Configuration: Features 8 enabling current paths (8PST-NO) and 1 signaling current path (SPST-NC).
- Electrical Ratings: Operates on a 24V AC/DC rated control supply voltage with a maximum switching current of 6 A per contact.
- Installation: Designed for standard DIN Rail mounting and features user-friendly plug-in screw terminal blocks.
PHOENIX CONTACT 2963912 Safety Relay (PSR-SCP).
-

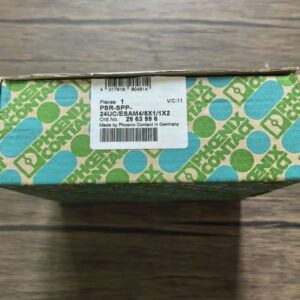

- Manufacturer: PHOENIX CONTACT
- Model / Part Number: 2963996
- Type Designation: PSR-SPP-24UC/ESAM4/8X1/1X2
- Supply Voltage: 24 VAC/VDC
- Safety Rating: Up to SIL 3 and PL e, Category 4
- Enabling Paths: 8 normally open
- Signaling Paths: 1 normally closed
- Operating Channels: 1-channel or 2-channel
- Contact Material: Silver tin oxide
- Maximum Current: 6 A
- Mounting: DIN rail
-

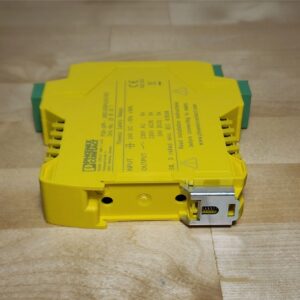

- Manufacturer: PHOENIX CONTACT
- Model / Part Number: 2981017
- Power Input: It runs on 24 V DC electrical systems.
- Electrical Capacity: It can handle up to 6 Amps of current.
- Connections: It uses a pluggable Push-in terminal block, allowing wires to be connected easily without using screws.
- Size: It is very slim, measuring only 22.5 mm wide (less than an inch) to save space inside electrical cabinets.
- Mounting: It snaps directly onto standard DIN rails.
-
REQUEST A QUOTE
- Supply Voltage: 24 V DC (-15 % / +10 %)
- Typical Input Current: 50 mA DC
- Maximum Inrush Current: < 1 A
- Control Channels: 1-channel control
- Contact Configuration: 2 enabling current paths (NO), 1 signaling current path (NC, Type B according to EN 50205)
- Contact Material: Silver tin oxide with gold flash (AgSnO2, gold-flashed)
- Maximum Switching Voltage: 250 V AC/DC
- Minimum Switching Voltage: 10 V
- Limiting Continuous Current: 6 A
- Response Time: 60 ms (Automatic/manual start)
PHOENIX CONTACT 2981020 Safety Relay (PSR-SCP).
-
REQUEST A QUOTE
- Safety Integration: Achieves up to SIL 3 (IEC 61508) and PL e / Category 4 (ISO 13849-1) compliance.
- Control Configuration: Offers flexible 1- or 2-channel control with manually monitored or automatic activation options.
- Contact Pathways: Features 3 enabling (normally open) current paths and 1 signaling (normally closed) path.
- Electrical Ratings: Operates on a 24 V AC/DC nominal input voltage with a continuous switching current rating of 6 A up to 250 V AC/DC.
- Wiring System: Features a user-friendly, plug-in screw terminal block connection.
PHOENIX CONTACT 2981059 Safety Relay (PSR-SCP).
-

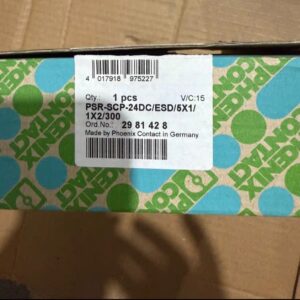

- Manufacturer: PHOENIX CONTACT
- Model / Part Number: 2981428
- Control Voltage: 24V DC.
- Channel Support: Works with 1-channel or 2-channel setups.
- Contact Types: Includes 3 undelayed normally open (N/O) contacts, 1 normally closed (N/C) contact, and 2 N/O contacts with an adjustable dropout delay.
- Time Delay Range: The built-in dropout delay can be configured from 0.2 seconds to 300 seconds across 24 distinct increments.
- Connection Method: Utilizes secure, plug-in screw terminal blocks for quick wiring.
- Mounting: Snaps directly onto standard 35mm DIN rails.
-

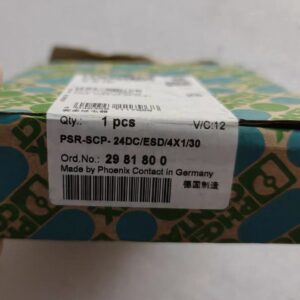

- Manufacturer: PHOENIX CONTACT
- Model / Part Number: 2981800
- Function: Emergency stop, safety door, and light grid monitoring.
- Control Voltage: 24 V DC.
- Current Rating: 6 A maximum current.
- Contacts: Features a maximum of 3 undelayed and 2 dropout delay contacts.
- Delay Time: Adjustable dropout delay from 0.1 to 30 seconds.
- Connection Type: Plug-in screw connection.
- Mounting: Standard DIN rail mounting.
- Safety Ratings: Up to SIL 3 (IEC 61508) and Performance Level e (EN ISO 13849-1).
-
REQUEST A QUOTE
- Control / Coil Voltage: 24 V DC
- Current & Contact Rating: 5 A max switching current
- Contact Configuration: 2 enabling current paths (DPST-NO / 2 Form A) and 1 confirmation signal path (SPST-NC).
- Safety Ratings: Up to SIL 3 (IEC 61508) and Performance Level e (EN ISO 13849).
- Housing & Dimensions: Narrow 17.5 mm width, yellow PA housing.
- Connection Type: Plug-in screw connection.
- Special Features: Integrated test pulse filter to prevent accidental triggering from controller test pulses, extending service life.
PHOENIX CONTACT 2986960 Safe Coupling Relay (PSR-SCP).
