Showing 1–16 of 1316 resultsSorted by latest
-

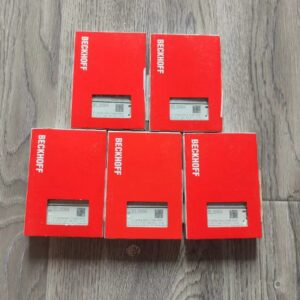

- Manufacturer: Beckhoff Automation
- Model / Part Number: EL3064
- Number of inputs: 4 (single-ended), 0-10 V signal voltage, 2-wire connection with common internal ground
- Resolution: 12 bit (16 bit presentation incl. sign)
- Internal resistance: > 130 kOhm; input filter cut-off frequency 1 kHz; dielectric strength max. 30 V
- Conversion time: 0.625 ms default setting, configurable, multiplex
- Electrical isolation: 500 V (E-bus/signal voltage)
- Power supply / consumption: via the E-bus; current consumption E-bus typ. 130 mA
- Bit width in process image: inputs: 16 byte; no address or configuration setting required
- Weight / dimensions: approx. 60 g; 12 mm x 100 mm x 68 mm (W x H x D)
- Environment: -25…+60 deg C operating, -40…+85 deg C storage, 95% RH no condensation; IP20
- Approvals: CE, CCC, UL, ATEX (II 3G Ex ec IIC T4 Gc), IECEx, cFMus
- Product status: regular delivery
-
- Manufacturer: Beckhoff Automation
- Model / Part Number: EL3048
- Number of inputs: 8 (single-ended), 0-20 mA current
- Resolution: 12 bit (16 bit presentation incl. sign)
- Internal resistance: typ. 85 ohm; input filter cut-off frequency 1 kHz; dielectric strength max. 30 V
- Conversion time: 1.25 ms default setting, configurable, multiplex
- Electrical isolation: 500 V (E-bus/signal voltage)
- Power supply / consumption: via the E-bus; current consumption E-bus typ. 130 mA
- Bit width in process image: inputs: 32 byte; no address or configuration setting required
- Weight / dimensions: approx. 60 g; 12 mm x 100 mm x 68 mm (W x H x D)
- Environment: -25…+60 deg C operating, -40…+85 deg C storage, 95% RH no condensation; IP20
- Approvals: CE, CCC, UL, ATEX (II 3G Ex ec IIC T4 Gc), IECEx, cFMus
- Product status: regular delivery
-

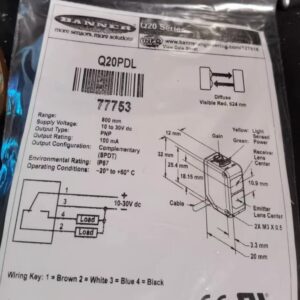

- Manufacturer: Banner Engineering
- Model / Part Number: Q20PDL
- Sensing mode: Long-range diffuse (proximity), 624 nm visible red; range 800 mm (32 in) on 90% reflectance test card
- Supply voltage: 10-30 V DC (10% max ripple) at less than 18 mA, exclusive of load
- Output: Complementary solid-state PNP (light operate + dark operate); max 100 mA with short-circuit protection
- Connection: Integral 2 m (6.5 ft) 4-wire unterminated cable
- Environmental rating: IP67, NEMA 4X; -20 to +60 deg C; 95% RH @ 50 deg C
- Construction: Overmolded ABS housing, PMMA lenses, PBT gain adjuster, rectangular thermoplastic body
- Adjustments / indicators: Single-turn gain potentiometer; power (green) and output (amber) LEDs with marginal-signal flashing
- Item status: RELEASED
-

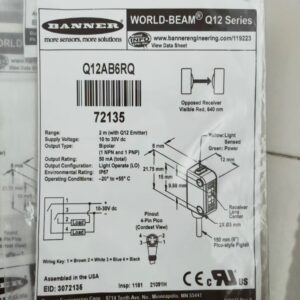

- Manufacturer: Banner Engineering
- Model / Part Number: Q12AB6RQ
- Sensing mode: Opposed mode receiver (effective beam 5.7 mm); 2 m (6.5 ft) range with matching Q12 emitter
- Supply voltage: 10-30 V DC (10% max ripple) at 20 mA maximum current
- Output: Light Operate (LO), bipolar: 1 PNP + 1 NPN solid-state outputs
- Connection: 150 mm (6 in) cable with 4-pin M8 pigtail quick disconnect
- Sensing beam: 640 nm visible red LED
- Output response time: 1.3 ms ON / 900 microseconds OFF (opposed mode)
- Switching frequency: 385 Hz (opposed mode)
- Environmental rating: IP67; thermoplastic housing; -20 to +55 deg C; 95% RH @ 50 deg C
- Housing: Compact 8 mm (0.31 in) rectangular thermoplastic housing, polycarbonate lens, LED indicators
- Item status: RELEASED
-

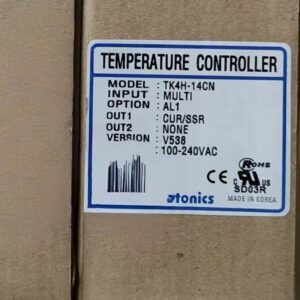

- Manufacturer: Autonics
- Model / Part Number: TK4H-14CN
- Display method: 4-digit 7-segment LED
- Control method: ON/OFF, P, PI, PD, PID
- Input specification (universal): Thermocouple K/J/E/T/B/R/S/N/C/G/L/U & Platinel II; RTD DPt100, DPt50, JPt100, Cu100, Cu50, Nickel 120 ohm; Analog 0-100 mV, 0-5 V, 1-5 V, 0-10 V, 0-20 mA, 4-20 mA
- Sampling cycle: 50 ms
- Control output 1: Selectable current (DC 0/4-20 mA) or SSR drive (11 VDC) output
- Option input / option output: Option input: CT, Digital (DI-1/2); Option output: Alarm 1
- Power voltage: 100-240 VAC~ 50/60 Hz
- Protection structure: IP65 (front panel)
- Display accuracy: TC/RTD: +/-0.3% or +/-1 deg C (+/-1 digit) at room temp (23+/-5 deg C); Analog: +/-0.3% F.S. +/-1 digit
- Ambient environment: -10 to 50 deg C (storage -20 to 60 deg C), 35-85% RH
- Insulation: Double or reinforced insulation; dielectric strength 2 kV between measuring input and power parts
- Weight: Approx. 141 g (unit only; approx. 211 g including packaging)
-
- Manufacturer: Autonics
- Model / Part Number: TC4S-24R
- Product type: Economical single-display digital PID temperature controller (TC4S series)
- Size (panel cutout): DIN W48 x H48 mm (1/16 DIN)
- Display method: 4-digit 7-segment LED
- Control method: ON/OFF, P, PI, PD, PID
- Input specification: Thermocouple K(CA), J(IC), L(IC); RTD DPt100 ohm, Cu50 ohm
- Sampling cycle: 100 ms
- Control output: Relay 250 VAC~ 3 A (SSR drive 12 VDC selectable on AC-voltage model: ON/OFF, phase, cycle)
- Option output: Alarm 1/2
- Power voltage: 100-240 VAC~ 50/60 Hz
- Display accuracy: (PV +-0.5% or +-1 degree C, higher one) +-1 digit at room temperature (TC and RTD)
- Environment: Ambient -10 to 50 degree C (storage -20 to 60 degree C), 35 to 85% RH
- Insulation / weight: Double or reinforced insulation, 2 kV AC dielectric; approx. 141 g (approx. 94 g unit only)
-

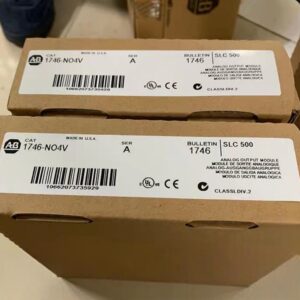

- Manufacturer: Allen-Bradley
- Model / Part Number: 1746-NO4V
- Product type: SLC 500 analog output module, 4 voltage outputs (single-slot)
- Output channels: 4 analog voltage outputs, not individually isolated
- Voltage output range: -10 to +10 V dc – 1 LSB (single range and scale)
- Output converter: 14-bit, R-2R ladder; resolution 1.22070 mV/LSB; full scale 10 V dc
- Load range: 1K ohm to infinity; maximum load current 10 mA; max load reactance 1 uF
- Accuracy: +-0.208% of full scale at 25 C; +-0.384% over 0 to +60 C
- Step response: 2.5 ms (at 95%)
- Backplane current draw: 55 mA at 5 V dc; 145 mA at 24 V dc; external 24 V dc +-10% (21.6-26.4 V) for some applications
- Isolation / update time: Field wiring to backplane 500 V dc; 512 us update, all channels in parallel
- Environment: Operating 0 to +60 C; storage -40 to +85 C; 5 to 95% RH non-condensing
- Lifecycle status: End of Life 2015-12-30; replacement option 1746-NO8V
-

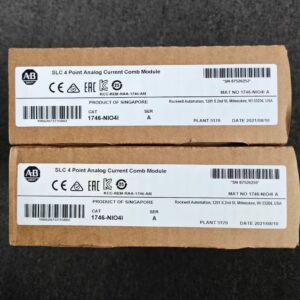

- Manufacturer: Allen-Bradley
- Model / Part Number: 1746-NIO4I
- Product type: SLC 500 combination analog I/O module (2 inputs + 2 current outputs), single-slot
- Input channels: 2 differential inputs, voltage or current selectable per channel, not individually isolated
- Current input range: -20 to +20 mA (normal); absolute maximum -30 to +30 mA
- Voltage input range: -10 to +10 V dc – 1 LSB
- Input converter: 16-bit; current resolution 1.22070 uA/LSB (250 ohm input impedance); voltage resolution 305.176 uV/LSB (1M ohm)
- Output channels: 2 analog current outputs, not individually isolated
- Current output range: 0 to +20 mA normal (0 to +21 mA – 1 LSB with 5% overrange)
- Output converter: 14-bit, R-2R ladder; resolution 2.56348 uA/LSB; load range 0 to 500 ohm
- Backplane current draw: 55 mA at 5 V dc; 145 mA at 24 V dc
- Isolation / update time: Field wiring to backplane 500 V dc; 512 us update, all channels in parallel
- Environment: Operating 0 to +60 C; storage -40 to +85 C; 5 to 95% RH non-condensing
- Lifecycle status: Discontinued (2021-04-29); repair options available; engineering replacement category
-
- Manufacturer: ABB
- Model / Part Number: ACS880-01-03A3-3
- Product type: LV AC industrial wall-mounted single drive (ACS880-01 series)
- Supply voltage: 3-phase 380…480 V AC (Un = 400 V)
- Nominal output current (I2N): 3.3 A
- Maximum output current (Imax): 4.1 A
- Nominal motor power (Pn): 1.1 kW (IEC, Un = 400 V)
- Nominal input current (I1): 3.3 A
- Apparent power (Sn): 2.3 kVA
- Light-duty rating (ILd / PLd): 3.1 A / 1.1 kW
- Heavy-duty rating (IHd / PHd): 2.4 A / 0.75 kW
- Frame size: R1
- Motor control: Direct torque control (DTC); supports induction and permanent magnet motors
- Safety: Safe Torque Off (STO) integrated as standard
-

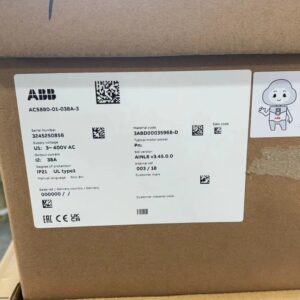

- Manufacturer: ABB
- Model / Part Number: ACS880-01-038A-3
- Product type: LV AC industrial wall-mounted single drive (ACS880-01 series)
- Supply voltage: 3-phase 380…480 V AC (Un = 400 V)
- Nominal output current (I2N): 38 A
- Maximum output current (Imax): 54 A
- Nominal motor power (Pn): 18.5 kW (IEC, Un = 400 V)
- Nominal input current (I1): 38 A
- Apparent power (Sn): 26 kVA
- Light-duty rating (ILd / PLd): 36 A / 18.5 kW
- Heavy-duty rating (IHd / PHd): 32 A / 15 kW
- Frame size: R3
- Motor control: Direct torque control (DTC); supports induction and permanent magnet motors
- Safety: Safe Torque Off (STO) integrated as standard
-
- Manufacturer: Beckhoff Automation
- Model / Part Number: EL2889
- Output channels: 16 digital outputs, ground switching
- Nominal voltage: 24 VDC (-15% / +20%)
- Rated output current: 0.5 A per channel
- Connection technology: 1-wire
- Switch-on time: Typically 50 µs
- Switch-off time: Typically 200 µs
- Electrical isolation: 500 V
- E-bus current consumption: Typically 140 mA
- Operating temperature: -25 to 60 °C
-
- Manufacturer: Beckhoff Automation
- Model / Part Number: EL2622
- Output channels: 2 relay outputs, make contacts
- Nominal voltage: 230 VAC / 30 VDC
- Switching current: 5 A per channel, ohmic load
- Inductive load: 2 A per channel
- Electrical isolation: 500 V
- E-bus current consumption: Typically 170 mA
- Dimensions: 12 x 100 x 68 mm
- Operating temperature: -25 to 55 °C
- Protection rating: IP20
-

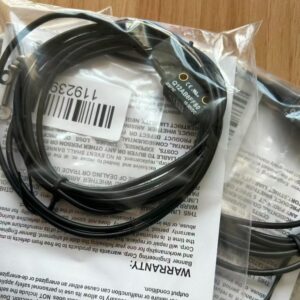

- Manufacturer: Banner Engineering
- Model / Part Number: Q12AB6FF50
- Sensing mode: Fixed-field background suppression
- Cutoff distance: 50 mm
- Focus distance: 16 mm
- Supply voltage: 10-30 VDC
- Output: Bipolar light-operate: 1 NPN and 1 PNP
- Connection: 2 m cable, 3-wire
- Sensing beam: Visible red LED
- Protection rating: IP67
- Housing style: Miniature rectangular thermoplastic housing
-

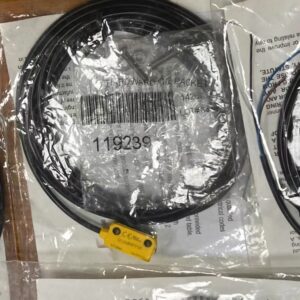

- Manufacturer: Banner Engineering
- Model / Part Number: Q12AB6FF30
- Sensing mode: Fixed-field background suppression
- Cutoff distance: 30 mm
- Focus distance: 16 mm
- Supply voltage: 10-30 VDC
- Output: Bipolar light-operate: 1 NPN and 1 PNP
- Connection: 2 m cable, 3-wire
- Sensing beam: Visible red LED, 640 nm
- Response time: 0.85 ms ON/OFF
- Protection rating: IP67
- Operating temperature: -20 to 55 °C
-

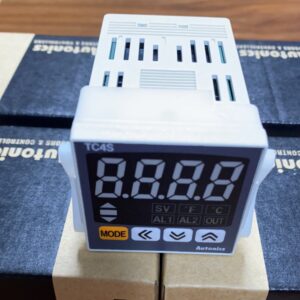

- Manufacturer: Autonics
- Model / Part Number: TC4S-14R
- Panel size: DIN 48 x 48 mm
- Display: 4-digit 7-segment LED
- Control method: ON/OFF, P, PI, PD or PID
- Input types: K, J and L thermocouples; DPt100 and Cu50 RTDs
- Sampling period: 100 ms
- Control output: Relay 250 VAC 3 A or 12 VDC SSR drive
- Optional output: Alarm 1
- Supply voltage: 100-240 VAC, 50/60 Hz
- Ambient temperature: -10 to 50 °C
-

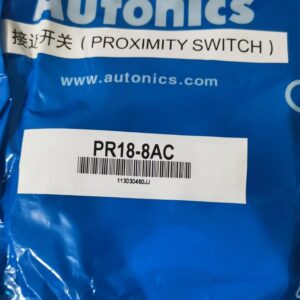

- Manufacturer: Autonics
- Model / Part Number: PR18-8AC
- Type: Cylindrical inductive proximity sensor
- Sensing side diameter: 18 mm
- Sensing distance: 8 mm
- Installation: Non-flush
- Standard sensing target: 25 x 25 x 1 mm (iron)
- Response frequency: 20 Hz
- Power voltage: 100…240 VAC~ 50/60 Hz (operating 85…264 VAC~)
- Control output: 5 to 200 mA; leakage current max. 2.5 mA
- Indicator: Operation indicator (red LED)
- Protection circuit: Surge protection circuit
- Unit weight: approx. 118 g
