Showing 33–48 of 1316 resultsSorted by latest
-
REQUEST A QUOTE
- Manufacturer: CHIMEI
- Model / Part Number: G104X1-L03
- Display Size: 10.4 inches (diagonal)
- Resolution: 1024 × 768 pixels (XGA format)
- Aspect Ratio: 4:3
- Active Area: 210.4 x 157.8 mm
- Bezel Area: 215.4 x 161.8 mm
- Interface Type: 30-pin, 1-channel LVDS (supports 6-bit or 8-bit color with FRC, displaying up to 16.2M colors)
- Brightness: 350 nits (typical)
- Contrast Ratio: 1200:1 (typical) (Note: Some supplier spec sheets list 1000:1)
- Viewing Angles: Ultra-wide 176° horizontal / 176° vertical (via Super MVA)
- Backlight: Built-in WLED system with an integrated LED backlight converter/driver module
- Response Time: 25 ms average (Ton + Toff)
- Color Saturation: 57% NTSC
- Operating Temperature: -20°C to 70°C
- Storage Temperature: -20°C to 80°C
- Input Voltage: 3.3V
- Special Functions: Supports 180-degree rotation display options natively.
-
REQUEST A QUOTE

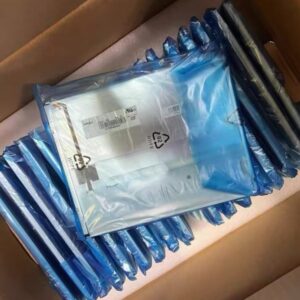

- Manufacturer: CHIMEI
- Model / Part Number: G104V1-T03
- Screen Size: 10.4 inches (4:3 aspect ratio)
- Resolution: 640 x 480 pixels (VGA)
- Display Technology: Super MVA (Normally Black, Transmissive)
- Brightness: 500 cd/m² (nits)
- Contrast Ratio: 1500:1
- Viewing Angles: 88° / 88° / 88° / 88° (Up/Down/Left/Right)
- Display Colors: 262K (6-bit color depth)
- Response Time: 13 ms
- Signal Interface Type: CMOS / TTL (1 channel, 6-bit)
- Pin Count: 31 pins
- Interface Connector Model: HRS DF9C-31P-1V
- Refresh Rate: 60 Hz
- Logic Power Consumption: 1.617 W (Typical)
- Backlight Type: WLED (White LED), Edge light type (Top side)
- LED Driver: Integrated / Built-in
- Backlight Life Time: 50,000 hours (Minimum)
-
REQUEST A QUOTE

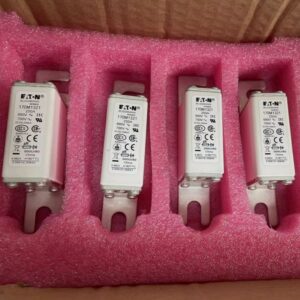

- Manufacturer: BUSSMANN
- Model / Part Number: 170M1321
- Amperage Rating: 250 A
- Voltage Rating: 690 V AC (IEC) / 700 V AC (UL)
- Interrupt Rating: 200 kA
- Operating Class: aR (Partial-range short-circuit protection for semiconductors)
- Body Size / Design: Size 000, Square Body
- Mounting Type: DIN 43 620 Type U/80 (Blade End)
- Indication: Non-Indicating (Note: The top-indicator version is model 170M1371)
- Physical Dimensions: 100 mm L x 21 mm W x 40 mm H
- Industrial & Automation Suppliers: Regional options with online ordering include Crescent Electric Supply Company, Eastern Industrial Automation, and McNaughton-McKay.
-
REQUEST A QUOTE

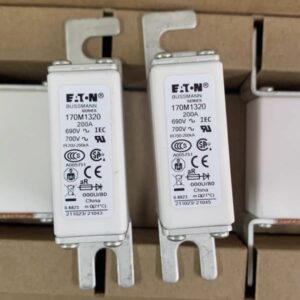

- Manufacturer: BUSSMANN
- Model / Part Number: 170M1320
- Current Rating: 200 A Eaton
- Voltage Rating: 690 V AC (IEC) / 700 V AC (UL) Eaton
- Interrupt Rating: 200 kA McNaughton-McKay
- Fuse Size & Body: Size 000, Square Body Eaton
- Utilization Category: aR (High-speed semiconductor protection) Eaton
- Mounting Type: DIN 43 653 (Bolt Mount) / Type U/80 Eaton / McNaughton-McKay
- Indicator: Non-Indicating / Type U/80 Visual McNaughton-McKay
- Dimensions: 21 mm W x 40 mm H x 100 mm L (Total Length 105 mm) Eaton
- Weight: 145.3 grams Eaton
- Compliances: CE Marked, RoHS Compliant, UL Recognized, IEC Rated Eaton
- Low Let-Through: Minimizes total clearing energy (I²t) to protect sensitive downstream semiconductors.
- Low Wattage Loss: Optimized performance design limits heat dissipation inside electrical enclosures.
- Cycling Capability: Engineered to withstand cyclic loading profiles standard in industrial drives.
-
REQUEST A QUOTE
- Manufacturer: BUSSMANN
- Model / Part Number: 170M1319
- Manufacturer: Eaton Bussmann Series The Reynolds Company
- Current Rating: 160 A EECO
- Voltage Rating: 690 V AC (IEC) / 700 V AC (UL) Eaton UK
- Interrupt Rating: 200 kA Standard Electric Supply
- Fuse Size / Body Type: Size 000 / Square Body EECO
- Utilization Category: aR (Partial-range semiconductor protection) EECO
- Mounting Type: DIN 43653 Stud Mount (Type U/80) The Reynolds Company
- Indicator Style: Non-Indicating (Visual indicator options exist under alternative codes) The Reynolds Company
- Frequency Rating: 45 to 1000 Hz Standard Electric Supply
- Dimensions: 21 mm W x 40 mm H x 100 mm L EECO
- Weight: 131 g (0.131 kg) EECO
- Compliances: CE Marked, RoHS Compliant, UL Recognized, IEC Rated EECO
- Low energy let-through: Minimizes downstream thermal damage to sensitive power semiconductors.
- Low watt loss: Optimizes operational efficiency inside dense electrical cabinets.
- Excellent DC performance: Provides robust clearing characteristics under severe fault conditions.
- Superior cycling capability: Engineered to reliably handle frequent load fluctuations.
-
REQUEST A QUOTE
- Manufacturer: BUSSMANN
- Model / Part Number: 170M1318
- Amperage Rating: 125 A
- Voltage Rating: 690 V AC (IEC) / 700 V AC (UL)
- Interrupting Rating (Breaking Capacity): 200 kA
- Class: aR (Partial-range semiconductor protection)
- Body Size / Type: Size 000, Square body
- Terminal Type: Slotted offset bolted tags (Type U/80)
- Indication: Non-indicating
- Frequency Range: 45 to 1000 Hz
- Specialty Automation Suppliers: Offers can also be found on electrical trade sites like Kempston Controls and WiAutomation.
-
REQUEST A QUOTE
- Manufacturer: BELIMO
- Model / Part Number: LR24AX-SR-T
- Model Type / Breakdown: LR24AX-SR-T (Type: LRA-T40) Aeliya Marine Tech
- Nominal Voltage: AC/DC 24 V (50/60 Hz) AC 19.2…28.8 V / DC 19.2…28.8 V
- Torque: 5 Nm Ideal for modulating ball valves
- Control Signal (Y): DC 0…10 V Operating range: DC 2…10 V
- Position Feedback (U): DC 2…10 V For electronic position indication (0…100%)
- Power Consumption: 1.5 W (Running) / 0.4 W (Holding) Wire sizing capacity: 3 VA
- Running Time: 90 seconds / 90° rotation Standard motor configuration
- Connection Type: Screw Terminals ("-T") Unprotected terminal strip/cover interface
- Enclosure Rating: IP54 / NEMA 2 Dust and splash-water resistant
- Ambient Temperature: -30°C to 50°C (-22°F to 122°F) Maintenance-free design
- Unit Weight: 420 grams (0.42 kg) Compact and lightweight build
- Simple Direct Mounting: Attaches directly to the ball valve using a single screw. The integrated position indicator doubles as a mounting tool.
- Manual Override: Features an external push button that temporarily disengages the gear train for manual adjustment.
- High Operational Safety: Overload protected with an automatic stop mechanism at the end stops; no mechanical limit switches required.
- Adjustable Rotation Angle: Mechanical end stops allow the default 90° angle of rotation to be customized.
-
REQUEST A QUOTE

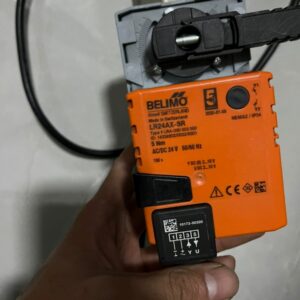

- Manufacturer: BELIMO
- Model / Part Number: LR24AX-SR
- Nominal Voltage: AC/DC 24 V, 50/60 Hz
- Operating Range: AC/DC 19.2 to 28.8 V
- Power Consumption (Running): 1.5 W
- Power Consumption (Holding): 0.4 W
- Transformer Sizing: 3 VA (wire sizing)
- Electrical Connection: 1-meter pre-installed cable (4 x 0.75 mm²)
- Torque: Minimum 5 Nm at nominal voltage
- Control Input (Y): DC 2…10 V (Input impedance: 100 kΩ)
- Position Feedback (U): DC 2…10 V
- Angle of Rotation: Maximum 90°, adjustable via mechanical end stops
- Running Time: 90 seconds for a 90° rotation
- Manual Override: External push-button (temporary or permanent gear disengagement)
- Direction of Rotation: Reversible switch setting (0/1 or Left/Right selection)
- Protection Class: Class III (safety extra-low voltage)
- Enclosure Rating: IP54 (NEMA 2, UL Enclosure Type 2)
- Ambient Temperature: -30°C to 50°C [-22°F to 122°F]
-
REQUEST A QUOTE
- Manufacturer: BELIMO
- Model / Part Number: LR24AX-S-TP
- Torque Output: 5 Nm (45 in-lb).
- Control Type: Open/Close or 3-point floating control.
- Angle of Rotation: 90°.
- Running Time: 90 seconds for a full 90-degree rotation.
- Enclosure Rating: IP54 / NEMA 2 (when properly mounted with terminal cover).
- Manual Override: Temporary gear disengagement via an integrated external push-button.
- Ambient Temperature Range: -30°C to 50°C (-22°F to 122°F).
- Terminal Block Integration: The -TP designation indicates screw terminals. You must remove the plastic terminal cap to route your 3-wire control lines.
- Auxiliary Switch Wiring: The built-in -S switch provides a dry contact that changes state at a fixed angle. This is commonly wired back to a Building Management System (BMS) or used to interlock an exhaust fan or pump.
-
REQUEST A QUOTE

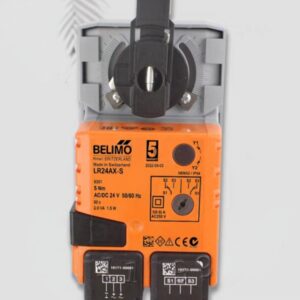

- Manufacturer: BELIMO
- Model / Part Number: LR24AX-S
- Nominal Voltage: AC/DC 24 V, 50/60 Hz
- Nominal Voltage Range: AC 19.2…28.8 V / DC 19.2…28.8 V
- Power Consumption (Running): 1.5 W
- Power Consumption (Holding): 0.2 W
- Power Consumption for Wire Sizing: 2 VA
- Integrated Auxiliary Switch: 1x SPDT (Single Pole Double Throw), adjustable 0…100%
- Electrical Connection: Pre-wired with 1-meter cables (3 × 0.75 mm²) for both supply/control and the auxiliary switch.
- Torque: Minimum 5 Nm at nominal voltage
- Control Type: Open/close or 3-point
- Running Time (Motor): 90 seconds for a 90° rotation (90 s / 90°)
- Manual Override: Temporary or permanent gear disengagement via a built-in, lockable push-button
- Sound Power Level: Maximum 35 dB(A) without the valve attached
- Position Indication: Mechanical, add-on indicator
- Protection Class: Class III Safety Extra-Low Voltage (SELV)
- Degree of Protection: IP54 in any mounting position / NEMA 2 / UL Enclosure Type 2
- Ambient Temperature Range: -30°C to 50°C (-22°F to 122°F)
-
REQUEST A QUOTE

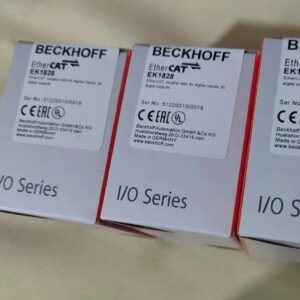

- Manufacturer: BECKHOFF
- Model / Part Number: EK1828
- Integrated Inputs: 4 x 24 V DC, Filter 3.0 ms, Type 1/3
- Integrated Outputs: 8 x 24 V DC, 0.5 A max per channel (short-circuit proof)
- Bus Interface: 2 x RJ45 sockets (100 Mbit/s Fast Ethernet)
- E-Bus Current Supply: 1000 mA (5 V DC max)
- Wiring Technology: 1-wire system using direct plug-in push-in technique
- E-Bus Power Budget: The coupler provides up to 1000 mA to downstream EtherCAT modules. If your connected slice terminals exceed this limit, an external power feed terminal like the Beckhoff EL9410 must be added.
-
REQUEST A QUOTE

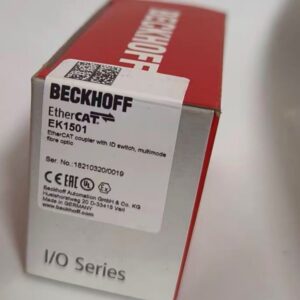

- Manufacturer: BECKHOFF
- Model / Part Number: EK1501
- Data Transfer Rate: 100 Mbit/s (Full Duplex)
- Delay (Latency): Approx. 1 µs
- Power Supply: 24 V DC (-15 % / +20 %)
- E-Bus Current Supply: Max. 5 V DC / 2,000 mA
- Power Contacts: Max. 24 V DC / Max. 10 A
- Electrical Isolation: 500 V (power contact / supply voltage / Ethernet)
- Operating Temperature: -25 °C to +60 °C
- Protection Rating: IP20
-
REQUEST A QUOTE
- Manufacturer: BECKHOFF
- Model / Part Number: EK1122
- Task within System: Coupling of EtherCAT junctions
- Data Transfer Rate: 100 Mbit/s (100BASE-TX)
- Connection Technology: 2 x RJ45 sockets
- Data Transfer Medium: Ethernet/EtherCAT cable (min. Cat. 5), shielded
- Distance Between Stations: Up to 100 meters
- Network Latency / Delay: Approx. 1 microsecond (µs)
- Topology Support: Star topology, modular star hubs (by combining multiple units)
- Hot Connect Support: Yes (coupling/uncoupling segments during system operation)
- Protocol: EtherCAT
- Status Indicators: Run LED, Link/Activity LEDs on RJ45 ports
- Approvals: CE, UL
-
REQUEST A QUOTE

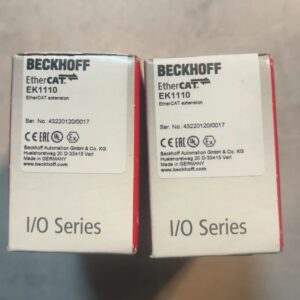

- Manufacturer: BECKHOFF
- Model / Part Number: EK1110
- Function: Conversion of E-bus signals to 100BASE-TX Ethernet NEX Instrument Inc
- Data Transfer Rate: 100 Mbps PLC Parts Solution
- Bus Interface: 1 × RJ45 socket Beckhoff USA
- Power Supply: Directly from the E-bus (No external power needed) Beckhoff USA
- Current Consumption: Approx. 130 mA from E-bus PLC Parts Solution
- Electrical Isolation: 500 V (supply voltage / Ethernet) NEX Instrument Inc
- Configuration: None required (No parameterization necessary) Beckhoff USA
- Protection Rating: IP20 PLC Parts Solution
- Mounting: 35 mm DIN rail (conforming to EN 60715) NEX Instrument Inc
- Approvals / Markings: CE, UL, ATEX (Ex marking: II 3 G Ex nA IIC T4 Gc) NEX Instrument Inc
-
REQUEST A QUOTE
- Manufacturer: BANNER
- Model / Part Number: OTBVP6QDH
- Operation: Momentary action (activated only while the infrared beam in the yoke area is broken).
- Input Voltage: 10–30 V DC (12–24 V DC nominal).
- Connection Type: Integral 4-pin M12 Euro-style quick-disconnect (QD) connector.
- Housing Materials: Highly durable Polysulfone upper housing with a thermoplastic polyester base.
- Environmental Rating: NEMA 1, 3, 4, 4X, 12, 13, and IP66 moisture/dust protection.
- Operating Temperature: -20 °C to +50 °C (-4 °F to 122 °F).
- Field Cover: Standard black field cover included to minimize accidental activations from ambient debris or dropped items.
-
REQUEST A QUOTE
- Manufacturer: BANNER
- Model / Part Number: OTBVP6QD
- Manufacturer: Banner Engineering
- Part Number: 28590
- Operating Voltage: 10–30 V DC (12–24 V DC Nominal)
- Output Type: Complementary PNP (1 Normally Open / 1 Normally Closed)
- Action Type: Momentary
- Connection Type: 4-pin 7/8"-16UN-2B MINI-style Quick Disconnect (Integral QD)
- Housing Materials: Polysulfone upper housing / Thermoplastic Polyester (Valox®) base
- Field Cover Color: Black
- Mounting Size: 30 mm threaded base (Flush mountable)
- Environmental Rating: IP66 / NEMA 1, 3, 4, 4X, 12, 13
- Certifications: CE, cULus Listed, CSA
- Operation Principle: The solid-state output activates as long as an object (such as a finger) is placed into the saddle/yoke area and interrupts the infrared sensing beam. No physical pressure is required.
- Required Cable: Quick disconnect models require a matching MBCC-412 cable (Part Number: 25226), which must be purchased separately.
- LED Diagnostics: Built-in LED lights indicate when power is on and when the output is actively triggered.
