- Manufacturer: Allen-Bradley
- Model / Part Number: 1746-ITB16
- Product type: SLC 500 16-channel fast-response DC sinking input module
- Input channels: 16
- Input voltage: 24 V DC (10…30 V DC range)
- Input type: DC sinking
- Isolation: 500 V DC communication isolation
- Power dissipation: 0.2 W per point, 3.6 W total (per 1746-IN027)
-
- Manufacturer: Allen-Bradley
- Model / Part Number: 1734-OE2V
- Product type: POINT I/O 2-channel analog output module (voltage)
- Output channels: 2 single-ended non-isolated voltage outputs
- Resolution: 14 bit (13 + sign), 1.28 mV/count
- Output range: 0…10 V (+10 V configurable)
- Load current: 3 mA per output
- Module power: POINTBus 75 mA at 5 V DC; external 24 V DC (10…28.8 V) 35 mA, 1.0 W
- Isolation: 50 V continuous, 2200 V DC for 60 s
- Dimensions: 56.6 x 12.1 x 77.5 mm, approx. 36 g
- Keyswitch position: 4
-
- Manufacturer: ABB
- Model / Part Number: ACS880-01-032A-3
- Supply voltage: 3-phase 380…480 V AC
- Nominal input current (I1): 32 A
- Nominal output current (I2N): 32 A
- Maximum output current (Imax): 42 A
- Nominal motor power (Pn): 15 kW
- Apparent power (Sn): 22 kVA
- Light-duty output: 30 A / 15 kW
- Heavy-duty output: 25 A / 11 kW
- Frame size: R3
-
- Manufacturer: ABB
- Model / Part Number: ACS880-01-02A4-3
- Supply voltage: 3-phase 380…480 V AC
- Nominal input current (I1): 2.4 A
- Nominal output current (I2N): 2.4 A
- Maximum output current (Imax): 3.1 A
- Nominal motor power (Pn): 0.75 kW
- Apparent power (Sn): 1.7 kVA
- Light-duty output: 2.3 A / 0.75 kW
- Heavy-duty output: 1.8 A / 0.55 kW
- Frame size / enclosure: R1, IP21
-
REQUEST A QUOTE

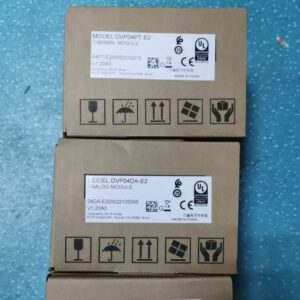

- Manufacturer: DELTA
- Model / Part Number: DVP04PT-E2
- Compatible Series: Delta DVP-ES2 / DVP-EX2 PLC systems
- Input Channels: 4 independent RTD channels
- Supported Sensors: Pt100, Pt1000, Ni100, Ni1000 (3-wire recommended)
- Digital Resolution: 16-bit digital signal conversion
- Temperature Resolution: 0.1°C (0.18°F)
- Conversion Speed: 200 ms per channel
- Overall Accuracy: ±0.6% across full scale
- Power Supply: 100 to 240 VAC (via the MPU) or external 24 VDC depending on system layout
- Power Consumption: 30 VA Max
- Terminal Type: European standard removable terminal block (5 mm pitch)
- Flexible Communication: Data registers can be read or written directly using FROM / TO PLC instructions, or over an RS-485 network via Modbus ASCII/RTU.
- Built-in PID Loops: Supports localized PID control loops for automated temperature regulation without heavy PLC code overhead.
- Status Indicators: Equipped with built-in LED indicators for POWER, ERROR, and A/D conversion status tracking.
- No I/O Mapping Impact: Up to 8 expansion units can be added to a single MPU without consuming any digital input or output points.
- Sensor Connection: Use 3-wire RTD sensors to compensate for line resistance and prevent measurement errors.
- Noise Mitigation: Keep analog sensor wires isolated from high-voltage AC power cables to prevent electromagnetic interference.
-
REQUEST A QUOTE
- Manufacturer: DELTA
- Model / Part Number: DVP04DA-SL
- Output Channels: 4 independent channels (CH1 to CH4).
- Voltage: -10V to +10V.
- Current: 0 to 20mA / 4 to 20mA.
- Power Supply: +24VDC (-15% to +20%), consuming roughly 3.5W.
- Module Position: It is a Left-Side (SL) High-Speed Module, meaning it mounts to the left of compatible DVP-series PLC CPUs (such as the DVP-SV or DVP-SX2 series) for high-speed data transmission via the parallel bus.
- Wiring Connection: Equipped with a convenient, removable terminal block.
- Instruction: Configurations and data writes are executed using the TO instruction in ladder logic.
- Addressing: Because it connects to the left side of the CPU, its special module position index typically starts at 100 (e.g., 100 for the first left-side module, 101 for the second).
- Registers: Specific registers control the output mode settings (voltage vs. current) and hold the digital values to be converted into analog signals.
-
REQUEST A QUOTE
- Manufacturer: DELTA
- Model / Part Number: DVP04AD-SL
- Channels: 4 independent input channels (voltage or current selectable per channel).
- Resolution: 16-bit A/D conversion.
- Conversion Time: 250 μs per point / channel.
- Power Supply: +24VDC (-15% ~ +20%), 3.5W maximum power consumption.
- Digital Range: Standardized to values of -8,000 ~ +8,000 (or up to 16-bit equivalents depending on the software application setup).
- Device Type: Open-type device meant for installation inside a protected control cabinet.
- Input Type: Configuration Ranges Resolution
- Voltage Input: -10V to +10V, -5V to +5V, 0V to 10V, 1V to 5V 312.5 µV
- Current Input: -20mA to +20mA, 0mA to 20mA, 4mA to 20mA 625 nA
- Left-Side (SL) High-Speed Bus: Connects directly to the left side of compatible master PLCs to bypass slower standard extension channels.
- Control Registers (CR): Configuration and measurement tracking are achieved by mapping the module's internal Control Registers.
- Instructions: Data transfer is programmed using the standard FROM and TO instructions in Delta's ISPSoft or WPLSoft environment.
- Key features: * Conversion time: 250 ¼ / point. * Output: 0-10V, -10-10V, 4-20mA, 0-20mA. * Analog I/O extension modules (left sid…
-
REQUEST A QUOTE

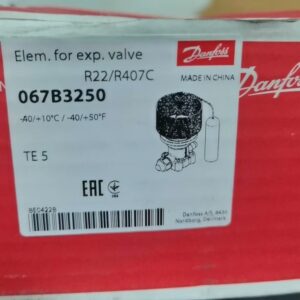

- Manufacturer: DANFOSS
- Model / Part Number: 067B3250
- Compatible Refrigerants: Optimized for R22 and R407C systems.
- Temperature Regulation: Operates on the standard Range N envelope, spanning -40°C to +10°C (-40°F to +50°F).
- Capillary Tube Length: Includes a 118-inch (3,000 mm) laser-welded stainless steel capillary tube.
- Equalization Connection: Features a 1/4-inch Flare external equalization connection to compensate for system pressure drops.
- Maximum Working Pressure (MWP): Rated for 28 bar (400 psig).
- Body Material: Durable brass valve base alignment with laser-welded element structure.
-
REQUEST A QUOTE

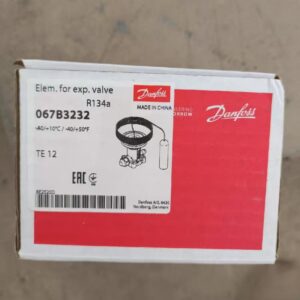

- Manufacturer: DANFOSS
- Model / Part Number: 067B3232
- Refrigerant Type: R134a
- Temperature Range: -40°C to 10°C (-40°F to 50°F)
- Capillary Tube Length: 118 inches (3,000 mm)
- Pressure Equalization: Externally equalized
- Equalization Connection: 1/4-inch Flare connection
- Maximum Working Pressure: 400 psig (28 bar)
- Parts Program Series: TE 12
- Body Material: Brass
- Condition: Brand new.
- Shipping: Eligible for free shipping options.
- Policy: 30-day return window.
-
REQUEST A QUOTE
- Manufacturer: DANFOSS
- Model / Part Number: 067B3227
- Compatible Refrigerants: Engineered specifically for R22 and R407C systems.
- Temperature Operating Range: Measures from -40°C to 10°C (-40°F to 50°F).
- Pressure Equalization: Externally equalized via a 1/4-inch flare connection.
- Capillary Tube Length: Features a 3000 mm (3-meter / ~118 inches) capillary line attached to a brass body.
- Charge Type: Range N with a Maximum Operating Pressure (MOP) charge of +15°C.
-
REQUEST A QUOTE
- Manufacturer: DANFOSS
- Model / Part Number: 067B3211
- Specification Field: Technical Data
- Product Type / Series: TEX 12 Thermostatic Element (TE 5 – TE 55 parts program)
- Compatible Refrigerants: R22 / R407C
- Pressure Equalization: Externally equalized via a 1/4-inch Flare connection
- Capillary Tube Length: 118 inches (3,000 mm)
- Maximum Working Pressure: 400 psig (28 bar)
- MOP (Max Operating Pressure): MOP 20 (-5°F / -20°C)
- Temperature Range: -60°C to -25°C (-75°F to -15°F)
- Body Material: Brass (laser welded for an extended lifetime)
- Modular Component: This is an element (power head) only, part of Danfoss's interchangeable parts program. It must be paired with a compatible TE 12 valve body and the appropriate orifice size to construct a complete operational expansion valve.
- External Equalization: The external equalizer line senses pressure directly at the evaporator outlet, neutralizing the effect of any pressure drops across the evaporator coils for far more accurate superheat control.
-
REQUEST A QUOTE
- Manufacturer: DAIKIN
- Model / Part Number: KFD-325-70-8C2
- Part Numbers: 5017652 (Primary), 5016324, 2538407, or 168668 (older substituted part)
- Input Voltage: DC 325V
- Power Output: 70 Watts
- Motor Poles: 8 Poles (8P)
- Rated Speed: 850 RPM
- Interchangeability: It is physically and functionally identical to the KFD-325-70-8A model, except the 8C2 variant includes a wire cable that is roughly 200mm longer, making it highly versatile for replacements.
- Daikin VRV / Multi-Split Series: RXYSQ models (including RXYSQ4TAV1B, RXYSQ5TAV1B, RXYSQ6TAV1B).
- Commercial Outdoor Inverters: RMXS140DV2C, RMXS160DV2, and RZQS100D7V1B.
- Isolate Power: Completely turn off the electrical mains to the outdoor unit.
- Disconnect the Plug: Locate the motor's control plug on the main PCB board. Release the safety prongs to pull the wiring harness out.
- Identify Wire Configuration: The plug features a multi-pin block containing a Red wire, a gap space, and then Blue, Brown, Orange, and White wires.
- Test Resistance Points: Measure the resistance between the following colors:
- Red to Blue: Should read high impedance (over 100 kΩ). If it reads open or shows no value, swap your multimeter prongs around to check the diode bias.
- Brown to Blue: Typically measures around 1,200 Ω (over 100 Ω).
- White to Blue: Typically measures in the megaohm scale (over 1 MΩ).
-
REQUEST A QUOTE
- Manufacturer: DAIKIN
- Model / Part Number: KFD-325-70-8A2
- Power Output: 70W
- Operating Voltage: 325V DC
- Rotational Speed: 850 RPM
- Motor Poles: 8P (8-Pole)
- Substitutes & Alternates: Often interchanges with part numbers 148557J, 2480811, 2551189, and 4015250.
- Heat Pumps: EBLQ-C, EDLQ-C, ERRQ-A, ERSQ-A, and RRLQ011-016CAW1 series.
- Air Conditioners / VRV Multi-Split: RXYSQ-T, RMXS160CMV2C, 4MKD100DVM, and RR140MY1 outdoor units.
-
REQUEST A QUOTE
- Manufacturer: DAIKIN
- Model / Part Number: KFD-280-74-8A
- Model Number: KFD-280-74-8A
- Operating Voltage: 280V DC (DC280V)
- Power Output: 74 Watts (74W)
- Number of Poles: 8 Poles (8P)
- Motor Type: Brushless DC Motor (BLDC) / Inverter Variable Speed
- Application: Outdoor Condenser Cooling Fan (Commercial and Residential HVAC units)
- Variable Speed Control: Works directly with the Daikin inverter control module to dynamically adjust fan rotation based on cooling demand, improving energy efficiency.
- Low Noise: Utilizes brushless DC technology to minimize operational vibration and noise.
- Product Summary: 1Pcs KFD-280-74-8A DC Outdoor Fan Motor,Compatible For Daikin,Air Conditioner Spare Parts * Drive fan blade rotat…
-
REQUEST A QUOTE
- Manufacturer: CHIMEI
- Model / Part Number: G121AGE-L03
- Screen Size: 12.1 inches diagonally
- Native Resolution: 800 × 600 pixels (SVGA aspect ratio)
- Display Technology: a-Si TFT-LCD with MVA mode
- Signal Interface: 20-pin, 1-channel LVDS
- Color Depth: Supports 262K or 16.2M colors
- Backlight System: White LED (WLED) backlight unit with integrated driver
- Operating Voltage: 3.3V nominal input
- Luminance: Standard brightness is typically around 450 to 500 nits
- Applications: Primarily found in indoor and outdoor control terminals, medical monitoring devices, public advertising displays, and marine or aviation instrumentation.
- Drop-in Replacements: It shares cross-compatibility or structural similarities with other 12.1-inch panels such as the G121S1-L01 and G121S1-L02.
- Modifications: Because it is popular in legacy systems, aftermarket upgrade kits exist to boost its backlight brightness from 500 nits to over 1300 nits for outdoor readability.
-
REQUEST A QUOTE

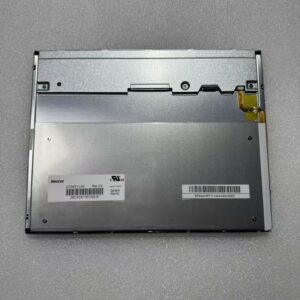

- Manufacturer: CHIMEI
- Model / Part Number: G104X1-L04
- Display Resolution: 1024 x 768 pixels (XGA format)
- Aspect Ratio: 4:3 traditional industrial ratio
- Luminance/Brightness: 500 nits (typical sunlight-readable profile)
- Contrast Ratio: 1200:1 (ultra-high clarity for industrial screens)
- Interface Type: LVDS (1 channel, 6/8-bit), 30 pins connector
- Display Colors: True 16.2 million colors (6-bit + FRC)
- Viewing Angles: 88° left / 88° right / 88° up / 88° down (Super MVA Technology)
- Operating Temperature: Extreme range from -30°C up to 80°C
- Input Voltage: 3.3V nominal logic power supply
- Backlight System: WLED with built-in converter module/driver
- Active Screen Area: 210.432 mm (Horizontal) x 157.824 mm (Vertical)
- Outline Dimension: 225.5 mm (Width) x 176.3 mm (Height) x 9.2 mm (Depth)
- Mounting Bolt Holes: 100 mm x 101.8 mm layout pattern
