Showing 49–64 of 1316 resultsSorted by latest
-
REQUEST A QUOTE

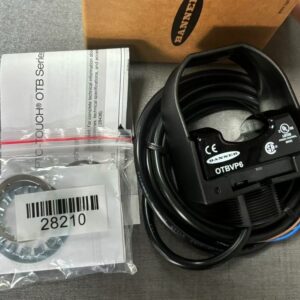

- Manufacturer: BANNER
- Model / Part Number: OTBVP6
- Operation Mode: Momentary action (active only while a finger interrupts the optical beam).
- Input Supply Voltage: 10–30 V DC (12–24 V DC nominal).
- Output Configuration: Complementary PNP solid-state output with both Normally Open (NO) and Normally Closed (NC) functions.
- Electrical Connection: Pre-wired with a 2-meter (6.5 ft) 4-wire integral cable terminating in bare flying leads.
- Housing & Materials: Saddle/yoke-shaped black housing featuring a Polysulfone upper housing and a Thermoplastic Polyester base.
- Environmental Protection: Rugged IP66 rating (also rated NEMA 1, 3, 4, 4X, 12, and 13) making it highly resilient in washdown environments.
- Field Cover: Includes a black field cover (F.C.) to prevent inadvertent activation from falling objects or side contact. (Note: A yellow field cover variant is available under part number 35094).
- Mounting Thread Size: 30 mm base/flush mounting hole.
- Operating Temperature: -20 °C to +50 °C (-4 °F to 122 °F).
- Status Indicators: Built-in dual LEDs indicating "Power On" and "Output Activated" conditions.
- Manufacturer Part Number: 28589.
- Official Documentation: Technical layout files, including 3D CAD data and the complete user manual, can be accessed directly on the Banner Engineering OTBVP6 Product Page.
-
REQUEST A QUOTE
- Manufacturer: AUTONICS
- Model / Part Number: PA10-U
- Input Logic: NPN open collector.
- Sensor Capacity: Connects up to 2 units simultaneously.
- External Sensor Power: Supply of 12VDC (approximately 200mA).
- Power Supply Voltage: 100–240VAC ~ 50/60Hz.
- Power Consumption: Maximum 10VA.
- Control Output Options: 1 Relay SPDT (1c) and 2 NPN open collector outputs.
- Mounting Options: Supports standard DIN rail or panel mounting.
- Logic Input Actions: Programmable Input signal reverse, OR/AND logic gating, and IN2 derivative actions.
- Built-in Timer Modes: Normal, ON delay, OFF delay, ON/OFF delay, and one-shot delay.
- Application Modes: Flicker, flicker one-shot, flip-flop (ideal for system level control), low-speed detection, high-speed detection, and encoder tracking.
-
REQUEST A QUOTE
- Manufacturer: AUTONICS
- Model / Part Number: MT4Y-DA-4N
- Measurement Type: DC Current
- Display Method: 4-digit, 7-segment LED display
- Display Range: -1999 to 9999
- Character Height: 14.2 mm
- Power Supply: 100–240 VAC (50/60 Hz)
- Dimensions: W72 x H36 mm (Panel cutout: 68 x 31.5 mm)
- Output Configuration: Indication only (No output)
- Programmable Input Specs: 0-5A, 0-2A, 0-500mA, 0-200mA, 0-50mA, 4-20mA, 0-5mA, 0-2mA
- High/Low-Limit Scale Function: Allows users to scale the display values relative to the specific high or low min/max DC input configurations.
- Peak Monitoring: Tracks and displays the maximum and minimum peak values monitored during operation.
- Display Customization: Features a display cycle delay function to smooth out rapid input fluctuations, alongside zero-point adjustment and peak display value correction.
-
REQUEST A QUOTE
- Manufacturer: AUTONICS
- Model / Part Number: MT4Y-DA-44
- Display Type: 4-digit, 7-segment red LED with a 14.2mm character height.
- Display Range: -1999 to 9999.
- Measurement Target: DC Current.
- Input Specifications: Selectable ranges including 0-5A, 0-2A, 0-500mA, 0-200mA, 0-50mA, 4-20mA, 0-5mA, and 0-2mA.
- Power Supply: 100–240 VAC (~50/60 Hz).
- Main Output: Relay contact output (LOW OUT).
- Sub Output: RS485 communication interface.
- Sampling Cycle: 50 ms.
- A/D Conversion Method: ΣΔ (Sigma Delta) ADC.
- Dimensions & Form Factor: DIN W72 x H36mm panel meter.
- Environment Limits: Operating temperature of -10°C to 50°C (Storage: -20°C to 60°C).
- Certifications: CE, cURus.
- High/Low Limit Scaling: Allows adjusting the display output relative to input ranges.
- Advanced Monitoring: Features peak display value monitoring and correction.
- Hold & Zero-Point Functions: Includes an external hold function and digital zero-point configuration adjustments.
-
REQUEST A QUOTE
- Manufacturer: AUTONICS
- Model / Part Number: MT4Y-AA-4N
- Display Method: 4-digit 7-segment red LED Character height: 14.2mm
- Measurement Range: -1999 to 9999 Max allowable input: 110% Full Scale
- Monitored Variables: AC Current & Frequency Frequency range: 0.1 Hz to 9999 Hz
- Current Input Specs: Multi-range selectable 0-5A, 0-2.5A, 0-1A, 0-500mA, 0-250mA, 0-100mA, 0-50mA
- AC Measurement Type: AVG or RMS Selectable Average value or Root Mean Square
- Supply Voltage: 100–240 VAC ~ 50/60Hz Power consumption: Max 5 VA
- Main Output: Indicator Pure indication unit (No relay/transmission outputs)
- Sampling Cycle: 16.6 ms Powered by a Sigma Delta (ΣΔ) ADC
- Dimensions: W72mm × H36mm panel size.
- Panel Cutout: 68mm (Width) × 31.5mm (Height).
- Operating Temperature: -10°C to 50°C (Storage: -20°C to 60°C).
- Ambient Humidity: 35% to 85% RH.
- Key Features: Zero-point adjustment, peak display value monitoring, high display correction, and external hold function.
-
REQUEST A QUOTE
- Manufacturer: ALLEN-BRADLEY
- Model / Part Number: 140MT-C3E-B63
- Current Range: Adjustable from 4.0 to 6.3 Amps.
- Frame Size: Frame Size C.
- Magnetic Trip: Standard fixed magnetic trip at 14 × Ie.
- Tripping Class: Trip Class 10 (trips in 10 seconds or less).
- Breaking Capacity: Standard performance/breaking capacity.
- Voltage Ratings: Rated for a maximum supply voltage of 690V AC (commonly used in 480V 60Hz systems).
- Physical Interface: Equipped with a rotary turn handle (On/Off) and standard screw terminals.
- Mounting Type: Built for standard 35mm DIN rail installation.
- Certifications: UL Listed as a Type E Manual Self-Protected Combination Motor Controller.
- Modular Assembly: It can be paired directly with Allen-Bradley 100-C and 100-E series IEC-rated contactors to build complete, space-saving combination motor starters.
- Accessories: Supports both front and side-mounted auxiliary contacts for signaling and control loop integration.
- Group Installations: Certified for group motor installations, allowing multiple motors to clear under a single Branch Circuit Protective Device (BCPD) to reduce total panel footprint and cost.
- Lifecycle status: Active MPCB, Standard Magnetic Trip (Fixed at 14 x le), 4.0 – 6.3 A, Std. Performance, Frame Size C Preferred 14…
-
REQUEST A QUOTE
- Manufacturer: ALLEN-BRADLEY
- Model / Part Number: 140M-C2E-B40
- Current Range: Adjustable from 2.5 to 4.0 A.
- Frame Size: C Frame.
- Number of Poles: 3-Pole design.
- Protection Type: Class 10 thermal-magnetic protection featuring adjustable thermal overload releases and fixed magnetic short-circuit trips.
- Breaking Capacity: Normal breaking capacity.
- Mounting Style: Standard DIN rail mount.
- Actuator Style: Rotary handle operation mechanism.
- Voltage Rating: Up to 600V / 690V AC at 50/60 Hz.
-
REQUEST A QUOTE
- Manufacturer: ALLEN-BRADLEY
- Model / Part Number: 100-D180D11
- Current Rating: 180 Amperes continuous current.
- Coil Voltage: Conventional AC operating coil rated for 110V AC at 50 Hz / 120V AC at 60 Hz.
- Power Ratings: Capable of handling motors up to 60 HP at 230V, 150 HP at 460V, or structural loads up to 101 kW.
- Auxiliary Contacts: Built-in configuration with 1 NO (Normally Open) + 1 NC (Normally Closed) contacts.
- Design & Mounting: Non-reversing type, open-style construction engineered for direct panel mounting with screw-type terminals.
-
REQUEST A QUOTE
- Manufacturer: ALLEN-BRADLEY
- Model / Part Number: 100-C12EJ10
- Amperage Rating: 12 A at 400V (AC-3), 32 A at 400V (AC-1), and a 12 A thermal current rating.
- Power & Horsepower Ratings: 5.5 kW at 400V AC-3. It is rated for 3 HP at 230V and 7.5 HP at 460V for 3-phase motor loads.
- Coil Voltage: 24V DC Electronic Coil (low power consumption, drawing roughly 1.7 W hold-in power).
- Contact Configuration: 3 Normally Open (N.O.) main power poles plus 1 N.O. integrated auxiliary contact.
- Termination & Mounting: Screw-type terminals with line side coil termination. Supports base panel mounting or installation on standard 35 mm DIN rails.
- Physical Protection: IP20 / IP2X finger protection.
- Environmental Limits: Operational range between -25°C and +60°C.
- Dimensions: 81 mm Height × 45 mm Width × 86.5 mm Depth; weighs approximately 0.4 kg.
- Compliance Standards: Certifications include UL, cUL, CSA, CE, CCC, C-TICK, GOST, and KC. It conforms to IEC/EN 60947-4-1 and 60947-5-1.
-
REQUEST A QUOTE
- Manufacturer: ABB
- Model / Part Number: ACS580-01-430A-4
- Model Number: ACS580-01-430A-4
- Global Product ID: 3AUA0000080510
- Power Rating: 250 kW (Normal Use / 400V) or 350 HP (Light Overload / 460V)
- Output Current: 430 A
- Input Voltage: 380 V to 480 V AC (3-Phase, 50/60 Hz)
- Enclosure Rating: IP21 / UL Type 1 standard
- EMC Filter: Integrated Category C2 filter
- Dimensions: 95.5 cm x 38.0 cm x 41.8 cm (H x W x D)
- Weight: 97 kg (213.8 lbs)
- Built-In Standard Features: Includes an intuitive setup assistant control panel, variable-speed cooling fans, and a built-in Safe Torque Off (STO) safety function.
- Protocol Support: Supports embedded Modbus RTU connectivity alongside option modules for PROFIBUS, EtherNet/IP, and PROFINET IO.
- Energy Management: Features integrated energy calculators that track hourly, daily, and cumulative energy savings.
- PLC Direct: Offers brand-new units with detailed component lists and full industrial application specifications on the PLC Direct Product Catalog.
- WiAutomation: Provides international shipping options for factory-new ABB frequency converters through the WiAutomation Online Store.
-
REQUEST A QUOTE
- Manufacturer: ABB
- Model / Part Number: ACS580-01-363A-4
- Input Voltage: 3-phase, 380V to 480V AC (Standard 400V rating).
- Current Rating: 363 A (Normal duty / Light overload).
- Heavy Duty Power: 160 kW (215 HP) at 293 A for high-overload applications.
- Light Duty Power: 200 kW (270 HP) to 345 A / 363 A for variable torque loads.
- Control Modes: Scalar (V/Hz) and Sensorless Vector control.
- Enclosure Rating: Typically standard IP21 (UL Type 1) wall-mount hardware.
- Physical Weight: Approximately 97 kg (214 lbs).
- All-In-One Built Features: Includes integrated EMC filters, a choke to mitigate harmonics, and Modbus RTU fieldbus connectivity as standard equipment.
- Assistant Control Panel: Uses an intuitive settings menu and computational setup assistants for straightforward commissioning, operation, and rapid error troubleshooting.
- Target Systems: Optimized for large-scale industrial pumps, fans, compressors, conveyors, mixers, and extruders.
- Primary Industries: Deployed globally across food and beverage processing, plastics manufacturing, textiles, agriculture, and material handling plants.
- Electrical Hazard Safety: Operators must wait at least 5 minutes after disconnecting the main power supply before touching internal components to let the capacitors discharge safely. Verify zero voltage with a calibrated meter.
- Circuit Board Cleaning: When clearing dust accumulation, technicians must utilize a specialized anti-static vacuum hose and nozzle. Normal household vacuum units create static discharges that permanently damage internal drive circuitry.
- Debris Extraction: Use clean, dry, oil-free compressed air from bottom to top, while keeping a vacuum running concurrently at the top exhaust to secure loose particulates.
-
REQUEST A QUOTE
- Manufacturer: ABB
- Model / Part Number: ACS580-01-293A-4
- Power Rating: 160 kW (215 HP) under normal/light-overload fan and pump configurations. It supports heavy-duty applications down to 132 kW (175 HP).
- Input Voltage: 3-phase, 380 V to 480 V AC (50/60 Hz).
- Enclosure Rating: IP21 (standard wall-mount configuration).
- Physical Footprint: Dimensions of approximately 39.3 cm x 30.0 cm x 96.5 cm with a baseline unit weight of 69 kg.
- Product ID / SKU: 3AUA0000080508.
-
The Autonics BYD100-DDT is a compact diffuse reflective photoelectric sensor from the BYD Series, designed for presence and object detection in confined machine spaces. It provides a 100 mm sensing distance against opaque and translucent materials using an infrared LED light source, and is built for a 12 to 24 V DC pow
-
The Autonics BX700-DFR is a universal AC/DC photoelectric sensor of the BX Series with a diffuse reflective sensing type and a long 700 mm sensing distance (measured against a 200 x 200 mm non-glossy white paper target). It detects opaque and translucent materials using an infrared LED light source with a 940 nm wavele
-

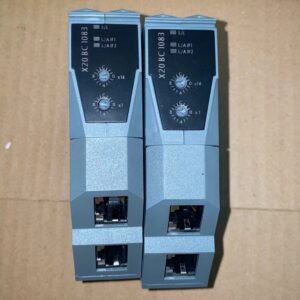

The B&R X20BC1083 is an expandable bus controller for the B&R X20 System that connects X2X Link I/O nodes to a POWERLINK (V1/V2) network as a controlled node. It integrates a two-port shielded RJ45 hub interface based on 100BASE-TX Fast Ethernet with a transfer rate of 100 Mbit/s and a maximum segment length of 100 m b
-

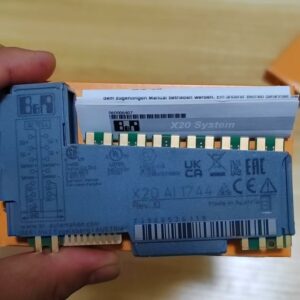

The B&R X20AI1744 is a single-channel full-bridge strain gauge input module for the B&R X20 distributed I/O system. It is designed to connect industrial strain gauge load cells and force or torque transducers using 4-wire or 6-wire bridge configurations and evaluates the differential bridge signal with a 24-bit sigma-d
