Showing 1–16 of 67 results
-
REQUEST A QUOTE

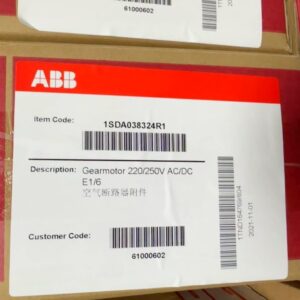

- Product Name: Geared Motor Device 220/250V E1/6-T8
- Model / Part Number: 1SDA038324R1
- EAN / Barcode: 8015644383244
- Current Type: Alternating Current (AC) / Direct Current (DC)
- Standard Compliance: IEC
- Configuration Type: Loose or configurable accessory component
- Customs Tariff / HS Code: 85389099
- Product Class: SACE Emax, SACE Tmax T
- Compatible Frame Sizes: E1, E2, E3, E4, E6, and T8
- Product Net Width: 125 mm (4.92 in)
ABB 1SDA038324R1 220-250V Geared Motor Operator (SACE).
-
REQUEST A QUOTE

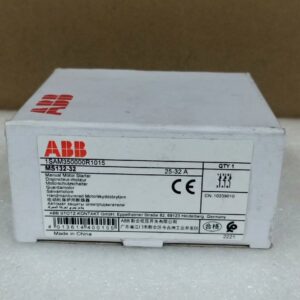

- Model / Part Number: MS132-32 / 1SAM350000R1015
- Current Setting Range: 25.0 to 32.0 A
- Trip Class: Class 10
- Number of Poles: 3P (3-Pole)
- Rated Operational Voltage: Up to 690 VAC
- Protection Degree: IP20 (Housing) / IP10 (Terminals)
- Operating Temperature: -25°C to +70°C
- Advanced Fault Indication: Unlike standard models (like the MS116), the MS132 features a separate, visual trip window that distinguishes between an overload trip and a short-circuit trip at a glance.
- Integrated Disconnect Function: Provides a reliable safety isolation mechanism that fully cuts off power downstream when switched to the "OFF" position.
- Lockable Rotary Handle: Built-in mechanism allows the handle to be padlocked directly in the "OFF" position for Lockout/Tagout (LOTO) safety compliance.
ABB MS132-32 Manual Motor Starter (MPCB) (MS132).
-
REQUEST A QUOTE

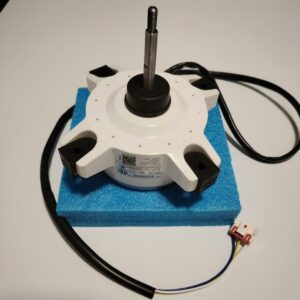

- Operating Voltage: 310V DC
- Power Output: 34W
- Rotational Speed: 1000 RPM
- Configuration: 8-Pole motor configuration
- Steering / Rotation: Reverse rotation
- Wiring Scheme: Three-wire setup typically consisting of White (WHI), Yellow (YEL), and Blue (BLU) lines
- Cross-Reference Part Numbers: RDN-310-34-8, ZKFN-34-8-1, WZDK3438GW, and RDN310348
- Product Summary: HEXEH WZDK34-38G-W RDN-310-34-8 Air Conditioning Outdoor Unit Fan Brushless DC Motor * Air conditioner fan motors…
BRUSHLESS WZDK34-38G-W BLDC Fan Motor (WZDK Series).
-
REQUEST A QUOTE

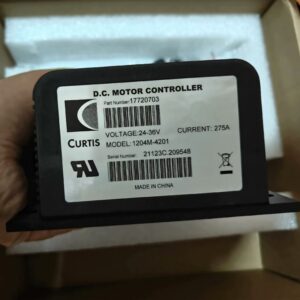

- Motor Compatibility: DC Series Winding Motors
- Nominal Battery Voltage: 24V or 36V (Note: It is the only model in the 1204M series featuring a 24V native option)
- Default Settings: 24V / 275A / 0-5kΩ
- Physical Dimensions: 174 mm × 146 mm × 77 mm (6.85" × 5.75" × 3.03")
- Weight: 2.3 kg (approx. 5.07 lbs)
- Programmability: Parameters can be completely customized using the Curtis 1313 Handheld Programmer or the 1314 PC Programming Station. This allows real-time diagnostics, testing, and adjustment of acceleration rates, current limits, and braking.
- Throttle Versatility: The universal logic board seamlessly integrates with multiple throttle configurations, including 0-5kΩ (default), 5k-0Ω, and 0-5V.
- System Protection: Features an internal plug braking diode, High Pedal Disable (HPD) to prevent accidental vehicle sudden movement on startup, and undervoltage cutback protection to safeguard the battery bank against deep discharge.
- Heavy Duty Architecture: Utilizes high-frequency switching for quiet operation, plated solid copper buses for robust power delivery, and an anodized aluminum extruded housing for maximum environmental defense.
- Confirm Throttle Type: Ensure the logic board is programmed to match your physical throttle type (e.g., standard 0-5kΩ pot box vs. a 0-5V electronic pedal). An incorrect throttle setting is the most common cause of a newly installed controller refusing to operate.
CURTIS 1204M-4201 DC Motor Speed Controller (1204M Series).
-
REQUEST A QUOTE
- Manufacturer: Daikin
- Primary Model Numbers: KFD-220-45B-3 / KFP-220-45B-3
- Daikin Part Numbers: 4015451, 0958767, 7157
- Motor Type: AC Fan Motor
- Output Power: 45W
- Key Features: Copper winding, sealed bearings, low vibration
- Isolate Power: Turn off the main electrical breaker dedicated to the HVAC system before opening the indoor unit housing.
- Remove Hardware: Disconnect the temperature thermistor probe and remove the dual ground (earth) screws at the top of the motor bracket.
- Unfasten and Unclip: Remove the single retention screw securing the motor assembly. Unclip the plastic top clips and unplug the dedicated fan wire loom/harness.
DAIKIN KFD-220-45B-3 AC Fan Motor (KFD Series).
-
REQUEST A QUOTE

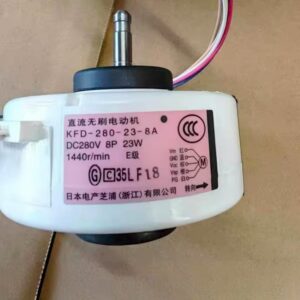

- Voltage: 280V DC
- Power Output: 23 Watts
- Rotational Speed: 1440 RPM (r/min)
- Motor Type: Brushless DC Motor (8 Poles / 8P)
- Control: Variable speed inverter-controlled for precise temperature regulation
- Replacement: When replacing this motor, you must access the side of the indoor blower assembly. Ensure you locate and loosen the specific set screw on the fan scroll hub that locks onto the motor spindle—loosen it just enough to slide the old motor shaft out, but avoid removing it completely so it doesn't get lost inside the housing.
- Product Summary: KFD-280-23-8A DC280 Indoor Unit DC Fan Motor Compatible With Daikin Air Conditioner * High Efficiency & Energy Sa…
DAIKIN KFD-280-23-8A Brushless DC Fan Motor (KFD Series).
-
REQUEST A QUOTE
- Manufacturer: DAIKIN
- Model / Part Number: KFD-280-33-8B
- Motor Type: BLDC variable-frequency fan motor
- Rated Power: 33 W
- DC Voltage Range: 280–380 V DC
- Speed Range: 300–1,500 rpm
- Nominal Speed: 1,000 rpm
DAIKIN KFD-280-33-8B BLDC Fan Motor. Contact us for product information and quotation.
-

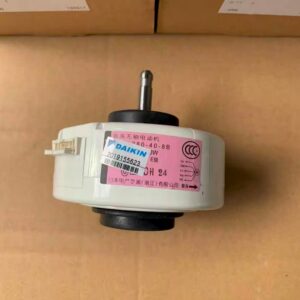

- Manufacturer: DAIKIN
- Model / Part Number: KFD-280-40-8B
- Voltage: DC 280V
- Rated Power: 40W
- Rotational Speed: 1640 r/min
- Motor Type: Brushless DC Motor (BLDC)
-
REQUEST A QUOTE

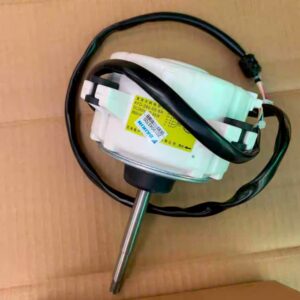

- Motor Type: Brushless DC (Variable Frequency) Outdoor Fan Motor
- Output Power: 66 W
- Operating Voltage: 280 V
- Pole Count: 8-Pole (-8A designation)
- Application: Condenser heat dissipation (Outdoor Unit)
- Daikin Genuine Spare Part ID: 2072018 or 4015260
- Alternative / Superseded Codes: Replaces older part number 1708648. An updated variant is also listed under 4015261.
- Red to Blue: Should read > 100 kΩ (If you see open loop or zero, reverse your meter leads; red probe on blue wire, black probe on red wire).
- Brown to Blue: Should read roughly > 100 Ω up to ~1.2 kΩ.
- White to Blue: Internal Vcc line, should read very high (> 1 MΩ).
DAIKIN KFD-280-66-8A DC Outdoor Fan Motor (KFD Series).
-
REQUEST A QUOTE

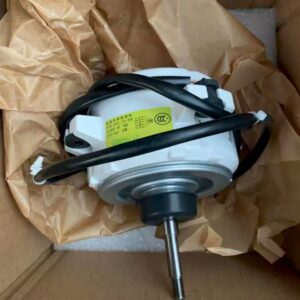

- Manufacturer: DAIKIN
- Model / Part Number: KFD-280-74-8A
- Model Number: KFD-280-74-8A
- Operating Voltage: 280V DC (DC280V)
- Power Output: 74 Watts (74W)
- Number of Poles: 8 Poles (8P)
- Motor Type: Brushless DC Motor (BLDC) / Inverter Variable Speed
- Application: Outdoor Condenser Cooling Fan (Commercial and Residential HVAC units)
- Variable Speed Control: Works directly with the Daikin inverter control module to dynamically adjust fan rotation based on cooling demand, improving energy efficiency.
- Low Noise: Utilizes brushless DC technology to minimize operational vibration and noise.
- Product Summary: 1Pcs KFD-280-74-8A DC Outdoor Fan Motor,Compatible For Daikin,Air Conditioner Spare Parts * Drive fan blade rotat…
-
REQUEST A QUOTE

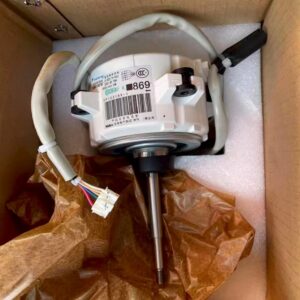

- Manufacturer: DAIKIN
- Model / Part Number: KFD-325-70-8A2
- Power Output: 70W
- Operating Voltage: 325V DC
- Rotational Speed: 850 RPM
- Motor Poles: 8P (8-Pole)
- Substitutes & Alternates: Often interchanges with part numbers 148557J, 2480811, 2551189, and 4015250.
- Heat Pumps: EBLQ-C, EDLQ-C, ERRQ-A, ERSQ-A, and RRLQ011-016CAW1 series.
- Air Conditioners / VRV Multi-Split: RXYSQ-T, RMXS160CMV2C, 4MKD100DVM, and RR140MY1 outdoor units.
-
REQUEST A QUOTE

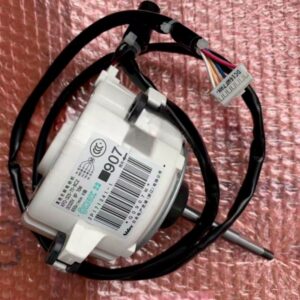

- Manufacturer: DAIKIN
- Model / Part Number: KFD-325-70-8C2
- Part Numbers: 5017652 (Primary), 5016324, 2538407, or 168668 (older substituted part)
- Input Voltage: DC 325V
- Power Output: 70 Watts
- Motor Poles: 8 Poles (8P)
- Rated Speed: 850 RPM
- Interchangeability: It is physically and functionally identical to the KFD-325-70-8A model, except the 8C2 variant includes a wire cable that is roughly 200mm longer, making it highly versatile for replacements.
- Daikin VRV / Multi-Split Series: RXYSQ models (including RXYSQ4TAV1B, RXYSQ5TAV1B, RXYSQ6TAV1B).
- Commercial Outdoor Inverters: RMXS140DV2C, RMXS160DV2, and RZQS100D7V1B.
- Isolate Power: Completely turn off the electrical mains to the outdoor unit.
- Disconnect the Plug: Locate the motor's control plug on the main PCB board. Release the safety prongs to pull the wiring harness out.
- Identify Wire Configuration: The plug features a multi-pin block containing a Red wire, a gap space, and then Blue, Brown, Orange, and White wires.
- Test Resistance Points: Measure the resistance between the following colors:
- Red to Blue: Should read high impedance (over 100 kΩ). If it reads open or shows no value, swap your multimeter prongs around to check the diode bias.
- Brown to Blue: Typically measures around 1,200 Ω (over 100 Ω).
- White to Blue: Typically measures in the megaohm scale (over 1 MΩ).
-
REQUEST A QUOTE

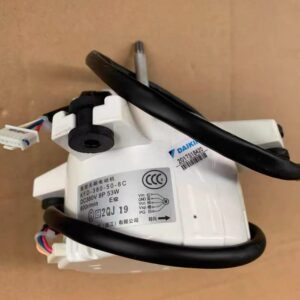

- Manufacturer: Daikin
- Daikin Part Numbers: 4015276, 5013791
- Alternative/Successor Part: KFD-380-50-8F (Part #5020670)
- Motor Type: Brushless DC (BLDC)
- Voltage Rating: DC 230V to DC 380V
- Power Output: 53 Watts (sometimes listed as 50W)
- Speed (RPM): 800 RPM
- Poles: 8-Pole (8P)
- Direction of Rotation: Clockwise (CW)
- Safety Certifications: CE, RoHS compliant
DAIKIN KFD-380-50-8C Brushless DC Fan Motor (KFD Series).
-
REQUEST A QUOTE

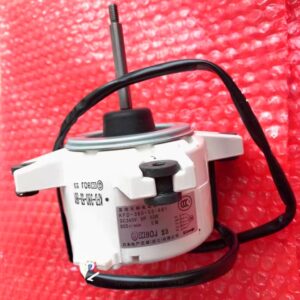

- Manufacturer: Daikin Industries
- Model Number: KFD-380-53-8B1
- Motor Type: Brushless DC Motor (BLDC) / Inverter Fan Motor
- Operating Voltage: 380V DC (DC380V)
- Output Power: 53 Watts (53W)
- Poles: 8-Pole (8P)
- Common Applications: 2 to 3 HP cabinet/ducted units, and outdoor condensing unit models (such as the RXD50CMVMC series).
- High Voltage Hazard: This motor operates on 380 Volts DC. DC voltages at this level hold dangerous electrical energy. Always disconnect the primary circuit breaker and verify that internal capacitors have completely discharged using a digital multimeter before touching any wires.
- Verify Part Revisions: Ensure your old motor matches the KFD-380-53-8B1 model precisely. Minor variations in the trailing characters (e.g., 8B vs 8B1 vs 8C1) can signify differences in wiring harness lengths, mounting bolt brackets, or communication protocols required by the main PCB board.
- Higher energy efficiency: Air conditioning DC motors are more energy-efficient than traditional AC motors, which can provide bette…
DAIKIN KFD-380-53-8B1 BLDC Outdoor Fan Motor (KFD Series).
-

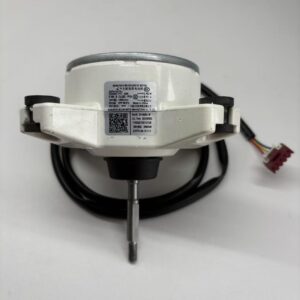

- Manufacturer: DAIKIN
- Model / Part Number: ZKFN-34-10-1
- Voltage: DC 310V
- Rated Power: 34 Watts
- Current: 0.16 Amps
- Rotational Speed: 1000 RPM (Rotations Per Minute)
- Shaft Diameter: 8 mm
- Rotation Direction: Counterclockwise (CCW) or Clockwise (CW) depending on the exact variant sub-code. (Note: Check your old motor's arrow to be sure).
-
- Manufacturer: Festo
- Model / Part Number: CMMO-ST-C5-1-DIOP 1512316
- Product type: Motor controller
- Type code: CMMO-ST-C5-1-DIOP
- Order code: 1512316
- GTIN: 4052568238001
- Product lifecycle: Phasing out since 03/2022; spare part only since 12/2022; discontinued 12/2026
- Functional replacement: CMMT-ST-C8-1C-EC-S0 (order code 8084005)
